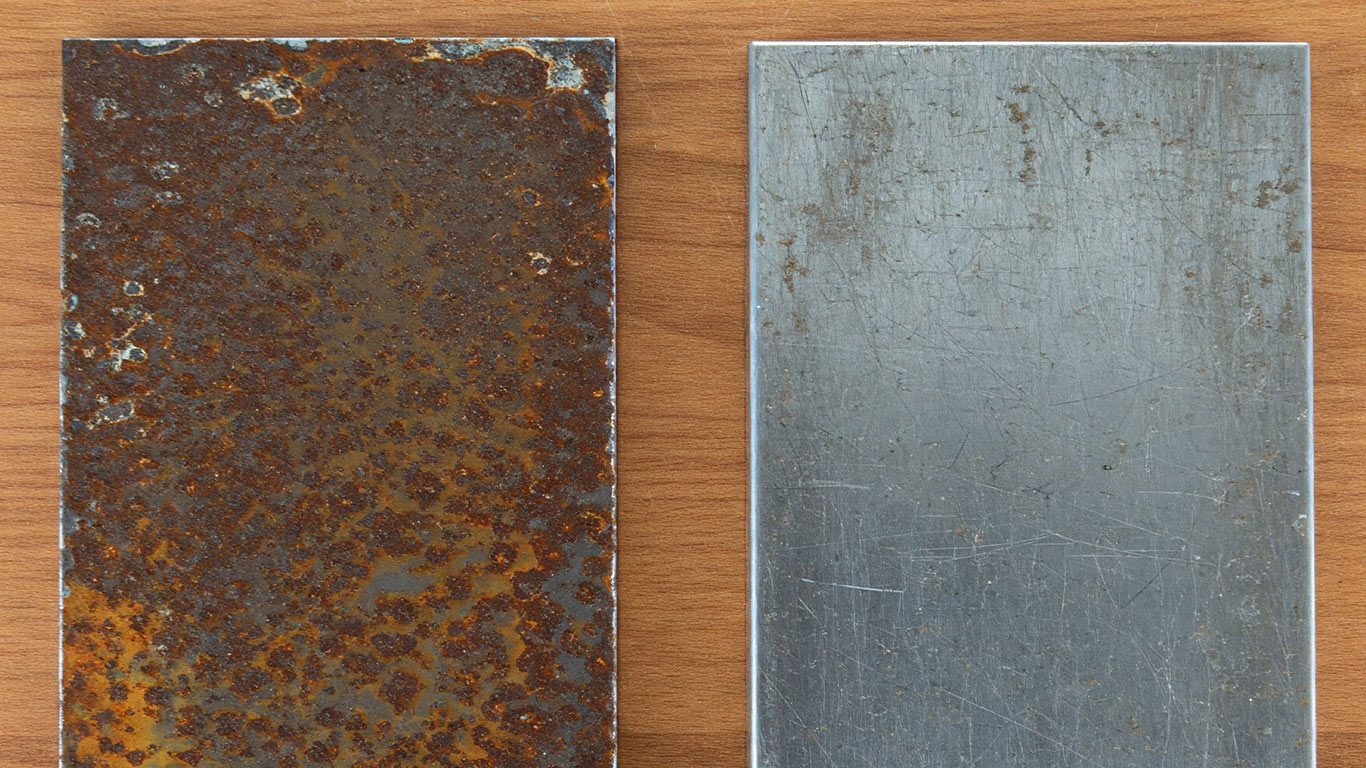

The microscopy of the contaminated cobalt surface reveals a textured landscape marred by clustered contaminants, including fine particulates and thin oxide scales. This surface shows evident degradation, with shallow pits and faded luster.

After Treatment

After laser cleaning, the cobalt surface looks smooth and contaminant-free. This restoration demonstrates strong material integrity, with no signs of thermal alteration or weakening. The metal retains its original properties, supporting effective use in general applications.

Cobalt Laser Cleaning FAQs

Can laser cleaning effectively remove cobalt-containing thermal barrier coatings from turbine blades without damaging the substrate?

Laser cleaning effectively removes cobalt-based thermal barrier coatings when using optimized 1064nm parameters. Maintaining fluence below 2.5 J/cm² with 50μm spot size preserves the nickel superalloy substrate. This approach outperforms mechanical methods by eliminating surface damage while achieving complete coating removal in approximately three passes.

What safety precautions are needed when laser cleaning cobalt-based alloys to prevent inhalation of toxic fumes?

When laser cleaning cobalt alloys at 1064 nm wavelength, implement high-efficiency fume extraction due to toxic submicron particles. Maintain exposure below 0.02 mg/m³ OSHA limits using powered air-purifying respirators with P100 filters. The 100W laser parameters generate inhalable fumes requiring local exhaust ventilation at the source.

How do laser parameters need to be adjusted when cleaning cobalt-chromium alloys compared to steel or aluminum?

For Co-Cr alloys, use a higher fluence threshold near 2.5 J/cm² compared to steel or aluminum due to their superior thermal resistance. A 1064 nm wavelength and nanosecond pulses are optimal to overcome surface reflectivity and ablate oxides without damaging the substrate.

Does laser cleaning create any surface modification or phase changes in cobalt superalloys that could affect material performance?

Properly tuned 1064nm nanosecond lasers at ~2.5 J/cm² fluence effectively remove cobalt oxides. The minimal heat-affected zone prevents significant phase changes, though some localized residual stress is possible. This preserves the superalloy's critical microstructural integrity.

What is the best laser cleaning approach for removing oxide layers from cobalt-based stellite surfaces without removing base material?

For cobalt stellite oxide removal, employ 1064nm nanosecond pulses at 2.5 J/cm² fluence. This threshold effectively ablates oxides while preserving the base alloy, maintaining surface integrity for critical applications.

Can laser cleaning be used to decontaminate cobalt-60 contaminated surfaces in nuclear applications?

Laser cleaning effectively removes Co-60 contamination from cobalt surfaces using 1064 nm wavelength and 2.5 J/cm² fluence. This process minimizes secondary waste compared to traditional chemical methods, offering superior radionuclide removal efficiency for nuclear decommissioning.

How does the high melting point and thermal conductivity of cobalt affect laser cleaning efficiency and parameter selection?

Cobalt's high melting point (1495°C) and thermal conductivity demand precise fluence control near 2.5 J/cm². We optimize nanosecond pulses and 500 mm/s scanning to rapidly ablate oxides while managing heat diffusion, preventing substrate damage.

What are the waste management considerations for cobalt particles generated during laser cleaning operations?

Cobalt debris requires hazardous waste classification due to toxic fine particles. Employ HEPA filtration rated for sub-micron capture, as our 50μm spot size at 100W generates significant aerosol. Always consult local regulations for disposal of this regulated metal.

Is laser cleaning suitable for preparing cobalt surfaces for thermal spray or welding applications?

Laser cleaning effectively prepares cobalt surfaces for thermal spray by removing oxides at 2.5 J/cm² without damaging the substrate. This method surpasses abrasive blasting in achieving superior cleanliness and surface activation, ensuring optimal adhesion for demanding applications in aerospace and medical devices. The process yields a highly active, contaminant-free surface.

How do you prevent the formation of cobalt oxide during laser cleaning of cobalt components?

Prevent cobalt oxide formation by maintaining an inert argon atmosphere during laser processing. Control thermal input using 100W average power and 2.5 J/cm² fluence to stay below the oxidation threshold. A final low-power pass can also be applied to ensure a pristine surface.
