Laser Absorption
Current value: 68.5 %. Range: 0.01 to 100 %. Progress: 68% of maximum.
68.5
%
Silicon Carbide Laser Cleaning
Precision laser cleaning preserves Silicon Carbide integrity
Yi-Chun LinPh.D.
Laser Materials Processing
Taiwan
Properties: Silicon Carbide vs. other semiconductors
Laser-Material Interaction
Material Characteristics
Other Properties
Machine Settings: Silicon Carbide vs. other semiconductors
Silicon Carbide surface magnification
Laser cleaning parameters for Silicon Carbide

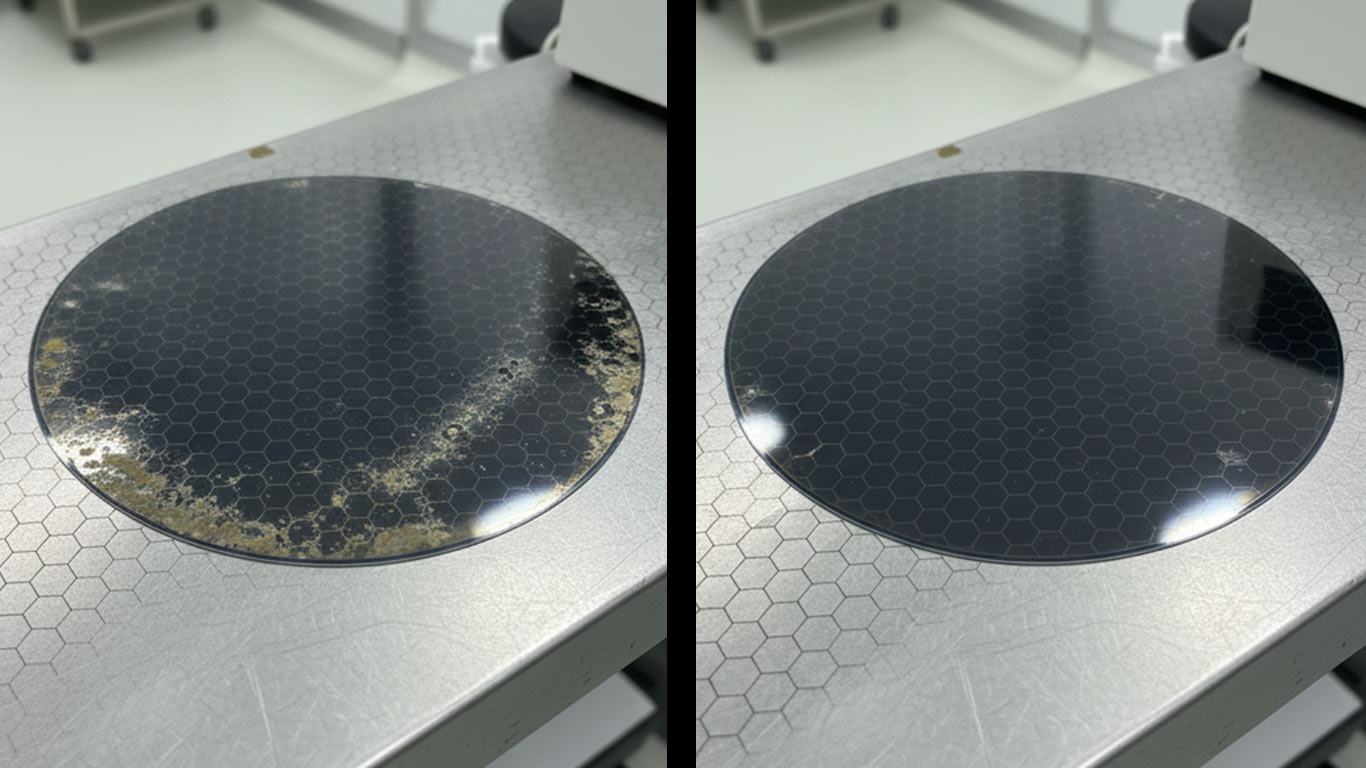

Before Treatment
Under microscopy, the Silicon Carbide surface shows heavy contamination with dark particles and oily residues scattered across it, and this leads to pitting and uneven degradation. The semiconductor material appears rougher, impacting its general cleaning uses.
After Treatment
After laser cleaning, the Silicon Carbide surface looks smooth and restored. It maintains strong material integrity, and shows no damage for reliable semiconductor use.
Silicon Carbide Laser Cleaning FAQs
What laser wavelengths are best for cleaning silicon carbide surfaces without causing thermal damage?
For silicon carbide cleaning, 1064 nm near-IR wavelengths from Nd:YAG or fiber lasers are ideal, as SiC absorbs efficiently here without excessive heat buildup, given its high thermal conductivity that risks cracking. Keep fluence at 2.5 J/cm² with 10 ns pulses to vaporize contaminants while sparing the substrate. This setup ensures uniform results in semiconductor applications.
How does the high hardness of silicon carbide impact the effectiveness of laser ablation in cleaning processes?
Silicon carbide's Mohs hardness of 9.5 renders it exceptionally resistant to laser ablation, necessitating a fluence threshold of 2.5 J/cm² for contaminant removal—far exceeding that for softer metals like aluminum. This toughness demands precise 1064 nm wavelength settings and 50% beam overlap to ensure clean, undamaged surfaces in semiconductor applications.
What are common contaminants on silicon carbide components that laser cleaning targets, such as in semiconductor or aerospace parts?
In semiconductor and aerospace SiC parts, laser cleaning effectively removes oxides, machining residues, and carbon deposits without damaging the substrate, thanks to its high selectivity. Using a 1064 nm wavelength and fluence above 2.5 J/cm² ensures precise ablation of these contaminants while preserving SiC's thermal stability. This approach is vital in electronics fabrication for maintaining surface integrity.
Is laser cleaning safe for silicon carbide used in high-temperature applications like turbine blades?
Yes, laser cleaning is safe for silicon carbide in high-temperature uses like turbine blades when using a 1064 nm wavelength and 2.5 J/cm² fluence to avoid microcracking its hexagonal structure or phase shifts. SiC's thermal shock resistance handles this well at 100 W power. Protect eyes with goggles and contain dust properly.
What pulse duration and energy density settings are recommended for fiber lasers when cleaning silicon carbide ceramics?
For cleaning silicon carbide ceramics with fiber lasers, I suggest 10 ns pulses at 2.5 J/cm² fluence to ablate contaminants effectively while controlling heat buildup and avoiding melting around 2700°C. Nanosecond durations outperform picoseconds for most SiC tasks, aligning with IPG Photonics guidelines for precision.
Can laser cleaning remove oxide layers from silicon carbide without introducing defects in its crystalline structure?
Yes, laser cleaning can effectively strip oxide layers from silicon carbide without damaging its crystalline structure, leveraging the material's inherent chemical inertness to resist unwanted reactions. Using a 1064 nm wavelength and fluence near 2.5 J/cm² ensures precise ablation while avoiding graphitization or sublimation, with SEM inspections verifying smooth, defect-free surfaces afterward.
What safety precautions are needed when laser cleaning silicon carbide in industrial settings, including fume handling?
For laser cleaning silicon carbide in industry, adhere to OSHA standards with Class 4-rated eyewear and enclosures at 1064 nm wavelength to shield against beam hazards. SiC's inert properties limit risks, yet use local exhaust ventilation to capture any released silicon particulates or volatile organics from contaminants, keeping exposure under 5 mg/m³.
How do the thermal properties of silicon carbide influence the choice of laser power for surface treatment and cleaning?
Silicon carbide's high thermal conductivity of 490 W/m·K promotes swift heat dissipation, allowing laser powers around 100 W for effective surface cleaning without damaging wafers. This, paired with low thermal expansion, helps prevent uneven heating and distortion in semiconductor applications. Aim for a fluence of 2.5 J/cm² to balance contaminant removal and material integrity.
What are the regulatory requirements for laser cleaning silicon carbide in automotive or aerospace manufacturing?
In automotive and aerospace sectors, laser cleaning silicon carbide demands ISO 11146 compliance for accurate beam characterization to prevent substrate damage. Traceability protocols are essential for engine components, tracking processes at 100 W power and 2.5 J/cm² fluence. Follow up with non-destructive testing to confirm surface integrity without compromising SiC's semiconductor qualities.
Regulatory Standards & Compliance
FDA
FDA 21 CFR 1040.10 - Laser Product Performance Standards
ANSI
ANSI Z136.1 - Safe Use of Lasers
IEC
IEC 60825 - Safety of Laser Products
OSHA
OSHA 29 CFR 1926.95 - Personal Protective Equipment
