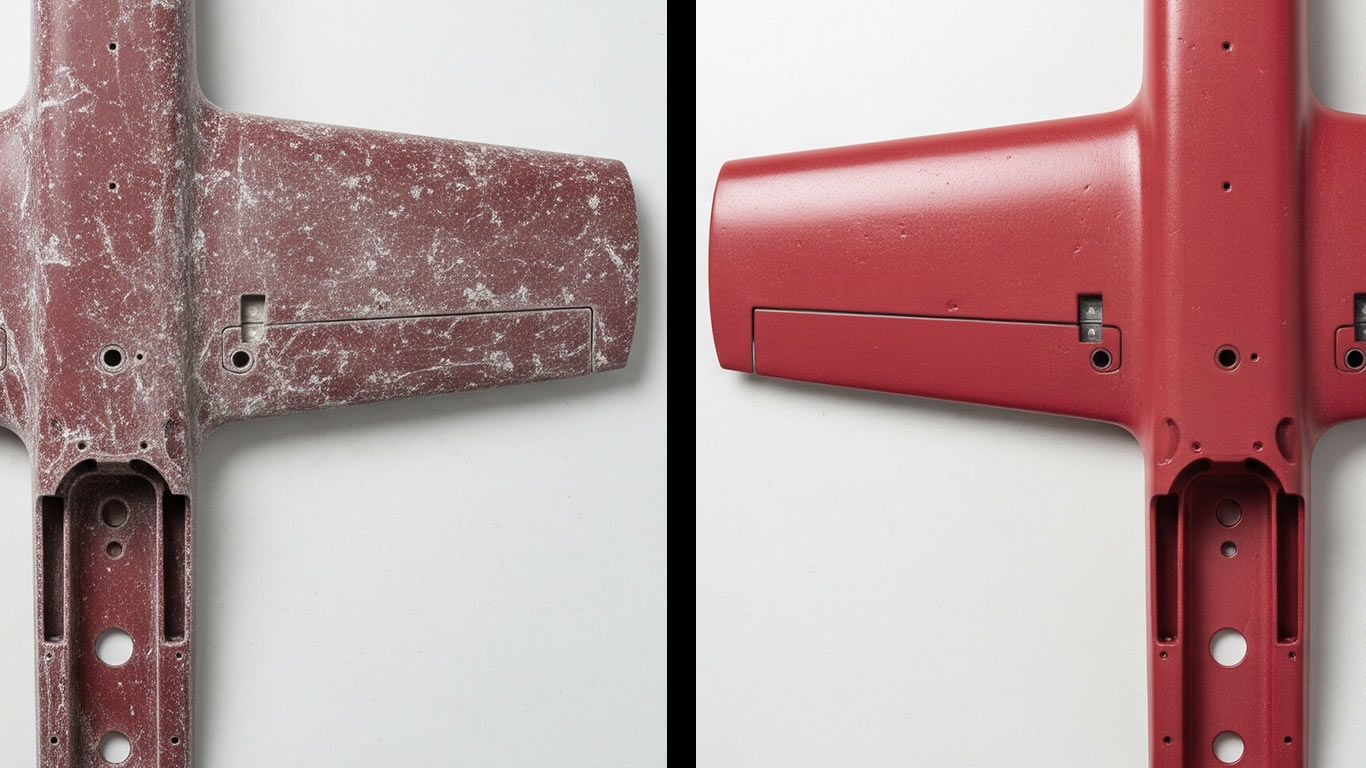

Glass Fiber Reinforced Polymers GFRP laser cleaning visualization showing process effects
Ikmanda Roswati
Ikmanda RoswatiPh.D.Indonesia
Ultrafast Laser Physics and Material Interactions
Published
Jan 6, 2026

Glass Fiber Reinforced Polymers GFRP Settings

We've found that GFRP's embedded glass fibers in a polymer matrix demand careful laser setup right from the start to avoid delamination. Start with lower power levels and slower scan speeds, since the fibers can channel heat unevenly. This composite nature sets it apart from uniform metals—heat builds up in the resin quickly, risking cracks. We typically use multiple light passes with good overlap to gently remove contaminants without stressing the fibers. Watch for surface blistering; it signals overexposure, so dial back energy if you see any bubbling. In our experience, this approach restores the surface cleanly for aerospace parts while preserving strength.

Glass Fiber Reinforced Polymers GFRP Machine Settings

Optimal laser parameters and equipment specifications

Wavelength

1,064
nm
355
1,064
1.1e4

Spot Size

200
μm
0.1
200
500

Fluence Threshold

2.5
J/cm²
0.3
2.5
4.5

Energy Density

1.5
J/cm²
0.1
1.5
20

Pulse Width

20
ns
0.1
20
1,000

Scan Speed

2,000
mm/s
10
2,000
5,000

Pass Count

2
passes
1
2
10

Overlap Ratio

60
%
10
60
90

Dwell Time

0.2
ms
0.2
0.2
200

Laser Power

100
W
1
100
120

Laser Power Alternative

100
W
50
100
300

Frequency

50
kHz
1
50
200

Glass Fiber Reinforced Polymers GFRP Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.
WARNING
Fluence:3.98 J/cm²
From optimal:54%
Pulse Duration (ns)
1000
750
500
250
0
0
33
67
100
133
167
200
Power (W)

Glass Fiber Reinforced Polymers GFRP Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).
MODERATE
Fluence: J/cm²
From optimal:42%
Pulse Duration (ns)
1000
750
500
250
0
0
33
67
100
133
167
200
Power (W)

Glass Fiber Reinforced Polymers GFRP Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.
ELEVATED
Fluence: J/cm²
From optimal:50%
Pulse Duration (ns)
1000
750
500
250
0
0
33
67
100
133
167
200
Power (W)

Glass Fiber Reinforced Polymers GFRP Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.
GOOD
Fluence:3.98 J/cm²
From optimal:29%
Pulse Duration (ns)
1000
750
500
250
0
0
33
67
100
133
167
200
Power (W)

Glass Fiber Reinforced Polymers GFRP Heat Buildup

Excellent

Heat Safety

Heat Control

Cooling Efficiency

Pass Optimization

📈 Heat Profile

Safe (<150°C)
Damage (>250°C)
0°C100°C200°C300°C✓ Safe🚨 Damage20°CPass 1Pass 2

🔧 Laser Settings

Pulse Energy:2000.00 mJ
Total Sim Time:60.1s

🌡️ Live Temperature

20°C
✅ Safe
Pass 1 of 2
Time: 0.0s / 60.1s

▶️ Simulation Controls

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for glass fiber reinforced polymers gfrp

Prevention First

Proactive strategies to avoid problems before they occur

othermedium severity

Impact

Prevention Solutions

    Fix Issues

    Symptom-based diagnosis and solutions for active problems

    No troubleshooting guides available for this material.

    Quick Reference

    At-a-glance overview with severity matrix and decision support

    Challenges by Severity

    Medium Priority (1)

    Common Issues

    No common issues documented.

    Quick Decision Helper

    Start with Prevention First tab before beginning work
    Use Fix Issues tab when problems occur
    Focus on Critical and High severity items first

    Glass Fiber Reinforced Polymers GFRP Dataset

    Download Glass Fiber Reinforced Polymers GFRP properties, specifications, and parameters in machine-readable formats
    40
    Variables
    0
    Laser Parameters
    0
    Material Methods
    11
    Properties
    3
    Standards
    3
    Formats

    License: Creative Commons BY 4.0 • Free to use with attribution •Learn more

    Parameter Relationships

    Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.
    WavelengthSpotSizeFluenceThresholdEnergyDensityPulseWidthScanSpeedPassCountOverlapRatioDwellTimeLaserPowerLaserPowerAlternativeFrequency

    Spot Size

    Directly affects Scan Speed and Energy Density. Increase this to amplify downstream effects.

    Energy Density

    Smaller spots concentrate energy into a smaller area.

    Scan Speed

    A bigger spot lets you scan faster while keeping good coverage.

    Common Challenges

    Technical challenges and optimization strategies for these settings
    ThermalManagement
    • [object Object]
    • [object Object]
    ContaminationChallenges
