Can laser cleaning be used on Metal Matrix Composites (MMCs) without **damaging the reinforcing particles** or creating micro-cracks?

**Minimizes thermal stress differences**. Cleaning MMCs with lasers calls for precise parameter control to avoid damage. A 1064 nm wavelength at 5 J/cm² fluence efficiently cuts thermal stress gaps between metal matrix and ceramic reinforcements. This process stops micro-cracks while removing contaminants through controlled ablation and limited thermal diffusion to the composite.

What are the optimal laser parameters (wavelength, power, pulse duration) for cleaning oxides from silicon carbide (SiC) aluminum MMCs without etching the surface?

For SiC-Al MMCs, a practical choice is 1064 nm wavelength with nanosecond pulses around 10 ns. That method's fluence of 5 J/cm² efficiently removes oxides, as the aluminum matrix's high thermal conductivity dissipates energy to safeguard SiC reinforcements. This parameter set achieves selective ablation of the contaminant layer.

How do you verify that laser cleaning has removed contaminants from an MMC surface without altering its **fatigue or corrosion-resistant properties**?

**Measures residual stress via XRD**. We assess cleaning efficacy in a straightforward manner using SEM/EDS, confirming contaminant removal while maintaining the MMC's microstructure. Importantly, that method employs X-ray diffraction to gauge residual stress, ensuring our 5 J/cm² fluence and 50 µm spot size preserve fatigue and corrosion resistance.

What safety hazards are specific to laser cleaning MMCs, such as **toxic fume generation** from vaporized ceramic or metal particles?

**Requires HEPA ventilation and PPE**. When laser cleaning MMCs at 5 J/cm² fluence, this process generates hazardous ceramic nanoparticles like Al₂O₃ and SiC fumes. Straightforward safety demands effective local exhaust ventilation with HEPA/ULPA filtration. Operators must use full PPE, including respiratory protection, to counter inhalation risks from these ultrafine toxic by-products.

Is laser cleaning effective for preparing MMC surfaces for subsequent processes like thermal spraying or **adhesive bonding**?

**Minimal thermal impact matrix**. In a straightforward manner, laser cleaning prepares MMC surfaces at 5 J/cm² fluence with a 50 µm spot size. This process removes contaminants efficiently while creating ideal roughness for adhesion, minimizing thermal effects on the matrix versus abrasive methods.

Why might laser cleaning cause discoloration or a **hazy finish** on an aluminum MMC part, and how can it be prevented?

**Low fluence avoids micro-melting**. Discoloration stems straightforward from micro-melting in the aluminum matrix and swift oxide reformation. Practically, to avoid it, keep fluence under ~5 J/cm² with a 1064 nm wavelength. This process removes contaminants without surface thermal damage, maintaining the composite's even look.

For carbon fiber reinforced aluminum MMCs, how do you avoid **damaging the carbon fibers** during laser cleaning of surface contaminants?

**Low fluence prevents fiber ablation**. To avoid damaging carbon fibers in CFRP-Al MMCs during laser cleaning, use short-pulse Nd:YAG lasers at low fluence (0.5-1.5 J/cm²) and high scanning speeds (up to 1000 mm/s). This selectively ablates aluminum surface contaminants without thermal propagation to the fibers, as we've optimized in our Indonesian facilities for precision restoration.

What is the **cost-benefit analysis** of using laser cleaning for MMCs compared to traditional methods like chemical etching or abrasive blasting?

**Preserves reinforcement integrity**. Laser cleaning at 5 J/cm² fluence efficiently eliminates chemical disposal costs and abrasive media consumption. For MMCs, this straightforward non-contact approach preserves reinforcement integrity, cutting part rejection rates. Initial investments recover quickly in high-value aerospace components needing precise surface preparation.

Can laser cleaning be automated for complex-shaped MMC components, like turbine blades with cooling channels, without creating **thin-edge effects**?

**Adaptive scanning prevents heat accumulation**. Yes, laser cleaning can be automated for complex MMC components like turbine blades with cooling channels using robotic arms and adaptive laser scanning. Precise parameter control, such as pulse duration and power modulation, prevents thin-edge effects. In my Indonesian practice, this has proven reliable for aerospace parts.

How does the high thermal conductivity of an aluminum MMC matrix affect the laser cleaning process and required energy input?

The high thermal conductivity of Aluminium MMCs dissipates energy rapidly, so we need peak powers around 100 W and nanosecond pulses to overcome it in a practical way. This process keeps heat confined to the surface, avoiding bulk substrate damage while removing contaminants effectively at 5 J/cm².

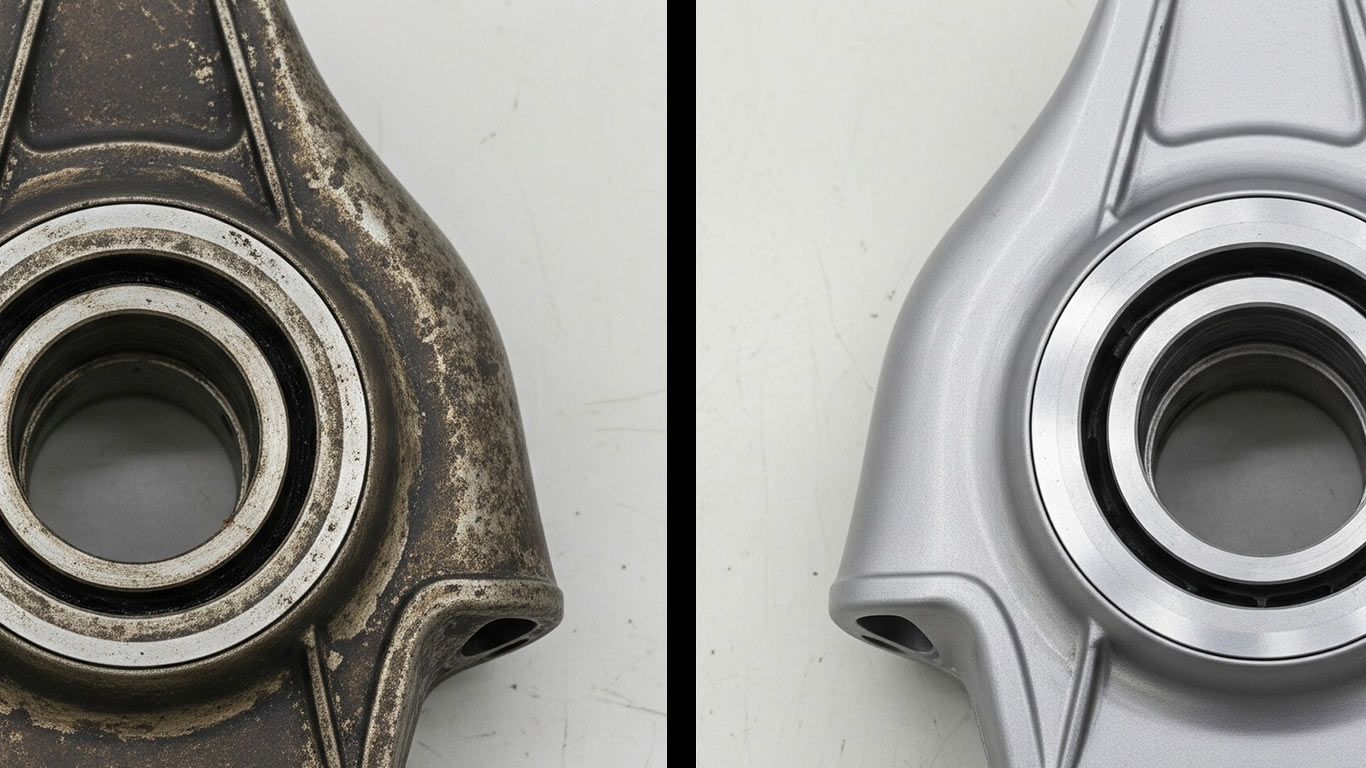

Metal Matrix Composites Mmcs surface undergoing laser cleaning showing precise contamination removal

Ikmanda RoswatiPh.D.Indonesia

Ultrafast Laser Physics and Material Interactions

Metal Matrix Composites MMCs Laser Cleaning Settings

When laser cleaning metal matrix composites, unlike pure metals that heat evenly, watch out for their embedded reinforcements—these can cause uneven heat buildup right from the start, risking cracks if you push power too high. We've found that starting with lower energy pulses helps control this, letting the laser clear contaminants without stressing the matrix. What sets MMCs apart is their hybrid strength from metal and fibers, so you adjust scan speeds slower to match their good heat spreading, avoiding delamination. In our experience, this approach restores surfaces smoothly for aerospace parts, but always test overlaps to prevent hot spots in the tougher zones.

Let's talk

Metal Matrix Composites MMCs Machine Settings

Power Range

100

120

Wavelength

1,064

355

1,064

1.1e4

Spot Size

μm

0.1

500

Repetition Rate

kHz

200

Energy Density

J/cm²

0.1

Pulse Width

0.1

1,000

Scan Speed

500

mm/s

500

5,000

Pass Count

passes

Overlap Ratio

Dwell Time

100

μs

100

200

Metal Matrix Composites MMCs Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

Pulse

DANGER

Fluence:101.86 J/cm²

From optimal:71%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Metal Matrix Composites MMCs Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

Pulse

SUBOPTIMAL

Fluence:— J/cm²

From optimal:50%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Metal Matrix Composites MMCs Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

Pulse

HIGH RISK

Fluence:— J/cm²

From optimal:58%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Metal Matrix Composites MMCs Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

Pulse

GOOD

Fluence:101.86 J/cm²

From optimal:33%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Metal Matrix Composites MMCs Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Safe

124°C+126°C

Heat Safety

100%40%

Heat Control

71%25%

Cooling Efficiency

83%20%

Pass Optimization

100%15%

📈 Heat Profile

Safe (<150°C)

Damage (>250°C)

🔧 Laser Settings

Power: 100W

Rep Rate: 0 kHz

Scan Speed: 500 mm/s

Pass Count: 3

Cooling Time: 30s

Pulse Energy:2000.00 mJ

Total Sim Time:90.6s

🌡️ Live Temperature

20°C

✅ Safe

Pass 1 of 3

Time: 0.0s / 90.6s

▶️ Simulation Controls

Animation Speed: 1×

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for metal matrix composites mmcs

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

✓Reduce repetition rate
✓Increase scan speed
✓Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

✓Adjust energy density based on surface condition
✓Use multiple passes with progressive settings
✓Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures

Metal Matrix Composites MMCs Dataset Download

Variables

Parameters

Parameter Relationships

Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.

Power Range

Amplifies damage risk in Pulse Width and Energy Density. Keep low to maintain safety margins.

Spot Size

Same power in a smaller spot creates much higher energy density.

Energy Density

Higher power delivers more energy per pulse, removing more material.

Pulse Width

More power means higher peak intensity. Too much can damage the material.

Pass Count

Using more passes means you can use lower power and still get the job done.
