What are the optimal laser parameters (wavelength, power, pulse duration) for cleaning contaminants from Pyrex without damaging the surface?

For cleaning Pyrex, opt for a notable 1064 nm wavelength at ~25 W average power with 100 ns pulses. It's essential to limit fluence below 2.5 J/cm², enabling selective removal of organics and particulates while avoiding substrate micro-cracking—given this wavelength's poor absorption in pristine glass. A 50 μm spot scanned at 500 mm/s yields distinct, effective, non-damaging results.

Can laser cleaning create micro-fractures or **induce thermal stress** in Pyrex, and how can this be prevented?

**Low fluence nanosecond pulses prevent**. Indeed, Pyrex's low thermal expansion notably heightens its vulnerability to microfractures from excessive fluence. We counter this using nanosecond pulses at 2.5 J/cm² with a 50 μm spot size. Essential aids like a defocused beam or thin water film manage thermal stress, preserving your precision components' integrity.

Is it safe to use a laser to remove labels, adhesives, or paint from **Pyrex laboratory glassware**?

**Preserves optical clarity integrity**. A well-configured laser cleaning setup at 1064 nm wavelength and 2.5 J/cm² fluence safely strips labels from Pyrex. Notably, this vaporizes adhesives without chemical residue, while preserving the material's essential optical clarity and structural integrity for lab use.

How does laser cleaning affect the optical properties and surface roughness of Pyrex?

With laser cleaning calibrated precisely to 2.5 J/cm² fluence, Pyrex preserves its notable optical clarity. This essential method prevents surface hazing, curbs roughness shifts, and delivers high transmission alongside minimal light scattering for rigorous optical uses.

What are the **primary safety hazards** when laser cleaning Pyrex, and what PPE is required?

**Thermal shock above 2.5 J/cm²**. Thermal shock, notably from exceeding 2.5 J/cm², can shatter Pyrex. For the 1064 nm wavelength, IR-specific laser safety eyewear is essential. Hazardous glass and coating particulates demand a properly fitted respirator to prevent inhalation.

Can laser cleaning be used to prepare a Pyrex surface for high-vacuum or **thin-film deposition** applications?

**Activates surface without damage**. Indeed, laser cleaning is essential for preparing Pyrex effectively in high-vacuum applications. A 1064 nm wavelength at ~2.5 J/cm² notably removes contaminants and activates the surface without subsurface damage, surpassing solvent methods for superior thin-film adhesion.

Why is a **pulsed fiber laser** often recommended for cleaning Pyrex over a continuous-wave (CW) laser?

**Prevents thermal shock susceptibility**. Operating typically at a 1064 nm wavelength, pulsed fiber lasers deliver nanosecond pulses for precise thermal control. This method is essential to avoid heat diffusion into the Pyrex bulk, distinct in its vulnerability to thermal shock owing to low thermal conductivity under continuous-wave exposure.

What is the best method to verify the **effectiveness and safety** of laser cleaning on Pyrex?

**Inspect, interferometry, leak test**. Begin by examining under 50× magnification to spot micro-cracks. For optics' critical flatness, it's essential to apply white-light interferometry, confirming surface roughness stays below 10 nm Ra. Lastly, perform a helium leak test to verify vacuum system integrity, ensuring the 2.5 J/cm² fluence left no notable compromise.

How do you clean deeply embedded metallic stains or **diffusion layers** from Pyrex with a laser?

**Multi-step below ablation threshold**. To address deeply embedded metallic stains in Pyrex, a multi-step approach proves essential. We begin with a 1064 nm wavelength at 2.5 J/cm² fluence for distinct selective vaporization of the surface contaminant. A gentler follow-up pass then eliminates any residual diffusion layer, staying below the ablation threshold of the Pyrex substrate.

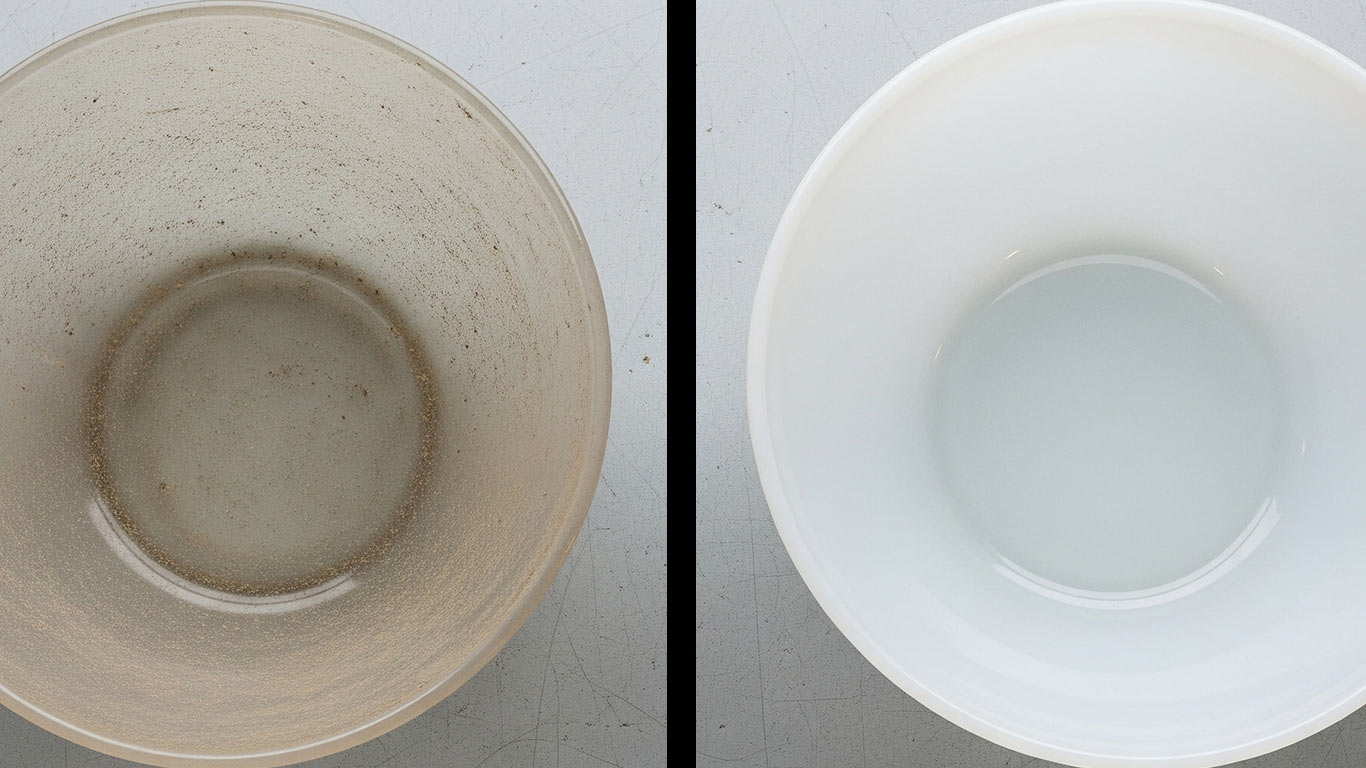

Pyrex surface undergoing laser cleaning showing precise contamination removal

Alessandro MorettiPh.D.Italy

Laser-Based Additive Manufacturing

Pyrex Laser Cleaning Settings

When laser cleaning Pyrex, we've found that starting with lower power settings works best to gently remove contaminants without risking cracks. This glass stands out for its excellent thermal shock resistance, which lets you handle quick heat cycles that might shatter ordinary soda-lime types, so we often use pulsed lasers to control the energy input precisely. But watch out midway through—its low thermal conductivity can trap heat in spots, leading to uneven cleaning if you push the scan speed too high; dial it back and add passes instead. In our experience, this brings back the surface clarity on lab equipment reliably while preserving its integrity for reuse.

Let's talk

Pyrex Machine Settings

Power Range

120

Wavelength

1,064

355

1,064

1.1e4

Spot Size

μm

0.1

500

Repetition Rate

kHz

200

Fluence Threshold

2.5

J/cm²

0.3

2.5

4.5

Pulse Width

100

0.1

100

1,000

Scan Speed

500

mm/s

500

5,000

Pass Count

passes

Overlap Ratio

Pyrex Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

Pulse

WARNING

Fluence:25.46 J/cm²

From optimal:54%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Pyrex Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

Pulse

VERY POOR

Fluence:— J/cm²

From optimal:71%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Pyrex Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

Pulse

ELEVATED

Fluence:— J/cm²

From optimal:50%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Pyrex Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

Pulse

MODERATE

Fluence:25.46 J/cm²

From optimal:38%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Pyrex Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Excellent

88°C+162°C

Heat Safety

100%40%

Heat Control

86%25%

Cooling Efficiency

83%20%

Pass Optimization

100%15%

📈 Heat Profile

Safe (<150°C)

Damage (>250°C)

🔧 Laser Settings

Power: 25W

Rep Rate: 0 kHz

Scan Speed: 500 mm/s

Pass Count: 3

Cooling Time: 30s

Pulse Energy:500.00 mJ

Total Sim Time:90.6s

🌡️ Live Temperature

20°C

✅ Safe

Pass 1 of 3

Time: 0.0s / 90.6s

▶️ Simulation Controls

Animation Speed: 1×

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for pyrex

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

✓Reduce repetition rate
✓Increase scan speed
✓Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

✓Adjust energy density based on surface condition
✓Use multiple passes with progressive settings
✓Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures
