Ultrafast Laser Physics and Material InteractionsQuartz Glass Laser Cleaning Settings

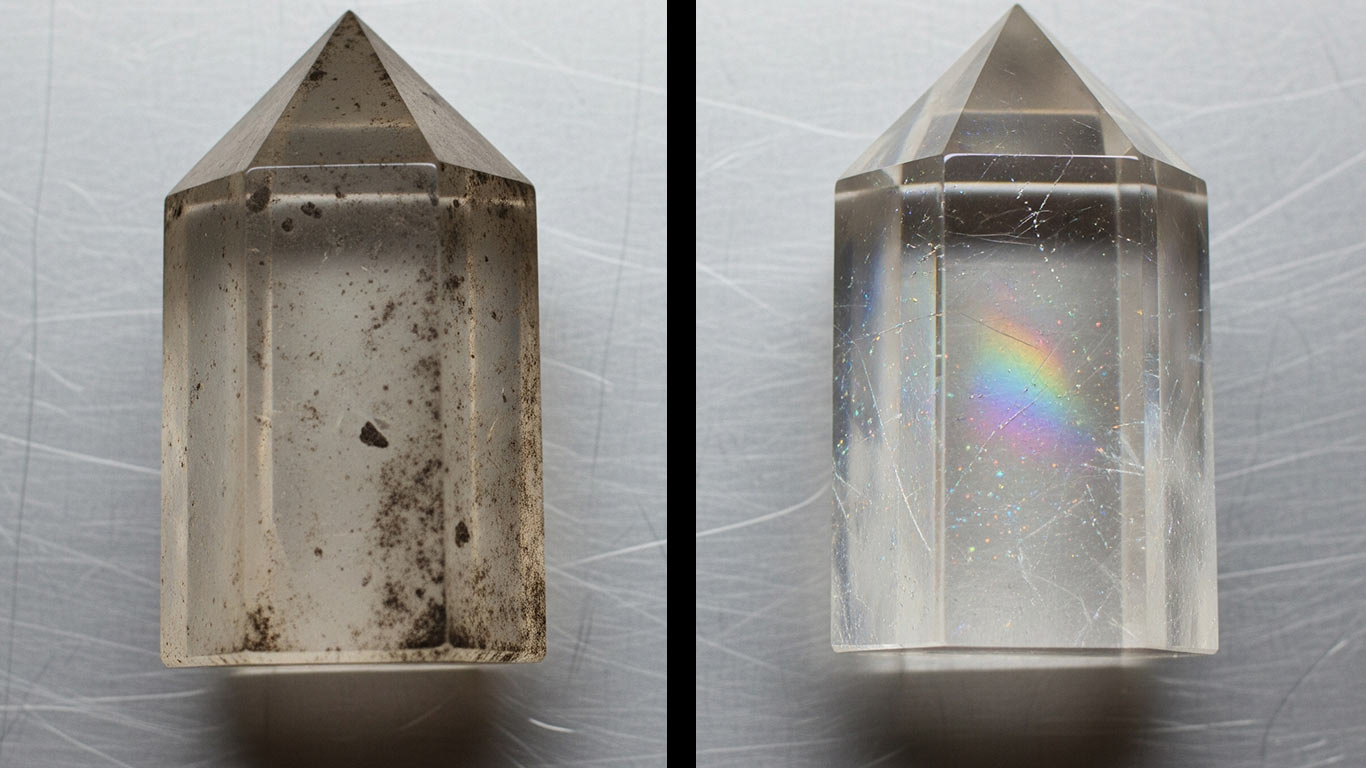

In our experience, quartz glass cleans up nicely with laser methods that prioritize gentle energy delivery. We typically start sessions with lower power levels to preserve its pristine optical clarity, since this material's high heat resistance lets it handle the process without warping. That low expansion under heat means you can maintain steady scans without risking built-up stress cracks over multiple passes. We've seen great results restoring surfaces in lab equipment or optical parts, where contaminants lift off cleanly and leave the glass undamaged. Its brittle nature, though, calls for controlled overlap in your beam paths to avoid uneven heating spots. What works best is building up passes gradually, allowing natural cooling between them to keep integrity intact. Watch out at the end—pushing too high on fluence can trigger micro-fractures, so always test on a scrap piece first to dial in safe thresholds.
Quartz Glass Machine Settings
Power Range
100
W
1
100
120
Wavelength
1,064
nm
355
1,064
1.1e4
Spot Size
50
μm
0.1
50
500
Repetition Rate
50
kHz
1
50
200
Fluence Threshold
2.5
J/cm²
0.3
2.5
4.5
Pulse Width
10
ns
0.1
10
1,000
Scan Speed
500
mm/s
10
500
5,000
Pass Count
3
passes
1
3
10
Overlap Ratio
50
%
10
50
90
Quartz Glass Material Safety
Shows damage risk across parameter space. Green = safe, Red = damage danger.
Pulse
DANGER
Fluence:101.86 J/cm²
From optimal:71%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Quartz Glass Energy Coupling
Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).
Pulse
SUBOPTIMAL
Fluence:— J/cm²
From optimal:50%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Quartz Glass Thermal Stress Risk
Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.
Pulse
HIGH RISK
Fluence:— J/cm²
From optimal:63%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Quartz Glass Cleaning Efficiency
Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.
Pulse
GOOD
Fluence:101.86 J/cm²
From optimal:33%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Quartz Glass Heat Buildup
See if your multi-pass cleaning will overheat and damage the material
Heat Safety
100%40%
Heat Control
71%25%
Cooling Efficiency
83%20%
Pass Optimization
100%15%
📈 Heat Profile
Safe (<150°C)
Damage (>250°C)
🔧 Laser Settings
Pulse Energy:2000.00 mJ
Total Sim Time:90.6s
🌡️ Live Temperature
20°C
✅ Safe
Pass 1 of 3
Time: 0.0s / 90.6s
▶️ Simulation Controls
Diagnostic & Prevention Center
Proactive strategies and reactive solutions for quartz glass
🌡️thermal management
Heat accumulation
Impact: Excessive heat can damage substrate or alter material properties
Solutions:
- ✓Reduce repetition rate
- ✓Increase scan speed
- ✓Add cooling time between passes
Prevention: Monitor surface temperature and adjust parameters accordingly
🔍surface characteristics
Variable surface roughness
Impact: Inconsistent cleaning results across different surface textures
Solutions:
- ✓Adjust energy density based on surface condition
- ✓Use multiple passes with progressive settings
- ✓Pre-characterize surface before cleaning
Prevention: Standardize surface preparation procedures
Quartz Glass Dataset Download
Parameter Relationships
Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.
Power Range
Amplifies damage risk in Pulse Width. Keep low to maintain safety margins.
Spot Size
Same power in a smaller spot creates much higher energy density.
Pulse Width
More power means higher peak intensity. Too much can damage the material.
Pass Count
Using more passes means you can use lower power and still get the job done.
