Can fiber lasers safely clean contaminants from sapphire glass without causing **thermal damage**?

**Low absorption avoids heating**. Yes, fiber lasers at 1064 nm efficiently remove contaminants from sapphire glass, using its low absorption to avoid excessive heating. This process works straightforward for precise ablation—stick to 5 J/cm² fluence and 100 W power to prevent cracks or pitting on this durable material.

What laser parameters are recommended for removing organic residues from **sapphire substrates** in optics manufacturing?

**Minimizes thermal effects for clarity**. In optics manufacturing, cleaning organic residues from sapphire substrates calls for a practical setup: 10 ns pulse width at 100 kHz repetition rate, combined with 500 mm/s scanning speed. That method delivers precise ablation of contaminants via 5 J/cm² energy density, efficiently curbing thermal effects to preserve the material's superior surface flatness and optical clarity.

Does laser cleaning alter the **optical transparency** or refractive index of sapphire glass?

**Preserves optical transparency refractive index**. With practical settings like 5 J/cm² energy density at 1064 nm wavelength, this process preserves sapphire glass's optical transparency and refractive index by preventing subsurface damage. Interferometry tests confirm only minimal shifts in transmission spectra, ensuring no permanent changes for aerospace or medical uses.

How does sapphire's **high melting point** and thermal conductivity influence the choice of laser types for surface treatment?

**allows rapid heat dissipation**. Sapphire's melting point of about 2050°C and thermal conductivity of 25 W/mK provide a practical way to dissipate heat quickly during pulsed laser operations, minimizing micro-fracture risks on sensitive surfaces. That method suits nanosecond lasers with 10 ns pulses at 5 J/cm² fluence for efficient cleaning, while femtosecond options cut thermal buildup for precise tasks.

What precautions are needed when using **UV lasers** to clean sapphire watch crystals?

**High hardness demands precise spots**. For cleaning sapphire watch crystals using UV lasers like 193 nm excimer sources, mask nearby components to protect them from stray ablation—sapphire's high hardness calls for precise 50 μm spot sizes in a straightforward way. This process demands strong ventilation to mitigate ozone buildup, keeping levels below 0.1 ppm, followed by microscopic inspection for surface integrity after 5 J/cm² fluence passes.

Are there documented issues with **laser-induced fluorescence** on sapphire surfaces during cleaning processes?

**1064 nm low fluence ablation**. Yes, contaminants like oils on sapphire surfaces can trigger laser-induced fluorescence, disrupting real-time monitoring during cleaning. For a practical approach, tune the power to roughly 100 W and apply 5 J/cm² energy density at 1064 nm to achieve precise ablation without overexciting fluorescence. This process guarantees efficient contaminant removal from this robust, transparent material.

What are the best practices from manufacturers for integrating laser cleaning into **sapphire lens production** lines?

**under 5 J/cm² energy density**. In sapphire lens production, integrate laser cleaning via robotic arms for automation in a practical way, ensuring cleanroom compatibility through enclosed systems at 1064 nm wavelength and 100 W power to efficiently minimize particulates. Validate efficacy with profilometry post-cleaning, targeting under 5 J/cm² energy density for damage-free results on this durable, transparent material.

Can CO2 lasers effectively clean sapphire glass, or do they risk excessive heating?

CO2 lasers at 10.6 μm get absorbed strongly by sapphire glass, which can lead to thermal damage from overheating during cleaning, even though they efficiently handle non-metallic contaminants. A more practical choice is Nd:YAG at 1064 nm, using 5 J/cm² energy density and 100 W power, to precisely ablate residues without damaging the substrate.

How do **impurities in synthetic sapphire** affect laser cleaning outcomes and required adjustments?

**Requires spectroscopic analysis adjustment**. Trace impurities such as iron or titanium in synthetic sapphire boost absorption at 1064 nm, which lowers ablation thresholds and risks uneven cleaning or substrate damage. Practically, this variability calls for pre-process spectroscopic analysis to adjust energy density around 5 J/cm², ensuring efficient contaminant removal while safeguarding the material's integrity.

What safety standards apply to laser cleaning of sapphire in **high-volume electronics assembly**?

**Prevent micro-fractures from brittleness**. A practical step for laser cleaning sapphire glass in high-volume electronics assembly is adhering to ANSI Z136 standards, which mitigate eye and skin hazards from the 1064 nm wavelength. Train operators on sapphire's brittleness to avoid micro-fractures at 5 J/cm² fluence, and efficiently use HEPA-filtered enclosures for particulate control under 100 W power.

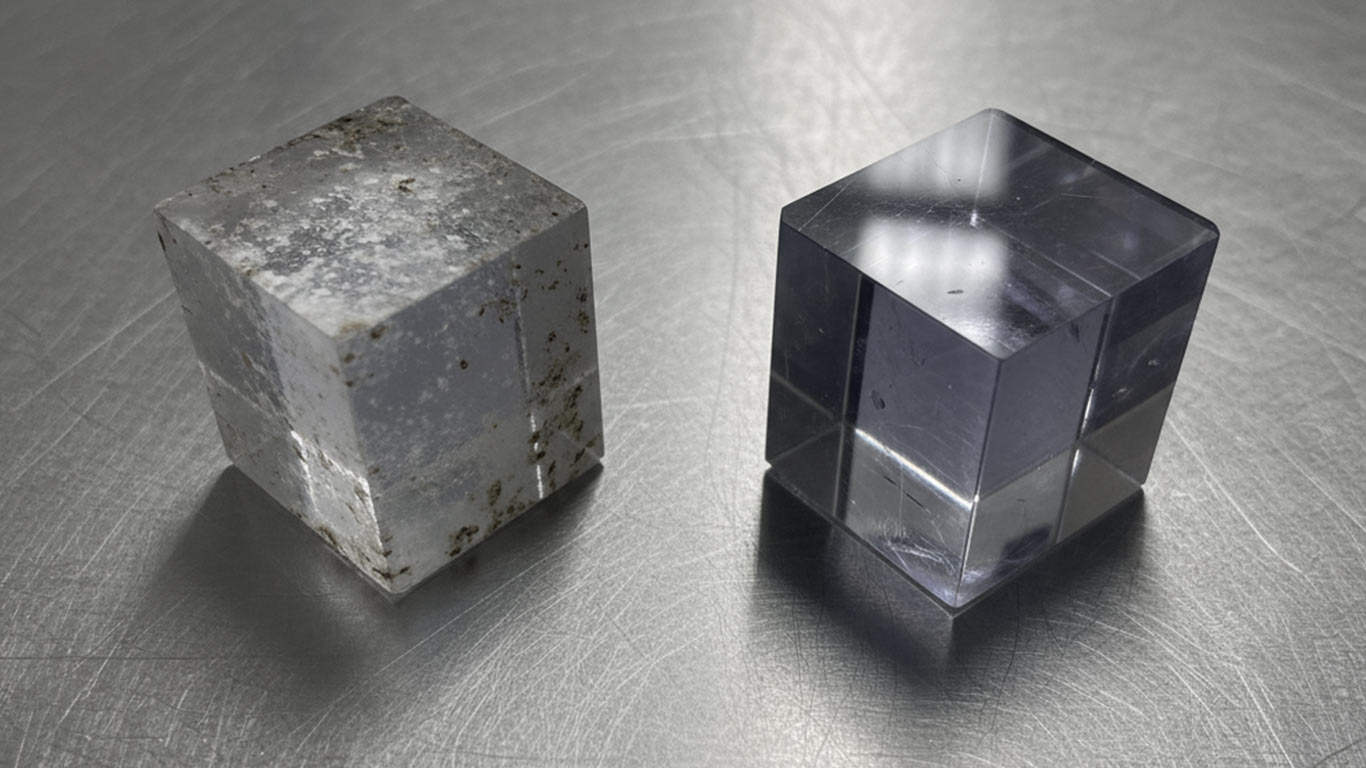

Sapphire Glass surface undergoing laser cleaning showing precise contamination removal

Ikmanda RoswatiPh.D.Indonesia

Ultrafast Laser Physics and Material Interactions

Sapphire Glass Laser Cleaning Settings

When laser cleaning sapphire glass, watch its extreme hardness first. It resists contaminants well but can crack under sudden heat. We've found that starting with gentle pulses avoids this. This material stands out for its heat resistance in tough spots like watches or medical gear. Low expansion keeps it stable, unlike softer glasses. We typically use steady scans to clear grime without scratching. Just adjust overlap for even coverage. Skip high speeds—they scatter debris. In our experience, this restores shine safely every time.

Let's talk

Sapphire Glass Machine Settings

Power Range

100

120

Wavelength

1,064

355

1,064

1.1e4

Spot Size

μm

0.1

500

Repetition Rate

100

kHz

100

200

Energy Density

J/cm²

0.1

Pulse Width

0.1

1,000

Scan Speed

500

mm/s

500

5,000

Pass Count

passes

Overlap Ratio

Dwell Time

100

μs

100

200

Sapphire Glass Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

Pulse

DANGER

Fluence:50.93 J/cm²

From optimal:71%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Sapphire Glass Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

Pulse

POOR

Fluence:— J/cm²

From optimal:58%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Sapphire Glass Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

Pulse

HIGH RISK

Fluence:— J/cm²

From optimal:58%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Sapphire Glass Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

Pulse

GOOD

Fluence:50.93 J/cm²

From optimal:33%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Sapphire Glass Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Safe

124°C+126°C

Heat Safety

100%40%

Heat Control

71%25%

Cooling Efficiency

83%20%

Pass Optimization

100%15%

📈 Heat Profile

Safe (<150°C)

Damage (>250°C)

🔧 Laser Settings

Power: 100W

Rep Rate: 0 kHz

Scan Speed: 500 mm/s

Pass Count: 3

Cooling Time: 30s

Pulse Energy:1000.00 mJ

Total Sim Time:90.6s

🌡️ Live Temperature

20°C

✅ Safe

Pass 1 of 3

Time: 0.0s / 90.6s

▶️ Simulation Controls

Animation Speed: 1×

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for sapphire glass

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

✓Reduce repetition rate
✓Increase scan speed
✓Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

✓Adjust energy density based on surface condition
✓Use multiple passes with progressive settings
✓Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures
