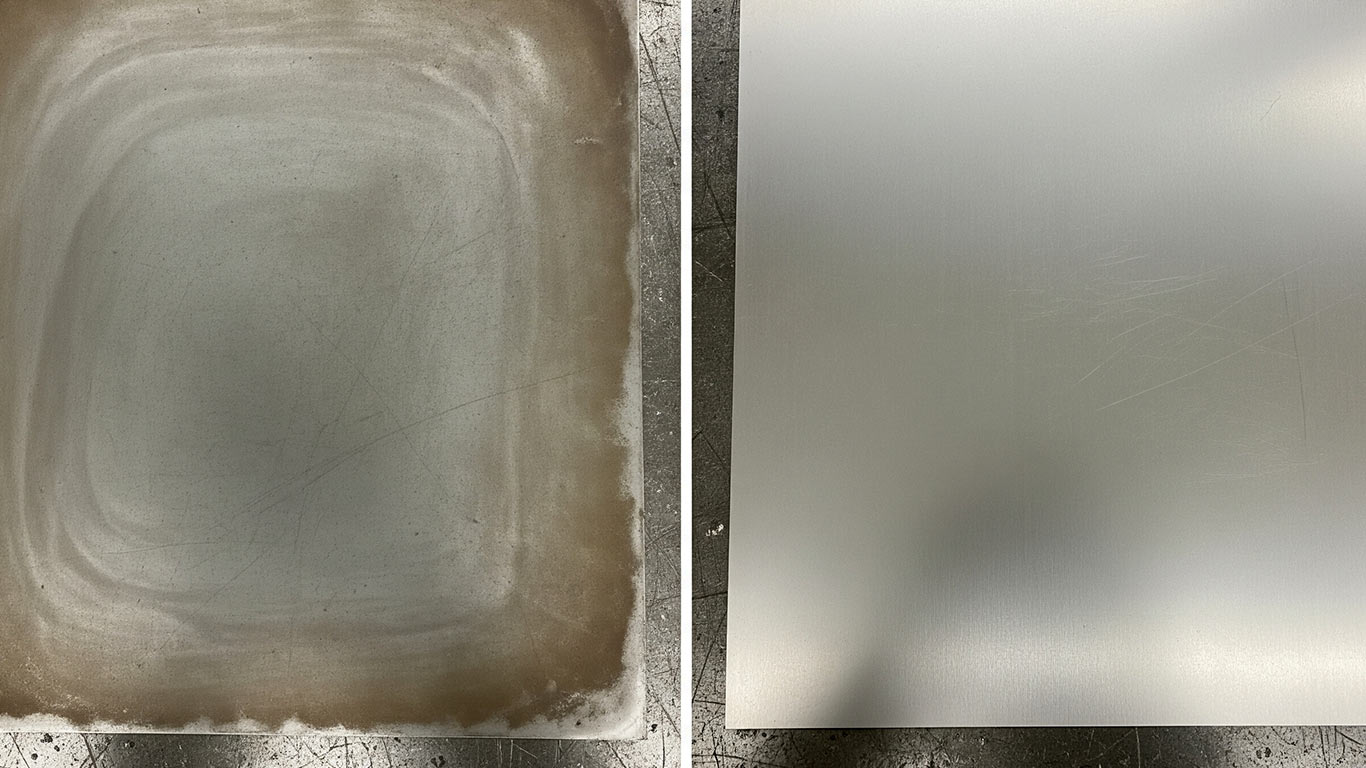

Niobium surface undergoing laser cleaning showing precise contamination removal
Alessandro Moretti
Alessandro MorettiPh.D.Italy
Laser-Based Additive Manufacturing

Niobium Laser Cleaning Settings

When laser cleaning niobium, you must first watch its high reflectivity, which scatters more laser energy than you'd see with iron-based metals, so start with lower power settings to prevent wasted shots and uneven cleaning. Make sure you adjust the fluence just above its ablation threshold right away, avoiding the pitfall of underpowering that leaves stubborn contaminants behind while risking surface pitting if you overshoot. Begin your setup by selecting a near-infrared wavelength that niobium absorbs better than shorter ones, unlike aluminum's picky response. You'll then dial in a moderate pulse width to handle its dense structure without building excess heat, contrasting with lighter non-ferrous metals that cool faster. Scan at a steady speed, overlapping passes by half to clear oxides thoroughly, since niobium's corrosion resistance means buildup clings tighter than on copper. This approach brings back its smooth finish for aerospace or medical uses, minimizing thermal shock that could crack it under rapid heating. Keep passes to a few, and always test on a scrap piece first—niobium forgives minor errors better than brittle alloys but demands precision to avoid dulling its natural luster.

Niobium Machine Settings

Power Range

100
W
1
100
120

Wavelength

1,064
nm
355
1,064
1.1e4

Spot Size

50
μm
0.1
50
500

Repetition Rate

50
kHz
1
50
200

Fluence Threshold

2.5
J/cm²
0.3
2.5
4.5

Pulse Width

10
ns
0.1
10
1,000

Scan Speed

500
mm/s
10
500
5,000

Pass Count

3
passes
1
3
10

Overlap Ratio

50
%
10
50
90

Niobium Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

DANGER
Fluence:101.86 J/cm²
From optimal:71%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Niobium Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

MODERATE
Fluence: J/cm²
From optimal:38%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Niobium Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

ELEVATED
Fluence: J/cm²
From optimal:46%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Niobium Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

GOOD
Fluence:101.86 J/cm²
From optimal:33%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Niobium Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Safe

Heat Safety

Heat Control

Cooling Efficiency

Pass Optimization

📈 Heat Profile

Safe (<150°C)
Damage (>250°C)
0°C100°C200°C300°C✓ Safe🚨 Damage20°CPass 1Pass 2Pass 3

🔧 Laser Settings

Pulse Energy:2000.00 mJ
Total Sim Time:90.6s

🌡️ Live Temperature

20°C
✅ Safe
Pass 1 of 3
Time: 0.0s / 90.6s

▶️ Simulation Controls

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for niobium

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

  • Reduce repetition rate
  • Increase scan speed
  • Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

  • Adjust energy density based on surface condition
  • Use multiple passes with progressive settings
  • Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures

Niobium Dataset Download

License: Creative Commons BY 4.0 • Free to use with attribution •Learn more

Parameter Relationships

Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.

PowerRangeWavelengthSpotSizeRepetitionRateFluenceThresholdPulseWidthScanSpeedPassCountOverlapRatio

Power Range

Amplifies damage risk in Pulse Width. Keep low to maintain safety margins.

Spot Size

Same power in a smaller spot creates much higher energy density.

Pulse Width

More power means higher peak intensity. Too much can damage the material.

Pass Count

Using more passes means you can use lower power and still get the job done.
