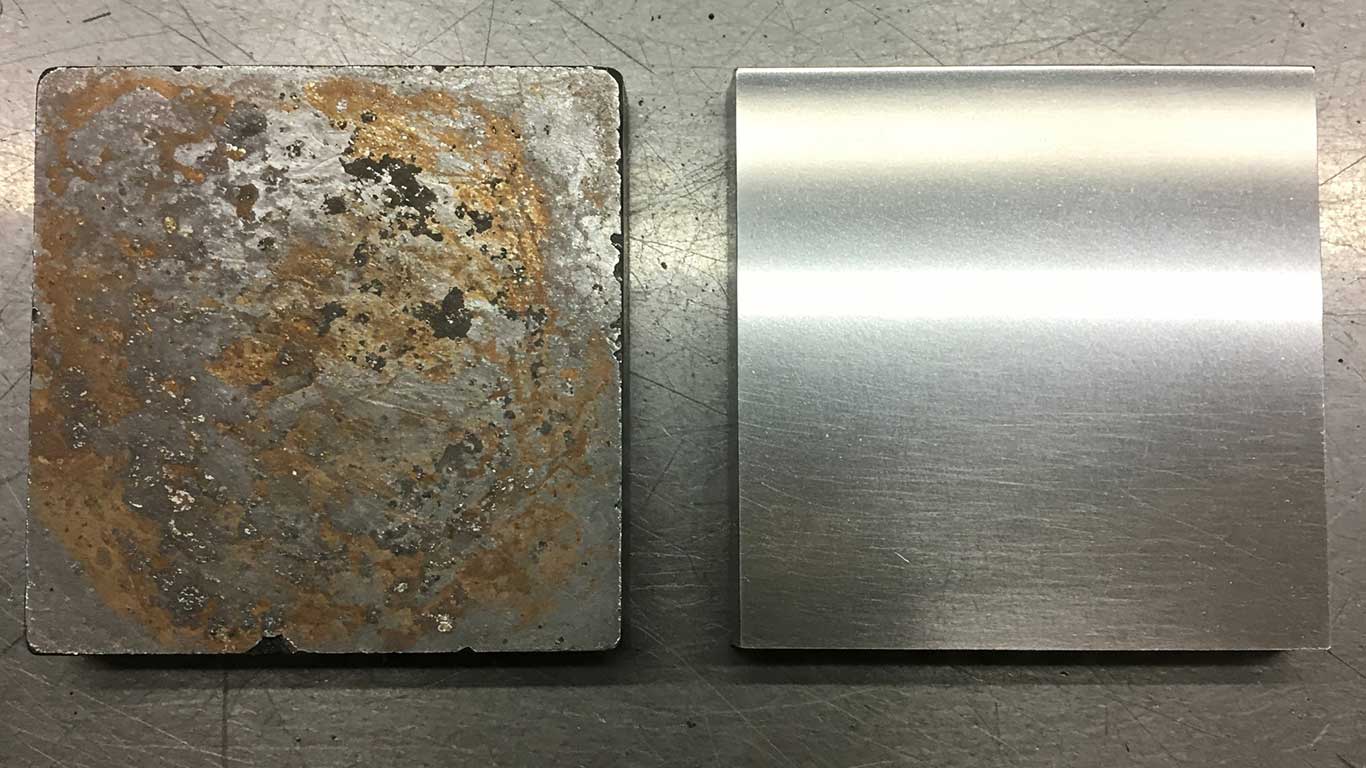

Beryllium surface undergoing laser cleaning showing precise contamination removal
Yi-Chun Lin
Yi-Chun LinPh.D.Taiwan
Laser Materials Processing

Beryllium Laser Cleaning Settings

When laser cleaning Beryllium, you must first contrast it with more common metals like aluminum, because Beryllium's exceptional reflectivity sends most laser energy bouncing away, demanding a completely different setup to ensure effective contaminant removal without wasting power. This high reflectivity, unlike the better absorption in denser alloys, means you should start with adjusted pulse durations and slower scan speeds so the surface has time to absorb just enough heat for cleaning, while its lightweight nature allows rapid cooling that prevents warping if you control the overlap carefully. Beryllium's superior thermal conductivity spreads heat quickly across the material, which helps avoid localized damage but requires you to monitor passes closely to prevent overexposure. You also need to watch its brittleness compared to tougher steels, as sudden temperature shifts can lead to micro-cracks during the process. In the end, always end sessions with a cool-down period and inspect for any subsurface stress, since overlooking this can compromise the material's integrity in high-stakes applications like aerospace components.

Beryllium Machine Settings

Power Range

100
W
1
100
120

Wavelength

1,064
nm
355
1,064
1.1e4

Spot Size

50
μm
0.1
50
500

Repetition Rate

100
kHz
1
100
200

Fluence Threshold

2.5
J/cm²
0.3
2.5
4.5

Pulse Width

10
ns
0.1
10
1,000

Scan Speed

500
mm/s
10
500
5,000

Pass Count

3
passes
1
3
10

Overlap Ratio

50
%
10
50
90

Beryllium Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

DANGER
Fluence:50.93 J/cm²
From optimal:71%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Beryllium Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

MODERATE
Fluence: J/cm²
From optimal:42%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Beryllium Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

ELEVATED
Fluence: J/cm²
From optimal:54%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Beryllium Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

GOOD
Fluence:50.93 J/cm²
From optimal:33%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Beryllium Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Safe

Heat Safety

Heat Control

Cooling Efficiency

Pass Optimization

📈 Heat Profile

Safe (<150°C)
Damage (>250°C)
0°C100°C200°C300°C✓ Safe🚨 Damage20°CPass 1Pass 2Pass 3

🔧 Laser Settings

Pulse Energy:1000.00 mJ
Total Sim Time:90.6s

🌡️ Live Temperature

20°C
✅ Safe
Pass 1 of 3
Time: 0.0s / 90.6s

▶️ Simulation Controls

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for beryllium

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

  • Reduce repetition rate
  • Increase scan speed
  • Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

  • Adjust energy density based on surface condition
  • Use multiple passes with progressive settings
  • Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures

Beryllium Dataset Download

License: Creative Commons BY 4.0 • Free to use with attribution •Learn more

Parameter Relationships

Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.

PowerRangeWavelengthSpotSizeRepetitionRateFluenceThresholdPulseWidthScanSpeedPassCountOverlapRatio

Power Range

Amplifies damage risk in Pulse Width. Keep low to maintain safety margins.

Spot Size

Same power in a smaller spot creates much higher energy density.

Pulse Width

More power means higher peak intensity. Too much can damage the material.

Pass Count

Using more passes means you can use lower power and still get the job done.
