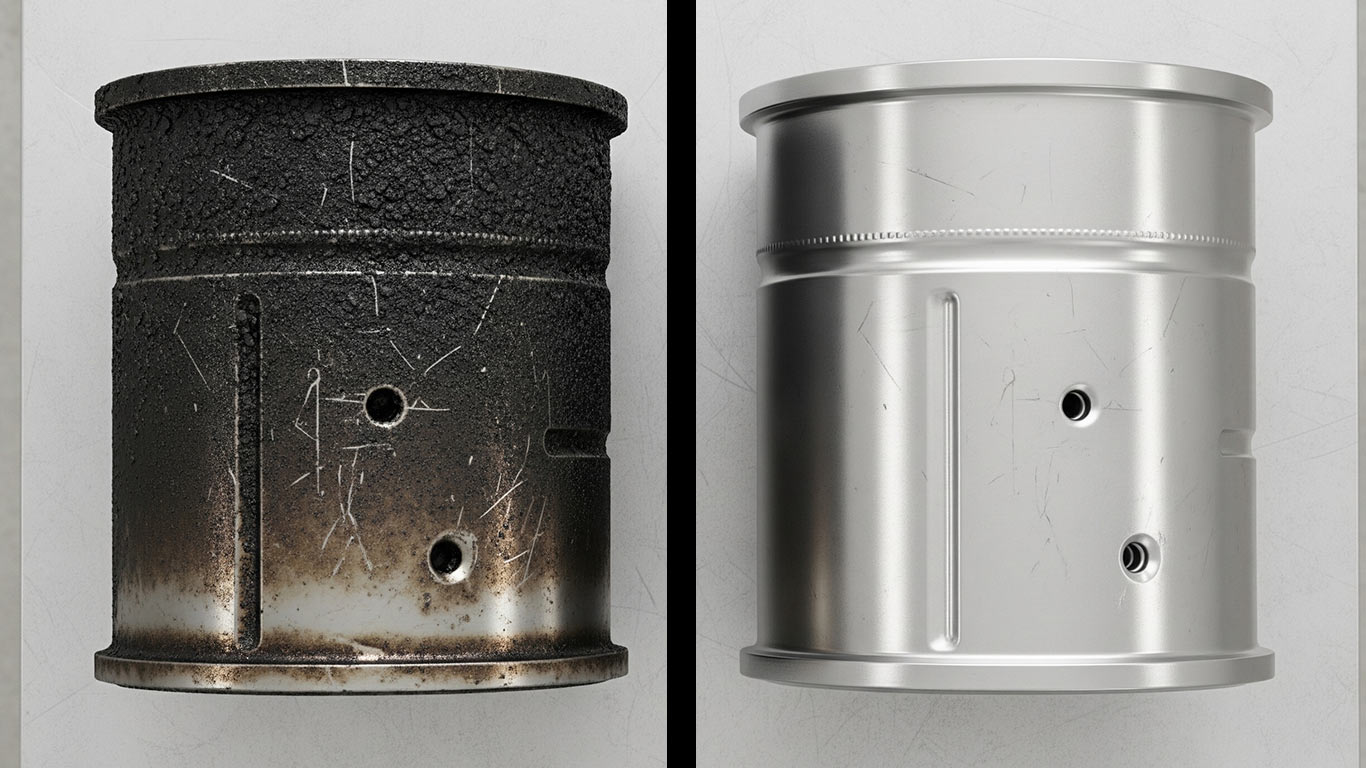

Hastelloy surface undergoing laser cleaning showing precise contamination removal
Todd Dunning
Todd DunningMAUnited States
Optical Materials for Laser Systems

Hastelloy Laser Cleaning Settings

When laser cleaning Hastelloy, start with reduced power to manage its low thermal conductivity, which causes heat to build up quickly in treated areas. This approach removes surface contaminants cleanly while preserving the alloy's exceptional corrosion resistance. But watch for uneven heating midway through—adjust scan speeds downward to avoid cracking the protective oxide layer. Multiple passes restore the finish without weakening its high-temperature strength.

Hastelloy Machine Settings

Power Range

100
W
1
100
120

Wavelength

1,064
nm
355
1,064
1.1e4

Spot Size

50
μm
0.1
50
500

Repetition Rate

50
kHz
1
50
200

Energy Density

5.1
J/cm²
0.1
5.1
20

Pulse Width

10
ns
0.1
10
1,000

Scan Speed

500
mm/s
10
500
5,000

Pass Count

3
passes
1
3
10

Overlap Ratio

50
%
10
50
90

Dwell Time

100
μs
0
100
200

Hastelloy Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

DANGER
Fluence:101.86 J/cm²
From optimal:71%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Hastelloy Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

GOOD
Fluence: J/cm²
From optimal:33%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Hastelloy Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

ELEVATED
Fluence: J/cm²
From optimal:50%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Hastelloy Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

GOOD
Fluence:101.86 J/cm²
From optimal:33%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Power (W)

Hastelloy Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Safe

Heat Safety

Heat Control

Cooling Efficiency

Pass Optimization

📈 Heat Profile

Safe (<150°C)
Damage (>250°C)
0°C100°C200°C300°C✓ Safe🚨 Damage20°CPass 1Pass 2Pass 3

🔧 Laser Settings

Pulse Energy:2000.00 mJ
Total Sim Time:90.6s

🌡️ Live Temperature

20°C
✅ Safe
Pass 1 of 3
Time: 0.0s / 90.6s

▶️ Simulation Controls

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for hastelloy

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

  • Reduce repetition rate
  • Increase scan speed
  • Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

  • Adjust energy density based on surface condition
  • Use multiple passes with progressive settings
  • Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures

Hastelloy Dataset Download

License: Creative Commons BY 4.0 • Free to use with attribution •Learn more

Parameter Relationships

Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.

PowerRangeWavelengthSpotSizeRepetitionRateEnergyDensityPulseWidthScanSpeedPassCountOverlapRatioDwellTime

Power Range

Amplifies damage risk in Pulse Width and Energy Density. Keep low to maintain safety margins.

Spot Size

Same power in a smaller spot creates much higher energy density.

Energy Density

Higher power delivers more energy per pulse, removing more material.

Pulse Width

More power means higher peak intensity. Too much can damage the material.

Pass Count

Using more passes means you can use lower power and still get the job done.
