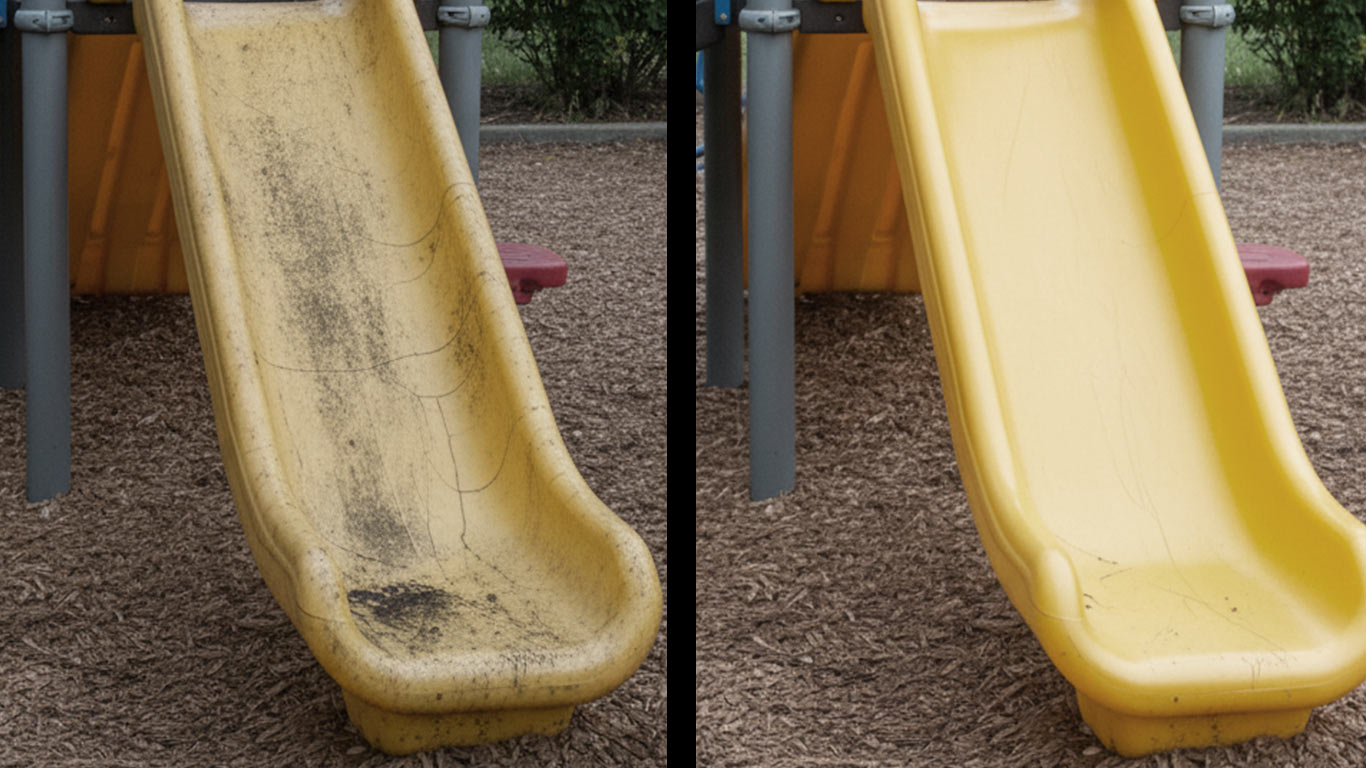

Polyvinyl Chloride laser cleaning visualization showing process effects
Alessandro Moretti
Alessandro MorettiPh.D.Italy
Laser-Based Additive Manufacturing
Published
Jan 6, 2026

Polyvinyl Chloride Settings

When laser cleaning polyvinyl chloride, you must watch its low heat tolerance right from the start—it's a thermoplastic that softens quickly under intense energy, leading to warping or melting if you're not careful. This makes it different from metals, where heat spreads out fast; here, the energy stays localized because it doesn't conduct heat well, so you risk damaging the surface before buildup even clears. Start with reduced power to build up gradually, and keep scan speeds high to limit exposure time on any spot. You'll find it absorbs laser light readily, which helps remove contaminants efficiently without much reflection loss, but always test on a small area first to avoid pitting. For best results, use multiple light passes with good overlap, letting it cool between them—this restores the smooth finish on pipes or panels without compromising its corrosion resistance or flexibility.

Polyvinyl Chloride Machine Settings

Optimal laser parameters and equipment specifications

Wavelength

1,064
nm
355
1,064
1.1e4

Spot Size

150
μm
0.1
150
500

Energy Density

0.3
J/cm²
0.1
0.3
20

Pulse Width

30
ns
0.1
30
1,000

Scan Speed

1,000
mm/s
10
1,000
5,000

Pass Count

2
passes
1
2
10

Overlap Ratio

50
%
10
50
90

Laser Power

100
W
1
100
120

Laser Power Alternative

50
W
10
50
200

Frequency

30
kHz
1
30
200

Polyvinyl Chloride Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.
DANGER
Fluence:7.07 J/cm²
From optimal:63%
Pulse Duration (ns)
1000
750
500
250
0
0
33
67
100
133
167
200
Power (W)

Polyvinyl Chloride Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).
MODERATE
Fluence: J/cm²
From optimal:42%
Pulse Duration (ns)
1000
750
500
250
0
0
33
67
100
133
167
200
Power (W)

Polyvinyl Chloride Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.
ELEVATED
Fluence: J/cm²
From optimal:50%
Pulse Duration (ns)
1000
750
500
250
0
0
33
67
100
133
167
200
Power (W)

Polyvinyl Chloride Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.
GOOD
Fluence:7.07 J/cm²
From optimal:33%
Pulse Duration (ns)
1000
750
500
250
0
0
33
67
100
133
167
200
Power (W)

Polyvinyl Chloride Heat Buildup

Excellent

Heat Safety

Heat Control

Cooling Efficiency

Pass Optimization

📈 Heat Profile

Safe (<150°C)
Damage (>250°C)
0°C100°C200°C300°C✓ Safe🚨 Damage20°CPass 1Pass 2

🔧 Laser Settings

Pulse Energy:2000.00 mJ
Total Sim Time:60.2s

🌡️ Live Temperature

20°C
✅ Safe
Pass 1 of 2
Time: 0.0s / 60.2s

▶️ Simulation Controls

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for polyvinyl chloride

Prevention First

Proactive strategies to avoid problems before they occur

othermedium severity

Impact

Prevention Solutions

    Fix Issues

    Symptom-based diagnosis and solutions for active problems

    No troubleshooting guides available for this material.

    Quick Reference

    At-a-glance overview with severity matrix and decision support

    Challenges by Severity

    Medium Priority (1)

    Common Issues

    No common issues documented.

    Quick Decision Helper

    Start with Prevention First tab before beginning work
    Use Fix Issues tab when problems occur
    Focus on Critical and High severity items first

    Polyvinyl Chloride Dataset

    Download Polyvinyl Chloride properties, specifications, and parameters in machine-readable formats
    38
    Variables
    0
    Laser Parameters
    0
    Material Methods
    11
    Properties
    3
    Standards
    3
    Formats

    License: Creative Commons BY 4.0 • Free to use with attribution •Learn more

    Parameter Relationships

    Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.
    WavelengthSpotSizeEnergyDensityPulseWidthScanSpeedPassCountOverlapRatioLaserPowerLaserPowerAlternativeFrequency

    Spot Size

    Directly affects Scan Speed and Energy Density. Increase this to amplify downstream effects.

    Energy Density

    Smaller spots concentrate energy into a smaller area.

    Scan Speed

    A bigger spot lets you scan faster while keeping good coverage.

    Common Challenges

    Technical challenges and optimization strategies for these settings
    ThermalManagement
    • [object Object]
    • [object Object]
    ContaminationChallenges
    • [object Object]
