Is laser cleaning safe for delicate travertine surfaces like those on historical monuments without causing **thermal cracking** or discoloration?

**Low fluence minimizes thermal cracking**. Yes, laser cleaning is particularly safe for delicate travertine on historical monuments, as it minimizes thermal cracking risks in the porous calcium carbonate through low fluence of 1.5 J/cm² and 1064 nm wavelength. Notably, nanosecond pulses at 10 ns limit heat penetration, evident in successful Italian heritage restorations free of discoloration. A 500 mm/s scan speed then ensures even coverage.

What laser wavelengths are most effective for removing organic stains from travertine tiles **without etching the surface**?

**1064 nm enables selective ablation**. When cleaning organic stains on travertine tiles, near-infrared lasers at 1064 nm—such as Nd:YAG—perform exceptionally well, thanks to the stone's moderate absorption. This enables selective ablation at fluences of about 1.5 J/cm², avoiding surface etching. Notably, UV wavelengths pose risks of greater substrate damage from intense absorption, while visible light yields poorer selectivity for contaminants. For uniform outcomes, apply 100 W power with a 500 mm/s scan speed.

How can I prevent moisture reabsorption in travertine after laser cleaning, given its **high porosity**?

**Apply siloxane-based sealant promptly**. After laser cleaning travertine at 1.5 J/cm² fluence with a 1064 nm wavelength, promptly apply a penetrating siloxane-based sealant to fill its porous structure and repel water ingress—particularly for effective protection. Keep ambient humidity below 60% during drying and handling to minimize initial absorption. Thus, for longevity, inspect annually and reseal as needed to curb efflorescence from dissolved salts.

What power settings should be used for laser cleaning graffiti from outdoor travertine facades to avoid **subsurface damage**?

**1.5 J/cm² protects hardness**. For graffiti removal on outdoor travertine facades, target 1.5 J/cm² fluence using 100 W power, 50 kHz repetition, and 10 ns pulses at 1064 nm wavelength. Particularly, this setting preserves the stone's Mohs 3-4 hardness from subsurface damage. Thus, test on samples to fine-tune for sunlight's thermal effects.

Are there any chemical reactions between laser-induced plasma and **travertine's calcite composition** that could lead to unwanted byproducts?

**Triggers calcite thermal decomposition**. Laser-induced plasma on travertine's calcite (CaCO3) can trigger thermal decomposition, particularly releasing CO2 gas as a byproduct at fluences around 1.5 J/cm² with 1064 nm wavelength. This risks surface pitting if unmanaged. Thus, inert gas shielding during 100 W nanosecond pulsing effectively minimizes oxidation and unwanted residues.

In laser cleaning equipment for travertine floors, what scanning patterns minimize uneven ablation on **uneven natural stone surfaces**?

**Raster scanning with beam overlap**. For uneven travertine floors, opt for raster scanning via galvanometer with 30% beam overlap at 500 mm/s, particularly to evenly distribute the 1.5 J/cm² fluence and counter the stone's natural texture. Pair this with robotic arms for broad coverage, thus ensuring consistent ablation without hotspots.

What safety precautions are needed when laser cleaning travertine in enclosed spaces to handle **dust and fumes** from vaporized contaminants?

**N95 respirators for silica dust**. When using a 1064 nm laser at 1.5 J/cm² fluence to clean travertine in tight spaces, opt for NIOSH N95 respirators or better, particularly to tackle crystalline silica dust from its limestone base that endangers lung health. Follow OSHA 29 CFR 1926.1153 on ventilation, thus targeting over 20 air changes per hour to clear fumes. Include laser goggles and gloves for complete safety.

How does travertine's **variable density** affect the uniformity of laser cleaning results compared to denser stones like marble?

**Requires pre-scan low fluence**. Travertine's density varies between 2.5 and 2.7 g/cm³, particularly causing uneven laser penetration at 1064 nm—unlike the steady absorption in denser marble—and thus yielding patchy cleaning results. Lower-density areas risk deeper ablation, so pre-scan surfaces to detect variations and apply 1.5 J/cm² fluence for uniform outcomes.

What are common issues with laser cleaning **travertine patina**, and how to preserve intentional aging effects?

**Low fluence preserves porous patina**. Laser cleaning travertine's patina particularly risks over-removing the valued aged layer in its porous limestone structure, resulting in uneven aesthetics or microcracks. Thus, to preserve intentional aging, choose selective surface techniques at 1.5 J/cm² fluence with 1064 nm wavelength, restricting passes to two per heritage guidelines—restoration forums highlight preliminary test areas for accuracy.

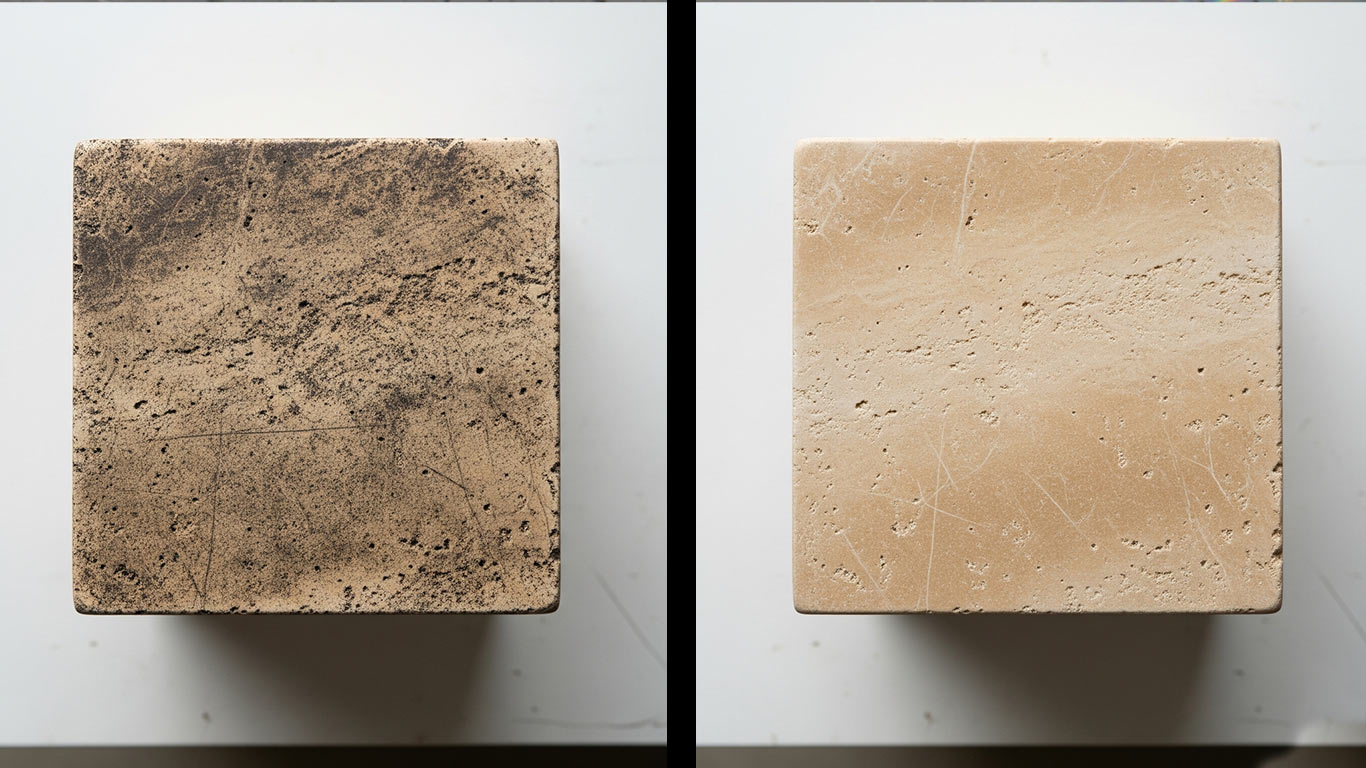

Travertine surface undergoing laser cleaning showing precise contamination removal

Yi-Chun LinPh.D.Taiwan

Laser Materials Processing

Travertine Laser Cleaning Settings

When laser cleaning Travertine, watch out for its high porosity right from the start—I've seen it soak up heat unevenly, which can lead to micro-cracks if you're not careful. This natural stone, like a spongy limestone, differs from denser rocks because it traps contaminants deep inside, so you need to go gentle to avoid pulling the surface apart. Tends to heat up slowly due to poor conductivity, meaning prolonged exposure risks surface spalling. Start with lower power settings and slower scan speeds to let the laser gently loosen dirt without stressing the pores. This works best when you overlap passes lightly, pulling grime out layer by layer. I've found multiple light treatments clear buildup effectively while preserving the stone's texture for heritage sites. Just avoid high energy bursts—they'll scorch the calcite base and ruin that classic banded look. Adjust based on soiling thickness, and always test a small area first to keep things safe.

Let's talk

Travertine Machine Settings

Power Range

100

120

Wavelength

1,064

355

1,064

1.1e4

Spot Size

100

μm

0.1

100

500

Repetition Rate

kHz

200

Energy Density

1.5

J/cm²

0.1

1.5

Pulse Width

0.1

1,000

Scan Speed

500

mm/s

500

5,000

Pass Count

passes

Overlap Ratio

Travertine Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

Pulse

DANGER

Fluence:25.46 J/cm²

From optimal:71%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Travertine Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

Pulse

GOOD

Fluence:— J/cm²

From optimal:25%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Travertine Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

Pulse

HIGH RISK

Fluence:— J/cm²

From optimal:63%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Travertine Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

Pulse

GOOD

Fluence:25.46 J/cm²

From optimal:33%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Travertine Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Excellent

108°C+142°C

Heat Safety

100%40%

Heat Control

81%25%

Cooling Efficiency

83%20%

Pass Optimization

66%15%

📈 Heat Profile

Safe (<150°C)

Damage (>250°C)

🔧 Laser Settings

Power: 100W

Rep Rate: 0 kHz

Scan Speed: 500 mm/s

Pass Count: 2

Cooling Time: 30s

Pulse Energy:2000.00 mJ

Total Sim Time:60.4s

🌡️ Live Temperature

20°C

✅ Safe

Pass 1 of 2

Time: 0.0s / 60.4s

▶️ Simulation Controls

Animation Speed: 1×

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for travertine

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

✓Reduce repetition rate
✓Increase scan speed
✓Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

✓Adjust energy density based on surface condition
✓Use multiple passes with progressive settings
✓Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures

Travertine Dataset Download

Variables

Parameters

Parameter Relationships

Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.

Power Range

Amplifies damage risk in Pulse Width and Energy Density. Keep low to maintain safety margins.

Spot Size

Same power in a smaller spot creates much higher energy density.

Energy Density

Higher power delivers more energy per pulse, removing more material.

Pulse Width

More power means higher peak intensity. Too much can damage the material.

Pass Count

Using more passes means you can use lower power and still get the job done.

Travertine Laser Cleaning Settings

Travertine Machine Settings

Power Range

Wavelength

Spot Size

Repetition Rate

Energy Density

Pulse Width

Scan Speed

Pass Count

Overlap Ratio

Travertine Material Safety

Travertine Energy Coupling

Travertine Thermal Stress Risk

Travertine Cleaning Efficiency

Travertine Heat Buildup

Excellent

Heat Safety

Heat Control

Cooling Efficiency

Pass Optimization

📈 Heat Profile

🔧 Laser Settings

🌡️ Live Temperature

▶️ Simulation Controls

Diagnostic & Prevention Center

🌡️thermal management

Heat accumulation

🔍surface characteristics

Variable surface roughness

Travertine Dataset Download

Parameter Relationships

Power Range

Spot Size

Energy Density

Pulse Width

Pass Count
