What laser wavelengths are most effective for cleaning biological growth like lichen from schist stone without **causing delamination**?

**1064 nm minimizes delamination risk**. For cleaning lichen from schist, the 1064 nm near-IR wavelength basically outperforms 532 nm by targeting organic growth with fairly minimal absorption in the stone's foliated mica layers, thus reducing delamination risk. Keep fluence below 4.5 J/cm² at 90 W power to ablate contaminants while preserving substrate integrity.

How do I adjust laser power settings to remove soot and pollutants from historical schist facades while preserving the natural mica sheen?

For those historical schist facades, set the fluence at 4.5 J/cm² to pretty much vaporize soot and grime without etching the substrate, preserving that subtle mica luster. Pair it with a 50 kHz repetition rate and 500 mm/s scan speed, which fairly handles the stone's irregular hardness and layered minerals for even, gentle coverage.

Is there a risk of thermal cracking in schist during laser cleaning due to its anisotropic structure?

Yes, the foliated anisotropy in schist pretty much leads to uneven thermal expansion, risking cracks during laser cleaning. I'd recommend sticking to 4.5 J/cm² fluence at 90 W power with 1064 nm wavelength, plus air cooling, to basically minimize heat buildup. A Venice canal project successfully avoided damage this way on historic facades.

What precautions should be taken when laser cleaning schist surfaces that may contain **quartz inclusions** to avoid silica dust hazards?

**Low fluence prevents silica release**. When laser cleaning schist with quartz inclusions, operate at a fluence of 4.5 J/cm² using 1064 nm wavelength to basically ablate surface contaminants without excessive substrate vaporization that could release respirable silica particles. Typically mandate N95 respirators or better for workers, plus local exhaust ventilation to capture dust, ensuring OSHA compliance with the 50 µg/m³ limit for crystalline silica in mineral-rich stones like schist.

Can Nd:YAG lasers effectively strip old coatings from schist without altering its **metamorphic texture**?

**Preserves metamorphic texture integrity**. Yes, Nd:YAG lasers at 1064 nm fairly effectively remove old coatings from schist via layered ablation, employing 4.5 J/cm² fluence for selective targeting that spares the substrate. Typically, this preserves the stone's metamorphic texture, with post-cleaning microscopy showing no structural changes in its foliated layers.

In laser cleaning forums, users mention schist's variable composition—how does the **mica content** affect cleaning efficiency?

**Mica boosts reflectivity, slows efficiency**. Higher mica content in schist pretty much boosts reflectivity at 1064 nm, reducing laser absorption and slowing contaminant removal efficiency. Mica-rich varieties typically need fluence dialed up to 4.5 J/cm² for compensation, while chlorite schist cleans faster on baseline settings with better uptake. Scan at 500 mm/s either way for even coverage.

What are common issues with laser cleaning equipment when treating outdoor schist monuments **exposed to weathering**?

**Adjust fluence for uneven surfaces**. Outdoor laser cleaning of weathered schist monuments typically runs into portability challenges from bulky setups and limited weather resistance, which can lead to moisture damaging the optics. For schist's rough, uneven surfaces, adjust the equipment to 4.5 J/cm² fluence and 500 mm/s scan speed for even ablation without harming the substrate. Pretty routine dust filters assist as well.

For schist in architectural restoration, what training is recommended for operators to avoid over-ablation on **fragile layers**?

**ICOMOS-guided low fluence training**. Operators working on laser cleaning for schist's pretty fragile foliated layers need ICOMOS-guided training that stresses hands-on practice using fairly low fluence around 4.5 J/cm² to avoid over-ablation. Essential steps cover test patches on comparable stone plus real-time visual checks through magnification, while tuning scan speeds to 500 mm/s for even coverage without heating up delicate minerals.

How does schist's **low porosity** impact the removal of salt efflorescence using laser methods compared to sandstone?

**Confines energy for superficial ablation**. Schist's low porosity basically confines laser energy to the surface, cutting penetration depth versus sandstone's deeper salt absorption. That pretty much improves residue removal efficiency for efflorescence, since contaminants remain superficial. So we use lower fluence, like 4.5 J/cm² at 1064 nm, to ablate salts cleanly without substrate damage.

What physical properties of schist, like its hardness and cleavage, should be considered before selecting a laser cleaning method?

Schist's Mohs hardness, spanning 3-7, basically calls for laser settings that protect softer mica layers from over-ablation. Those strong cleavage planes fairly amplify crack risks under heat, so aim at 4.5 J/cm² fluence using 1064 nm to strip surface grime cleanly without spreading fissures.

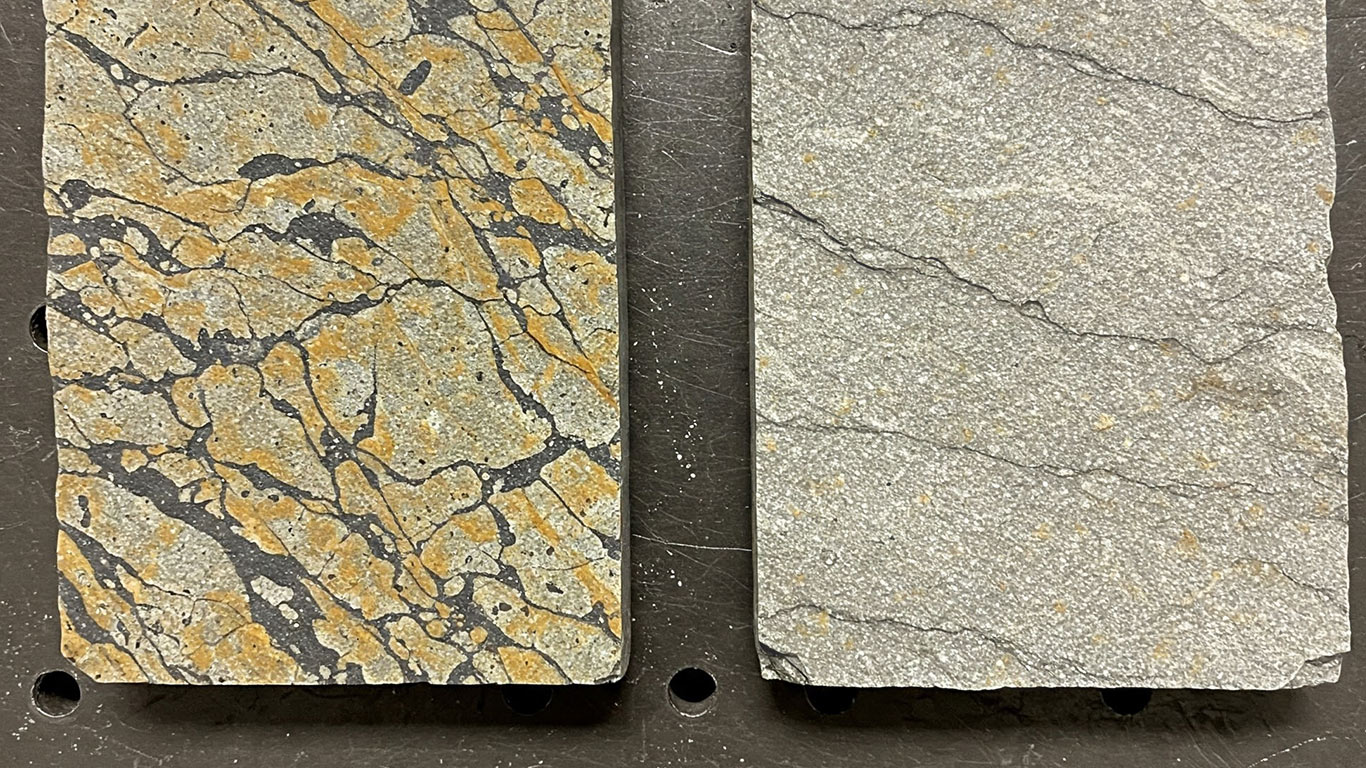

Schist surface undergoing laser cleaning showing precise contamination removal

Todd DunningMAUnited States

Optical Materials for Laser Systems

Schist Laser Cleaning Settings

When cleaning schist, watch its layered foliation that sets it apart from denser, more uniform stones like granite. I've seen this structure lead to delamination under uneven heat, so start with gentler passes to avoid cracking along those planes. Unlike smoother limestones, schist's moderate absorption pulls in laser energy well but traps heat due to low conductivity, which tends to build up quickly. This works best when you reduce power early on, allowing multiple light exposures to reveal surface grime without stressing the layers. Adjust overlap to keep things even, restoring the stone's natural sheen steadily.

Let's talk

Schist Machine Settings

Power Range

120

Wavelength

1,064

355

1,064

1.1e4

Spot Size

μm

0.1

500

Repetition Rate

kHz

200

Energy Density

4.5

J/cm²

0.1

4.5

Pulse Width

0.1

1,000

Scan Speed

500

mm/s

500

5,000

Pass Count

passes

Overlap Ratio

Schist Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

Pulse

DANGER

Fluence:35.81 J/cm²

From optimal:67%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Schist Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

Pulse

MODERATE

Fluence:— J/cm²

From optimal:38%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Schist Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

Pulse

HIGH RISK

Fluence:— J/cm²

From optimal:58%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Schist Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

Pulse

GOOD

Fluence:35.81 J/cm²

From optimal:33%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Schist Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Excellent

105°C+145°C

Heat Safety

100%40%

Heat Control

82%25%

Cooling Efficiency

83%20%

Pass Optimization

66%15%

📈 Heat Profile

Safe (<150°C)

Damage (>250°C)

🔧 Laser Settings

Power: 90W

Rep Rate: 0 kHz

Scan Speed: 500 mm/s

Pass Count: 2

Cooling Time: 30s

Pulse Energy:1800.00 mJ

Total Sim Time:60.4s

🌡️ Live Temperature

20°C

✅ Safe

Pass 1 of 2

Time: 0.0s / 60.4s

▶️ Simulation Controls

Animation Speed: 1×

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for schist

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

✓Reduce repetition rate
✓Increase scan speed
✓Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

✓Adjust energy density based on surface condition
✓Use multiple passes with progressive settings
✓Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures

Schist Dataset Download

Variables

Parameters

Parameter Relationships

Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.

Power Range

Amplifies damage risk in Pulse Width and Energy Density. Keep low to maintain safety margins.

Spot Size

Same power in a smaller spot creates much higher energy density.

Energy Density

Higher power delivers more energy per pulse, removing more material.

Pulse Width

More power means higher peak intensity. Too much can damage the material.

Pass Count

Using more passes means you can use lower power and still get the job done.

Schist Laser Cleaning Settings

Schist Machine Settings

Power Range

Wavelength

Spot Size

Repetition Rate

Energy Density

Pulse Width

Scan Speed

Pass Count

Overlap Ratio

Schist Material Safety

Schist Energy Coupling

Schist Thermal Stress Risk

Schist Cleaning Efficiency

Schist Heat Buildup

Excellent

Heat Safety

Heat Control

Cooling Efficiency

Pass Optimization

📈 Heat Profile

🔧 Laser Settings

🌡️ Live Temperature

▶️ Simulation Controls

Diagnostic & Prevention Center

🌡️thermal management

Heat accumulation

🔍surface characteristics

Variable surface roughness

Schist Dataset Download

Parameter Relationships

Power Range

Spot Size

Energy Density

Pulse Width

Pass Count
