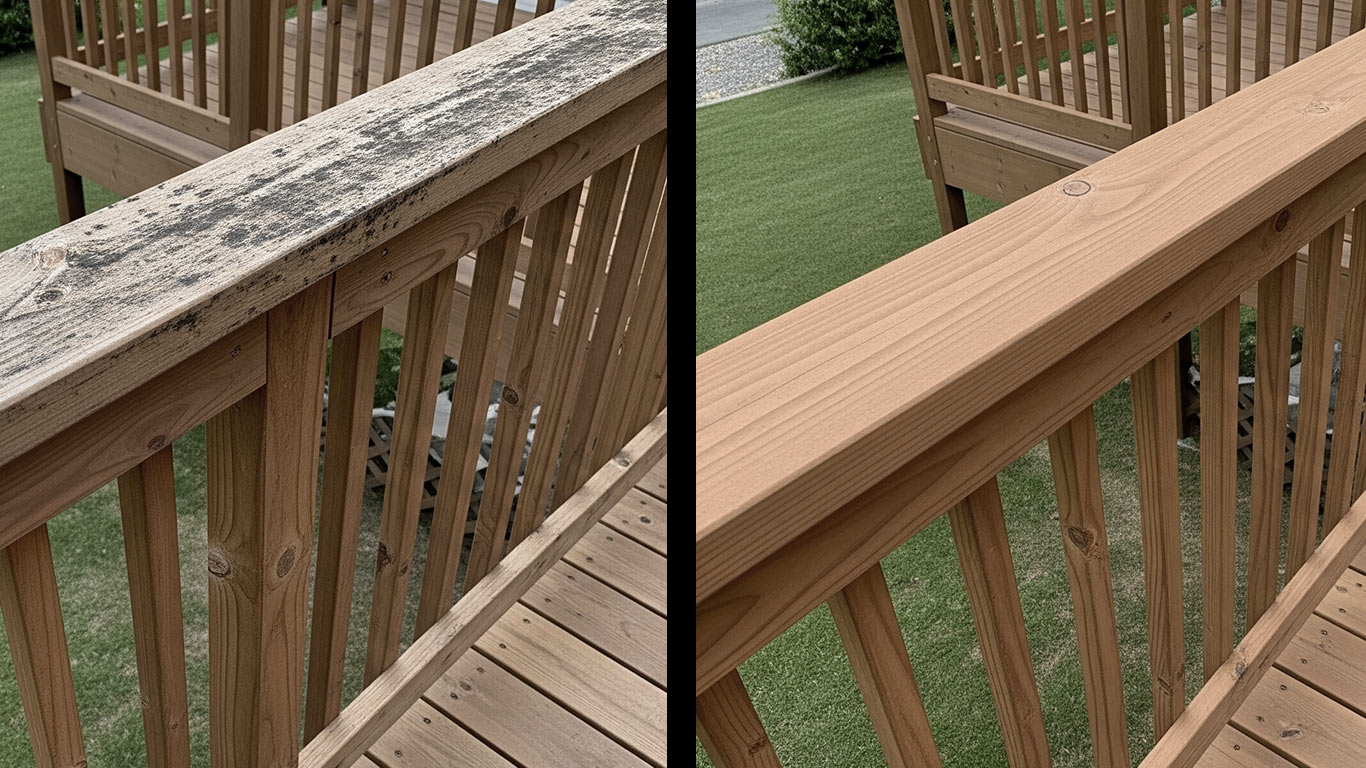

When laser cleaning cedar, we typically begin by selecting a low-power setting to match its soft, porous structure. This wood absorbs laser energy readily because of its low reflectivity, which allows contaminants to vaporize without much resistance. We've found that starting with a focused spot size helps expose surface layers evenly, reducing the risk of uneven cleaning on its lightweight frame. As you proceed, maintain a moderate scan speed to account for cedar's poor heat conduction—heat tends to localize and can char the material if you push too fast. In our experience, this calls for two passes with significant overlap to restore the wood's natural grain without embedding residues in its open pores. Watch out for overexposure in the middle of thicker sections, where porosity traps moisture and amplifies thermal buildup; dial back the energy density there to avoid splintering. Overall, these adjustments preserve cedar's flexibility for applications like furniture restoration or heritage work.
Cedar Machine Settings
Power Range
100
W
1
100
120
Wavelength
1,064
nm
355
1,064
1.1e4
Spot Size
80
μm
0.1
80
500
Repetition Rate
50
kHz
1
50
200
Energy Density
2.5
J/cm²
0.1
2.5
20
Pulse Width
12
ns
0.1
12
1,000
Scan Speed
500
mm/s
10
500
5,000
Pass Count
2
passes
1
2
10
Overlap Ratio
50
%
10
50
90
Cedar Material Safety
Shows damage risk across parameter space. Green = safe, Red = damage danger.
Pulse
DANGER
Fluence:39.79 J/cm²
From optimal:71%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Cedar Energy Coupling
Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).
Pulse
GOOD
Fluence:— J/cm²
From optimal:29%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Cedar Thermal Stress Risk
Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.
Pulse
HIGH RISK
Fluence:— J/cm²
From optimal:58%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Cedar Cleaning Efficiency
Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.
Pulse
GOOD
Fluence:39.79 J/cm²
From optimal:33%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Cedar Heat Buildup
See if your multi-pass cleaning will overheat and damage the material
Heat Safety
100%40%
Heat Control
81%25%
Cooling Efficiency
83%20%
Pass Optimization
66%15%
📈 Heat Profile
Safe (<150°C)
Damage (>250°C)
🔧 Laser Settings
Pulse Energy:2000.00 mJ
Total Sim Time:60.4s
🌡️ Live Temperature
20°C
✅ Safe
Pass 1 of 2
Time: 0.0s / 60.4s
▶️ Simulation Controls
Diagnostic & Prevention Center
Proactive strategies and reactive solutions for cedar
🌡️thermal management
Heat accumulation
Impact: Excessive heat can damage substrate or alter material properties
Solutions:
- ✓Reduce repetition rate
- ✓Increase scan speed
- ✓Add cooling time between passes
Prevention: Monitor surface temperature and adjust parameters accordingly
🔍surface characteristics
Variable surface roughness
Impact: Inconsistent cleaning results across different surface textures
Solutions:
- ✓Adjust energy density based on surface condition
- ✓Use multiple passes with progressive settings
- ✓Pre-characterize surface before cleaning
Prevention: Standardize surface preparation procedures
Cedar Dataset Download
Parameter Relationships
Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.
Power Range
Amplifies damage risk in Pulse Width and Energy Density. Keep low to maintain safety margins.
Spot Size
Same power in a smaller spot creates much higher energy density.
Energy Density
Higher power delivers more energy per pulse, removing more material.
Pulse Width
More power means higher peak intensity. Too much can damage the material.
Pass Count
Using more passes means you can use lower power and still get the job done.
