Can fused silica be laser cleaned without causing **damage or micro-cracks**?

**Low fluence minimizes thermal shock**. Yes, fused silica can be pretty safely laser cleaned with careful parameter control. A 1064 nm wavelength, fluence below 2.5 J/cm², and nanosecond pulses typically minimize thermal shock risks to its amorphous structure. This method effectively removes contaminants while preventing subsurface damage and micro-crack formation in the glass.

What is the best laser wavelength for cleaning contaminants from **fused silica optics**?

**355nm UV below damage threshold**. For fused silica optics, UV wavelengths around 355 nm are pretty superior. Most contaminants absorb them fairly strongly, enabling effective ablation at fluences below the substrate's ~2.5 J/cm² damage threshold. This separation ensures thorough cleaning without harming the optic's surface.

How do you remove thin film coatings from fused silica using a laser **without etching the surface**?

**Fluence below substrate etch threshold**. We basically employ 1064 nm nanosecond pulses at around 2.5 J/cm² for selective ablation of thin films. This fluence sits fairly above the coating's ablation threshold, while remaining safely below the point that could etch the pristine fused silica substrate.

What are the LIDT (Laser-Induced Damage Threshold) concerns when laser cleaning fused silica optics?

Operating laser cleaning close to the 2.5 J/cm² threshold can pretty much generate microscopic damage precursors, potentially reducing Fused Silica's LIDT. Typically, follow-up measurements uncover a lowered threshold from these subsurface alterations, undermining reliability in high-power applications.

Does laser cleaning create **OH group contamination** or other chemical changes on the fused silica surface?

**Below threshold avoids OH formation**. When laser cleaning is properly configured below the 2.5 J/cm² threshold, it typically avoids OH group formation. But excessive fluence can induce surface chemistry changes, potentially boosting hydrogen bonding and degrading UV transmission. Keeping optimal parameters is basically critical for long-term optical stability.

What safety precautions are specific to laser cleaning fused silica **compared to metals**?

**Below 2.5 J/cm² threshold**. The main precaution here is keeping things below fused silica's 2.5 J/cm² damage threshold to avoid subsurface cracking. Pretty much unlike metals, its fairly low thermal conductivity causes those stress fractures. Always wear respiratory PPE for the fine silica particulates it generates.

How effective is laser cleaning for removing **sub-surface damage** (SSD) in fused silica?

**Mitigates SSD below 2.5 J/cm²**. Laser cleaning can fairly effectively mitigate existing sub-surface damage when operated below fused silica's ~2.5 J/cm² damage threshold. Yet, exceeding this fluence with 10 ns pulses will pretty reliably introduce new microfractures, undermining the conditioning goal.

Can laser cleaning replace traditional methods like CO2 snow or solvent cleaning for fused silica in cleanroom environments?

Laser cleaning pretty much replaces traditional methods for fused silica, delivering superior particle removal below 2.5 J/cm². This non-contact process relies on a 1064 nm wavelength to fairly eliminate organics without solvents, boosting throughput while enabling validation through light scatter testing for critical optics.

What is the maximum allowable surface temperature during laser cleaning of fused silica to prevent **thermal stress failure**?

**Allows up to 300°C**. Fused silica's pretty low 0.55 ppm/°C thermal expansion coefficient lets it handle surface temperatures up to around 300°C before any stress failure kicks in. To keep things stable, stay below the 2.5 J/cm² fluence damage threshold and go with fairly high 500 mm/s scan speeds to cut localized heating and dodge harmful thermal gradients.

How do you verify the success of a laser cleaning process on a **fused silica optic**?

**Verifies transmission without degradation**. Verification employs several techniques. Typically, we assess surface integrity via white-light interferometry, confirming no profile shifts beyond 2 nm. Scatterometry spots residual particles, while 1064 nm transmission measurements indicate no baseline degradation. Basically, this approach fully restores the optic's performance.

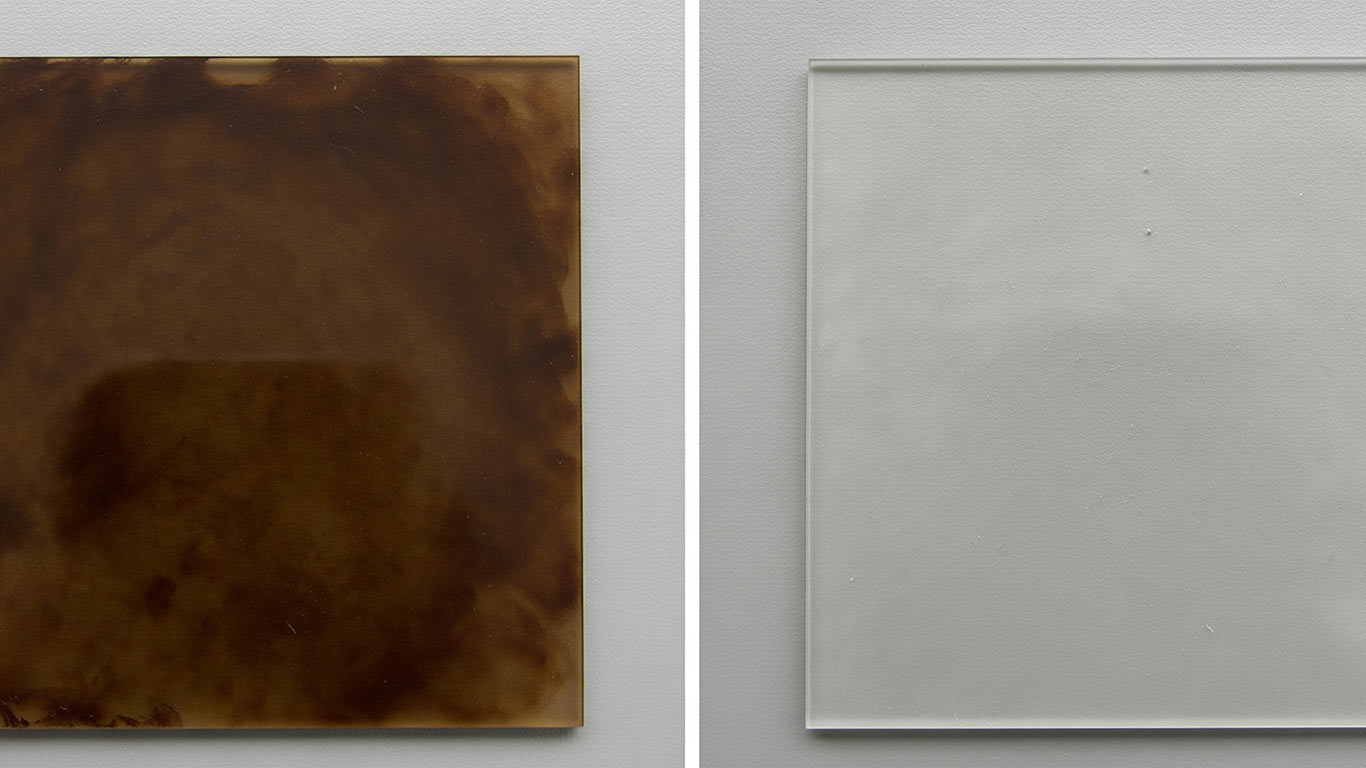

Fused Silica surface undergoing laser cleaning showing precise contamination removal

Todd DunningMAUnited States

Optical Materials for Laser Systems

Fused Silica Laser Cleaning Settings

When laser cleaning fused silica, the biggest challenge is its low absorption of laser energy. This makes the process slower since the beam tends to pass through the material with minimal interaction. I've seen that pulsing at moderate rates removes surface contaminants effectively without overheating. Multiple gentle passes reveal the underlying clarity. Adjust scan speeds to avoid thermal buildup, which can lead to cracking.

Let's talk

Fused Silica Machine Settings

Power Range

100

120

Wavelength

1,064

355

1,064

1.1e4

Spot Size

μm

0.1

500

Repetition Rate

100

kHz

100

200

Fluence Threshold

2.5

J/cm²

0.3

2.5

4.5

Pulse Width

0.1

1,000

Scan Speed

500

mm/s

500

5,000

Pass Count

passes

Overlap Ratio

Fused Silica Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

Pulse

DANGER

Fluence:50.93 J/cm²

From optimal:71%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Fused Silica Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

Pulse

SUBOPTIMAL

Fluence:— J/cm²

From optimal:50%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Fused Silica Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

Pulse

HIGH RISK

Fluence:— J/cm²

From optimal:63%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Fused Silica Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

Pulse

GOOD

Fluence:50.93 J/cm²

From optimal:33%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Fused Silica Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Safe

124°C+126°C

Heat Safety

100%40%

Heat Control

71%25%

Cooling Efficiency

83%20%

Pass Optimization

100%15%

📈 Heat Profile

Safe (<150°C)

Damage (>250°C)

🔧 Laser Settings

Power: 100W

Rep Rate: 0 kHz

Scan Speed: 500 mm/s

Pass Count: 3

Cooling Time: 30s

Pulse Energy:1000.00 mJ

Total Sim Time:90.6s

🌡️ Live Temperature

20°C

✅ Safe

Pass 1 of 3

Time: 0.0s / 90.6s

▶️ Simulation Controls

Animation Speed: 1×

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for fused silica

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

✓Reduce repetition rate
✓Increase scan speed
✓Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

✓Adjust energy density based on surface condition
✓Use multiple passes with progressive settings
✓Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures

Fused Silica Dataset Download

Variables

Parameters

Parameter Relationships

Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.

Power Range

Amplifies damage risk in Pulse Width. Keep low to maintain safety margins.

Spot Size

Same power in a smaller spot creates much higher energy density.

Pulse Width

More power means higher peak intensity. Too much can damage the material.

Pass Count

Using more passes means you can use lower power and still get the job done.
