Can a laser cleaner remove paint from a plaster wall without **damaging the underlying surface**?

**Nanosecond pulses prevent thermal weakening**. Yes, laser cleaning effectively removes paint from plaster walls while preserving the underlying substrate. Specifically, a 1064 nm wavelength at ~2.5 J/cm² fluence ablates the coating with minimal heat transfer. Thus, employing nanosecond pulses avoids subsurface thermal damage that could weaken the porous plaster structure.

What is the safe laser power and fluence level for cleaning soot or smoke residue from **historic plaster**?

**Low fluence avoids vitrification**. For historic plaster, particularly with its delicate nature, start testing at 2.5 J/cm² fluence using a 100W laser. Excessive power can thus lead to permanent discoloration or vitrification, which alters the surface. Always test parameters first on a hidden area to confirm soot removal without harming the substrate.

Does laser cleaning create **hazardous dust** when used on plaster, and how does it compare to traditional methods?

**Requires HEPA extraction and PPE**. Laser ablation at 2.5 J/cm² notably produces far less bulk dust than mechanical methods. Yet, it generates fine particulates, thus requiring HEPA-filtered extraction and respiratory PPE, particularly for historic plasters with unknown contaminants.

Why does my laser sometimes leave a **darkened or yellowed stain** on the plaster surface after cleaning?

**Avoids mineral hydrate alteration**. Low power may carbonize embedded organics, whereas, notably, fluence exceeding 2.5 J/cm² disrupts plaster's mineral hydrates. Thus, fine-tune your 1064 nm laser parameters to sidestep these thermal issues, achieving contaminant removal without substrate damage that causes yellowing.

Is laser cleaning effective for removing **biological growth** like mold or algae from exterior plaster (stucco)?

**Porous substrate retains spores**. Yes, notably, laser cleaning removes biological growth from plaster at 2.5 J/cm² fluence without introducing moisture. However, the porous substrate often retains spores, thus requiring a follow-up chemical treatment for full remediation and to curb rapid regrowth.

What wavelength (e.g., 1064nm, 10600nm) is most effective for laser cleaning plaster, and why?

For plaster cleaning, notably the 10600nm CO₂ laser wavelength proves most effective. This infrared light is strongly absorbed by the hydrates in gypsum, thus enabling efficient contaminant removal at 2.5 J/cm² while minimizing thermal damage to the delicate substrate.

How do I clean **different types of plaster** (e.g., gypsum, lime, cement-based) with a laser? Do the settings change?

**Adjust fluence by plaster softness**. Due to its softness, lime plaster particularly needs a gentle ~2.5 J/cm² fluence, whereas harder cement-based materials handle slightly higher energy. First, identify your substrate always; incorrect 1064 nm settings can thus cause thermal degradation.

Can laser cleaning be used to delicately clean fragile, historic plaster moldings and ornaments?

Laser cleaning proves particularly effective for conserving delicate plaster, with a fluence of 2.5 J/cm² and 100 µm spot size. Notably, this non-contact approach using nanosecond pulses selectively removes contaminants, thus safeguarding fragile historic details without abrasion.

What are the main advantages of using laser cleaning over chemical or abrasive methods for **plaster restoration**?

**Preserves fragile substrate**. Laser cleaning delivers excellent selectivity, particularly for plaster, by removing contaminants at 2.5 J/cm² without harming the delicate substrate. This contactless approach eliminates chemical residues and sidesteps mechanical stress from abrasives, thus safeguarding original surfaces. Notably, our 1064 nm wavelength achieves thorough cleaning with minimal thermal effects.

How does the **high porosity** of plaster affect the laser cleaning process and the final result?

**Requires multi-pass for deep removal**. Plaster's high porosity particularly enables contaminants to penetrate deeply, necessitating multiple passes at 2.5 J/cm² for full removal. Its structure traps ablation byproducts, thus complicating the procedure. Notably, a 'clean' surface means extracting these embedded particles successfully without substrate damage.

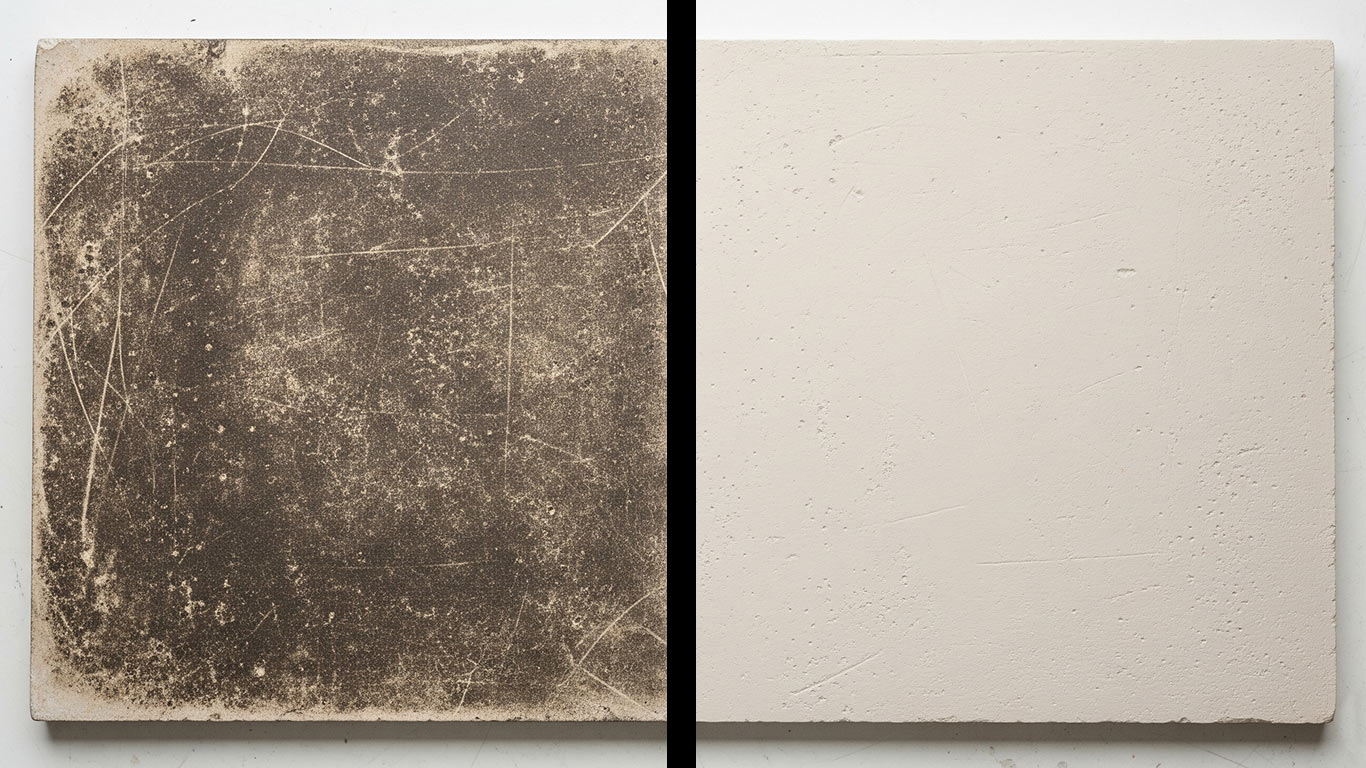

Plaster surface undergoing laser cleaning showing precise contamination removal

Yi-Chun LinPh.D.Taiwan

Laser Materials Processing

Plaster Laser Cleaning Settings

When we laser clean plaster, the biggest challenge is its fragile nature. It crumbles easily under too much heat. So we start low on power. This keeps the surface intact while removing dirt. We've found plaster's porous structure absorbs contaminants deeply. That means multiple gentle passes work best. Watch out for cracking in the middle of the process. It happens if you speed up too fast. Adjust the scan slowly. Plaster differs from stone because it's softer overall. So use wider spots to spread energy evenly. This avoids hot spots. In our experience, it cleans up nicely for heritage sites. Just stay patient and monitor closely.

Let's talk

Plaster Machine Settings

Power Range

100

120

Wavelength

1,064

355

1,064

1.1e4

Spot Size

100

μm

0.1

100

500

Repetition Rate

kHz

200

Energy Density

2.5

J/cm²

0.1

2.5

Pulse Width

0.1

1,000

Scan Speed

500

mm/s

500

5,000

Pass Count

passes

Overlap Ratio

Plaster Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

Pulse

DANGER

Fluence:25.46 J/cm²

From optimal:71%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Plaster Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

Pulse

SUBOPTIMAL

Fluence:— J/cm²

From optimal:50%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Plaster Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

Pulse

HIGH RISK

Fluence:— J/cm²

From optimal:58%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Plaster Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

Pulse

GOOD

Fluence:25.46 J/cm²

From optimal:33%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Plaster Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Excellent

108°C+142°C

Heat Safety

100%40%

Heat Control

81%25%

Cooling Efficiency

83%20%

Pass Optimization

66%15%

📈 Heat Profile

Safe (<150°C)

Damage (>250°C)

🔧 Laser Settings

Power: 100W

Rep Rate: 0 kHz

Scan Speed: 500 mm/s

Pass Count: 2

Cooling Time: 30s

Pulse Energy:2000.00 mJ

Total Sim Time:60.4s

🌡️ Live Temperature

20°C

✅ Safe

Pass 1 of 2

Time: 0.0s / 60.4s

▶️ Simulation Controls

Animation Speed: 1×

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for plaster

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

✓Reduce repetition rate
✓Increase scan speed
✓Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

✓Adjust energy density based on surface condition
✓Use multiple passes with progressive settings
✓Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures

Plaster Dataset Download

Variables

Parameters

Parameter Relationships

Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.

Power Range

Amplifies damage risk in Pulse Width and Energy Density. Keep low to maintain safety margins.

Spot Size

Same power in a smaller spot creates much higher energy density.

Energy Density

Higher power delivers more energy per pulse, removing more material.

Pulse Width

More power means higher peak intensity. Too much can damage the material.

Pass Count

Using more passes means you can use lower power and still get the job done.

Plaster Laser Cleaning Settings

Plaster Machine Settings

Power Range

Wavelength

Spot Size

Repetition Rate

Energy Density

Pulse Width

Scan Speed

Pass Count

Overlap Ratio

Plaster Material Safety

Plaster Energy Coupling

Plaster Thermal Stress Risk

Plaster Cleaning Efficiency

Plaster Heat Buildup

Excellent

Heat Safety

Heat Control

Cooling Efficiency

Pass Optimization

📈 Heat Profile

🔧 Laser Settings

🌡️ Live Temperature

▶️ Simulation Controls

Diagnostic & Prevention Center

🌡️thermal management

Heat accumulation

🔍surface characteristics

Variable surface roughness

Plaster Dataset Download

Parameter Relationships

Power Range

Spot Size

Energy Density

Pulse Width

Pass Count
