What safety precautions are essential when using a 1064 nm laser to clean highly reflective silver surfaces in cultural heritage artifacts, given its **97% reflectivity**?

**Mitigate specular reflection risks**. When cleaning highly reflective silver artifacts—boasting 97% reflectivity at 1064 nm—it's essential to counter specular reflection hazards using OD 5+ eyewear certified for 1064 nm, guarding against invisible near-IR beam-induced retinal burns. Opt for full-body laser-protective suits to shield skin from 0.45 J/cm² damage threshold exposures. Confine operations within interlocked Class 1 barriers, and position beam dumps alongside angled matte shields for secure containment.

How can the **low absorptivity of 4%** in silver be overcome to ensure effective tarnish removal during laser cleaning without excessive energy input?

**Apply carbon-based absorptive coatings**. To tackle silver's notable 4% absorptivity at 1064 nm during tarnish removal, deploy thin carbon-based coatings that amplify laser absorption, permitting fluences of 0.2-0.4 J/cm²—exceeding the 0.18 J/cm² ablation threshold while remaining under the 0.45 J/cm² damage threshold. It's essential to adjust pulse lengths to 10-50 ns, thereby restricting thermal diffusion (165.63 mm²/s) and preventing melting at 1234.93 K. Pre-roughen surfaces to 0.

What pulse energy settings are recommended for laser cleaning silver electronics components to stay below the **0.45 J/cm² damage threshold** while achieving ablation at 0.18 J/cm²?

**Fluence 0.18-0.40 J/cm² ablation**. When cleaning silver electronics at 1064 nm, it's essential to target fluence of 0.18-0.40 J/cm² for threshold ablation, staying below the 0.45 J/cm² damage limit. Nanosecond pulses (10-50 ns) offer notable efficiency, while picosecond ones (10-100 ps) distinctly reduce heat-affected zones in delicate parts. Scan speeds of 200-500 mm/s with 50-100 μm spots ensure uniform results.

In cultural heritage applications, how does silver's **high thermal conductivity** of 429 W/(m·K) impact laser cleaning parameters for antique silverware?

**Requires low fluence high speed**. Silver's notable thermal conductivity of 429 W/(m·K) and diffusivity of 165.63 mm²/s quickly disperse heat, widening the heat-affected zone in 1064 nm laser cleaning of antique silverware. Reduce HAZ and warping through higher scan speeds of 200 mm/s, fluence limited under 0.18 J/cm² ablation threshold, plus essential nitrogen cooling to avert discoloration.

For medical device manufacturing, what are the best practices for laser cleaning silver alloys to remove contaminants while maintaining biocompatibility and corrosion resistance rated at 9.0?

Employ a 1064 nm laser at 0.2-0.4 J/cm² fluence, remaining below the 0.45 J/cm² damage threshold and notable 1234.93 K melting point, to enable residue-free ablation of contaminants on silver alloys. It's essential to manage sterility with 235 J/(kg·K) heat control; confirm biocompatibility through XPS analysis, upholding 9.0 corrosion

How does silver's melting point of 1234.93 K influence the choice of laser power and repetition rate when cleaning thin silver films in electronics?

The notable melting point of silver at 1234.93 K demands careful laser parameters to maintain peak temperatures underneath it, achieved through thermal modeling with specific heat (235 J/kg·K) and diffusivity (165.63 mm²/s). When handling thin films, opt for power under 10 W alongside a repetition rate exceeding 10 kHz, thus reducing heat buildup and preventing delamination; adjust fluence to 0.1-0.15 J/cm², staying below 0.18 J/cm

What equipment features, such as beam delivery systems, are critical for precise laser cleaning of intricate silver jewelry designs without damaging low-hardness (25 HV) surfaces?

For precise laser cleaning of intricate silver jewelry with its notable 25 HV hardness, galvanometer scanners deliver agile beams at 1064 nm, curbing thermal diffusion (429 W/m·K conductivity). Essential spot size control caps fluence at 0.18–0.45 J/cm² to prevent melting at 1234.93 K. Imaging integration supports targeted ablation free of surface damage.

Given silver's **low porosity of 0.0001%**, how can laser cleaning parameters be adjusted to effectively remove embedded oxides from silver contacts in high-reliability electronics?

**Multi-pass low fluence strategy**. For silver contacts exhibiting 0.0001% porosity, employing the 1064 nm wavelength proves essential to capitalize on its 4% absorptivity against 97% reflectivity. Implement a multi-pass approach: 0.2-0.4 J/cm² fluence (surpassing the 0.18 J/cm² ablation threshold yet under 0.45 J/cm² damage limit), with 10-

What ventilation and filtration systems are required to handle **silver vapors** produced during laser ablation cleaning, considering its boiling point of 2435 K?

**HEPA filters capture silver aerosols**. When cleaning silver via laser ablation, which produces vapors near its 2435 K boiling point, it's essential to deploy local exhaust ventilation with capture velocities exceeding 0.5 m/s. HEPA filters, offering 99.97% efficacy at 0.3 μm, effectively trap condensed silver aerosols, augmented by activated carbon adsorption. Notably, real-time aerosol spectrometer monitoring keeps exposure below the OSHA PEL of 0.01 mg/m³, averting argyria and respiratory hazards.

In medical device applications, how does laser cleaning of silver improve **electrical conductivity** (63,000,000 S/m) compared to traditional methods, and what validation is needed?

**Restores conductivity without residue**. Laser cleaning of silver in medical devices notably restores electrical conductivity to 63,000,000 S/m, ablating contaminants at a 0.18 J/cm² threshold via 1064 nm wavelength. This approach sidesteps residues from chemical methods that elevate resistivity. Essential for superior contacts, it preserves 0.12 μm surface roughness, in contrast to abrasive techniques inducing pitting. Validation demands ASTM F1538 conductivity metrics, profilometry, and ISO 10993 compliance testing.

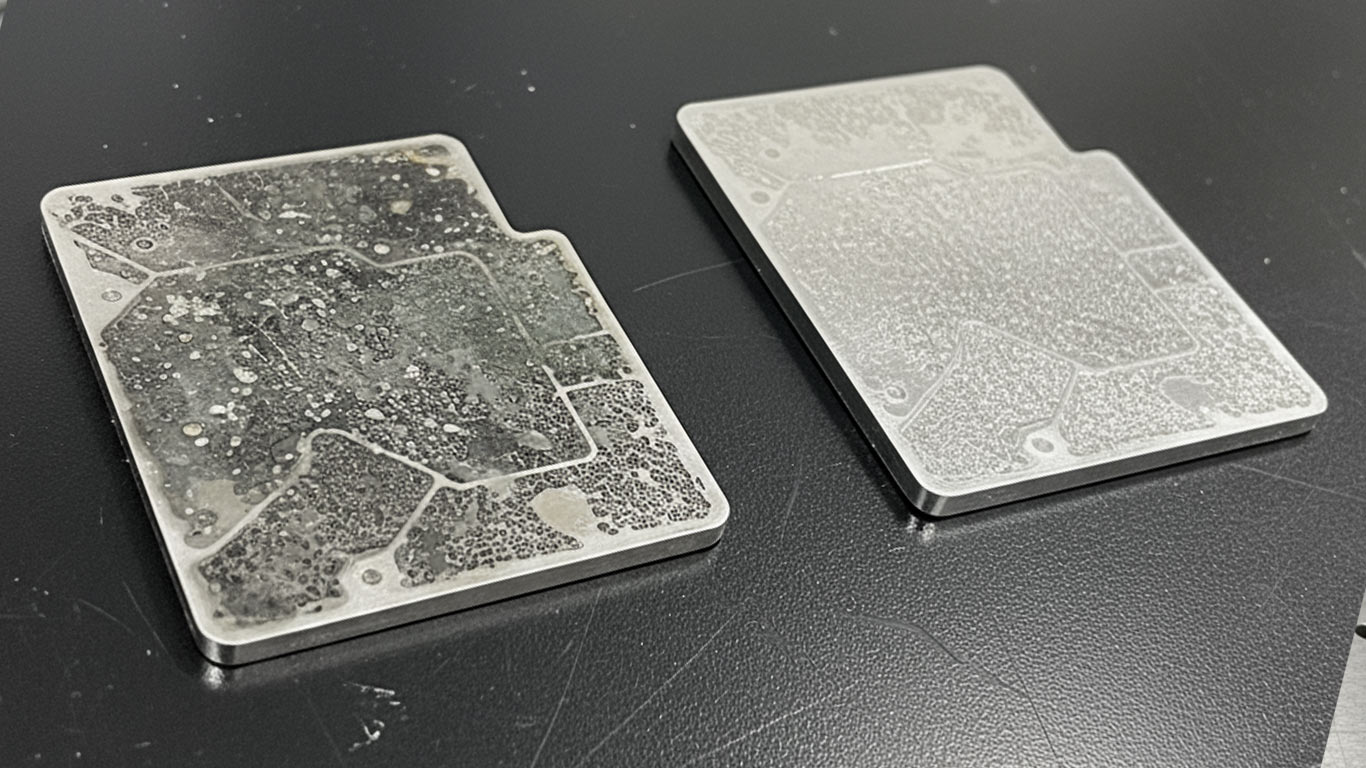

Silver surface undergoing laser cleaning showing precise contamination removal

Alessandro MorettiPh.D.Italy

Laser-Based Additive Manufacturing

Silver Laser Cleaning Settings

I've found that silver responds exceptionally well to laser cleaning when you keep the energy levels low and steady right from the start. Its mirror-like shine means most of the laser light bounces away, so you need to build up the process gradually over several passes to gently lift off tarnish or grime without scorching the surface. This approach works because silver conducts heat so efficiently—it spreads warmth quickly, helping to avoid hot spots that could warp delicate pieces like jewelry or artifacts from cultural heritage sites. But watch out in the middle of your session; if you ramp up too fast, that quick heat spread can push the metal toward its relatively low melting point, leading to unwanted melting or a dull patina that ruins the finish. To sidestep this, always test on a small area first and adjust by slowing the scan speed, which brings back that bright luster reliably in my experience with electronics and medical devices.

Let's talk

Silver Machine Settings

Power Range

100

120

Wavelength

1,064

355

1,064

1.1e4

Spot Size

μm

0.1

500

Repetition Rate

kHz

200

Energy Density

5.1

J/cm²

0.1

5.1

Pulse Width

0.1

1,000

Scan Speed

500

mm/s

500

5,000

Pass Count

passes

Overlap Ratio

Silver Material Safety

Shows damage risk across parameter space. Green = safe, Red = damage danger.

Pulse

DANGER

Fluence:101.86 J/cm²

From optimal:71%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Silver Energy Coupling

Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).

Pulse

SUBOPTIMAL

Fluence:— J/cm²

From optimal:54%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Silver Thermal Stress Risk

Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.

Pulse

ELEVATED

Fluence:— J/cm²

From optimal:54%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Silver Cleaning Efficiency

Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.

Pulse

GOOD

Fluence:101.86 J/cm²

From optimal:33%

Pulse Duration (ns)

1000

750

500

250

100

120

Power (W)

Silver Heat Buildup

See if your multi-pass cleaning will overheat and damage the material

Safe

124°C+126°C

Heat Safety

100%40%

Heat Control

71%25%

Cooling Efficiency

83%20%

Pass Optimization

100%15%

📈 Heat Profile

Safe (<150°C)

Damage (>250°C)

🔧 Laser Settings

Power: 100W

Rep Rate: 0 kHz

Scan Speed: 500 mm/s

Pass Count: 3

Cooling Time: 30s

Pulse Energy:2000.00 mJ

Total Sim Time:90.6s

🌡️ Live Temperature

20°C

✅ Safe

Pass 1 of 3

Time: 0.0s / 90.6s

▶️ Simulation Controls

Animation Speed: 1×

Diagnostic & Prevention Center

Proactive strategies and reactive solutions for silver

🌡️thermal management

Heat accumulation

Impact: Excessive heat can damage substrate or alter material properties

Solutions:

✓Reduce repetition rate
✓Increase scan speed
✓Add cooling time between passes

Prevention: Monitor surface temperature and adjust parameters accordingly

🔍surface characteristics

Variable surface roughness

Impact: Inconsistent cleaning results across different surface textures

Solutions:

✓Adjust energy density based on surface condition
✓Use multiple passes with progressive settings
✓Pre-characterize surface before cleaning

Prevention: Standardize surface preparation procedures

Silver Dataset Download

Variables

Parameters

Parameter Relationships

Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.

Power Range

Amplifies damage risk in Pulse Width and Energy Density. Keep low to maintain safety margins.

Spot Size

Same power in a smaller spot creates much higher energy density.

Energy Density

Higher power delivers more energy per pulse, removing more material.

Pulse Width

More power means higher peak intensity. Too much can damage the material.

Pass Count

Using more passes means you can use lower power and still get the job done.

Silver Laser Cleaning Settings

Silver Machine Settings

Power Range

Wavelength

Spot Size

Repetition Rate

Energy Density

Pulse Width

Scan Speed

Pass Count

Overlap Ratio

Silver Material Safety

Silver Energy Coupling

Silver Thermal Stress Risk

Silver Cleaning Efficiency

Silver Heat Buildup

Safe

Heat Safety

Heat Control

Cooling Efficiency

Pass Optimization

📈 Heat Profile

🔧 Laser Settings

🌡️ Live Temperature

▶️ Simulation Controls

Diagnostic & Prevention Center

🌡️thermal management

Heat accumulation

🔍surface characteristics

Variable surface roughness

Silver Dataset Download

Parameter Relationships

Power Range

Spot Size

Energy Density

Pulse Width

Pass Count
