Laser Materials ProcessingBasalt Laser Cleaning Settings

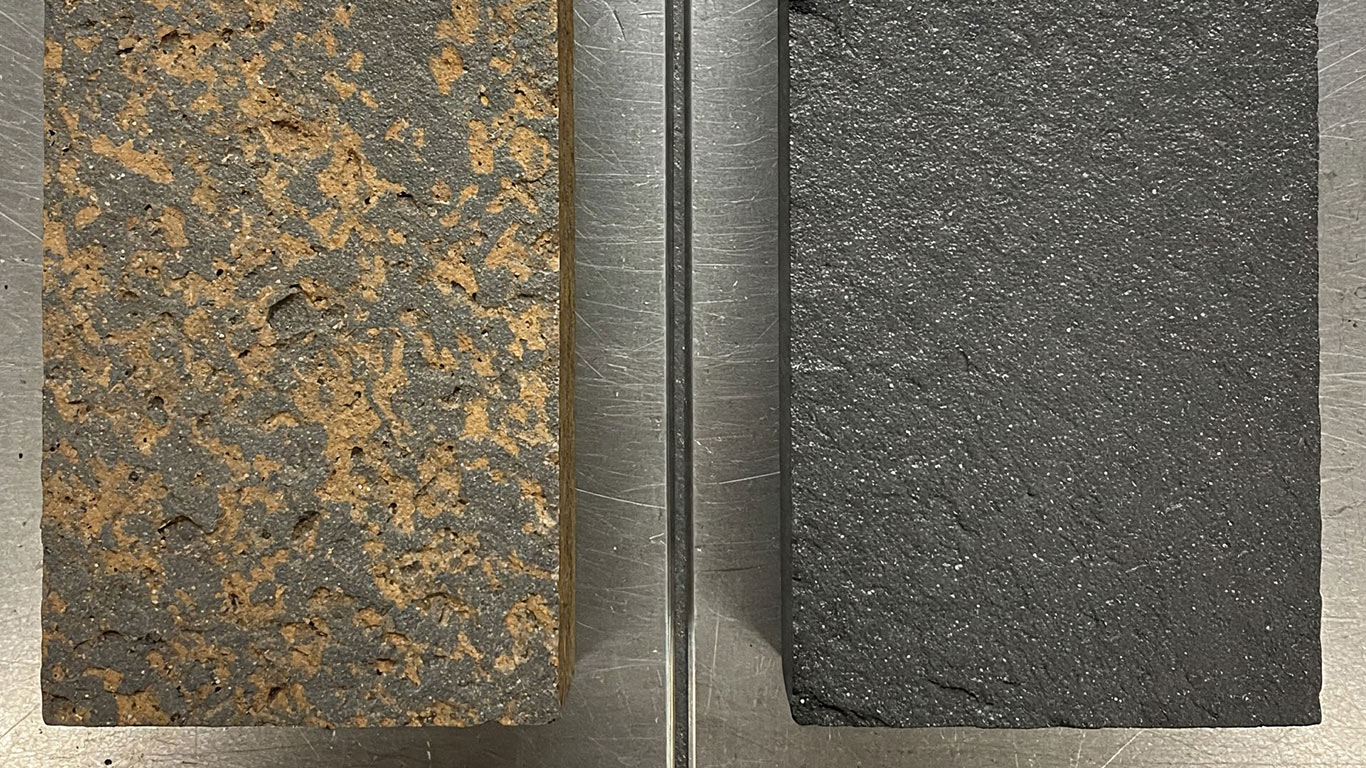

When laser cleaning basalt, it stands out from softer stones like limestone because of its dense, hard nature. I've seen this density help absorb laser energy quickly, so contaminants lift off without much residue left behind. That makes the process efficient for tough buildup in construction or heritage sites. But watch out mid-way—basalt tends to fracture if heat builds unevenly, unlike those porous limestones that just fizz away. This works best when you keep passes steady and overlap spots well, solving the brittleness by spreading the energy. In my experience, it preserves the stone's strength for marine or aerospace uses, avoiding cracks that could weaken structures later. Just ease into higher intensities gradually to handle its heat resistance without surprises.
Basalt Machine Settings
Power Range
100
W
1
100
120
Wavelength
1,064
nm
355
1,064
1.1e4
Spot Size
100
μm
0.1
100
500
Repetition Rate
50
kHz
1
50
200
Energy Density
12
J/cm²
0.1
12
20
Pulse Width
10
ns
0.1
10
1,000
Scan Speed
500
mm/s
10
500
5,000
Pass Count
3
passes
1
3
10
Overlap Ratio
50
%
10
50
90
Basalt Material Safety
Shows damage risk across parameter space. Green = safe, Red = damage danger.
Pulse
DANGER
Fluence:25.46 J/cm²
From optimal:71%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Basalt Energy Coupling
Shows laser energy transfer efficiency. Green = high coupling (energy absorbed), Red = poor coupling (energy reflected).
Pulse
GOOD
Fluence:— J/cm²
From optimal:29%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Basalt Thermal Stress Risk
Shows thermal stress and distortion risk. Green = low stress risk, Red = high stress/warping/cracking risk.
Pulse
HIGH RISK
Fluence:— J/cm²
From optimal:58%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Basalt Cleaning Efficiency
Shows cleaning performance across parameter space. Green = optimal effectiveness, Red = ineffective.
Pulse
GOOD
Fluence:25.46 J/cm²
From optimal:33%
Pulse Duration (ns)
1000
750
500
250
0
1
21
41
61
80
100
120
Basalt Heat Buildup
See if your multi-pass cleaning will overheat and damage the material
Heat Safety
100%40%
Heat Control
71%25%
Cooling Efficiency
83%20%
Pass Optimization
100%15%
📈 Heat Profile
Safe (<150°C)
Damage (>250°C)
🔧 Laser Settings
Pulse Energy:2000.00 mJ
Total Sim Time:90.6s
🌡️ Live Temperature
20°C
✅ Safe
Pass 1 of 3
Time: 0.0s / 90.6s
▶️ Simulation Controls
Diagnostic & Prevention Center
Proactive strategies and reactive solutions for basalt
🌡️thermal management
Heat accumulation
Impact: Excessive heat can damage substrate or alter material properties
Solutions:
- ✓Reduce repetition rate
- ✓Increase scan speed
- ✓Add cooling time between passes
Prevention: Monitor surface temperature and adjust parameters accordingly
🔍surface characteristics
Variable surface roughness
Impact: Inconsistent cleaning results across different surface textures
Solutions:
- ✓Adjust energy density based on surface condition
- ✓Use multiple passes with progressive settings
- ✓Pre-characterize surface before cleaning
Prevention: Standardize surface preparation procedures
Basalt Dataset Download
Parameter Relationships
Shows how changing one parameter physically affects others. Click any node to see its downstream impacts and role.
Power Range
Amplifies damage risk in Pulse Width and Energy Density. Keep low to maintain safety margins.
Spot Size
Same power in a smaller spot creates much higher energy density.
Energy Density
Higher power delivers more energy per pulse, removing more material.
Pulse Width
More power means higher peak intensity. Too much can damage the material.
Pass Count
Using more passes means you can use lower power and still get the job done.
