Laser Cleaning for Semiconductor and Cleanroom Tooling
Cleanroom tooling is cleaned to the substrate's damage ceiling, not to the fluence that would remove the deposit fastest — and in a fab that distinction decides yield. A single particle above 0.1 μm from a flaking chamber shield can cause failure across multiple ICs on the wafer, so nanosecond pulsed laser cleaning is run preventively, on a wafer-count schedule, rather than after a particle excursion. The published clean window for bare metallic oxide film is 3.82–6.37 J/cm² (Applied Optics 2024), but that is a laboratory figure for the film alone. It sits well above the damage threshold of every alloy on this page — stainless at 1.0 J/cm², aluminium at 0.7, titanium at 0.5 — so chamber hardware is always cleaned to the alloy's own ceiling instead. Because the process is contact-free, shields and tooling come back with no handling damage and no media residue.
How Fabs Qualify Laser Cleaning for Cleanroom Tooling
Qualifying laser cleaning for ISO Class 1 EUV (extreme ultraviolet) lithography or plasma etch chambers requires coupon testing at alloy-specific fluence before any production tooling is processed — stainless at 0.6–1.0 J/cm², aluminium at 0.4–0.7 J/cm².
1Assess HF (hydrofluoric acid) wet cleaning damage and static events
- Hydrofluoric acid cleaning strips 2–10 µm of quartz or silicon per cycle, accumulating 100–500 µm of annual dimensional loss that collapses fit tolerances and forces component replacement at $800–4,000 per piece before any structural wear occurs.
- CO₂ snow cleaning induces static discharge that attracts sub-micron particles to surfaces in ISO Class 1 environments rather than removing them — particle counts can increase during the cleaning operation itself, meaning yield was already lost before an SPC (statistical process control) alert appears.
2Run coupon clean at alloy-specific energy level
- Applied Optics 2024 puts the clean window for bare metallic oxide film at 3.82–6.37 J/cm², far above the 1.0 J/cm² damage ceiling of the stainless and Inconel parts themselves — so coupons are qualified to the alloy limit, not the film optimum, while staying above the 1.27 J/cm² recrystallization point below which the oxide reforms as a harder, more adherent phase.
- Stainless steel chamber shields clean at 0.6–1.0 J/cm² with particle generation below 0.1 µm detectable; aluminium fixtures require 0.4–0.7 J/cm², above which grain boundary melting becomes the risk on precision chamber components.
3Contact Z-Beam for cleanroom tooling service
- Z-Beam delivers a particle count verification record per ISO 14644 and an alloy-specific parameter log — including post-clean profilometry confirming Ra (surface roughness) below 0.1 µm before any production chamber shield or wafer fixture returns to service.
- Assessment covers chamber geometry, alloy series and anodize condition, ISO 14644 particle count class requirement, profilometry Ra (surface roughness) target, and cleanroom mobilization logistics before production tooling is scheduled.
How Fabs Qualify Laser Cleaning for Cleanroom Tooling
1HF (hydrofluoric acid) wet cleaning removes residue but destroys the tooling in the process
- Hydrofluoric acid cleaning removes CFx (fluorocarbon polymer) polymer and oxide deposits but strips 2–10 µm of quartz or silicon surface per cycle, accumulating 100–500 µm of annual dimensional loss that collapses fit tolerances and forces replacement at $800–4,000 per component. CO₂ snow cleaning induces static discharge that attracts sub-micron particles to surfaces rather than removing them — the particle count can increase during the cleaning operation itself in ISO Class 1 environments. Scheduling shield cleaning after a particle excursion means IC yield was already lost in the preceding runs; wafer count–based maintenance requires a method that leaves no residue and restarts production immediately.
2Laser cleaning removes CFx (fluorocarbon polymer) and oxide without contact, dimensional loss, or static events
- Laser cleaning at 1064 nm removes CFx (fluorocarbon polymer) polymer through a mechanical stress mechanism with no wet chemistry and no dimensional loss per cycle — component replacement is then driven by actual process wear, not by the cleaning method, extending tooling life two to four times. There is no post-cleaning purge, no drying cycle, and no static discharge event — the chamber returns to production-ready condition immediately after laser cleaning.
3Z-Beam aligns cleaning intervals to the chamber PM schedule
- Z-Beam performs on-site or ex-situ laser cleaning of plasma etch chamber shields, focus rings, edge rings, and wafer end effectors, with Cal/OSHA copper fume compliance documentation available for EH&S review. Post-clean surface condition is verified with profilometry before return to service, confirming Ra (surface roughness) preservation below 0.1 µm and particle counts within ISO 14644-1 Class 1 limits. Contact Z-Beam with your chamber type, PM interval, and residue chemistry — qualification includes a coupon clean at alloy-specific fluence before any production tooling is processed.
CFx (fluorocarbon polymer) Polymer Residue Resists Conventional Wet Stripping
Fluorocarbon polymer (CFx) builds up on plasma etch chamber shields, focus rings, and edge rings — it is chemically inert by design and does not dissolve in standard alkaline or acidic wet chemistries. The only wet chemistry that removes it is hydrofluoric acid, which strips 2–10 μm of quartz or silicon surface per cycle. At weekly cleaning frequency, that accumulates to 100–500 μm of annual dimensional loss per component — collapsing the fit tolerances that determine when the part must be replaced, at $800–4,000 per piece. The chemistry that removes the residue also destroys the tooling.
Hydrofluoric acid (HF) Dimensional Loss Shortens Quartz and Silicon Tooling Life
Quartz and silicon chamber components — focus rings, liners, diffuser plates — carry a dimensional tolerance specification that sets the replacement threshold. HF (hydrofluoric acid) cleaning removes 2–10 μm per cycle; at weekly frequency that is 100–500 μm of annual cumulative loss per component. When the tolerance band collapses, the component must be replaced regardless of its structural condition — the cleaning process has ended its useful life, not process wear. At $800–4,000 per component across multiple pieces per chamber, this is a significant and avoidable capital cost.
ISO Class 1 Environments Cannot Tolerate Reactive Shield Maintenance
In an ISO Class 1 fab running EUV (extreme ultraviolet) lithography — a chip fabrication step using 13.5 nm light — the allowable airborne particle count is 10 particles/m³ at 0.1 μm (ISO 14644-1). The scale of that limit is easy to underestimate: ISO Class 3, two classes looser, permits up to 1,000 particles at the same size — a hundred times more — so a Class 1 fab has no absorptive margin at all, and a single particle from a flaking chamber shield causes yield loss before the process control chart shows a rising trend. Wet solvent cleaning generates particles during drying; CO₂ snow cleaning induces static discharge that attracts sub-micron particles to surfaces rather than removing them. Scheduling shield cleaning after a particle excursion means yield was already lost in the preceding runs.
Laser Cleaning for Semiconductor and Cleanroom Tooling Sources(3 references)
Laser Cleaning for Semiconductor and Cleanroom Tooling Sources(3 references)
Nanosecond pulsed 1064 nm laser cleaning of metallic oxide films has three zones: below 1.27 J/cm² the oxide melts but recrystallizes as a harder phase; the clean window is 3.82–6.37 J/cm²; above 8.92 J/cm² surface damage begins. Operating below the clean threshold creates a harder deposit on the next cycle.
Applied Optics. Applied Optics, Vol. 63, No. 25, 2024 — oxide film laser cleaning process window UV nanosecond laser at 355 nm ablates SiC surface deposits but reduces surface hardness to less than 3% of original value in a single pass — creating dimensional risk on precision chamber components specified to micrometer tolerances.
ScienceDirect. ScienceDirect, Applied Physics A — UV nanosecond laser on SiC, hardness reduction California permissible exposure limit for copper fume is 0.1 mg/m³ as an 8-hour time-weighted average — ten times stricter than the federal OSHA limit of 1 mg/m³. Applies to fume generated during laser cleaning of copper-deposited PVD (physical vapor deposition) shields.
Cal/OSHA Title 8. Cal/OSHA Title 8, Section 5155, Table AC-1 — copper fume permissible exposure limit
Process Windows by Semiconductor Material
Safe 1064 nm pulsed fiber laser fluence windows (J/cm², the laser energy delivered per unit area) by surface for semiconductor material. Cleaning floor, damage ceiling, and usable process window per material. Validate parameters on representative samples before production cleaning.
- This material (highlighted)
- Other materials in this group
Frequently Asked Questions
Why is CFx polymer harder to remove than oxide on etch chambers?
CFx (fluorocarbon polymer) is engineered to be chemically inert, so it does not release at the fluence that clears silicon oxide residue — roughly 1.5-2.5 J/cm² versus 0.5-1.0 J/cm², a threefold gap. That gap is the whole difficulty of the job.
Both of those figures exceed the damage ceiling of the metal hardware charted on this page, so CFx (fluorocarbon polymer) removal is only run on substrates that tolerate it — quartz and anodized aluminium chamber walls, not stainless shields — and even there it is done with more passes at slower cleaning speed rather than a single hot pass.
Which semiconductor chamber components cannot be laser cleaned at 1064 nm?
Components with critical optical coatings (anti-reflective layers under 200 nm) cannot tolerate the 0.5-1.5 J/cm² fluence range — coating delamination occurs above 0.3 J/cm² on vapor-deposited dielectrics. Similarly, ceramic insulators with cracks or porosity fail laser cleaning: the 1064nm beam penetrates pores and causes subsurface thermal fracture. In both cases, wet chemical cleaning or part replacement is the correct path.
What Cal/OSHA rules apply to laser cleaning copper-deposited PVD shields?
California's copper fume permissible exposure limit is 0.1 mg/m³ as an 8-hour time-weighted average (Cal/OSHA 8 CCR 5155, Table AC-1) — ten times stricter than the federal OSHA limit of 1 mg/m³. Fume released during laser cleaning of copper-deposited PVD (physical vapor deposition) shields falls under this limit, requiring ventilation rated to capture copper fume below that threshold at the operator breathing zone. Bay Area Air Quality Management District (BAAQMD) air quality rules do not apply to ex-situ equipment cleaning inside a building — Cal/OSHA governs. Z-Beam operates under this limit with a filtered fume extractor; compliance documentation available for customer EH&S review.
Technical Data
Common Semiconductor & Cleanroom Materials

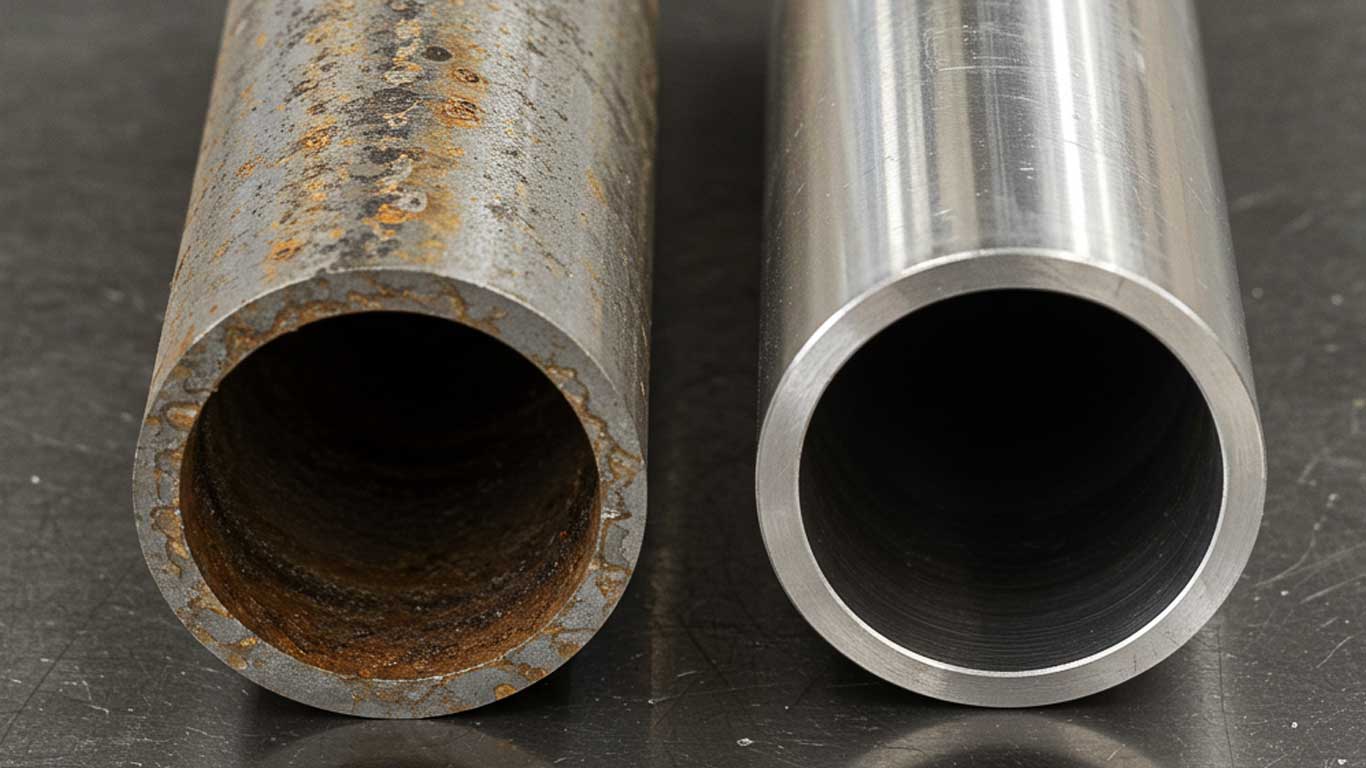

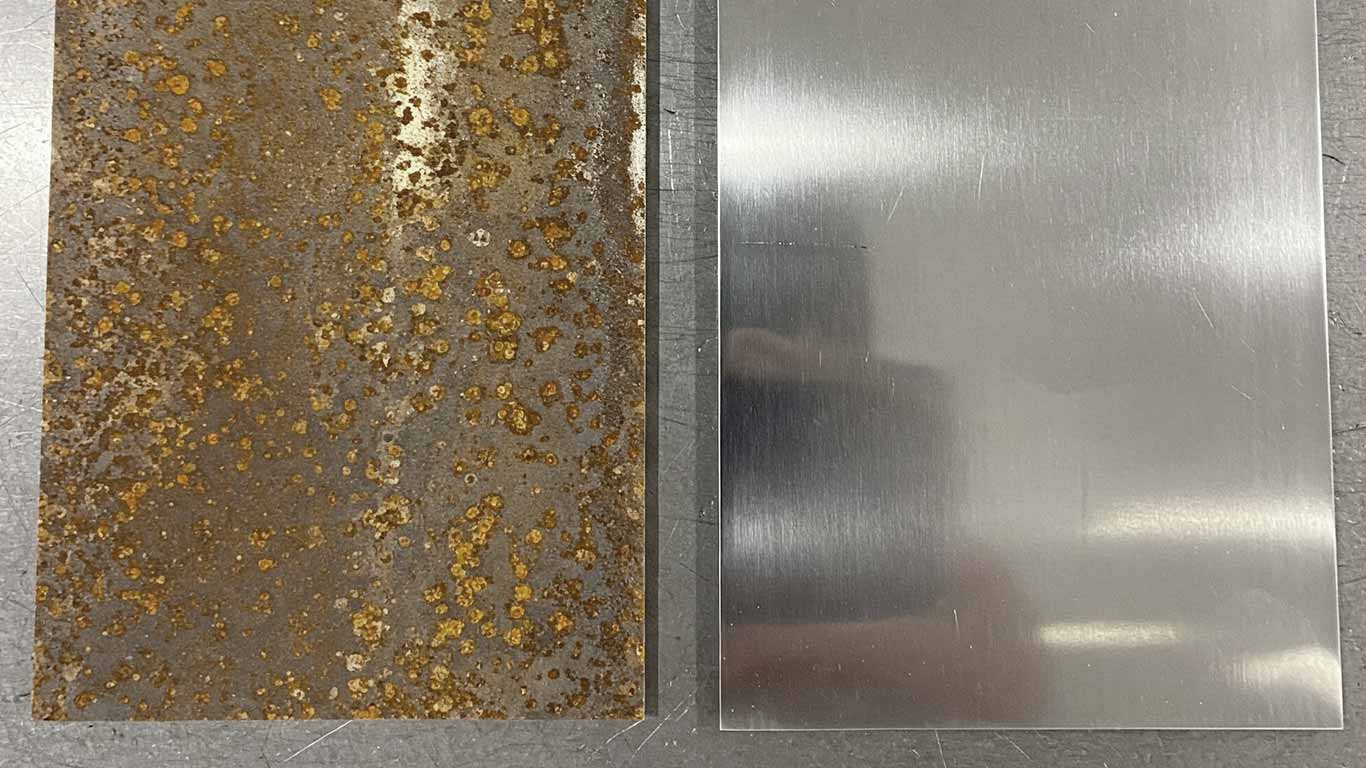

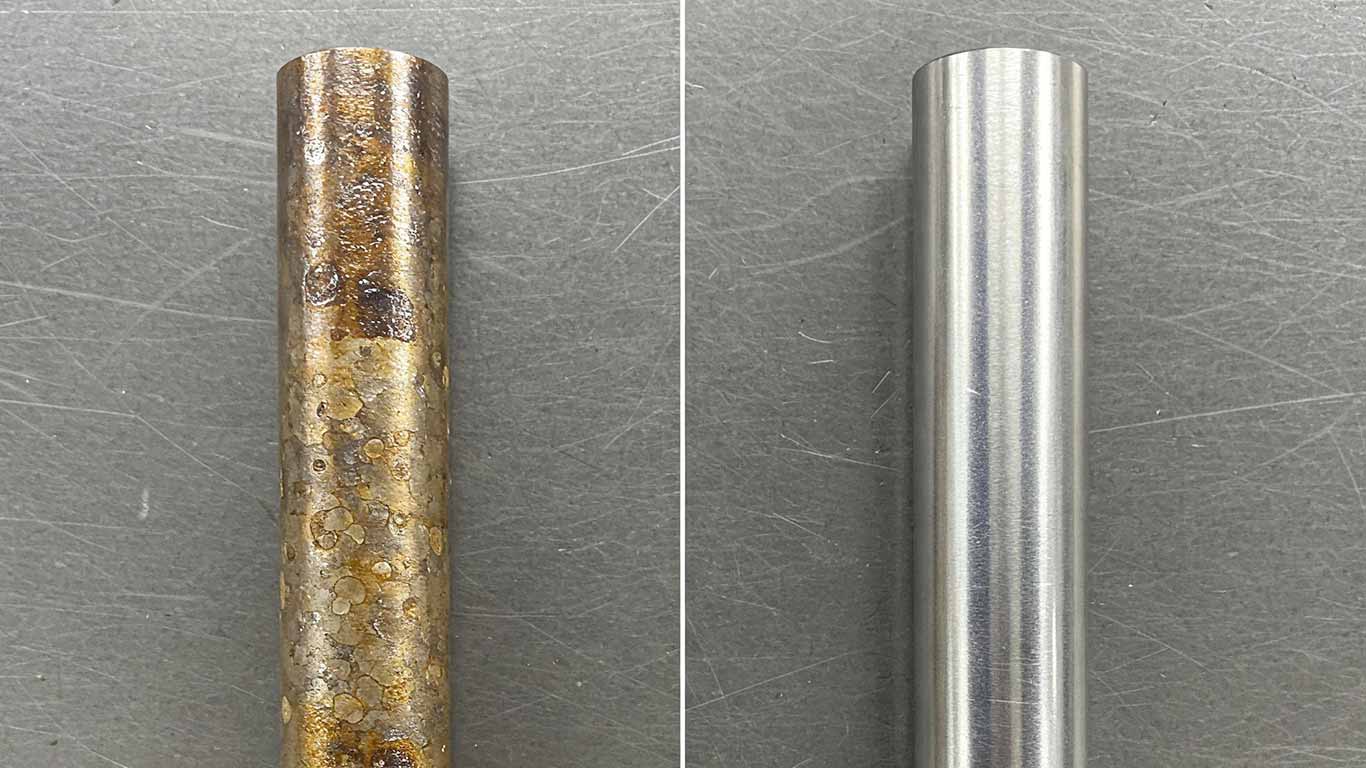

Alloy choice, not deposit type, sets the fluence ceiling on cleanroom hardware. Stainless steel (304, 316) and Inconel are the most tolerant surfaces on a chamber, cleaning at 0.6-1.0 J/cm² and 0.7-1.0 J/cm² of fluence — the laser energy delivered per unit area. Aluminum (6061, 7075) runs 0.4-0.7 J/cm² before grain boundary melting begins. Titanium and chrome/nickel plating are the most sensitive at 0.3-0.5 J/cm², above which titanium risks hydriding and plating risks damage. The binding constraint is never cleaning speed — it is generating zero particles and holding Ra (surface roughness) below 0.1 μm, the reason cleanroom hardware calls for a MOPA cleaner like the Wuhan Sintec STPL-V-I1000 that holds post-clean roughness at or below the native substrate where a CW beam would thermally roughen it.
Related Videos
A Physical vapor deposition (PVD) chamber shield cleans in 8 minutes — deposition residue removed, particle count under 0.1 μm per SEM. A second clip shows wafer end effector cleaning at 0.5 J/cm² — no surface alteration.
Sources(3 references)
Sources(3 references)
Nanosecond pulsed 1064 nm laser cleaning of metallic oxide films has three zones: below 1.27 J/cm² the oxide melts but recrystallizes as a harder phase; the clean window is 3.82–6.37 J/cm²; above 8.92 J/cm² surface damage begins. Operating below the clean threshold creates a harder deposit on the next cycle.
Applied Optics. Applied Optics, Vol. 63, No. 25, 2024 — oxide film laser cleaning process window UV nanosecond laser at 355 nm ablates SiC surface deposits but reduces surface hardness to less than 3% of original value in a single pass — creating dimensional risk on precision chamber components specified to micrometer tolerances.
ScienceDirect. ScienceDirect, Applied Physics A — UV nanosecond laser on SiC, hardness reduction California permissible exposure limit for copper fume is 0.1 mg/m³ as an 8-hour time-weighted average — ten times stricter than the federal OSHA limit of 1 mg/m³. Applies to fume generated during laser cleaning of copper-deposited PVD (physical vapor deposition) shields.
Cal/OSHA Title 8. Cal/OSHA Title 8, Section 5155, Table AC-1 — copper fume permissible exposure limit
Technical Reference — Laser Cleaning for Semiconductor and Cleanroom Toolingliterature-sourced
When Laser Cleaning Does Not Work
| Condition | Consequence |
|---|---|
| Particulate redeposition in cleanroom environment | — |
| Substrate damage on precision tooling from fluence overshoot | — |
