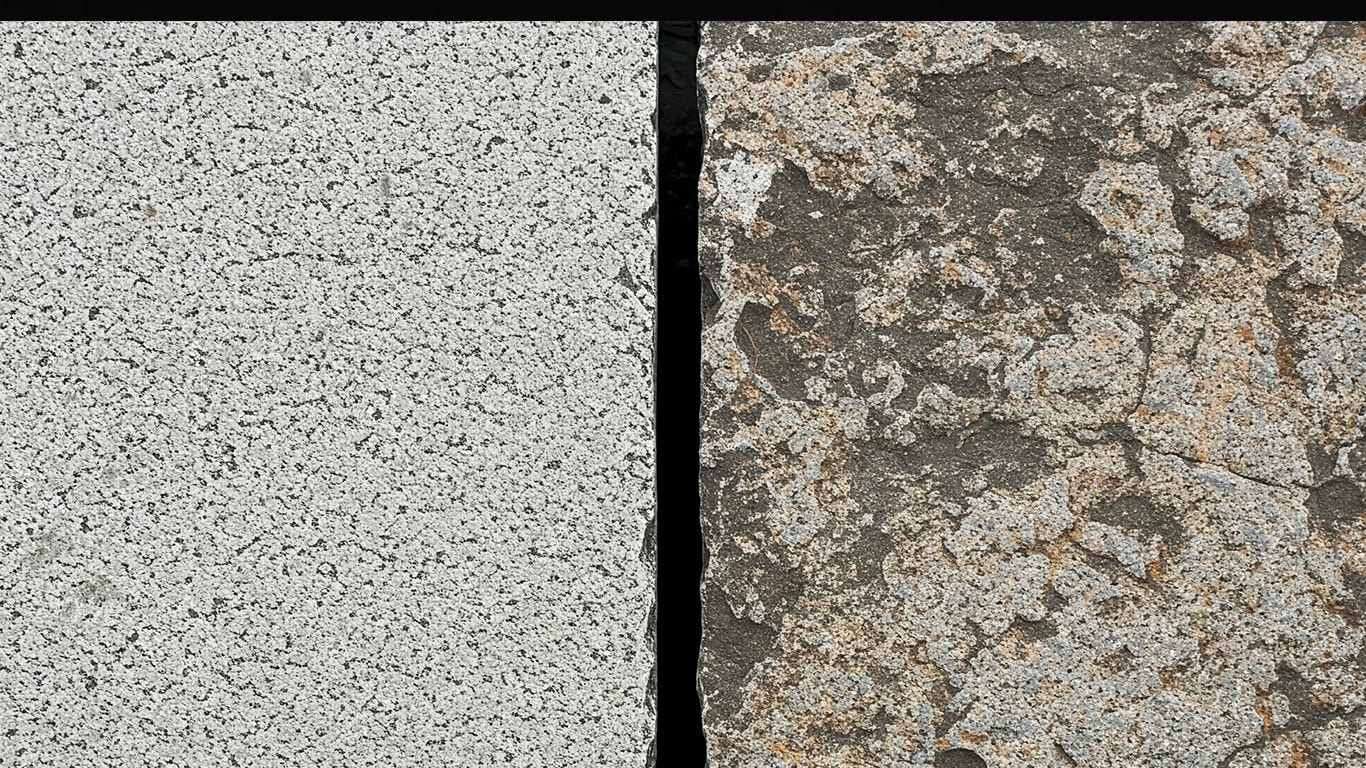

Granite surface undergoing laser cleaning showing precise contamination removal
Todd Dunning
Todd DunningMSUnited States
Optical materials for industrial photonics systems
Published
Jan 6, 2026

Granite Laser Cleaning

Granite's mineralogy — quartz (20–40%), feldspar (40–60%), and mica (5–15%) — creates uneven optical absorption that makes laser parameter selection more careful than for homogeneous stone. The mica fraction is the constraint: mica darkens irreversibly if energy level overshoots, and its abundance varies even within a single slab. At 100 W, 50 kHz, 1,000 mm/s with 60% overlap and 2 passes, biological growth, soot, and graffiti lift without color change. Bay Area commercial buildings, Bay Area monuments, and high-end residential countertops are common applications. These owners need contamination removed without the risk of discoloration from chemical treatments or abrasive polishing. The mica fraction's irreversible darkening threshold is the hard ceiling on granite cleaning parameters. It varies by quarry source, which is why sample validation on material from the same batch is standard before any facade cleaning.

Highly recommend this company for difficult, intricate jobs.
Vanessa Pilar Gehrels profile photo
Vanessa Pilar GehrelsView all testimonials

Granite igneous stone fluence process window

Fluence (J/cm²)

Granite's 6.8 J/cm² process window is the widest in the igneous stone group, offering 4.6 J/cm² more tolerance than Basalt. Substantial operating margin allows flexible parameter selection.

Laser-Material Interaction

Granite absorbs about 42% of 1064 nm light. Damage threshold is 1.2 J/cm² (published research). The window is 1.3 J/cm². At 1.5 J/cm², soot and biological growth are removed. At 1.8 J/cm², graffiti and paint are removed. At 2.0 J/cm², the surface is completely clean. At 2.8 J/cm², mica grains (biotite) oxidize and darken. The darkening is permanent. Based on its mineral composition, granite's three components respond differently to laser energy. Quartz has the highest damage threshold (3.0 J/cm²). Feldspar has moderate damage threshold (2.5 J/cm²). Mica (biotite) has the lowest damage threshold (2.0 J/cm²) – it darkens first. This means dark spots (mica) will get darker during cleaning. For light-colored granite (white, gray), this is acceptable. For dark granite (black, green), the darkening is not visible. Test on a sample first, especially when mica content is high.

Thermal Destruction

773
K
0
773
1,546

Laser Absorption

0.42
0
0.42
0.84

Laser Damage Threshold

8
J/cm²
5
8
15

Thermal Diffusivity

1.3e-6
m²/s
0
1.3e-6
2.6e-6

Thermal Expansion

8e-6
K^{-1}
0
8e-6
1.6e-5

Specific Heat

790
J/kg·K
0
790
1,580

Thermal Conductivity

2.79
W/m·K
0
2.79
5.58

Laser Reflectivity

0.35
0
0.35
0.7

Absorption Coefficient

1e5
m⁻¹
5e4
1e5
2e5

Absorptivity

0.1
0.05
0.1
0.2

Reflectivity

0.9
0.8
0.9
0.95

Thermal Destruction Point

1,500
K
1,400
1,500
1,600

Thermal Shock Resistance

1.5
MW/m
1
1.5
3

Vapor Pressure

1
Pa
0.1
1
10

Sources(1 reference)

  1. 1.J. — published research, DOI: 10.1016/j.apsusc.2008.06.045 — Commercial granite (quartz-feldspar-mica composition, ~70% SiO2), room temperature (25°C), 1064 nm Nd:YAG laser, 10 ns pulse length, atmospheric pressure

Material Characteristics

Granite's 5–15% mica fraction darkens irreversibly above 2.8 J/cm², and the feldspar majority melts at 3.0 J/cm² A coarse-grained trait absent in fine-grained igneous stone like Basalt. — so the 1.3 J/cm² window between cleaning onset (1.2 J/cm²) and mica damage is the hard ceiling on cleaning parameters, and it varies by quarry. Density is 2700 kg/m³. Porosity is only 0.006 (0.6%) – very low, which means contaminants sit on the surface. Compressive strength is 211 MPa – very strong. Hardness is 6.5 Mohs (can scratch glass). Fracture toughness is 1.2 MPa√m – moderate. Thermal conductivity is 2.8 W/m·K – moderate. The damage threshold is 1.2 J/cm² (Source: — published research). The window is 1.3 J/cm². At 1.8 J/cm², you clean. At 2.8 J/cm², mica grains darken (oxidation). At 3.0 J/cm², feldspar melts. Dark mica grains darken first, so sample testing is required before facade work.

Density

2,700
kg/m³
0
2,700
5,400

Porosity

0.006
0
0.006
0.012

Tensile Strength

10.5
MPa
0
10.5
21

Youngs Modulus

5e10
Pa
0
5e10
1e11

Hardness

6.5
Mohs
0
6.5
13

Flexural Strength

15
MPa
0
15
30

Oxidation Resistance

0.98
0
0.98
1.96

Corrosion Resistance

9.7
dimensionless (corrosion resistance index, scale 0-10)
0
9.7
19.4

Compressive Strength

211
MPa
0
211
422

Fracture Toughness

1.2
MPa√m
0
1.2
2.4

Sources(1 reference)

  1. 1.P. Pou et al., 'Comparative study of the influence of laser wavelength on the cleaning of granite', Applied Surface Science, 2005, DOI: 10.1016/j.apsusc.2005.01.045 — Commercial granite (quartz-feldspar-mica composition, ~70% SiO2), room temperature (25°C), Nd:YAG laser at 1064 nm, 10 ns pulse length, measured in air at 1 atm

Machine Settings

Laser cleaning granite at 100 W, 50 kHz, 1000 mm/s cleaning speed, 60% overlap, and 2 passes removes surface biological growth and atmospheric soiling effectively. Granite typically contains 25–30% quartz by volume. The crystalline silica generated during cleaning requires full PEL compliance. Cal/OSHA CCR Title 8 Section 5155 limits respirable crystalline silica to 50 μg/m³ (8-hr TWA) — IARC Group 1 carcinogen for lung cancer. Bay Area granite applications are extensive. These include Civic Center plaza paving in San Francisco and Oakland, Mission Bay research campus façades, Caltrain and BART infrastructure, and high-density commercial paving in downtown San Jose. Multimineral granite has variable absorption across mineral boundaries. Quartz crystals reflect more 1064 nm energy than feldspar, creating uneven cleaning that operators compensate by reducing cleaning speed near visible quartz veins. This applies to light-colored granite (white, gray, pink). Dark granite (black, green) has higher mica content and needs lower energy level (1.5 J/cm²). For granite monuments with polished finishes (high-gloss countertops), use 1.2 J/cm² and 1 pass – the goal is particle removal, not deep cleaning.

Wavelength

1,064
nm
355
1,064
1.1e4

Spot Size

200
μm
0.1
200
500

Energy Density

2
J/cm²
0.1
2
20

Pulse Width

20
ns
0.1
20
1,000

Scan Speed

1,000
mm/s
10
1,000
5,000

Pass Count

2
passes
1
2
10

Overlap Ratio

60
%
10
60
90

Laser Power

100
W
1
100
120

Laser Power Alternative

100
W
50
100
300

Frequency

50
kHz
1
50
200

Fluence Threshold

2.5
J/cm²
0.3
2.5
4.5

Regulatory Standards

Granite dust contains crystalline silica (quartz) – a known carcinogen (OSHA PEL: 50 µg/m³). Use HEPA extraction (H13 or H14) and P100 respirators. Wear nitrile gloves and long sleeves. Granite also contains feldspar and mica, which are irritants. Follow ANSI Z136.1 for laser safety and OSHA 29 CFR 1926.95 for PPE. Laser eyewear requires OD 5+ for 1064 nm. The EPA Clean Air Act applies to granite dust emissions.

FAQ

How does laser cleaning remove biological growth like lichens from Granite without causing damage?

Pulsed 1064 nm energy vaporizes lichen and algae pigments at energy levels starting around 1.5 J/cm², a level that removes biological growth without approaching the 2.0 J/cm² threshold needed to clean the stone surface itself. Granite's porosity of only 0.6% means biological growth anchors at the surface rather than penetrating the matrix, so a 1000 mm/s pass with 60% overlap typically removes it in one or two passes without disturbing the mineral structure beneath.

What settings are usually recommended for Granite laser cleaning settings on Granite?

Biological growth and atmospheric soiling respond to 100 W at 50 kHz, 1000 mm/s cleaning speed, 60% overlap, and 2 passes — delivering roughly 2.0 J/cm², which is the threshold for a fully clean surface. Dark granite with elevated iron and biotite content requires lower energy, around 1.5 J/cm². Polished finishes such as countertops are cleaned at 1.2 J/cm² in a single pass, since the goal is particle removal rather than deep cleaning. Sample testing on material from the same quarry batch is standard before facade work.

What advantages does laser cleaning offer over traditional chemical cleaners for maintaining Granite monuments?

Chemical cleaners can leave residue in granite's feldspar interstices and risk staining the mica fraction, which is already the most optically sensitive component of the mineral matrix. Abrasive polishing removes surface material indiscriminately. Pulsed 1064 nm laser cleaning ablates only the contaminant layer — soot, biological crust, or graffiti — while staying below the 2.5 J/cm² feldspar damage threshold. For monuments in Bay Area civic plazas, that precision matters when the stone cannot be replaced.

How does laser cleaning address the potential for mineral-specific degradation in Granite, like biotite oxidation?

Laser cleaning does not eliminate the biotite darkening risk — it manages it through parameter control. Biotite (dark mica) oxidizes and darkens irreversibly above 2.8 J/cm², which is why standard granite cleaning operates at 2.0 J/cm² or below. On dark or mica-rich granite, the operating point is lowered further to 1.5 J/cm². Because mica content varies even within a single slab, sample validation on stone from the same quarry batch is required before any facade cleaning begins.

How to Clean Granite With a Pulsed Laser

Granite's mineral diversity means cleaning parameters must be established on the specific stone — lichen, soiling, and graffiti each respond to different pulse length and cleaning speed combinations.

Assess stone type and moisture condition

  • Identify the granite variety — dark granites with higher iron and biotite content absorb more energy at 1064 nm and.
  • Assess contamination: biological growth (lichen, algae, moss), atmospheric soiling (black carbon crust), or graffiti.

Test on a small area first

  • Biological growth on granite responds to organic growth removal at shorter pulse settings and lower energy —
  • Atmospheric soiling and black crust require slightly higher energy with multiple passes at moderate cleaning speed and.

Production cleaning or Z-Beam assessment

  • Z-Beam provides on-site pulsed laser cleaning for Bay Area granite facades, monuments, and architectural elements, or.
  • Heritage granite clients receive a pre-clean condition report and post-clean documentation suitable for conservation.

Sources(2 references)

  1. 1.P. Pou et al., 'Comparative study of the influence of laser wavelength on the cleaning of granite', Applied Surface Science, 2005, DOI: 10.1016/j.apsusc.2005.01.045 — Commercial granite (quartz-feldspar-mica composition, ~70% SiO2), room temperature (25°C), Nd:YAG laser at 1064 nm, 10 ns pulse length, measured in air at 1 atm
  2. 2.J. — published research, DOI: 10.1016/j.apsusc.2008.06.045 — Commercial granite (quartz-feldspar-mica composition, ~70% SiO2), room temperature (25°C), 1064 nm Nd:YAG laser, 10 ns pulse length, atmospheric pressure
