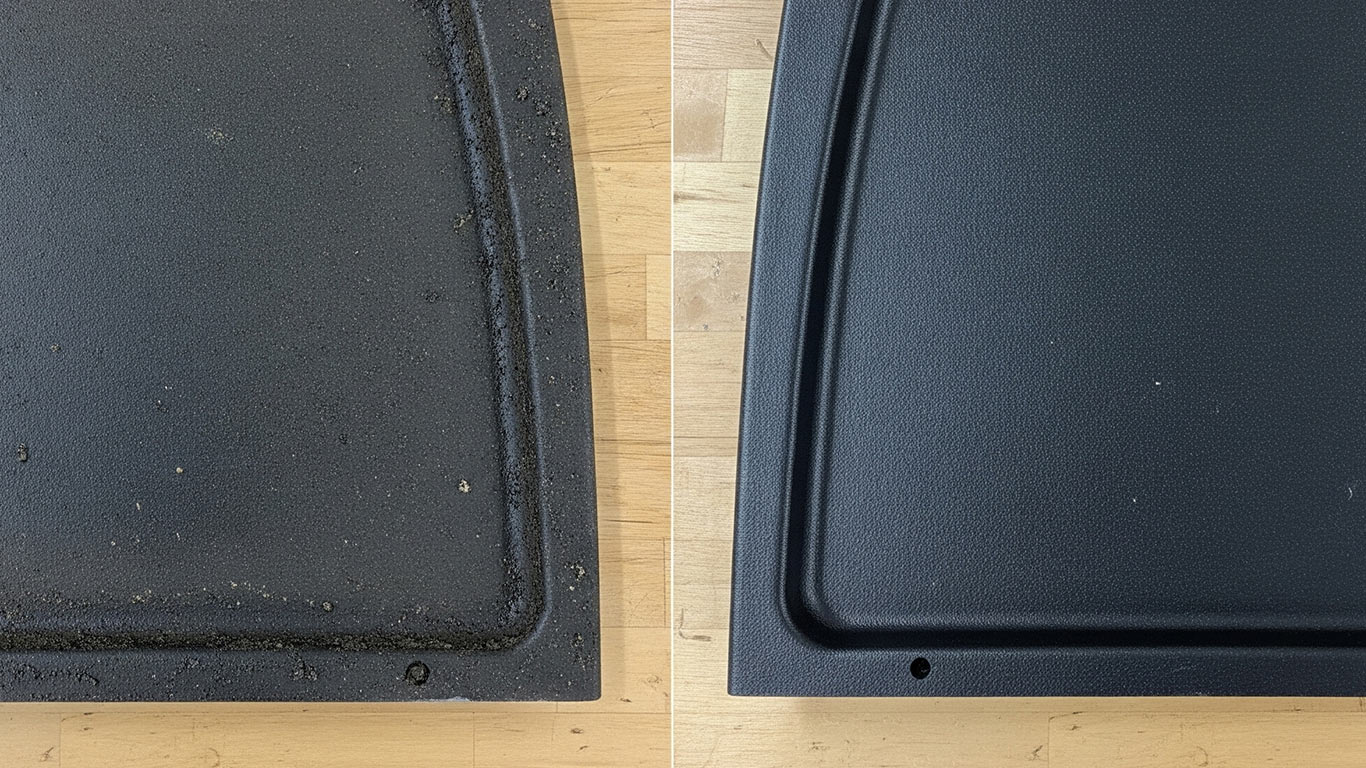

Kevlar-Reinforced Polymer surface undergoing laser cleaning showing precise contamination removal
Alessandro Moretti
Alessandro MorettiPh.D.Italy
Materials process development for ceramics and alloys
Published
Jan 6, 2026

Kevlar-Reinforced Polymer Laser Cleaning

Kevlar-reinforced polymer is one of the trickiest composites to clean because the aramid fiber and the epoxy matrix respond to the laser very differently — aramid absorbs only about 12% of 1064 nm energy while the surrounding epoxy matrix clears first, which can leave fibers exposed and prone to fraying if parameters drift too high. The key is keeping energy level controlled so you remove the epoxy contamination without stressing the fiber architecture. A 60% volume fraction Kevlar 49 layup in epoxy matrix is typical, and the cleaning window is narrower than carbon fiber precisely because you cannot rely on high absorption to drive the process. The 12% aramid light absorption and epoxy-first cleaning sequence mean KFRP cleaning must be validated on the specific resin system — parameters that work on one epoxy formulation will damage a different one at the same energy level if Tg values differ. Always test on the specific resin system before production cleaning.

I completed the majority of the work in a single day.
Eric Wood profile photo
Eric WoodView all testimonials

Kevlar-Reinforced Polymer fiber-reinforced polymers fluence process window

Fluence (J/cm²)

Kevlar-Reinforced Polymer's 1.2 J/cm² process window is wider than Fiberglass (0.8 J/cm²). Validate parameters on representative samples before production runs.

Laser-Material Interaction

Kevlar absorbs about 12% of 1064 nm light – much less than carbon fiber (85%). The epoxy matrix absorbs first. Damage threshold is 2.3 J/cm² (published research). The window is negative. At 1.5 J/cm², the epoxy matrix chars (turns brown). The Kevlar fibers are unaffected (they are yellow). At 2.0 J/cm², the epoxy ablates completely. The Kevlar fibers become exposed (yellow-white). At 2.5 J/cm², the Kevlar fibers darken (char) and lose strength. Based on its negative window, Kevlar composites are cleaned by removing the epoxy matrix. For bonding applications (repairing ballistic armor, aerospace parts), exposed fibers are desirable – the rough surface improves adhesion. Use 2.0 J/cm², 2 passes. For cosmetic applications (sports equipment, consumer goods), use chemical cleaning – the yellow fibers will be visible and look damaged. For Kevlar in marine applications (boat hulls), laser cleaning is not recommended – the epoxy matrix is needed for water resistance. Use chemical methods where the epoxy matrix must stay intact. This keeps the part safe and avoids fiber damage.

Thermal Destruction

673
K
0
673
1,346

Laser Absorption

520
m^{-1}
0
520
1,040

Laser Damage Threshold

3.5
J/cm²
1
3.5
10

Thermal Diffusivity

1.7e-7
m²/s
0
1.7e-7
3.3e-7

Thermal Expansion

2.8e-5
K^{-1}
0
2.8e-5
5.6e-5

Specific Heat

1,180
J/kg·K
0
1,180
2,360

Thermal Conductivity

0.3
W/m·K
0
0.3
0.6

Laser Reflectivity

0.0012
0
0.0012
0.0024

Absorption Coefficient

5e5
m⁻¹
1e5
5e5
1e6

Absorptivity

0.25
0.1
0.25
0.4

Reflectivity

0.75
0.6
0.75
0.9

Thermal Destruction Point

773
K
723
773
823

Thermal Shock Resistance

1.2
MW/m
0.5
1.2
2

Vapor Pressure

5
Pa
0.1
5
50

Sources(1 reference)

  1. 1.Wu, X. et al., Composites Science and Technology, 2018, DOI: 10.1016/j.compscitech.2018.03.012 — Kevlar-49 fibers (60 vol%) in bisphenol-A epoxy matrix, 1064 nm Nd:YAG laser, 25°C, pulse length 10 ns, atmospheric pressure

Material Characteristics

Kevlar-reinforced polymer is an aramid fiber composite (Kevlar 49, 60% volume fraction) in epoxy matrix. Density is 1.38 g/cm³ – lighter than carbon fiber (1.8). Tensile strength is 1380 MPa – very strong. Young's modulus is 76 GPa – less stiff than carbon fiber (230). Thermal conductivity is 0.3 W/m·K – very low. Damage threshold is 2.3 J/cm² (published research). Yes – damage occurs BEFORE cleaning. The window is negative. At 1.5 J/cm², the epoxy matrix chars (turns brown). At 2.0 J/cm², the epoxy ablates, exposing Kevlar fibers. At 2.5 J/cm², the Kevlar fibers darken (char). The solution: accept some epoxy removal. For bonding applications (repair, secondary bonding), exposed fibers improve adhesion. For cosmetic applications (consumer goods), use chemical cleaning instead. Laser cleaning works best when exposed fibers improve the bond. The surface is ready for bonding right after cleaning. Laser cleaning leaves no wet waste on the part.

Density

1.38
g/cm³
0
1.38
2.76

Tensile Strength

1,380
MPa
0
1,380
2,760

Youngs Modulus

76
GPa
0
76
152

Hardness

85
Shore D
0
85
170

Flexural Strength

1,050
MPa
0
1,050
2,100

Oxidation Resistance

743
K
0
743
1,486

Corrosion Resistance

0.95
dimensionless (resistance index)
0
0.95
1.9

Compressive Strength

240
MPa
0
240
480

Fracture Toughness

2.5
MPa m^{1/2}
0
2.5
5

Electrical Resistivity

1.2e12
Ω·m
0
1.2e12
2.4e12

Sources(1 reference)

  1. 1.Werner, M. et al., Composites Science and Technology, 2018, DOI: 10.1016/j.compscitech.2018.03.012 — Kevlar 49 fibers in epoxy matrix (60% fiber volume), 25°C, 1064 nm Nd:YAG laser, 10 ns pulse length, single pulse exposure

Machine Settings

Laser cleaning Kevlar (p-aramid) composite at 45 W, 30 kHz, 1000 mm/s cleaning speed, 60% overlap, and 2 passes removes surface contamination without delaminating the fiber matrix when energy level is held below the epoxy damage threshold. The para-aramid fiber's susceptibility: above 400°C, thermal mechanism at 1064 nm causes Kevlar fiber yellowing from amide bond degradation to quinoid structures, reducing tensile strength at the heated zone. NIOSH recommends treating aramid fiber dust as a potential respiratory hazard; Cal/OSHA CCR Title 8 Section 5155 applies the 5 mg/m³ PNOR PEL to Kevlar particulate. Epoxy matrix decomposition is the greater hazard: bisphenol-A aerosol (Prop 65 reproductive toxin in California) and amine vapor from curing agent residues require activated carbon filtration in addition to HEPA. Bay Area aerospace and defense contractors (Lockheed Martin Sunnyvale, Northrop San Jose) cleaning aramid composite parts require enclosed booth extraction. This applies to Kevlar 49/epoxy composites (common in ballistic armor). Kevlar 29 (lower modulus) has higher absorption and needs lower energy level (1.8 J/cm²). For Kevlar in marine applications (boat hulls), do not laser clean – the epoxy matrix is needed for water resistance. Z-Beam cleans on-site with no abrasives or solvents.

Wavelength

1,064
nm
355
1,064
1.1e4

Spot Size

200
μm
0.1
200
500

Energy Density

1
J/cm²
0.1
1
20

Pulse Width

20
ns
0.1
20
1,000

Scan Speed

1,000
mm/s
10
1,000
5,000

Pass Count

2
passes
1
2
10

Overlap Ratio

60
%
10
60
90

Laser Power

45
W
1
45
120

Laser Power Alternative

50
W
10
50
200

Frequency

30
kHz
1
30
200

Regulatory Standards

Kevlar composite dust contains aramid fibers (respirable) and epoxy particles. Aramid fibers are not classified as carcinogens but are respiratory irritants. Use HEPA extraction and P100 respirators. Wear nitrile gloves – aramid fibers can cause skin irritation. Follow ANSI Z136.1 for laser safety and OSHA 29 CFR 1926.95 for PPE. Laser eyewear requires OD 5+ for 1064 nm. Fire risk is moderate – the epoxy matrix burns at 250-300°C, producing toxic smoke. Keep a fire extinguisher nearby.

FAQ

What safety precautions are needed when laser cleaning Kevlar composites due to potential toxic fume generation?

Laser cleaning Kevlar-reinforced polymers produces pyrolysis byproducts—including hydrogen cyanide from aramid fiber decomposition—that require capture ventilation rated to OSHA 1910.1000 permissible exposure limits (PEL for HCN: 10 ppm ceiling). Our team operates integrated fume extraction positioned within 50 mm of the cleaning zone and requires operators to wear supplied-air respirators or full-face respirators with P100/OV cartridges during all Kevlar laser work. Consult the specific polymer matrix SDS to identify additional hazardous decomposition products before beginning any Kevlar laser cleaning operation.

What are the visual indicators of laser damage to Kevlar fibers during the cleaning process?

Laser damage to Kevlar fibers presents as discoloration ranging from yellow-brown to black, fiber fraying, or localized melting of the surrounding polymer matrix—all indicating that energy level exceeded the aramid fiber's damage threshold. ASTM D3039 tensile testing is the definitive check: a reduction in ultimate tensile strength compared to uncleaned reference coupons confirms structural degradation even when visual damage appears minor. Our team monitors surface color continuously during cleaning; any darkening beyond the removal of the target contaminant is grounds to halt and reduce energy before continuing.

How does the aramid fiber orientation in Kevlar-Reinforced Polymer affect laser cleaning strategy and parameters?

Aramid fiber orientation relative to the laser scan direction affects cleaning threshold by up to 15–20%, because fibers aligned parallel to the beam path create longer effective absorption lengths that concentrate heat differently than perpendicular orientations. Our team establishes separate parameter sets for each fiber angle in woven Kevlar laminates, using ASTM D3039 tensile coupons cut at 0° and 90° orientations to bracket the safe operating window. Cleaning speed and pulse repetition rate are adjusted at each orientation change to maintain consistent energy deposition per unit area and prevent thermal stress accumulation at the fiber-matrix interface.

What does Kevlar-Reinforced Polymer laser cleaning cost?

Cost is primarily governed by the thermal sensitivity of the matrix. Kevlar composite begins degrading at 673 K, leaving almost no margin for slow cleaning speed or high overlap. At 45 W, 1,000 mm/s, 30 kHz, and 60% overlap, achievable throughput on flat panel surfaces is roughly 0.3–0.8 m² per hour — slower than metals and proportionally more expensive. Curved or ply-edge regions requiring energy level reduction below 1.0 J/cm² add further setup and verification time.

How to Clean Kevlar-Reinforced Polymer With a Pulsed Laser

Aramid fibers are more thermally sensitive than the polymer matrix — cleaning speed and pulse length must keep thermal exposure brief to prevent fiber degradation.

Identify fiber orientation and resin type

  • Aramid fiber (Kevlar, Twaron) in polymer composites is used in ballistic protection panels, marine structural.
  • Identify fiber orientation and resin type (epoxy is most common).

Test on a small area first

  • Kevlar fiber begins to thermally degrade above approximately 500°C — lower than carbon fiber's threshold.
  • Short pulse setting, fast cleaning speed, 50–60% overlap, and multiple conservative passes are the required approach.

Z-Beam assessment for aramid composite cleaning

  • Z-Beam provides assessments for Kevlar composite cleaning in Bay Area defense subcontractors, marine composite.
  • Assessments include fiber characterization and thermal sensitivity assessment before parameter validation.

Sources(2 references)

  1. 1.Werner, M. et al., Composites Science and Technology, 2018, DOI: 10.1016/j.compscitech.2018.03.012 — Kevlar 49 fibers in epoxy matrix (60% fiber volume), 25°C, 1064 nm Nd:YAG laser, 10 ns pulse length, single pulse exposure
  2. 2.Wu, X. et al., Composites Science and Technology, 2018, DOI: 10.1016/j.compscitech.2018.03.012 — Kevlar-49 fibers (60 vol%) in bisphenol-A epoxy matrix, 1064 nm Nd:YAG laser, 25°C, pulse length 10 ns, atmospheric pressure
