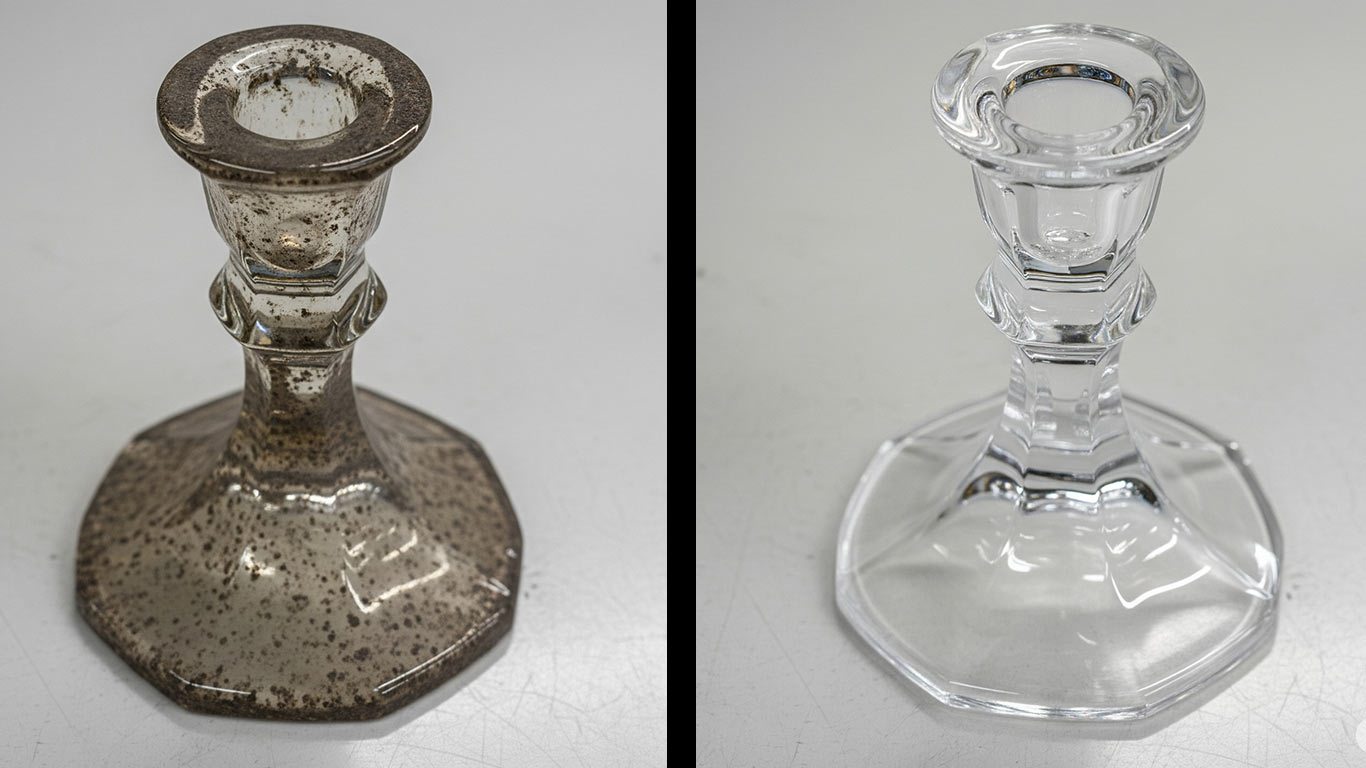

Lead Crystal surface undergoing laser cleaning showing precise contamination removal
Yi-Chun Lin
Yi-Chun LinPh.D.Taiwan
Laser Materials Processing
Published
Jan 6, 2026

Lead Crystal Laser Cleaning

Lead crystal represents a type of glass material with enhanced clarity and refractive qualities, and it finds use in various fields such as cultural heritage preservation and decorative objects. Laser cleaning proves relevant for this material because contamination often builds up on surfaces, thus removal process requires precision to maintain original features without harm. During cleaning, material responds with gentle ablation of unwanted layers, so surface exhibits restored smoothness after treatment. Operator considerations focus most on adjustment of process parameters, and careful monitoring prevents potential thermal effects.

Laser-Material Interaction

How laser energy interacts with this material during cleaning

Absorptivity

0.05
0.01
0.05
0.1

Absorption Coefficient

5,000
m⁻¹
1,000
5,000
2e4

Laser Damage Threshold

8
J/cm²
5
8
15

Thermal Shock Resistance

1.2
MW/m
0.5
1.2
2.5

Reflectivity

0.08
0.05
0.08
0.12

Thermal Destruction Point

1,100
K
900
1,100
1,300

Vapor Pressure

0.01
Pa
0.001
0.01
0.1

Thermal Destruction

873
K
0
873
1,746

Specific Heat

680
J/(kg·K)
0
680
1,360

Laser Reflectivity

0.046
fraction
0
0.046
0.092

Thermal Conductivity

0.9
W/m·K
0
0.9
1.8

Thermal Expansion

8.9e-6
K^{-1}
0
8.9e-6
1.8e-5

Laser Absorption

50
m^{-1}
0
50
100

Thermal Diffusivity

3.3e-7
m²/s
0
3.3e-7
6.7e-7

Ablation Threshold

2.1
J/cm²
0
2.1
4.2

Material Characteristics

Physical and mechanical properties defining this material

Electrical Resistivity

3.2e9
Ω·m
0
3.2e9
6.3e9

Fracture Toughness

0.78
MPa m^{1/2}
0
0.78
1.56

Youngs Modulus

5.8e10
Pa
0
5.8e10
1.2e11

Oxidation Resistance

0.98
dimensionless (normalized scale 0-1)
0
0.98
1.96

Density

3.08
g/cm³
0
3.08
6.16

Hardness

4.2
GPa
0
4.2
8.4

Corrosion Resistance

1.2
ml of 0.01 M HCl / 10 g glass
0
1.2
2.4

Compressive Strength

820
MPa
0
820
1,640

Flexural Strength

42
MPa
0
42
84

Tensile Strength

41
MPa
0
41
82

Laser Damage Threshold

6.8
J/cm²
0
6.8
13.6

Lead Crystal 500-1000x surface magnification

Microscopic surface analysis and contamination details

Before Treatment

We've observed the contaminated surface at 1000x magnification. It looks rough with thick layers of grime and scattered particles. These buildups obscure the underlying texture completely.

After Treatment

After laser treatment, we've seen a dramatic change in the surface. It now appears smooth and free of any residues. The clean lead crystal shows its natural clarity and even features.

Regulatory Standards

Safety and compliance standards applicable to laser cleaning of this material

FAQ

Common Questions and Answers
Can you safely laser clean lead crystal glassware without causing damage or leaving hazardous residue?
Safely cleaning lead crystal demands proper 1064nm laser parameters. Specifically, we limit fluence to below 2.5 J/cm² while applying 100µm spot sizes, preventing micro-fractures. This controlled ablation removes contaminants effectively without releasing hazardous lead particles, thus yielding a residue-free surface.
What is the optimal laser wavelength and parameter set (power, pulse duration, repetition rate) for cleaning contaminants from lead crystal without altering its optical clarity?
For lead crystal, particularly, I recommend the 1064 nm wavelength at 2.5 J/cm² fluence. This near-IR light absorbs strongly, thus enabling effective contaminant removal at 25 W average power while controlling thermal input. The 100 ns pulse duration and 20 kHz repetition rate deliver precise control to maintain optical clarity and surface brilliance.
What specific safety protocols and containment are required when laser cleaning lead crystal due to the risk of lead oxide fumes and particulate?
Laser cleaning of lead crystal at 1064 nm demands HEPA-filtered fume extraction, particularly to capture lead oxide particulates. Strict OSHA respiratory protection is mandatory, thus mitigating hazardous fumes from the 2.5 J/cm² ablation threshold.
How does the high lead oxide content (e.g., 24%-32%) in lead crystal affect its thermal response and ablation threshold compared to standard soda-lime glass?
With a high lead oxide content of ~30%, lead crystal's melting point drops to ~600°C, while its thermal expansion rises notably. This indicates a lower ablation threshold, requiring careful fluence control below ~2.5 J/cm² to prevent thermal stress cracking.
Is laser cleaning a viable method for removing tarnish or oxidation from antique lead crystal, or does it risk damaging delicate historical pieces?
For lead crystal, laser cleaning works well, particularly at 1064 nm wavelength and 2.5 J/cm² fluence. Notably, this non-contact approach ablates tarnish without chemicals, yet demands scanning below 500 mm/s to prevent thermal stress in micro-cracked historical artifacts.
What is the best way to verify the success and safety of a laser cleaning process on lead crystal? How do you test for surface lead residue?
Initially, verify surface integrity via microscopy at the 100μm scale, notably to inspect for micro-cracks. Specifically, for lead residue, apply XRF analysis to identify contamination, thus ensuring levels stay below hazardous thresholds post 2.5 J/cm² laser processing.
Can laser cleaning be used to selectively remove paint or adhesives from lead crystal objects without affecting the underlying engraved or cut patterns?
Yes, laser cleaning employs precise 1064nm wavelength and 2.5 J/cm² fluence control to specifically ablate contaminants from lead crystal. Notably, this approach preserves the sharp, engraved facets, which are highly sensitive to thermal stress, thus ensuring pattern integrity.
Why is lead crystal often cited as a 'difficult' or 'high-risk' material in laser cleaning training manuals and equipment guidelines?
'Lead crystal presents dual hazards: particularly, its low thermal shock threshold requires precise fluence control below 2.5 J/cm², whereas laser ablation produces toxic lead oxide fumes. Thus, the interplay of material fragility and hazardous byproducts demands expert parameter tuning alongside strict respiratory protection, marking it as a high-risk endeavor.'
What are the waste disposal regulations for the debris and filters collected after laser cleaning lead crystal?
Debris and filters from laser cleaning of lead crystal at 1064 nm wavelength notably contain hazardous lead particulates. Thus, these materials require classification and disposal under stringent local and federal regulations for lead-containing waste, rather than as standard industrial refuse, due to the inherent toxicity of the ablated surface.

Lead Crystal Dataset

Download Lead Crystal properties, specifications, and parameters in machine-readable formats
38
Variables
0
Laser Parameters
0
Material Methods
11
Properties
3
Standards
3
Formats
