ANSI
ANSI Z136.1 - Safe Use of Lasers (OD 6+ eyewear required for 1064 nm)



Nanosecond laser cleaning does not leave stainless steel with a clean version of its original surface — it creates a new Cr-based oxide layer and transiently depletes chromium from subsurface zones, confirmed by EPMA analysis of 304L (Micromachines 2025, DOI: 10.3390/mi16121366). At energy levels below 11.19 J/cm², pitting potential improves by ~230 mV versus untreated baseline (Yang et al. 2022, DOI: 10.1002/maco.202213541). Bay Area fabricators who grind stainless steel instead face Cal/OSHA Title 8 §5155 Cr(VI) exposure obligations — grinding generates documented concentrations of 10–200+ µg/m³ at point of generation, well above the OSHA PEL of 5 µg/m³ (29 CFR 1910.1026) — a compliance burden that nanosecond laser cleaning (operating below the Cr-VI generation threshold; Netalux Kamino 300W at 50 ns pulse length) eliminates entirely. CW fiber lasers are categorically unsuitable for stainless steel; only nanosecond or shorter pulsed systems provide selective cleaning without heat tinting or sensitization risk.
As for Z-Beam, this was one of the best experiences I've had with any company.
Fluence (J/cm²)

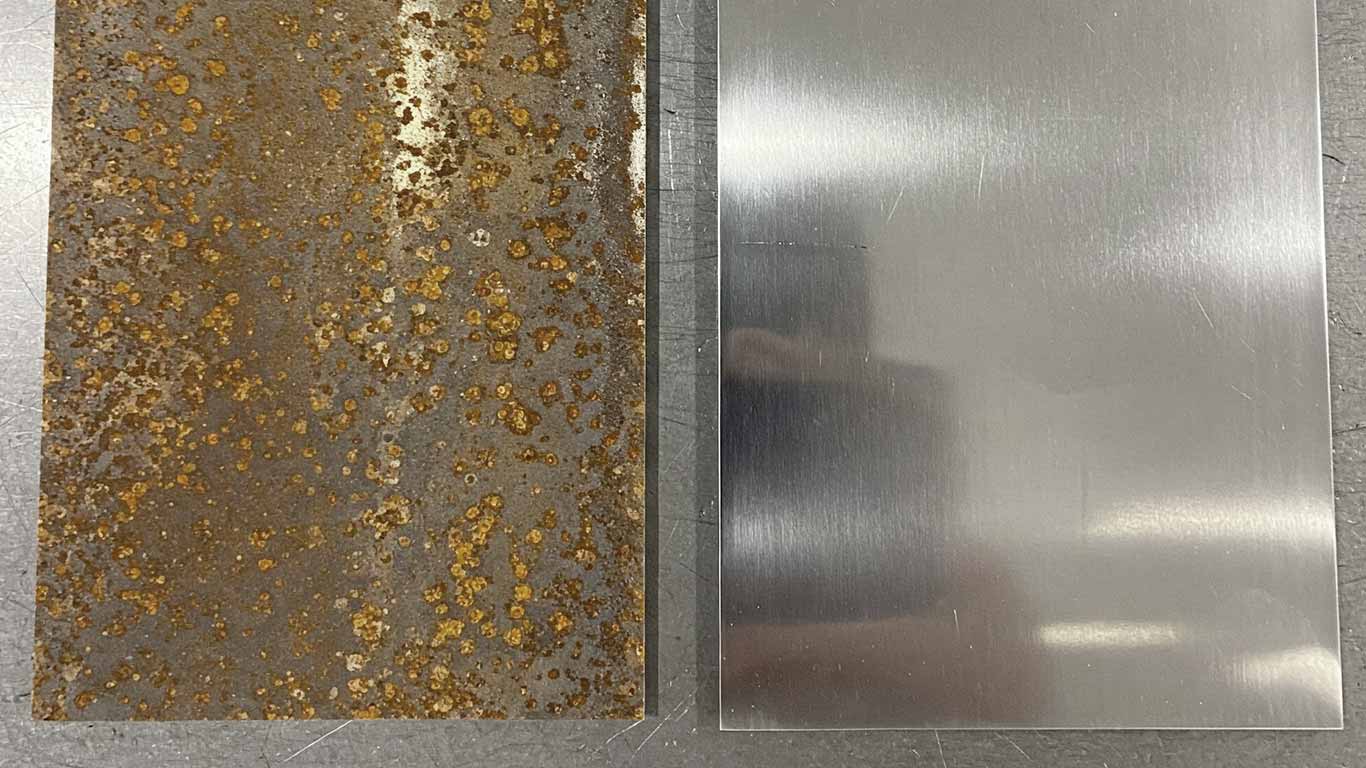

Nanosecond laser cleaning of 304L stainless steel produces a new Cr-based oxide layer and subsurface Cr-depleted zones — even when visible contamination is fully removed. This is confirmed by 2025 Micromachines research (DOI: 10.3390/mi16121366). Nanosecond laser cleaning does not leave stainless steel with its original surface chemistry. It leaves a fundamentally different surface. EPMA analysis confirmed simultaneous formation of a new Cr-based oxide layer (micrometers thick) and Cr-depleted subsurface zones. Surface temperature directly controls the thickness of the new oxide layer. The Cr/Fe ratio in the laser-induced passive film can reach ~6, higher than standard chemical passivation. At energy levels below 11.19 J/cm², pitting potential improves by ~230 mV and corrosion current density decreases versus untreated baseline (Yang et al. 2022, DOI: 10.1002/maco.202213541). This is counterintuitive — laser energy heats the surface, yet corrosion resistance improves at low energy levels. Above this threshold, the Cr-depleted zone dominates and secondary corrosion risk emerges. Our operating ceiling of 3.0 J/cm² sits far below this laboratory threshold, providing substantial safety margin. Light absorption is 35% at 1064 nm (Trdan et al. 2018); heat spread rate is 4.09×10⁻⁶ m²/s; damage threshold is 1.2 J/cm². Nanosecond pulses clean stainless steel too quickly for sensitization kinetics to activate. The 425–860°C carbide precipitation range requires sustained dwell time that nanosecond pulses cannot provide. CW fiber lasers carry sensitization risk — they provide the sustained thermal dwell that nanosecond systems avoid. Bottom line: the surface chemistry changes after laser cleaning, so verify Cr/Fe ratio on critical parts before welding.
Stainless steel's low thermal conductivity (16.2 W/m·K, MatWeb/ASM data) concentrates laser energy near the surface. This enables selective oxide removal but also limits the safe energy level ceiling compared to carbon steel. Density is 8 g/cm³, tensile strength 505 MPa, melting point 1425°C (AISI 304, ASM Handbook Vol. 1). Surface reflectance at 1064 nm is 62–65%, requiring full beam enclosure for backscatter management. The passive chromium oxide layer (1–5 nm) is the primary corrosion protection mechanism — and the surface feature most sensitive to laser parameter choices. Heat tint above approximately 400°C (blue-gold-straw coloring) indicates passive layer disruption and an underlying Cr-depleted zone. This tinting is not merely cosmetic — it signals reduced corrosion resistance. It is relevant for post-weld cleaning on food-grade tanks, marine hardware, and semiconductor process vessels. 316 stainless steel (2–3% molybdenum, per ASTM A240 grade composition) offers slightly more process latitude than 304. Molybdenum contributes to passive film stability, making 316 the preferred grade for chloride-exposed and food-contact applications. Kurtosis (Rku) is more predictive of pitting corrosion resistance than Ra alone on 304L — Rku below approximately 3 (platykurtic distribution) correlates with reduced pitting susceptibility (Kalhor et al. 2024). Simpler rule: keep energy low, use a single pass, and verify no heat tint after cleaning.
CW laser systems cause heat tinting and potential sensitization on stainless steel. Only nanosecond or shorter pulsed systems provide selective cleaning without bulk thermal effects. A CW system that achieves visual cleanliness is still causing subsurface damage — a pulsed system at correct parameters prevents this. The system type is not negotiable for this material. Working energy level range is 1.5–3.0 J/cm²; recommended starting point is 1.5–2.5 J/cm². The 3.0 J/cm² ceiling is conservative relative to the 11.19 J/cm² laboratory threshold where Cr-depleted zones begin to dominate (Yang et al. 2022). The margin exists because Cr-depletion risk accelerates with cumulative thermal input from multi-pass operation and high repetition rates. Single pass is not merely preferred — it keeps cumulative thermal input below the Cr-depletion threshold. At 1064 nm with 50 ns pulse length and 2000 mm/s cleaning speed, single-pass operation at 50 kHz removes contamination without bulk heating. MOPA systems (10–30 ns pulse length) go further: shorter pulses limit thermal input even more than fixed-pulse Q-switched systems. For critical components, check for absence of heat tint — not just visual cleanliness. For high-value applications, confirm passivation per ASTM A967.
Bay Area fabricators who grind stainless steel face Cal/OSHA Title 8 §5155 Cr(VI) exposure obligations — monitoring programs, medical surveillance, and potential BAAQMD Regulation 8, Rule 4 permit review. Nanosecond laser cleaning eliminates these obligations. Grinding and welding generate hexavalent chromium fume above the OSHA 5 µg/m³ PEL (29 CFR 1910.1026). Nanosecond laser cleaning operates below the thermal threshold for Cr-VI formation — it avoids the generation pathway entirely, not just filters the fume. The OSHA exemption at 29 CFR 1910.1026(a)(4) applies to processes unable to release Cr(VI) at or above 0.5 µg/m³ 8-hr TWA. Laser cleaning also meets ASTM A380/A380M-25 surface preparation requirements. The cleaned surface is ready for ASTM A967/A967M passivation verification — water-break test, ferroxyl test, or copper sulfate test — with no chemical waste stream. For food-grade, marine, and semiconductor applications, validate passive layer integrity per ASTM A967 post-cleaning. High surface reflectance (62–65%) creates significant backscatter hazard. Use full beam enclosure and OD 6+ eyewear rated for 1064 nm per ANSI Z136.1.

ANSI Z136.1 - Safe Use of Lasers (OD 6+ eyewear required for 1064 nm)

IEC 60825 - Safety of Laser Products

OSHA 29 CFR 1910.1026 - Hexavalent Chromium Standard (PEL 5 µg/m³; action level 2.5 µg/m³)

ASTM A380/A380M-25 - Stainless Steel Cleaning, Descaling, and Passivation Standard

ASTM A967/A967M - Passivation Acceptance Criteria (water-break, ferroxyl, copper sulfate tests)
The outcome depends on energy level — the answer is not simply yes or no. Nanosecond laser cleaning of 304L stainless steel produces a new Cr-based oxide layer and subsurface Cr-depleted zones, even when visible contamination is fully removed. This is confirmed by 2025 Micromachines research (DOI: 10.3390/mi16121366). At energy levels below the critical threshold (conservative ceiling of 3.0 J/cm² in practice), Yang et al. 2022 measured a pitting potential improvement of ~230 mV on 304 stainless steel versus untreated baseline (DOI: 10.1002/maco.202213541). Corrosion resistance improved — a verified, counterintuitive result.
Above the threshold, the Cr-depleted zone dominates and creates secondary corrosion risk. Mechanical cleaning cannot achieve the passive film enrichment that nanosecond laser cleaning provides at correct energy level. But incorrect energy level produces the opposite result. Single pass at conservative energy level is the mechanism that determines whether corrosion resistance improves or degrades.
Stainless steel grinding generates hexavalent chromium fume at 10–200+ µg/m³ — far above the OSHA PEL of 5 µg/m³ and the Cal/OSHA action level of 2.5 µg/m³ (29 CFR 1910.1026). At 1064 nm nanosecond pulsed laser wavelength, the pulse temperature does not sustain the Cr-III → Cr-VI oxidation reaction that grinding heat generates. This eliminates the Bay Area compliance exposure entirely.
Nanosecond laser cleaning avoids the generation pathway for Cr-III → Cr-VI conversion — not through filtration, but by staying below the thermal threshold. California shops face Cal/OSHA Title 8 §5155 (same PEL, stricter Bay Area enforcement) and may trigger BAAQMD Regulation 8, Rule 4 permit obligations from grinding. Laser cleaning avoids triggering these requirements. HEPA-filtered fume extraction is still required — the advantage is eliminating the Cr(VI) generation pathway, not eliminating the need for ventilation.
Nanosecond pulses clean stainless steel too quickly for sensitization kinetics to activate. The 425–860°C carbide precipitation range requires sustained dwell time that 50 ns pulses cannot provide. Micromachines 2025 confirmed that heat-affected depth after 304L nanosecond cleaning is limited to only a few micrometers. This is consistent with the kinetic impossibility of Cr carbide precipitation at nanosecond timescales.
By contrast, grinding with heat buildup, flame descaling, and welding input to adjacent areas all carry sensitization risk on austenitic stainless steel. CW (continuous wave) fiber lasers also carry this risk — they are categorically unsuitable for stainless steel cleaning at any power level. Only nanosecond or shorter pulsed systems provide selective cleaning without bulk thermal sensitization risk.
Chloride-induced pitting corrosion is a structural failure — not a surface cleaning problem. Laser cleaning removes corrosion products (rust, scale, oxide) but cannot restore base metal integrity lost to active pitting. Corrosion resistance at 1064 nm wavelength is surface-only; it cannot eliminate active corrosion cells below the surface. This is a critical scope limitation for coastal Bay Area applications where 304 stainless is exposed to chloride environments (marine hardware, outdoor food processing equipment). Pitting that has penetrated the base metal requires welding repair or section replacement, not cleaning.
CW fiber lasers are the wrong tool for stainless — they cause heat tinting and sensitization risk at any power level. If a contractor proposes a CW system for stainless steel cleaning, the system type itself is the problem. Separately, heavily sensitized stainless cannot have its corrosion resistance fully restored by laser cleaning alone. The metallurgical damage is subsurface and requires solution annealing.
Stainless steel heat tint removal requires a balanced settings — multiple low-intensity passes restore the chromium passive layer more reliably than a single aggressive pass.
