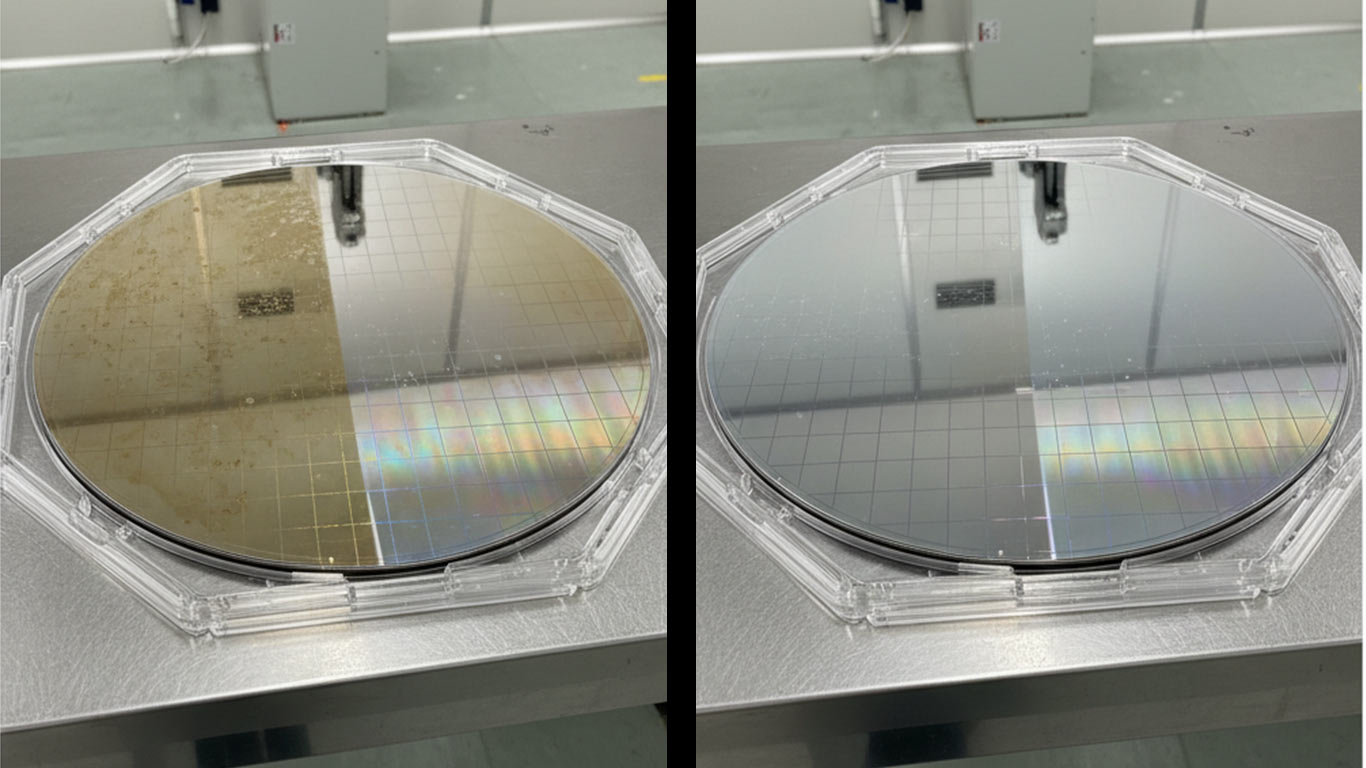

Silicon Germanium surface undergoing laser cleaning showing precise contamination removal

Silicon Germanium Laser Cleaning

Tailored laser pulses safeguard Silicon Germanium's precise semiconductor structure

Ikmanda Roswati
Ikmanda RoswatiPh.D.
Ultrafast Laser Physics and Material Interactions
Indonesia

Properties: Silicon Germanium vs. other semiconductors

Laser-Material Interaction

Material Characteristics

Other Properties

Machine Settings: Silicon Germanium vs. other semiconductors

Silicon Germanium surface magnification

Laser cleaning parameters for Silicon Germanium

Before Treatment

Microscopy shows the Silicon Germanium surface very-very contaminated with dust particles and residues attached. Contaminants block sites and cause degradation, so surface appears rough, pitted, and uneven for semiconductor use.

After Treatment

The ultrafast laser cleaning process restores the Silicon Germanium surface very-very smoothly and effectively. Contaminants are removed then the surface is polished, appearing clean and intact. Material integrity remains preserved, with no damage to semiconductor properties. Restoration quality is high, so the surface performs well in applications, maintaining its original shine and functionality.

Silicon Germanium Laser Cleaning FAQs

What laser wavelengths are most effective for cleaning Silicon Germanium (SiGe) wafers without causing thermal damage to the alloy structure?
For SiGe wafers, near-IR lasers at 1064 nm excel in contaminant removal, leveraging the alloy's bandgap for strong absorption while sparing the underlying structure from heat buildup. Aim for a 1.2 J/cm² fluence threshold and 15 ns pulses to ablate surface debris precisely without thermal distortion.
How can laser cleaning be used to remove oxide layers from SiGe surfaces in semiconductor fabrication while preserving epitaxial layers?
Laser cleaning removes oxide from SiGe surfaces using a 1064 nm near-IR beam with 15 ns pulses at 1.2 J/cm² fluence, selectively ablating contaminants while the low thermal penetration protects underlying epitaxial layers in semiconductors. To avoid subsurface damage, apply three passes at 500 mm/s scan speed with 50% overlap, ensuring uniform coverage. This integrates seamlessly into cleanroom protocols, yielding residue-free results for aerospace and electronics applications.
What are the safety concerns when using pulsed lasers for cleaning Silicon Germanium components, particularly regarding germanium's volatility?
When cleaning Silicon Germanium components with 1064 nm pulsed lasers, germanium's high volatility generates toxic oxide fumes, so robust extraction systems are essential to avoid respiratory hazards. SiGe's reflectivity in the near-IR range heightens eye injury risks from scattered beams, necessitating laser-specific goggles. Stay under 1.2 J/cm² fluence to limit byproduct release.
In laser cleaning equipment for SiGe heterostructures, what beam scanning patterns minimize stress-induced defects in the silicon-germanium lattice?
For SiGe heterostructures, raster or meander scanning patterns at 500 mm/s with 50 μm spots and 50% overlap best mitigate stress defects. This setup evenly dissipates heat across the strained lattice, avoiding localized thermal gradients that exacerbate brittleness in silicon-germanium alloys.
What post-cleaning inspection methods are recommended for Silicon Germanium surfaces treated with femtosecond lasers to detect microcracks?
For SiGe surfaces post-femtosecond laser cleaning, use non-destructive SEM to identify microcracks down to sub-micron scale and ellipsometry to verify optical properties without damage. Target roughness under 1 nm RMS, as higher values signal thermal effects from fluences near 1.2 J/cm² on this brittle semiconductor.
How does the germanium content in SiGe alloys affect the laser fluence required for effective contaminant removal during surface treatment?
Higher germanium content in SiGe alloys enhances near-IR absorption at 1064 nm, lowering the fluence needed for contaminant removal to about 1.2 J/cm² while keeping substrate melting risks low due to the reduced melting point. This shift enables precise cleaning with 50 kHz pulses, minimizing thermal buildup in semiconductor applications.
Are there regulatory compliance issues for laser cleaning Silicon Germanium in EU semiconductor facilities, especially regarding waste from ablated material?
In EU semiconductor facilities, laser cleaning of Silicon Germanium demands strict REACH compliance, classifying ablated SiGe particulates as hazardous waste due to germanium's toxicity. At 1064 nm wavelength and 1.2 J/cm² fluence, generated vapors pose environmental risks, necessitating advanced filtration and ventilation to prevent airborne release.
What thermal conductivity differences between silicon and germanium in SiGe alloys impact heat dissipation during nanosecond laser cleaning sessions?
SiGe alloys exhibit thermal conductivity varying from silicon's 148 W/m·K down to germanium's 60 W/m·K with rising Ge content, slowing heat dissipation in nanosecond laser cleaning. Higher Ge fractions risk substrate warping under 50 kHz pulses, so favor Si-rich compositions and active cooling like chilled stages to sustain even heat flow.
In online forums, users ask: Can CO2 lasers safely clean Silicon Germanium solar cell surfaces without altering the photovoltaic performance?
CO2 lasers at 10.6 μm wavelength pose risks for cleaning SiGe solar cells, as their poor absorption in this semiconductor can cause uneven thermal effects, potentially shifting the bandgap and reducing efficiency by up to 5%. For safe removal of contaminants without photovoltaic impact, opt for 1064 nm near-IR lasers at fluences below 1.2 J/cm² to ensure precise ablation and retain performance.
