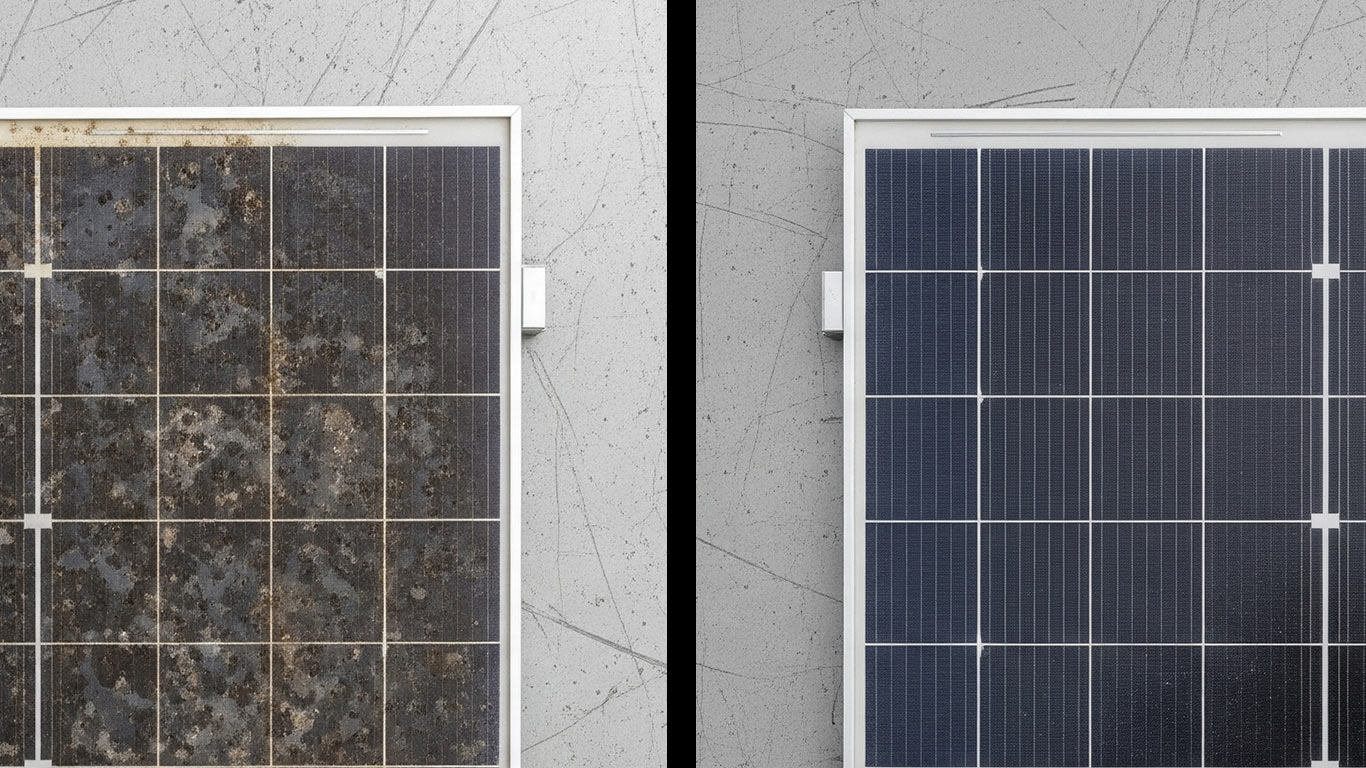

Silicon Laser Cleaning
Specialized Laser Techniques Preserve Brittle Silicon Semiconductor Integrity
Todd DunningMA
Optical Materials for Laser Systems
United States (California)
Properties: Silicon vs. other semiconductors
Laser-Material Interaction
Material Characteristics
Other Properties
Machine Settings: Silicon vs. other semiconductors
Silicon surface magnification
Laser cleaning parameters for Silicon
Before Treatment
In microscopy of the contaminated silicon surface, a patchwork of micron-sized particles and oily residues dominates the view. Contaminants, mainly silica dust and organic films, adhere unevenly, forming clusters up to 5 microns thick that obscure underlying structure. Surface degradation appears as faint pitting and haze, eroding smoothness. In semiconductor laser fabrication, this impairs beam quality, demanding targeted cleaning.
After Treatment
After thorough cleaning, the silicon semiconductor surface restores to a pristine, contaminant-free state, exhibiting nanoscale smoothness and uniform reflectivity. This high-quality restoration maintains material integrity, preserving inherent electrical and optical properties without inducing defects or stress. In laser system optics, such conditioning ensures optimal beam transmission and device reliability for precision applications.
Silicon Laser Cleaning FAQs
What laser wavelengths are most effective for cleaning contaminants from silicon wafers without causing thermal damage?
For silicon wafers in semiconductor apps, a 1064 nm near-IR wavelength works best, as it targets contaminants while silicon absorbs just enough to ablate without deep heating. Keep fluence below 2.5 J/cm² to stay under the ablation threshold, minimizing subsurface defects—UV options like 355 nm can help for stubborn residues but risk more scattering.
How does laser cleaning remove native oxide layers from silicon surfaces, and what are the risks of microcracking?
Laser cleaning ablates silicon's native oxide layer via rapid vaporization from 100 ns pulses at 1064 nm, where near-IR absorption heats the thin film to plasma thresholds without deep substrate penetration. Exceeding the 2.5 J/cm² fluence risks thermal gradients causing microcracks, especially in semiconductors. Post-clean, inspect via SEM for subsurface integrity to safeguard microelectronics.
In laser cleaning of silicon solar panels, what fluence levels prevent damage to the anti-reflective coating?
For silicon solar panels, maintain fluence below 2.5 J/cm² during laser cleaning to safeguard the anti-reflective coating. This range ensures contaminant ablation at 1064 nm wavelength without thermal degradation, preserving module efficiency and avoiding residue buildup that could reduce output by up to 5%.
What safety precautions are needed when using lasers to clean silicon components due to potential silicon nanoparticle generation?
When laser-cleaning silicon at 25 W with 2.5 J/cm² fluence, ablated nanoparticles can become airborne, risking lung irritation via inhalation. Install local exhaust ventilation to trap fine dust, and adhere to OSHA guidelines for N95 respirators, gloves, and protective eyewear to safeguard workers.
Can femtosecond lasers clean silicon MEMS devices more effectively than nanosecond lasers, and why?
Yes, femtosecond lasers outperform nanosecond ones for cleaning silicon MEMS, thanks to their ultrashort pulses that slash the heat-affected zone below 1 μm—versus 10-50 μm for 100 ns pulses—preserving delicate microstructures. This boosts yield by minimizing thermal damage at fluences around 2.5 J/cm², ideal for silicon's sensitivity.
What are common issues with redeposition of debris during laser cleaning of silicon substrates in semiconductor fabs?
Redeposition of ablated particles on silicon substrates often occurs in fabs due to low ejection velocities, risking contamination in semiconductor processes. To mitigate this, employ nitrogen gas assist at moderate pressures alongside a 2.5 J/cm² fluence threshold, ensuring debris is propelled away without damaging the material. Efficacy is gauged by maintaining surface roughness below 1 nm Ra post-cleaning.
How does the thermal conductivity of silicon influence the choice of laser power for surface treatment in cleaning processes?
Silicon's high thermal conductivity of 150 W/mK promotes rapid heat dissipation, allowing us to ramp up laser power to about 25 W for thorough contaminant removal without substrate damage. This trait minimizes localized overheating, so we tweak scan speeds to 500 mm/s and fluence to 2.5 J/cm² for even surface treatment.
What regulatory standards apply to laser cleaning of silicon in cleanroom environments for electronics manufacturing?
In cleanroom environments for electronics manufacturing, laser cleaning of silicon wafers must comply with ISO 14644 standards for air cleanliness (typically Class 5 or better) to prevent particulate contamination. Laser safety follows ANSI Z136 guidelines, ensuring eye and skin protection during operations at 1064 nm wavelength and 25 W power. For silicon-specific control, maintain fluence below 2.5 J/cm² to avoid subsurface damage while meeting SEMI F21 particle standards.
In training guides, what handling practices are recommended for silicon parts before and after laser cleaning to avoid contamination?
Before laser cleaning, handle silicon wafers in a class 100 cleanroom with anti-static gloves and tools to minimize ESD risks and particulates. After ablation at 2.5 J/cm² fluence, store them in nitrogen-purged enclosures to curb oxidation, preserving semiconductor integrity for electronics and solar uses.
