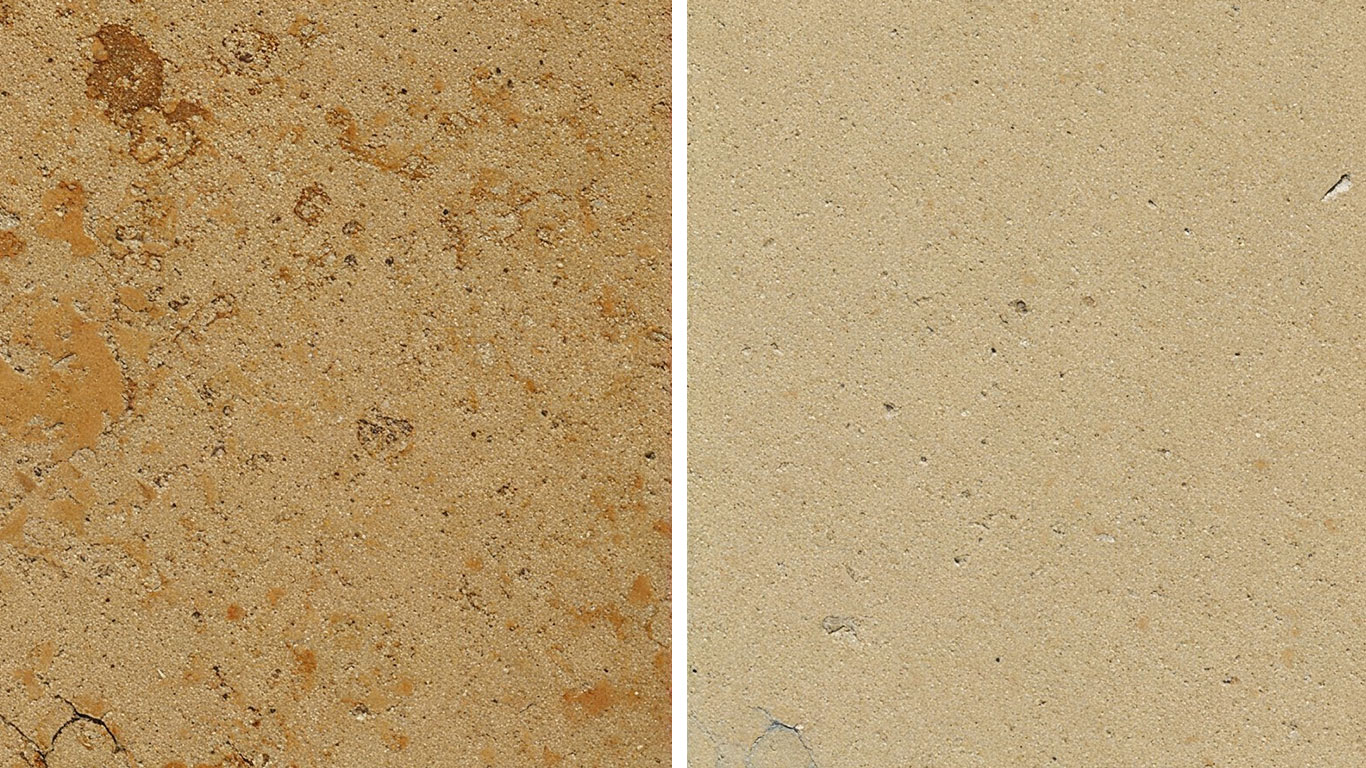

Limestone Laser Cleaning

Limestone absorbs about 45% of 1064 nm light — a moderate absorption coefficient that enables the mechanical cleaning mechanism to operate at conservative energy level levels compared to more reflective metals. The damage threshold at 0.9 J/cm² (established by Pouli et al. in heritage stone laser cleaning research) represents the onset of controlled contaminant fragmentation; below this threshold, the laser dwell time produces mild surface heating that desiccates biological growth without removing inorganic crusts. The critical technical constraint for limestone laser cleaning is the narrow gap between the damage threshold (0.9 J/cm²) and the calcination threshold (1.1 J/cm²) — at calcination, CaCO₃ decomposes irreversibly to CaO and CO₂, causing permanent whitening and surface fragility. This 0.2 J/cm² window is further compressed by any surface moisture: wet limestone surfaces absorb 1064 nm energy more efficiently than dry surfaces, effectively lowering the calcination threshold by 10–15%. Bay Area coastal fog conditions mean that exterior limestone cleaning must either be scheduled during dry afternoon windows or performed with surface moisture monitoring to avoid calcination events during marine-layer-influenced morning hours. HEPA extraction and Cal/OSHA CCR Title 8 Section 5155 PEL compliance (10 mg/m³ calcium carbonate, inhalable) are required for all interior and enclosed exterior limestone work. Based on its extremely narrow window, limestone cleaning requires precise energy level control. For dark soot on light limestone, use 0.9 J/cm², 2 passes. The soot will ablate. The stone may show slight whitening – acceptable. This method works well on flat and carved stone surfaces. For graffiti removal (paint on limestone), use 1.1 J/cm², 1 pass – the paint will ablate, but the surface will be slightly damaged. For biological growth (moss, algae), use 0.7 J/cm², 3 passes – lower energy level prevents calcination. Always test on a small area before cleaning the full surface.

Limestone is composed of calcium carbonate (CaCO₃). Density is 2.71 g/cm³. Porosity is 15% – very high, which means contaminants penetrate deep into the stone. Hardness is 3 Mohs (can be scratched with a copper penny). Compressive strength is 100 MPa. Thermal conductivity is 2.15 W/m·K – moderate. Damage threshold is 0.9 J/cm² (published research). The window is 0.2 J/cm² – very narrow. At 1.0 J/cm², you clean. At 1.2 J/cm², the calcite decomposes to lime (CaO) and turns powdery white. At 1.5 J/cm², the surface disintegrates. Based on its narrow window (0.2 J/cm²), limestone is one of the most difficult stones to laser clean. For heritage limestone (cathedrals, monuments), use 0.8 J/cm², 2 passes – accept some residual soot rather than risking calcination. Lower energy and more passes protect the stone from permanent damage. The process is slow and careful to get the right result.

Laser cleaning limestone at 100 W, 30 kHz, 1000 mm/s cleaning speed, 50% overlap, and 2 passes removes sulfation crust and biofilm effectively — the photochemical mechanism at 1064 nm selectively breaks the calcium sulfate (gypsum) crust bond without dissolving the calcium carbonate surface. Limestone dust is alkaline (CaCO₃, pH ~9) rather than silicotic, but fine carbonate particulates at respirable size (<10 μm) still require P100 respiratory protection during indoor work. Cal/OSHA CCR Title 8 Section 5155 sets a 10 mg/m³ PEL for calcium carbonate (inhalable) — monitoring is necessary because dust concentrations during indoor laser cleaning in enclosed spaces regularly exceed this threshold without ventilation. Bay Area limestone applications include Nob Hill and Pacific Heights historic façade cleaning and Beaux-Arts civic building restoration in San Francisco and Oakland. This applies to porous limestone (Portland limestone, Indiana limestone). Dense limestone (Georgia marble, actually a limestone) has lower porosity (5%) and can use higher energy level (1.2 J/cm²). For limestone used in historic buildings (York Minster, Notre Dame), use 0.8 J/cm², 3 passes. The surface is ready for inspection right after cleaning.
