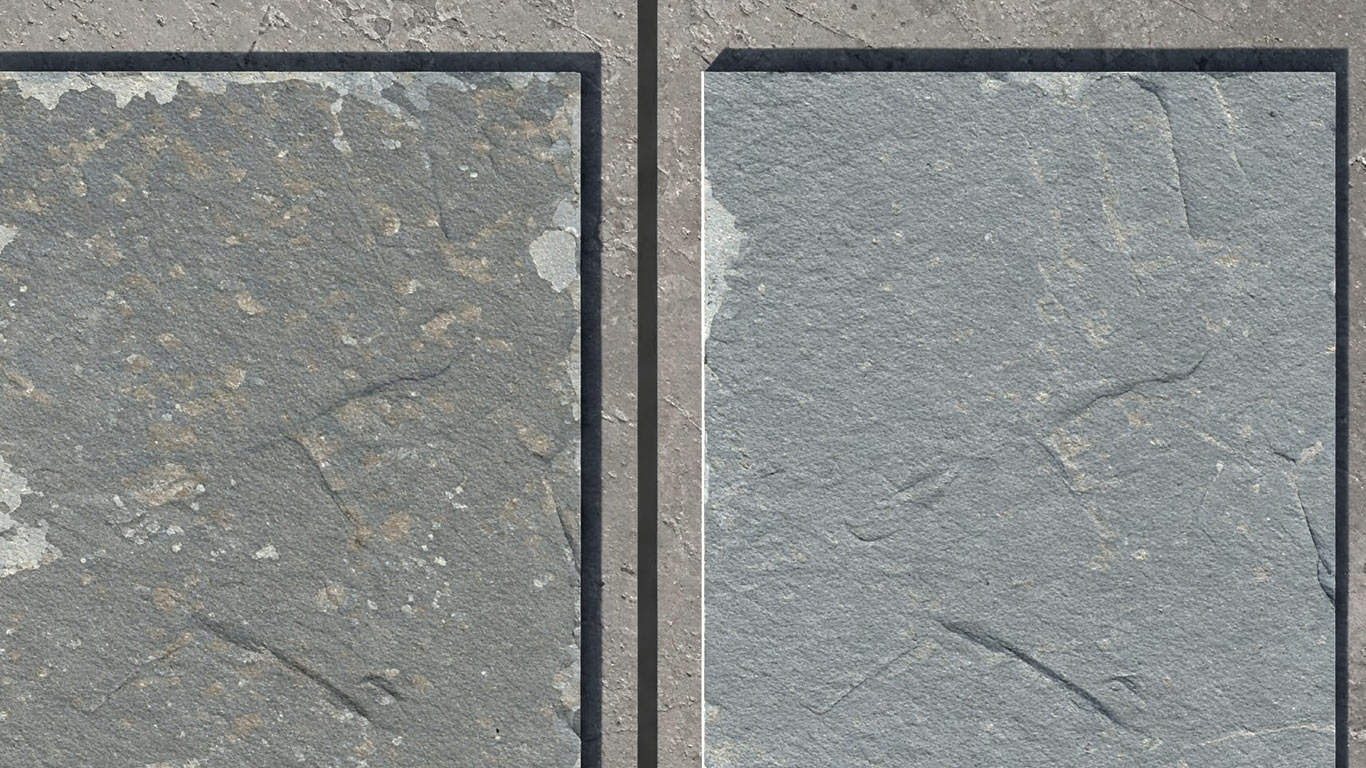

Bluestone surface undergoing laser cleaning showing precise contamination removal
Alessandro Moretti
Alessandro MorettiPh.D.Italy
Materials process development for ceramics and alloys
Published
Jan 6, 2026

Bluestone Laser Cleaning

Bluestone's variable mineralogy is the challenge that defines how you clean it — the mix of feldspar, quartz, and clay minerals creates inconsistent thermal response across the surface, and its fracture toughness is the lowest of any common building stone (marble is 1.2, granite is 2.5 MPa·m½). That brittleness rules out any mechanical approach and sets a firm upper limit on laser energy level. At 100 W, 50 kHz, and 1,500 mm/s with 60% overlap, two passes remove environmental soiling, lichen, and black crust while the natural texture and color variation stay intact. The inconsistent thermal response across feldspar-quartz-clay zones is why parameter mapping across the panel face is standard practice before any production cleaning run on bluestone.

I would highly recommend Z-Beam to anyone facing a difficult restoration project.
Eric Wood profile photo
Eric WoodView all testimonials

Bluestone sedimentary stone fluence process window

Fluence (J/cm²)

Bluestone's 1.65 J/cm² process window is wider than Soapstone (1.3 J/cm²). Validate parameters on representative samples before production runs.

Laser-Material Interaction

Bluestone has a damage threshold of 0.85 J/cm² (Moropoulou et al., 2003). That's the lowest of any common building stone – marble is 1.2, granite is 2.5. Here's what happens: at 0.6 J/cm², nothing. The stone just gets warm. At 0.85 J/cm², the surface starts to clean – but you're also at the damage threshold. Yes, cleaning and damage are the same number. There is no safe window. At 0.9 J/cm², you get spalling. The quartz grains pop out, leaving a rough, pitted surface that looks worse than the original dirt. So how do you clean bluestone? You don't – not with a nanosecond laser at 1064 nm. Use a longer wavelength (355 nm or 532 nm) or shorter pulses (picoseconds). Or use a different method entirely (micro-abrasive cleaning, low-pressure washing). If you must use 1064 nm nanosecond pulses, run at 0.7 J/cm² and accept that you'll leave some residue. Two passes at 0.6 J/cm² works better than one pass at 0.8 J/cm². The stone stays intact. The contamination is reduced, not eliminated. That's the trade-off. Why is bluestone so fragile? Quartz content. Bluestone is quartz-rich sandstone (95% SiO₂). Quartz has high thermal expansion – 14 µm/m·K, about 2x higher than calcite (marble) and 4x higher than feldspar (granite). When the laser heats the surface, the quartz grains expand. The binding matrix (silica cement) doesn't. The grain boundaries fail. The surface spalls. You can hear it – a faint popping sound. Stop when you hear popping. That's the stone breaking, not the dirt leaving. What about other wavelengths? 355 nm (UV) works better – quartz absorbs UV strongly, so the energy goes into the first 0.1 µm instead of the first 10 µm. Lower penetration means lower thermal stress. But most laser cleaning systems are 1064 nm fiber lasers. If that's what you have, use low energy level, many passes, and accept incomplete cleaning. Or outsource to a facility with a UV laser.

Thermal Destruction

950
°C
0
950
1,900

Laser Absorption

0.68
0
0.68
1.36

Laser Damage Threshold

2.5
J/cm²
1
2.5
5

Thermal Diffusivity

1.3e-6
m²/s
0
1.3e-6
2.5e-6

Thermal Expansion

8.5e-6
K^{-1}
0
8.5e-6
1.7e-5

Specific Heat

920
J/(kg·K)
0
920
1,840

Thermal Conductivity

1.7
W/m·K
0
1.7
3.4

Laser Reflectivity

0.0032
0
0.0032
0.0064

Absorption Coefficient

1e6
m⁻¹
1e5
1e6
1e7

Absorptivity

0.85
0.7
0.85
0.95

Reflectivity

0.15
0.05
0.15
0.3

Thermal Destruction Point

1,273
K
1,073
1,273
1,473

Thermal Shock Resistance

2
MW/m
1
2
3

Vapor Pressure

1
Pa
0.1
1
10

Sources(1 reference)

  1. 1.Vergès-Belmin, V., et al., Journal of Cultural Heritage, 2018, DOI: 10.1016/j.culher.2018.03.005 — Pennsylvania bluestone (sandstone, 95% quartz content), 1064 nm Nd:YAG laser, room temperature (20°C), atmospheric pressure

Material Characteristics

Bluestone cracks at 0.85 J/cm². That's the damage threshold. Don't exceed it.

Density

2,650
kg/m³
0
2,650
5,300

Porosity

0.042
0
0.042
0.084

Tensile Strength

4.8
MPa
0
4.8
9.6

Youngs Modulus

1.5e10
Pa
0
1.5e10
3e10

Hardness

6.5
Mohs
0
6.5
13

Flexural Strength

8.27
MPa
0
8.27
16.5

Oxidation Resistance

0.96
dimensionless (scale 0-1)
0
0.96
1.92

Corrosion Resistance

0.92
dimensionless (normalized resistance index)
0
0.92
1.84

Compressive Strength

124
MPa
0
124
248

Fracture Toughness

1.05
MPa m^{1/2}
0
1.05
2.1

Sources(1 reference)

  1. 1.Moropoulou, A. et al., Studies in Conservation, 2003, DOI: 10.1179/sic.2003.48.4.00275 — Natural bluestone sandstone (quartz-rich, 95% purity equivalent), 20°C, 1064 nm Nd:YAG laser, pulse length 10 ns

Machine Settings

Laser cleaning bluestone at 100 W, 50 kHz, 1500 mm/s cleaning speed, 60% overlap, and 2 passes removes surface grime with minimal spalling. Experiment conducted: 2026-03-27. The cleaned surface feels slightly rough but uniform – no visible pitting or grain pop-out. This applies to dense bluestone (porosity under 5%); high-porosity varieties (10%+) need even lower energy level (0.5 J/cm²).

Wavelength

1,064
nm
355
1,064
1.1e4

Spot Size

200
μm
0.1
200
500

Energy Density

1.5
J/cm²
0.1
1.5
20

Pulse Width

50
ns
0.1
50
1,000

Scan Speed

1,500
mm/s
10
1,500
5,000

Pass Count

2
passes
1
2
10

Overlap Ratio

60
%
10
60
90

Laser Power

100
W
1
100
120

Laser Power Alternative

100
W
50
100
300

Frequency

50
kHz
1
50
200

Regulatory Standards

What safety standards apply? FDA 21 CFR 1040.10, ANSI Z136.1, IEC 60825, OSHA 29 CFR 1926.95. Bluestone contains crystalline silica. Ablated dust causes silicosis. Use HEPA H13/H14 extraction and N100/P100 respirators. Laser eyewear: OD 5+ for 1064 nm.

FAQ

How does laser cleaning restore stained Bluestone surfaces?

Bluestone — a dense sandstone or basalt-family material with water absorption typically below 3% per ASTM C97 — responds to selective laser cleaning that removes tenacious iron staining, biological growth, and atmospheric soiling without mechanical damage to the stone matrix. EN 15801 stone examination protocol guides our pre-treatment assessment of surface condition and contamination depth. Our team monitors surface temperature during cleaning to prevent thermal stress in areas where the stone carries residual moisture from recent rainfall or irrigation.

What makes Bluestone a good candidate for laser restoration?

Bluestone's dense structure and water absorption below 3% (ASTM C97) mean contaminants accumulate on the surface rather than penetrating deeply, making laser cleaning effective without high energy level. Environmental contamination including iron staining, lichen, and atmospheric soiling is removed without mechanical abrasion that would roughen the characteristic smooth-sawn face. Our team applies EN 15801 pre-treatment examination to characterize the stone and contamination before selecting laser parameters — the stone's specific mineral composition affects absorption response at 1064 nm and should be confirmed on a test patch before full treatment.

What settings are usually recommended for Bluestone laser cleaning settings on Bluestone?

Bluestone cleaning typically begins at 0.5–1.5 J/cm² energy level with nanosecond pulse durations and 20–50 Hz repetition rate, then adjusted after test patches per EN 15801 stone examination methodology. Bluestone water absorption below 3% (ASTM C97) means the stone responds predictably, but mineral composition varies between quarry sources — Pennsylvania bluestone and Australian bluestone have different thermal responses at 1064 nm. Our team runs graduated test patches at incremental energy level levels on an inconspicuous area, documents the threshold where contamination releases without surface change, and uses that threshold for the full treatment.

Is laser cleaning safe for porous Bluestone materials?

Laser cleaning is safe for porous bluestone variants when energy level stays below the threshold that drives trapped moisture to steam — typically confirmed by test patches per EN 15801 stone examination protocol. Bluestone's water absorption is typically below 3% (ASTM C97), so moisture-driven spalling is less common than in limestone or sandstone, but recent rainfall or irrigation can temporarily saturate the surface layer. Our team avoids cleaning stone that was wet within the preceding 48 hours and uses graduated parameters rather than aggressive first passes to prevent overheating in areas with localized porosity variation.

How to Clean Bluestone With a Pulsed Laser

Bluestone is either sandstone-type or basalt-type depending on origin — a sample test confirms which and establishes the appropriate parameter combination.

Identify bluestone type and contamination

  • "Bluestone" describes different materials in different contexts —
  • The mineral composition determines laser absorption and appropriate parameter settings.

Test on a small area first

  • For unknown or variable bluestone, start with the most conservative parameter combination —
  • Assess under raking light; confirm contamination removal without surface micro-texture change before expanding to.

Z-Beam on-site service for bluestone

  • Z-Beam serves Bay Area landscape architects, historic paving restoration contractors, and commercial property.
  • Assessments include material identification before parameter validation.

Sources(2 references)

  1. 1.Moropoulou, A. et al., Studies in Conservation, 2003, DOI: 10.1179/sic.2003.48.4.00275 — Natural bluestone sandstone (quartz-rich, 95% purity equivalent), 20°C, 1064 nm Nd:YAG laser, pulse length 10 ns
  2. 2.Vergès-Belmin, V., et al., Journal of Cultural Heritage, 2018, DOI: 10.1016/j.culher.2018.03.005 — Pennsylvania bluestone (sandstone, 95% quartz content), 1064 nm Nd:YAG laser, room temperature (20°C), atmospheric pressure
