Laser Cleaning Deeply Rusted Steel Plate
A deeply rusted steel plate has loose scale, pits, and remaining sound metal on the same face. The oxide can come off so the plate can be judged, but how much metal is left, whether pits will hold moisture, and heat in a thin or already wasted plate decide how far to go.
What This Video Shows

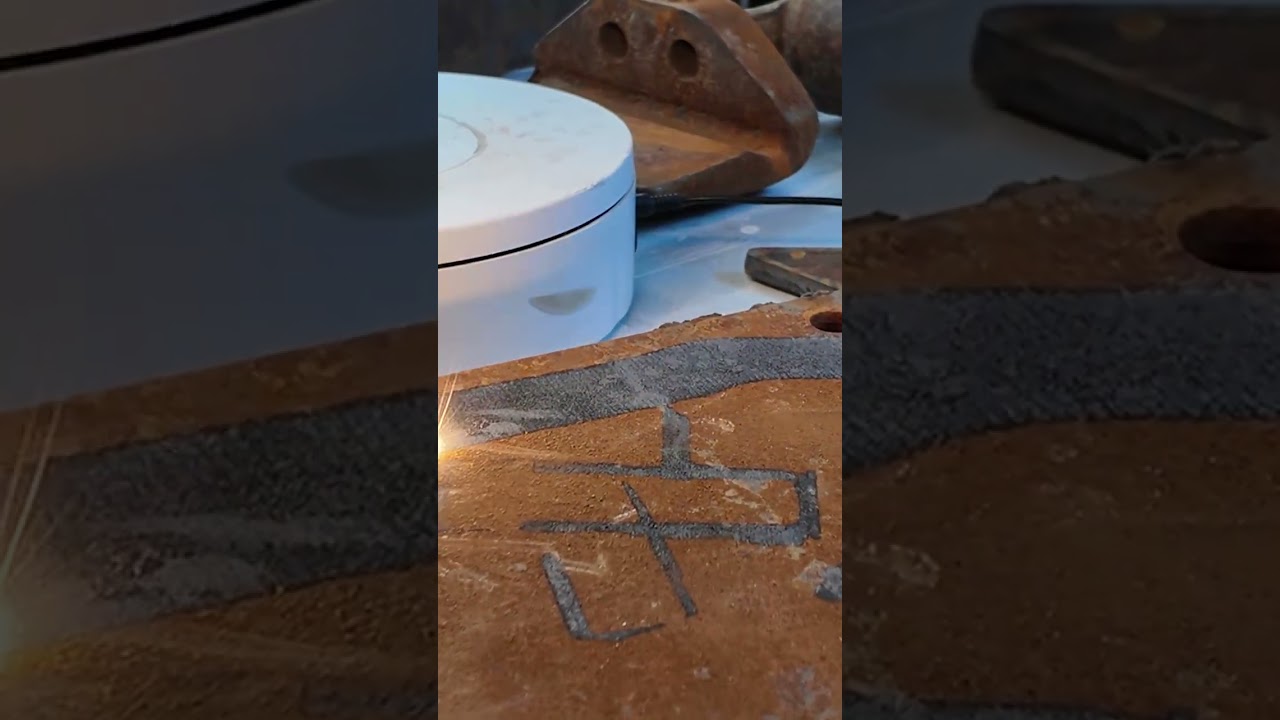

Short 23ZlllTv9qI shows pulsed laser clearing deep rust from a steel plate in 22 seconds without grit.
Questions this footage answers
What does this Short show about a deeply rusted steel plate?
The clip is a 22-second pulsed-fiber demo on one steel plate with deep rust. You see thick oxide leave the plate face while the plate stays in frame. It is footage proof that contactless cleaning can work through deep rust on plate stock, not a timed quote for every pit map or plate thickness.
Why avoid grit blast on a plate with rust this deep?
Deep rust often hides pits that still need to hold size after the soil leaves. Media blast digs those pits deeper and leaves a profile coating or weld prep may not want. The Short shows the laser path clearing deep oxide while the plate outline stays readable.
Should deep rust mean higher pulse energy?
Deep rust usually wants more controlled passes, not a jump past the steel injury band. Published ns 1064 nm work on carbon steel still puts rust clearing near 1.42–4.26 J/cm² and metal injury near 5.7–15 J/cm². Coupon scrap of the same steel family before you open plate stock.
Can I copy this traveler straight onto another rusted plate?
Use the Short to see deep oxide leave the plate, then coupon the next plate before production. Pit depth changes how many passes you need even when the alloy matches. Match scrap first, especially ahead of rust removal work.
