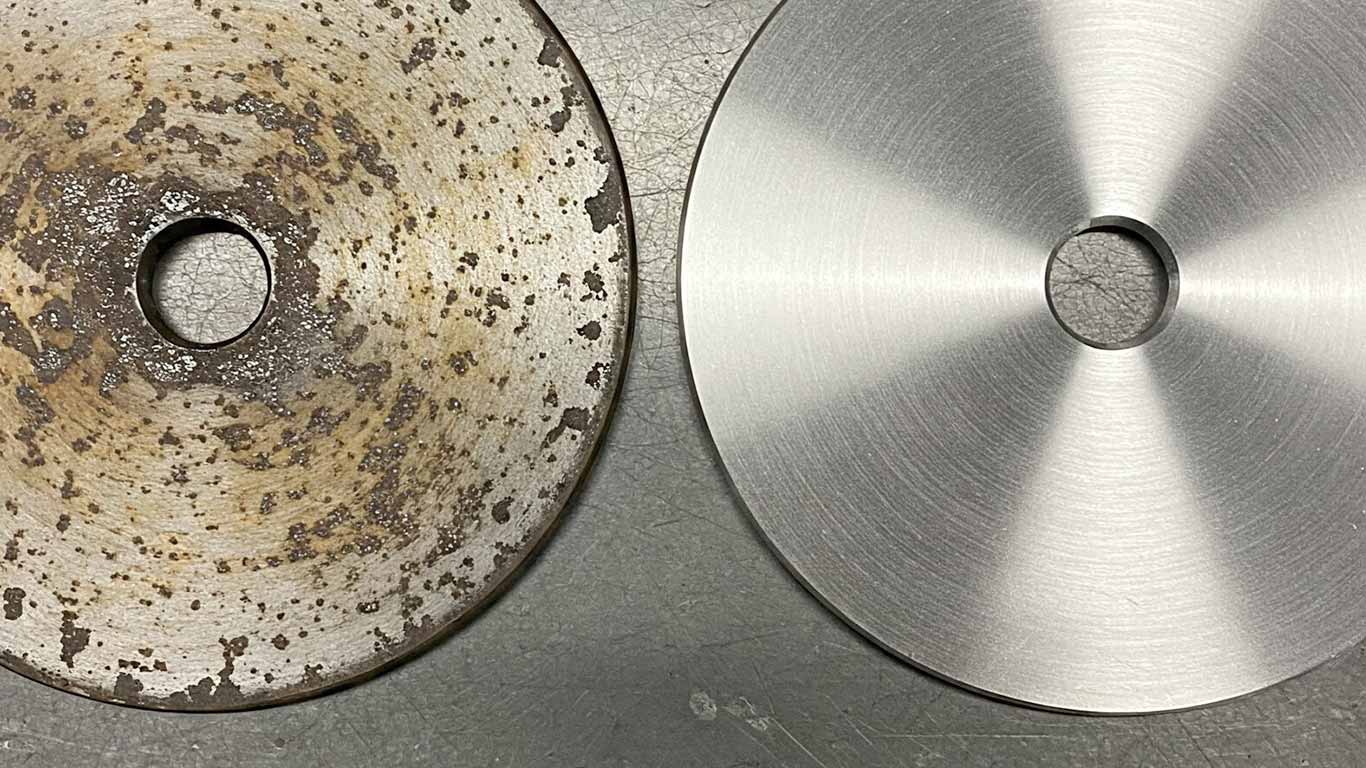

Magnesium surface undergoing laser cleaning showing precise contamination removal
Yi-Chun Lin
Yi-Chun LinPh.D.Taiwan
Laser Materials Processing
Published
Jan 6, 2026

Magnesium Laser Cleaning

Magnesium laser cleaning is technically achievable and widely used in aerospace and automotive manufacturing, but it requires argon gas suppression as a non-negotiable prerequisite. Laser-ablated magnesium particles below 10 μm are pyrophoric — they ignite spontaneously on air contact. MgO forms immediately on cleaned surfaces. Fluence ceiling of 1.2 J/cm² applies to all work.

Laser-Material Interaction

How laser energy interacts with this material during cleaning

Absorption Coefficient

1.1e7
m⁻¹
0
1.1e7
2.2e7

Absorptivity

0.12
0
0.12
0.24

Laser Damage Threshold

0.15
J/cm²
0
0.15
0.3

Reflectivity

0.74
dimensionless (ratio)
0
0.74
1.48

Thermal Destruction Point

923
K
0
923
1,846

Thermal Shock Resistance

1.8
W/m
0
1.8
3.6

Vapor Pressure

36.1
Pa
0
36.1
72.2

Thermal Destruction

923
K
0
923
1,846

Specific Heat

1,023
J/kg·K
0
1,023
2,046

Laser Reflectivity

0.94
%
0
0.94
1.88

Thermal Conductivity

156
W/m·K
0
156
312

Thermal Expansion

2.5e-5
K^{-1}
0
2.5e-5
5e-5

Laser Absorption

0.058
0
0.058
0.116

Thermal Diffusivity

8.8e-5
m²/s
0
8.8e-5
0

Ablation Threshold

1.8
J/cm²
0
1.8
3.6

Material Characteristics

Physical and mechanical properties defining this material

Electrical Conductivity

2.2e7
S/m
0
2.2e7
4.5e7

Electrical Resistivity

4.5e-8
Ω·m
0
4.5e-8
8.9e-8

Fracture Toughness

23
MPa√m
0
23
46

Surface Roughness

1.6
μm
0
1.6
3.2

Youngs Modulus

45
GPa
0
45
90

Oxidation Resistance

0.81
0
0.81
1.62

Density

1,738
kg/m³
0
1,738
3,476

Hardness

38
HV
0
38
76

Compressive Strength

160
MPa
0
160
320

Flexural Strength

170
MPa
0
170
340

Tensile Strength

160
MPa
0
160
320

Absorptivity

0.09
0
0.09
0.18

Boiling Point

1,363
K
0
1,363
2,726

Absorption Coefficient

5.9e7
m^{-1}
0
5.9e7
1.2e8

Melting Point

923
K
0
923
1,846

Vapor Pressure

398
Pa
0
398
796

Thermal Destruction Point

923
K
0
923
1,846

Reflectivity

0.92
0
0.92
1.84

Thermal Shock Resistance

52
K
0
52
104

Laser Damage Threshold

1.2
J/cm²
0
1.2
2.4

Magnesium 500-1000x surface magnification

Microscopic surface analysis and contamination details

Before Treatment

When examining the magnesium surface before laser cleaning at 1000x magnification, we see a rough texture covered in scattered dark patches. Grime and oxide layers cling tightly to the uneven contours, blocking any hint of the underlying metal. These contaminants create a mottled appearance that obscures the material's natural form.

After Treatment

After the laser treatment, the same surface reveals a smooth and even finish under 1000x view. All the grime lifts away cleanly, exposing a bright and uniform gleam

Regulatory Standards

Safety and compliance standards applicable to laser cleaning of this material

FAQ

Common Questions and Answers
What are the specific laser settings and parameters for cleaning magnesium alloys without causing damage?
Use 1064 nm, fluence 0.8–1.2 J/cm², 10–15 ns pulses, 50 kHz repetition rate, 500 mm/s scan speed. The 1.2 J/cm² ceiling is determined by the ablation threshold for the magnesium substrate, not the oxide. Argon gas assist at 15–20 L/min must be flowing before the first pulse. For AZ31 vs. AZ91 alloys, the aluminum content difference affects oxide composition and threshold behavior — verify on a sample coupon for each new alloy combination. After cleaning, the fresh magnesium surface re-oxidizes within seconds in ambient air; process immediately before the next operation if adhesion or bonding is the goal.
How do you safely remove oxide layers and corrosion from magnesium surfaces using laser cleaning?
Establish argon gas flow at 15–20 L/min first — before the laser fires. At 0.8–1.0 J/cm² fluence, MgO layers ablate in multiple passes without approaching the substrate ablation threshold. Maintain 500 mm/s scan speed and 40% overlap; allow the part to cool between passes on thicker oxide accumulations. The fresh surface will re-oxidize in seconds after the argon flow stops — coordinate with the next process step so cleaned surfaces aren't exposed to air for extended periods. Confirm Class D extinguisher availability in the workspace before starting any magnesium laser work.
What special safety precautions are needed when laser cleaning magnesium due to fire risk?
Magnesium laser cleaning requires argon gas suppression (not nitrogen — nitrogen reacts with magnesium at laser temperatures), Class D fire extinguisher on site, and HEPA extraction for fine particle capture. Keep fluence below 1.2 J/cm² to prevent excessive particle generation. Fine magnesium particles below 10 μm ignite spontaneously in air — this is not a rare edge case, it is the expected output of pulsed laser ablation. Anyone operating magnesium laser cleaning without confirmed argon gas flow and Class D capability is creating a fire hazard. Water, CO₂, and dry chemical extinguishers are all contraindicated for burning magnesium.
Can laser cleaning be used to prepare magnesium surfaces for welding or coating applications?
Using a 1064 nm wavelength at 1.2 J/cm² fluence, laser cleaning effectively prepares magnesium surfaces. Specifically, this approach removes oxides without thermal damage, thus yielding an ideal surface profile for enhanced coating adhesion and robust welds, notably in aerospace and medical fields.
What are the challenges with laser cleaning cast magnesium alloys versus wrought forms?
Cast magnesium alloys (AZ91D is the most common) have inherent porosity and heterogeneous microstructure from the casting process. Contaminants can penetrate pores, requiring higher pass counts at moderate fluence to clean completely. Wrought alloys have finer, more uniform grain structure and respond more predictably to fixed parameters. For both, the pyrophoric particle risk is the same — argon suppression applies equally to cast and wrought. On sand-cast parts, verify there's no trapped foundry sand in surface pores before laser cleaning; laser ablation of sand-contaminated pores can create localized hot spots at the casting surface.
How effective is laser cleaning for removing contaminants like oils and lubricants from magnesium parts?
Laser cleaning, specifically employing a 1064nm wavelength and 1.2 J/cm² fluence, effectively removes organic oils from magnesium surfaces. Notably, this method vaporizes contaminants without chemical residue, thus serving as a superior, eco-friendly alternative to solvent-based approaches for precision parts.
Does laser cleaning affect the fatigue strength or mechanical properties of magnesium components?
At controlled fluences (0.8–1.0 J/cm²) with 10 ns pulses, the heat-affected zone in magnesium is shallow and thermal input below the ablation threshold is minimal. Fatigue properties are preserved when parameters remain within specification. Exceeding 1.2 J/cm² risks micro-cracking at grain boundaries, particularly in high-cycle fatigue applications. For aerospace-grade magnesium fatigue components, post-cleaning fatigue testing should be validated for any new parameter set before production use — the low density that makes magnesium attractive in aerospace also means mass tolerance for material loss is tight.
What is the best way to validate the success of magnesium laser cleaning?
Validate magnesium laser cleaning through microscopic inspection and surface roughness measurement. Particularly, confirm complete oxide removal while preserving base material integrity, thus ensuring parameters like 1.2 J/cm² fluence avoid inducing thermal damage.
Why is magnesium considered more difficult to laser clean than aluminum or steel?
Three compounding factors. First — pyrophoric ablation products — laser ablation generates fine particles that ignite spontaneously, requiring argon gas suppression that aluminum and steel don't need. Second — the MgO oxide layer ablates at higher fluence than the magnesium substrate beneath it, so the selectivity that makes most oxide cleaning straightforward is reduced on magnesium. Third — the −2.37V electrochemical potential means any post-cleaning surface contamination or galvanic contact causes aggressive corrosion far faster than on aluminum (−0.76V) or steel (−0.44V). The safe operating window is narrower than it appears from the melting point alone.
What type of laser (fiber, pulsed, continuous wave) works best for magnesium cleaning applications?
For cleaning magnesium surfaces, pulsed fiber lasers at 1064 nm prove particularly optimal. Specifically, employing a fluence of 1.2 J/cm² alongside a 10 ns pulse width minimizes thermal input, thus preventing harm to the delicate substrate. Scanning at 500 mm/s then delivers efficient, uniform oxide layer removal.

See our work

Magnesium Dataset

Download Magnesium properties, specifications, and parameters in machine-readable formats
50
Variables
0
Laser Parameters
0
Material Methods
11
Properties
3
Standards
3
Formats

License: Creative Commons BY 4.0 • Free to use with attribution •Learn more

Professional Laser Cleaning
See pricing and how it works
Equipment Rental
State of the Art equipment for your projects
