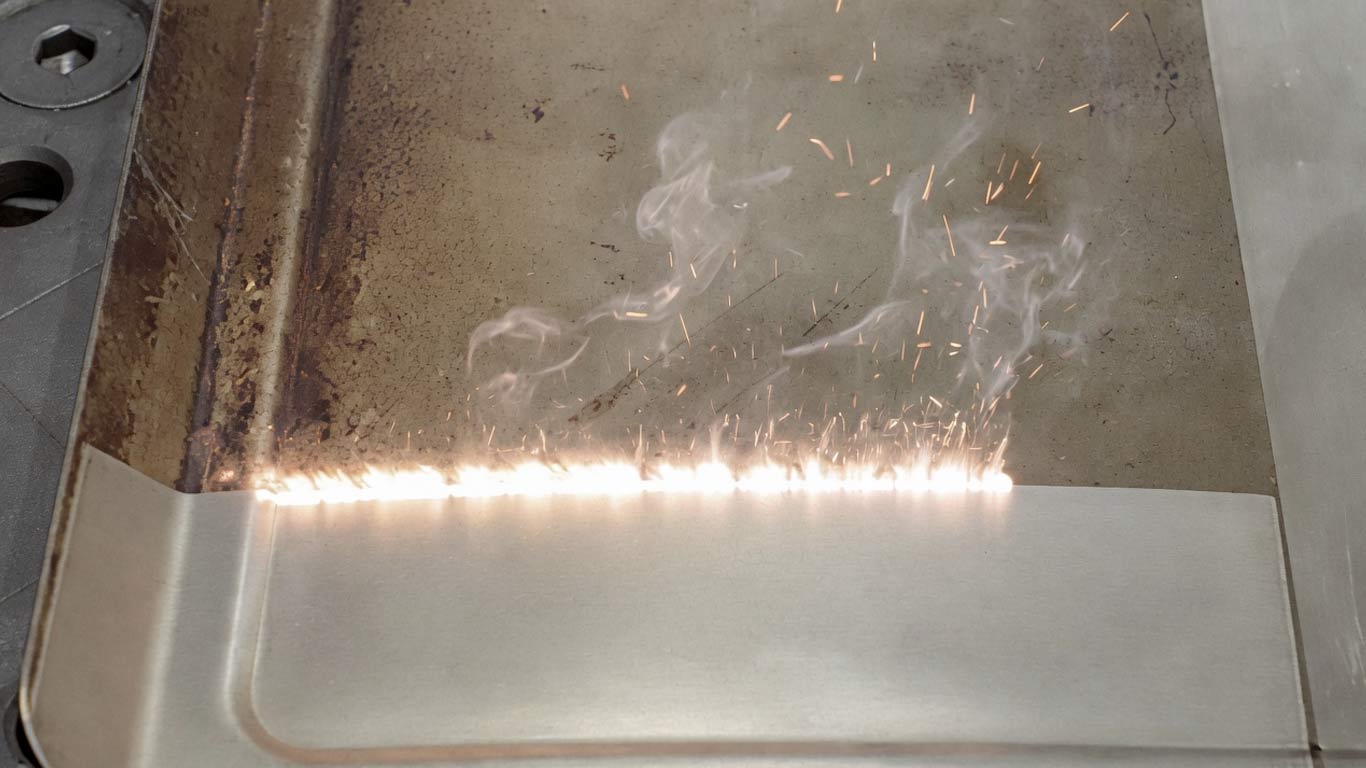

Bay Area food processors face escalating FSMA audit pressure and allergen-recall liability while running chemical CIP cycles that produce hazardous waste streams and extend downtime to 4-6 hours. Laser cleaning eliminates chemical waste, cuts downtime to 30-90 minutes, and generates per-cycle parameter logs that satisfy FDA documentation requirements — at $50k-150k capital with a 12-24 month payback for daily-cycle facilities. Grease and oil windows are documented under organic grease and oil.
NSF/ANSI 51 certifies that materials in contact with food or food-contact surfaces are non-toxic and non-contaminating — laser cleaning leaves no chemical residue that could compromise NSF/ANSI 51 compliance of cleaned equipment.[7]
FDA 21 CFR Part 117 requires food facilities to maintain equipment in a sanitary condition — laser cleaning produces documented parameter logs that satisfy FSMA's preventive control recordkeeping requirements under §117.190.[1]
Regulation 8 Rule 16 limits volatile organic compound (VOC) emissions from solvent cleaning operations across the nine Bay Area counties, and a facility that cleans with solvent carries the tracking that comes with it. Laser cleaning uses no solvent, so the operation falls outside Rule 16 rather than complying with it.[8]
Food-contact surfaces must hold Ra (average surface roughness) ≤ 0.8 μm per 3-A Sanitary Standards and produce zero chemical residue — the dual constraint that makes allergen cross-contact risk and FSMA audit exposure the primary drivers for switching from chemical CIP. (Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice)
Regulatory exposure limits and permit triggers for Food Processing Equipment Laser Cleaning. (ANSI Z136.1 — Safe Use of Lasers; SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast; Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice; Dry Ice Blasting vs Sand Blasting vs Soda; Laser Cleaning Service Cost Per Square Foot 2026:; How Much Does Dry Ice Blasting Cost? 5 Key; How to Properly Contain a Site for Abrasive; Sandblasting Containment Methods: A Compliance)
Cal/OSHA TWA/PEL: 5 mg/m³
Air-district permit: Not required
Generated as Fe2O3/Fe3O4 particles during ablation of oxidized steel.
The system writes the record for you, which is the whole advantage. Every cleaning run auto-logs the fluence, pulse length, cleaning speed and HEPA filter status that FDA 21 CFR Part 117 preventive control records call for — no operator writing numbers on a clipboard at shift end. Getting there costs something up front. Initial qualification needs one-time destructive coupon testing, roughly 20–40 engineering hours and $5,000–10,000, to prove the parameters produce an acceptable surface.
ATP bioluminescence swabs reading below 100 RLU (relative light units) on food-contact surfaces confirm both biological cleanliness and organic residue removal — the threshold applied under FDA 21 CFR Part 110 sanitation principles. Results are available within 30 seconds, replacing the 24–48 hour environmental swab hold that wet cleaning methods require before production can resume. Our team uses ATP verification as standard post-cleaning documentation. No wet waste means no extra disposal steps and no extended.
UHMWPE — ultra-high-molecular-weight polyethylene, the slick white plastic used for conveyor belts, guides and wear strips — melts at 140–145°C and suffers chain scission, meaning permanent polymer breakdown, above roughly 220°C. Both temperatures are reached immediately under pulsed laser exposure, because the material's low thermal conductivity traps heat at the surface instead of spreading it. No fluence is low enough to lift contamination without crossing those thresholds, so laser cleaning is contraindicated on UHMWPE components.
FDA 21 CFR Part 117 (FSMA Preventive Controls) governs food equipment sanitation on a principle-based standard — it requires demonstrated soil removal and documented records, not a specific cleaning technology. Laser cleaning satisfies §117.190 recordkeeping through automated per-cycle parameter logs. The hard surface finish rule is Ra (average surface roughness) ≤ 0.8 µm on food-contact surfaces under 3-A Sanitary Standards and NSF/ANSI 51 — laser cleaning on stainless 316L achieves Ra 0.4–0.6 µm, which is.
Titanium Grade 2 and chrome-plated rollers are the tightest surfaces on a food line at 0.4–0.9 J/cm², and they govern any zone that includes them. Everything else has more headroom. Stainless steel 316L cleans at 0.8–1.5 J/cm², and 304 tolerates 1.0–2.0 J/cm². Aluminum runs the lower 0.6–1.2 J/cm² band — push past 1.2 and the surface roughens, raising Ra (average surface roughness) above the 0.8 μm food-contact limit and creating exactly the bacterial harborage the.
Food-grade stainless takes heat tint at different points depending on grade — 304 holds to 2.0 J/cm², while 316L tints from 1.5 J/cm², so the 316L number governs any line that mixes them. Aluminum runs lower still at 0.6–1.2 J/cm², above which the surface roughens and starts trapping bacteria. That is the real constraint on this work — Ra (average surface roughness) must stay at or below 0.8 μm to meet 3-A Sanitary Standards for food contact. Laser cleaning typically leaves Ra (surface roughness) at 0.4–0.6 μm — equal to or smoother than mechanical polishing, where chemical cleaning can leave microscopic pitting that does the opposite.
Nanosecond laser cleaning does not leave stainless steel with a clean version of its original surface — it creates a new Cr-based oxide layer and transiently depletes chromium from subsurface zones, confirmed by EPMA analysis of 304L (Micromachines 2025, DOI: 10.3390/mi16121366). At energy levels below 11.19 J/cm², pitting potential improves by ~230 mV versus untreated baseline (Yang et al. 2022, DOI: 10.1002/maco.202213541).
Pulsed 1064nm laser energy removes native Al₂O₃ from aluminum at 3.34–3.82 J/cm² by mechanical delamination — the oxide pops off under differential thermal expansion rather than ablating, leaving the surface adhesion-ready and reducing weld porosity from 9.68% to 1.59% (JMRT, 2026). This self-limiting mechanism stops once bare metal is exposed because aluminum reflects 92–95% of 1064nm energy while the oxide absorbs ~40% — a 50-point absorption gap that means the laser stops cutting once cleaning is complete. On [aluminum bronze, by contrast, that same Al₂O₃ film is the protective layer to preserve, not strip](/materials/bronze-laser-cleaning). For Bay Area operations, dry laser cleaning produces no VOCs — the Bay Area Air Quality Management District (BAAQMD) permit trigger for surface preparation (Regulation 2-1-220.7) exempts portable sources emitting <10 tons/year PM10. Most on-site aluminum laser cleaning jobs fall well below this threshold without chemical solvents or blast media disposal. Three alloy families dominate regional demand: 6061 (structural, weld prep), 7075 (aerospace — narrow 1.43–1.82 J/cm² window), and 5052 (marine — 2025 Nature Scientific Reports confirms underwater fiber laser biofilm removal on 5052 substrates). Cleaning anodized aluminum at 1.0–1.4 J/cm² improves coating adhesion rather than compromising it.
Key parameters and properties for Food Processing Equipment Laser Cleaning.
| Parameter | Value |
|---|---|
| Cal/OSHA iron oxide fume PEL | 5 mg/m³ |
What can go wrong and how to avoid it when laser cleaning Food Processing Equipment Laser Cleaning.
Safe 1064 nm pulsed fiber laser fluence windows (J/cm²) by surface for food equipment material. Cleaning floor, damage ceiling, and usable process window per material. Validate parameters on representative samples before production cleaning.
