Cast Iron Manifold Laser Cleaning
Pulsed fiber laser cleaning removes heavy carbon buildup, rust, and old coatings from a cast iron manifold while preserving intricate cooling fins and machined surfaces.
What This Video Shows

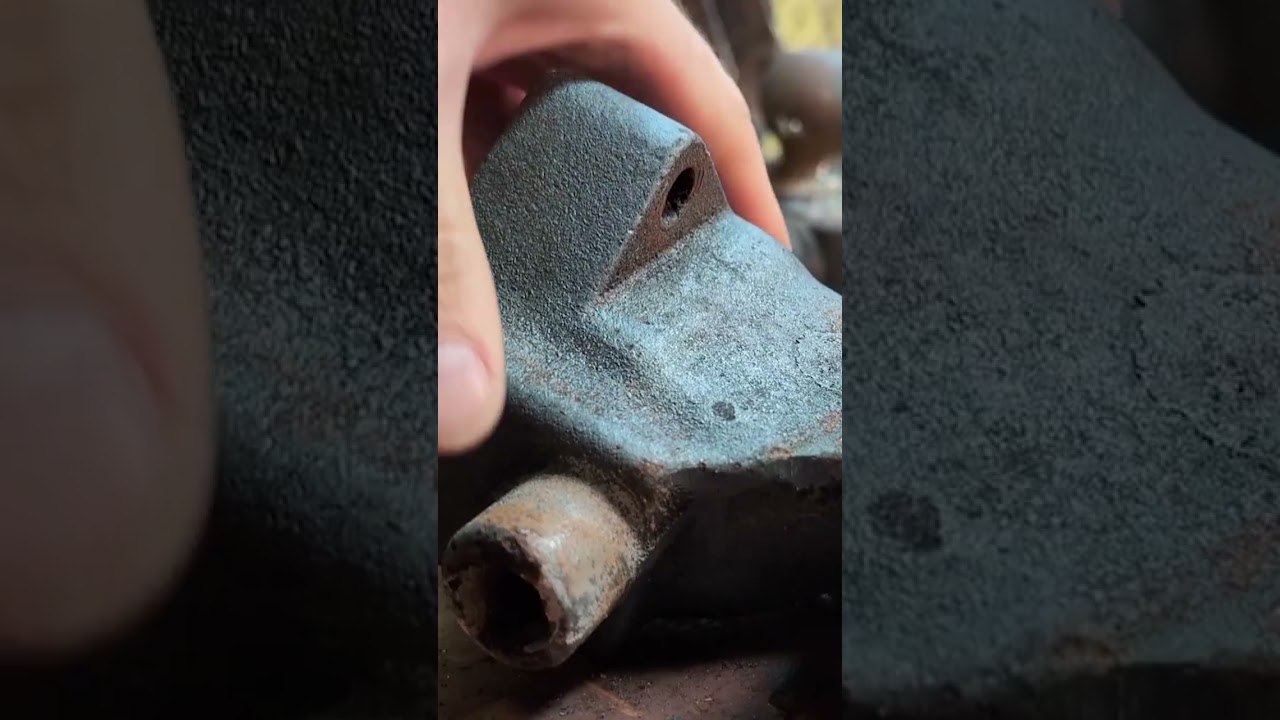

This engine component example shows pulsed fiber laser cleaning on a cast iron manifold. Thick carbon deposits and rust are progressively removed, revealing clean, detailed surfaces.
Equipment Used
- Pulsed fiber laser cleaning system
Compatible Engine Materials
Demonstrates laser cleaning on cast iron components that share heavy carbon deposits and intricate surface geometry common in engine parts.
Engine & Machinery Restoration
Laser cleaning provides clean, residue-free results for cast iron manifolds like the one shown, where maintaining cooling efficiency and surface detail is critical.
Laser Cleaning for Aerospace & Defense Materials
Automotive & EV Laser Cleaning | Bay Area
Laser Cleaning for Food processing Equipment
Food Grade Laser Cleaning Machine
Industrial Laser Cleaning for Food Processing
Laser Cleaning for the Food Industry
Laser Cleaning vs Dry Ice Blasting | Industrial Comparison
Frequently Asked Questions
Will laser cleaning damage Cast Iron Manifold, and what are the risks?
Pulsed fiber laser cleaning is safe for cast iron manifold fins — carbon and rust deposits are ablated without exceeding 200°C on the fin flanks. Gray cast iron fins thinner than 3 mm require conservative settings to avoid thermal stress cracking. SSPC-SP 6 commercial blast equivalence is achievable in 1–2 passes; ASTM A48 gray iron integrity is verified by visual inspection per ASTM E165 (liquid penetrant) after cleaning.
How does laser cleaning compare to traditional manifold cleaning methods?
Laser cleaning achieves SSPC-SP 10 near-white cleanliness on cast iron manifolds in under 5 minutes per manifold — abrasive blasting takes 15–20 minutes and removes 50–100 µm of base metal per pass, eroding fin geometry over repeated service cycles. Chemical degreasers require EPA 40 CFR Part 63 HAP compliance for solvent disposal; laser cleaning produces only oxidized particulate captured by a HEPA exhaust unit. No post-rinse or neutralization step is needed, cutting total process time by roughly 40% versus chemical cleaning.
What contaminants are removed from cast iron manifolds?
Laser cleaning removes carbon soot up to 500 µm thick, iron oxide rust, gasket adhesive residue, and aged paint coatings from cast iron manifolds in a single setup. Carbon deposits ablate in 1–2 passes; rust layers clear in 3–4 passes reaching SSPC-SP 6 cleanliness. ASTM D4417 surface profile measurement confirms anchor pattern is retained for recoating per manufacturer spec after cleaning.
What process settings matter most when restoring Cast Iron Manifold?
The laser is calibrated to remove carbon deposits from cast iron without marking or changing the surface below. Most jobs take one to two passes depending on how heavy the buildup is. The surface comes out ready for coating, welding, or inspection with no additional prep and no chemical residue.
