Ablation Threshold
Current value: 2.1 J/cm². Range: 2 to 6 J/cm². Progress: 3% of maximum.
2.1
J/cm²
Crown Glass Laser Cleaning
Precision laser cleaning revives Crown Glass transparency without risking thermal fractures
Ikmanda RoswatiPh.D.
Ultrafast Laser Physics and Material Interactions
Indonesia
Properties: Crown Glass vs. other glasses
Laser-Material Interaction
Material Characteristics
Other Properties
Machine Settings: Crown Glass vs. other glasses

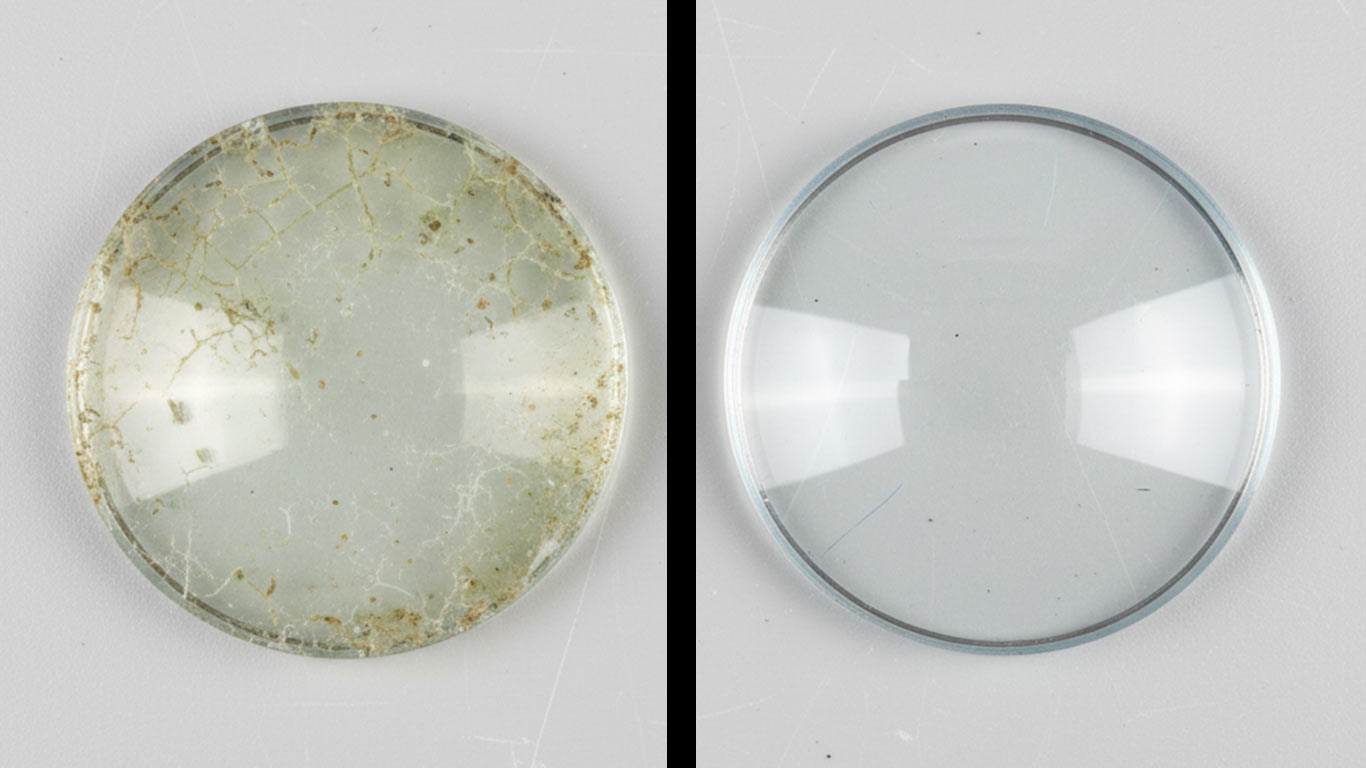

Crown Glass surface magnification
Laser cleaning parameters for Crown Glass
Before Treatment
Under microscope, Crown glass surface appears very-very rough and contaminated. Dust particles and oily residues cling-cling tightly, forming clusters that scatter light irregularly. Surface degradation shows as micro-cracks and pits, etched-etched by contaminants over time. This condition reduces clarity and invites further damage, so careful cleaning is needed then.
After Treatment
After ultrafast laser cleaning, the Crown Glass surface is restored very-very smoothly and appears pristine, shiny. Contaminants are removed then polished away, so no scratches or haze remain. Material integrity stays intact perfectly, with high restoration quality that maintains optical clarity for general applications.
Crown Glass Laser Cleaning FAQs
What are the specific laser parameters (wavelength, fluence, pulse duration) for safely cleaning contaminants from Crown Glass without causing damage or microfractures?
Untuk Crown Glass, gunakan laser 1064 nm dengan fluence 1.2 J/cm² dan pulsa 8 ns. Parameter ini mengoptimalkan penyerapan energi oleh kontaminan permukaan sambil menjaga energi di bawah ambang batas kerusakan material, sehingga mencegah microfracture dan modifikasi permanen pada substrat kaca.
How does the low thermal expansion coefficient of Crown Glass affect laser cleaning compared to other glass types?
Crown Glass's minimal thermal expansion, typically around 8.0 x 10⁻⁶/°C, significantly reduces stress cracking risks during laser cleaning. This allows us to safely apply a 1.2 J/cm² fluence for contaminant removal, a threshold that would pose greater thermal shock hazards for higher-expansion glass types like soda-lime.
Can laser cleaning cause permanent refractive index changes or optical distortion in Crown Glass components?
Properly configured laser cleaning at 1.2 J/cm² fluence and 50 μm spot size avoids permanent refractive index changes in Crown Glass. The key is maintaining parameters below the material's damage threshold, which preserves optical integrity without distortion.
What specific contaminants on Crown Glass (fingerprints, adhesives, coatings) respond best to laser cleaning versus traditional methods?
Laser cleaning excels at removing organic residues like fingerprints and thin adhesives from Crown Glass. Using 1064 nm wavelength at 1.2 J/cm² effectively ablates these contaminants without damaging the substrate, unlike solvents which can leave streaks or require mechanical contact.
Are there particular Crown Glass compositions (e.g., BK7, other crown variants) that are more or less suitable for laser cleaning?
BK7's minimal dopants yield excellent 1064 nm transmission, allowing safe cleaning at 1.2 J/cm². In contrast, variants with cerium or other absorbing ions risk thermal stress, requiring significantly lower fluence to prevent subsurface damage.
What safety considerations are unique to laser cleaning Crown Glass compared to metals or other materials?
Crown Glass requires strict fluence control below 1.2 J/cm² to prevent subsurface fracture. Its transparency at 1064 nm creates significant reflection hazards, while brittle failure generates hazardous fine particulates, demanding enhanced containment and real-time monitoring not typically needed for metals.
How do you verify the surface quality and optical performance of Crown Glass after laser cleaning?
We verify Crown Glass quality using white-light interferometry for surface roughness below 1 nm RMS and spectrophotometry to confirm optical transmission remains above 99.5%. Non-destructive microscopic inspection at 200x magnification ensures no subsurface cracking from the 1.2 J/cm² fluence.
What are the economic considerations of laser cleaning Crown Glass versus traditional cleaning methods for high-value optical components?
Laser cleaning's higher initial investment delivers superior economics for Crown Glass optics. With precise 1.2 J/cm² fluence control, it eliminates consumable costs and prevents surface damage, maximizing yield and throughput in high-value manufacturing like aerospace components.
Can laser cleaning be used to remove anti-reflection coatings or other thin films from Crown Glass without damaging the substrate?
Laser cleaning effectively removes anti-reflection coatings from Crown Glass using selective ablation at 1.2 J/cm². Precise nanosecond pulses at 1064 nm wavelength ensure the thin film absorbs energy while the transparent substrate remains undamaged. Critical process control of parameters like a 50 µm spot size and 500 mm/s scan speed is essential for preserving the pristine glass surface.
What are the limitations of laser cleaning for Crown Glass with existing surface defects or subsurface damage?
Pre-existing flaws in Crown Glass significantly lower the safe operational fluence below the typical 1.2 J/cm² threshold. The 1064 nm laser energy can be absorbed by subsurface damage, causing localized thermal stress and catastrophic crack propagation. A meticulous pre-cleaning assessment using microscopy is essential to identify and map these critical defects for process parameter adjustment.
Regulatory Standards & Compliance
FDA
FDA 21 CFR 1040.10 - Laser Product Performance Standards
ANSI
ANSI Z136.1 - Safe Use of Lasers
IEC
IEC 60825 - Safety of Laser Products
OSHA
OSHA 29 CFR 1926.95 - Personal Protective Equipment
