A single oxidized busbar contact face can initiate a thermal runaway chain in an EV pack. Laser cleaning removes Cu2O and Al2O3 oxides from battery busbars. Contact resistance drops by 40-60% without thermal damage to material under 1 mm thick. Inline cycle time reaches 100 ms per cell busbar. This keeps pace with high-throughput pack assembly lines serving the Bay Area EV supply chain, including Fremont-area Gigafactory operations. Oxide removal is validated against copper laser cleaning and aluminum laser cleaning energy level limits.
IPC-7711/21 governs [surface preparation](/applications/surface-preparation) for electronic assembly rework — laser cleaning at 0.5–1.5 J/cm² provides the oxide-free copper and aluminum contact surfaces required for IPC-compliant busbar connections without thermal or mechanical damage.[6]
UL 2580 evaluates EV battery safety including electrical performance and thermal management — clean busbar contacts maintained at 40–60% lower contact resistance directly support UL 2580 thermal runaway prevention requirements.[7]
OSHA 29 CFR 1910.1200 requires SDS documentation for solvent-based contact cleaners — laser cleaning eliminates chemical use in busbar preparation, removing HazCom obligations from the EV battery assembly process.[8]
Copper and aluminum busbars at 0.3–0.8 mm have a 0.2 J/cm² process window between oxide removal and surface damage — alloy-specific parameter validation is required before production, with contact resistance confirmed below 0.1 mΩ before assembly. (Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice)
Regulatory exposure limits and permit triggers for EV Battery Busbar and Component Cleaning. (ANSI Z136.1 — Safe Use of Lasers; SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast; Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice; Dry Ice Blasting vs Sand Blasting vs Soda; Laser Cleaning Service Cost Per Square Foot 2026:; How Much Does Dry Ice Blasting Cost? 5 Key; How to Properly Contain a Site for Abrasive; Sandblasting Containment Methods: A Compliance)
Cal/OSHA TWA/PEL: 5 mg/m³ (ACGIH 1 mg/m³)
Air-district permit: Not required
Standard LEV with P100 filter sufficient.

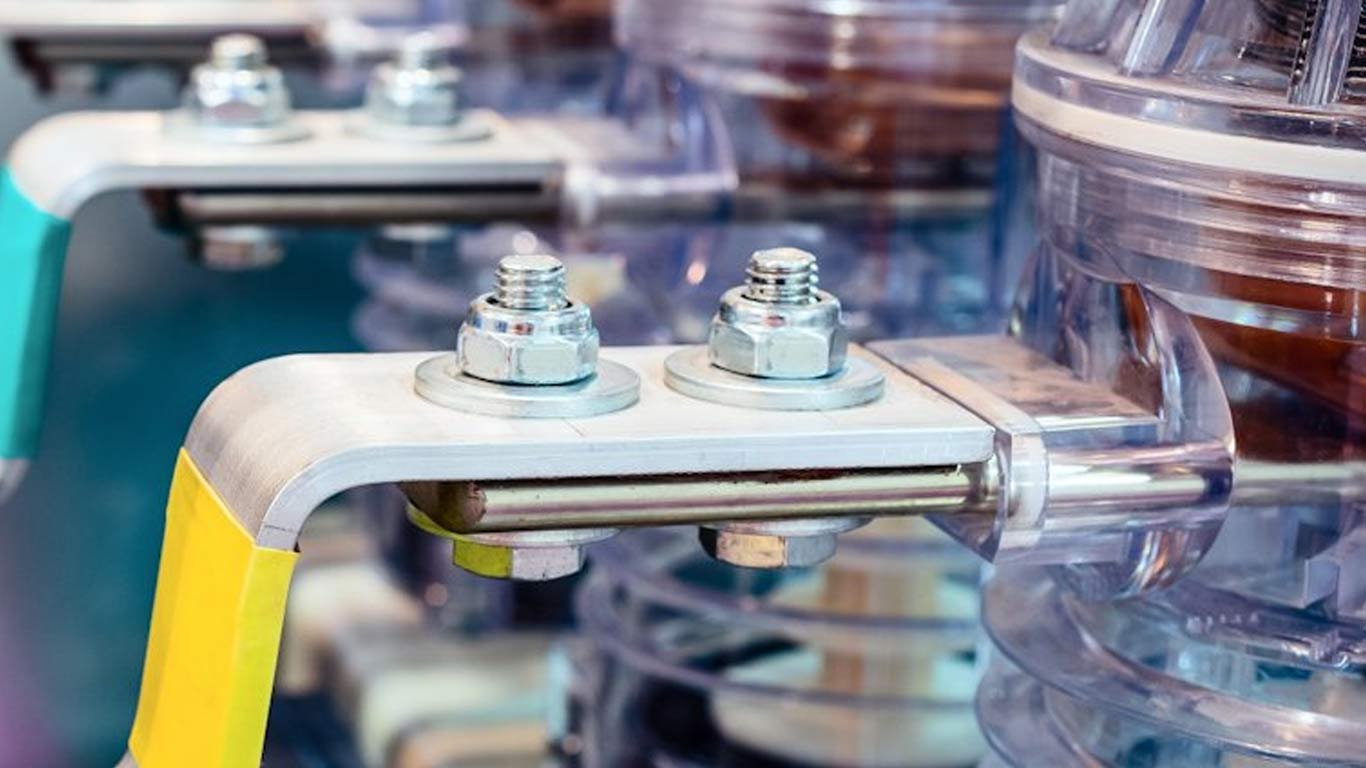

Thin aluminum busbars — 0.3–0.8 mm prismatic and pouch cell formats — require energy levels reduced by 30–50% from standard values, meaning 0.6–1.0 J/cm² rather than the wider industrial aluminum range. At standard industrial settings, thin foils risk annealing, which alters mechanical properties in ways that affect UL 2580 and UN 38.3 certification test outcomes. The practical safeguard is to run parameter validation on representative busbar samples at the actual alloy series and thickness before.
Copper busbars (C110, C101) require 0.3–0.5 J/cm² at 1064 nm while aluminum busbars (1xxx–6xxx series) clean at 0.5–1.2 J/cm² — the ~95% surface reflectance difference between copper and aluminum at 1064 nm drives different parameters. Copper reflects roughly 95% of 1064 nm laser energy — one of the highest reflectivities of any industrial metal — so oxide removal completes at the low end of the 0.4–0.8 J/cm² copper range with pulses shorter than 100 nanoseconds.
Inline laser cleaning reaches 100 ms per cell busbar contact face at 0.8–1.2 J/cm² — fast enough to match high-throughput EV pack assembly at IEC 62660-1 quality traceability standards.. Inline laser cleaning reaches 100 ms per cell busbar contact face — fast enough for cells-per-second assembly rates on automated pack lines. Manual cleaning averages 30-60 seconds per busbar. This becomes a bottleneck at any volume above 20,000 parts per year. Integrating laser cleaning with pick-and-place.
Z-Beam applies safe 1064 nm pulsed fiber laser energy level ranges by busbar material: - Aluminum (1xxx, 3xxx, 6xxx series): cleans at 0.6–1.0 J/cm² — oxide removal at the lower end, surface melting begins above 1.2 J/cm². - Copper (C110, C101): requires 0.4–0.8 J/cm² with high surface reflectance demanding 10–20 ns pulses; damage occurs above 1.0 J/cm². - Stainless steel (304, 316): tolerates 1.0–1.5 J/cm² — oxidation risk above 2.0 J/cm². For thin foils under.
Thin foils — the 0.3–0.8 mm prismatic and pouch cell busbars common in high-energy-density packs — require energy levels reduced by 30–50% from standard values used on thicker industrial parts. At standard energy levels, thin foil busbars risk annealing, which changes mechanical properties in ways that affect UL 2580 and UN 38.3 certification testing. Z-Beam runs parameter validation on representative samples at alloy-specific thicknesses before any full job — the cleaning specification is matched to.
Aluminum and copper busbars require the most precise control. A 0.2 J/cm² window separates complete oxide removal from surface melting on material under 1 mm thick. Stainless steel enclosures are more forgiving, tolerating up to 1.5 J/cm². Chromium oxidation becomes a risk above 2.0 J/cm². Overly aggressive settings can create micro-distortion along busbar edges. This increases contact resistance by 50-100% despite the surface appearing visually clean. The practical goal is consistent surface prep that supports reliable high-voltage joints without added rework.
Pulsed 1064nm laser energy removes native Al₂O₃ from aluminum at 3.34–3.82 J/cm² by mechanical delamination — the oxide pops off under differential thermal expansion rather than ablating, leaving the surface adhesion-ready and reducing weld porosity from 9.68% to 1.59% (JMRT, 2026). This self-limiting mechanism stops once bare metal is exposed because aluminum reflects 92–95% of 1064nm energy while the oxide absorbs ~40% — a 50-point absorption gap that means the laser stops cutting once cleaning is complete. On [aluminum bronze, by contrast, that same Al₂O₃ film is the protective layer to preserve, not strip](/materials/bronze-laser-cleaning). For Bay Area operations, dry laser cleaning produces no VOCs — the Bay Area Air Quality Management District (BAAQMD) permit trigger for surface preparation (Regulation 2-1-220.7) exempts portable sources emitting <10 tons/year PM10. Most on-site aluminum laser cleaning jobs fall well below this threshold without chemical solvents or blast media disposal. Three alloy families dominate regional demand: 6061 (structural, weld prep), 7075 (aerospace — narrow 1.43–1.82 J/cm² window), and 5052 (marine — 2025 Nature Scientific Reports confirms underwater fiber laser biofilm removal on 5052 substrates). Cleaning anodized aluminum at 1.0–1.4 J/cm² improves coating adhesion rather than compromising it.
Nanosecond 1064nm fiber laser cleaning removes copper oxide at @{0.22 J/cm²} to @{0.31 J/cm²} through thermomechanical delamination of the underlying copper substrate, not direct oxide absorption [1]. Copper oxide (Cu₂O, CuO) is nearly transparent at 1064nm with an extinction coefficient of only 0.005 to 0.03, so the laser cannot ablate it directly [2]. Surface melting begins below @{0.50 J/cm²}, making copper's effective cleaning window roughly 0.09 J/cm² wide — the narrowest among common industrial metals. For comparison, [steel](/materials/steel-laser-cleaning) tolerates a window roughly 30× wider at the same wavelength, while even [aluminum](/materials/aluminum-laser-cleaning) operates with more margin. This narrowness drives the parameter discipline required across every copper cleaning application, from [EV busbars](/applications/ev-battery-busbar-laser-cleaning) to [semiconductor tooling](/applications/semiconductor-cleanroom-tooling-laser-cleaning).
Nanosecond laser cleaning does not leave stainless steel with a clean version of its original surface — it creates a new Cr-based oxide layer and transiently depletes chromium from subsurface zones, confirmed by EPMA analysis of 304L (Micromachines 2025, DOI: 10.3390/mi16121366). At energy levels below 11.19 J/cm², pitting potential improves by ~230 mV versus untreated baseline (Yang et al. 2022, DOI: 10.1002/maco.202213541).
Key parameters and properties for EV Battery Busbar and Component Cleaning.
| Parameter | Value |
|---|---|
| Cal/OSHA TWA | 5 mg/m³ (ACGIH 1 mg/m³) |
What can go wrong and how to avoid it when laser cleaning EV Battery Busbar and Component Cleaning.
Safe 1064 nm pulsed fiber laser energy level windows (J/cm²) by surface for busbar material. Cleaning floor, damage ceiling, and usable process window per material. Validate parameters on representative samples before production cleaning.
