Laser cleaning steam turbine generators and power plant boilers during planned outage
Yi-Chun Lin
Yi-Chun LinPh.D.Taiwan
Materials characterization for industrial surfaces
Published
Mar 26, 2026

Turbine and Boiler Laser Cleaning

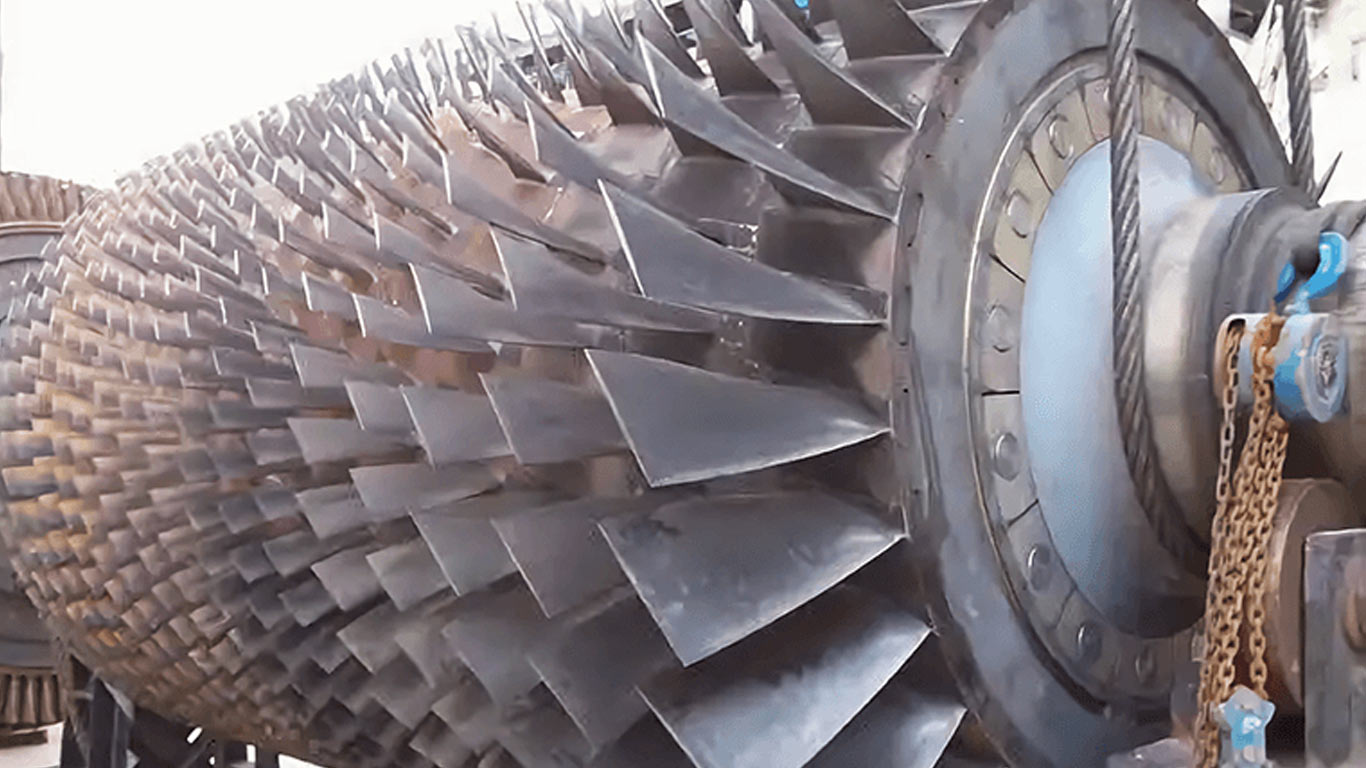

Laser cleaning removes oxide scale, soot deposits, and weld heat discoloration from turbine blades, boiler tubes, and combustor housings without abrasive media or chemical strippers. The beam works on the nickel superalloys and stainless steel common in turbine hardware, including Inconel and plain steel boiler tubing, and it lets parts stay in place instead of moving to a blast booth during an outage. It pairs with weld prep cleaning before welds and with weld passivation after, and it extends into broader power plant upkeep beyond a single turbine train. It does not repair cracked blades, replace nondestructive inspection, or substitute for the code checks that ASME and OSHA require on pressure equipment. Operators still schedule metallurgical review before returning a cleaned component to service.

Choosing Laser Settings for Turbine and Boiler Scale

This guide requires matching laser settings to the specific oxide found on turbine and boiler surfaces before scheduling a cleaning pass. A superheater tube coated in magnetite behaves nothing like a turbine blade coated in CMAS-contaminated thermal barrier ceramic, and treating both with one power density either wastes a shutdown or damages a coating that costs more to replace than the outage itself. The steps below separate inspection from execution so a plant only spends laser hours on surfaces where removal actually restores performance.

1Separate laser-ready scale from tube damage that needs a repair path
  • Do not put a boiler tube on the laser cleaning schedule when ultrasonic wall-thickness testing already shows metal loss near the retirement limit. A laser pass removes oxide from the surface and never rebuilds a wall that corrosion has already thinned.
  • Wait until magnetite scale on the affected tube bank measures below 0.3 mm before booking laser hours. Below that thickness the fireside deposit barely changes heat transfer, so removal earns the downtime it costs.
2Match irradiance to the coating before running a pass on turbine hardware
  • Run turbine thermal barrier coating cleanup near 7.16 million W/cm² with a 1064 nm continuous-wave fiber laser at a 0.01 mm/s scan speed under argon shielding, the power density that pulled CMAS deposits off a yttria-stabilized zirconia coating without damaging the ceramic underneath in published trials.
  • Move toward the 7.96 million W/cm² upper bound only after a test coupon from the same coating batch survives inspection at the lower setting. Jumping straight to the higher figure on installed hardware risks spalling the ceramic bond coat.
3Read oxide adhesion before choosing a scan pattern for boiler tubes
  • Magnetite scale sits under compressive stress rather than stuck on by simple adhesion. The thermal expansion mismatch between the oxide and the steel substrate, on the order of 20 to 40 percent, is what fractures the scale once the surface heats.
  • Expect scale that formed under long-term fireside oxidation on carbon steel tubing to release in flakes along fixed planes rather than as dust, consistent with how oxide layers adhere and fail on hot-rolled steel. That pattern helps an operator judge a section as finished by sound and feel, not only by sight.
4Close out with measurements, not a visual check alone
  • Record magnetite thickness at the same tube locations measured before cleaning. A pass that removed visible scale without lowering the measured insulation value was probably too light and needs a repeat.
  • Schedule the verification reading before the unit returns to service. Steam chemistry drifts within hours of restart, and a plant with no post-clean baseline cannot show that the outage delivered the heat-transfer gain it paid for.
Sources(3 references)
  1. Laser cleaning process of high-pressure turbine blade: Characterization and removal of surface contaminants, Surface and Coatings Technology, 2023 sciencedirect.com (opens in new tab) — CMAS removal on yttria-stabilized zirconia thermal barrier coatings held near 7.16 million W/cm² in published trials.
  2. Holcomb, G.R. et al., "A Review of the Thermal Expansion of Magnetite," OSTI/DOE Technical Report, NETL-PUB-22426, 2019 osti.gov (opens in new tab) — Magnetite's thermal expansion mismatch with steel, on the order of 20 to 40 percent, drives the compressive stress that fractures fireside scale.
  3. 'Formation of thermal oxide scale and its adhesion to hot-rolled steel,' E3S Web of Conferences, vol. 355, 02008, 2022. e3s-conferences.org (opens in new tab) — Oxide scale on hot-rolled carbon steel forms and adheres in layers that fail along fixed planes rather than as a single bulk bond.

Turbine and Boiler Cleaning Answers

  • Can turbine blade paint be removed without remelting the surface?

    Laser cleaning removes paint from turbine blade surfaces without melting the base metal beneath it. Complete removal happens well under the fluence that triggers surface damage, and testing on blade coupons found that fluence above 35 J/cm²[11] starts causing localized remelting. Staying under that ceiling lets the process finish a full coating removal pass without reworking the profile or thinning the blade edge.

  • At what scale thickness do boiler tubes start losing efficiency?

    Magnetite scale runs near five percent of the thermal conductivity of bare steel, so heat transfer losses stay small below about 0.3 millimeters. Past that thickness the insulating effect speeds up, and laser cleaning removes the buildup in thin passes before scale reaches that depth, keeping tube walls closer to bare metal without abrasive media or chemical residue.

  • What silica limit in boiler steam helps limit turbine fouling?

    The steam silica limit requires levels below 0.02 parts per million, with some vendors setting a tighter 0.01 parts per million threshold. Silica carryover above that limit plates onto blade surfaces and roughens the airfoil profile, and one 30 megawatt unit lost more than five percent of output over fifteen months from this buildup. Laser cleaning clears deposits from boiler internals and steam paths, helping carryover stay under the limit without chemical residue.

  • When do high pressure boiler tubes usually need cleaning?

    Industry guidance requires cleaning once hot side deposit density reaches 10 to 12 grams per square foot on boilers above 2000 pounds per square inch. Traditional practice at that point relies on mechanical scraping or chemical treatment, both of which take the unit offline and expose tubes to acids or direct entry. Laser cleaning reaches that same deposit level from outside the bundle without acids, abrasive media, or opening the tube for access.

  • Why does boiler scale threaten downstream turbine blades?

    Loose boiler tube scale fails to stay bonded once it exfoliates, and the freed fragments travel downstream where they strike turbine blade edges and coatings. Repeated impacts erode the blade profile over multiple operating cycles, chipping coatings and roughening surfaces that need a smooth aerodynamic edge. Laser cleaning removes the loose scale layer from tube walls during a scheduled outage, cutting the debris load reaching the turbine section without leaving abrasive grit of its own.

Sources(1 reference)
  1. Laser Cleaning Process for Low-Pressure Turbine Blade Paint Removal with Remelting Suppression doi:10.3390/coatings15091054 (opens in new tab) — Testing on low-pressure turbine blade coupons found paint removal fluence above 35 J/cm² causes localized substrate remelting.
