Online Laser Cleaning for Power Plants
Fouling deposits cut heat transfer by up to 23× and cost a mid-size California power plant $600k per day of unplanned downtime. Online laser cleaning restores boiler tubes, heat exchangers, and condenser surfaces without shutdown — protecting CAISO grid reliability commitments and eliminating hazardous chemical waste in a single maintenance window. Plants can stay online while fouling deposits are removed.

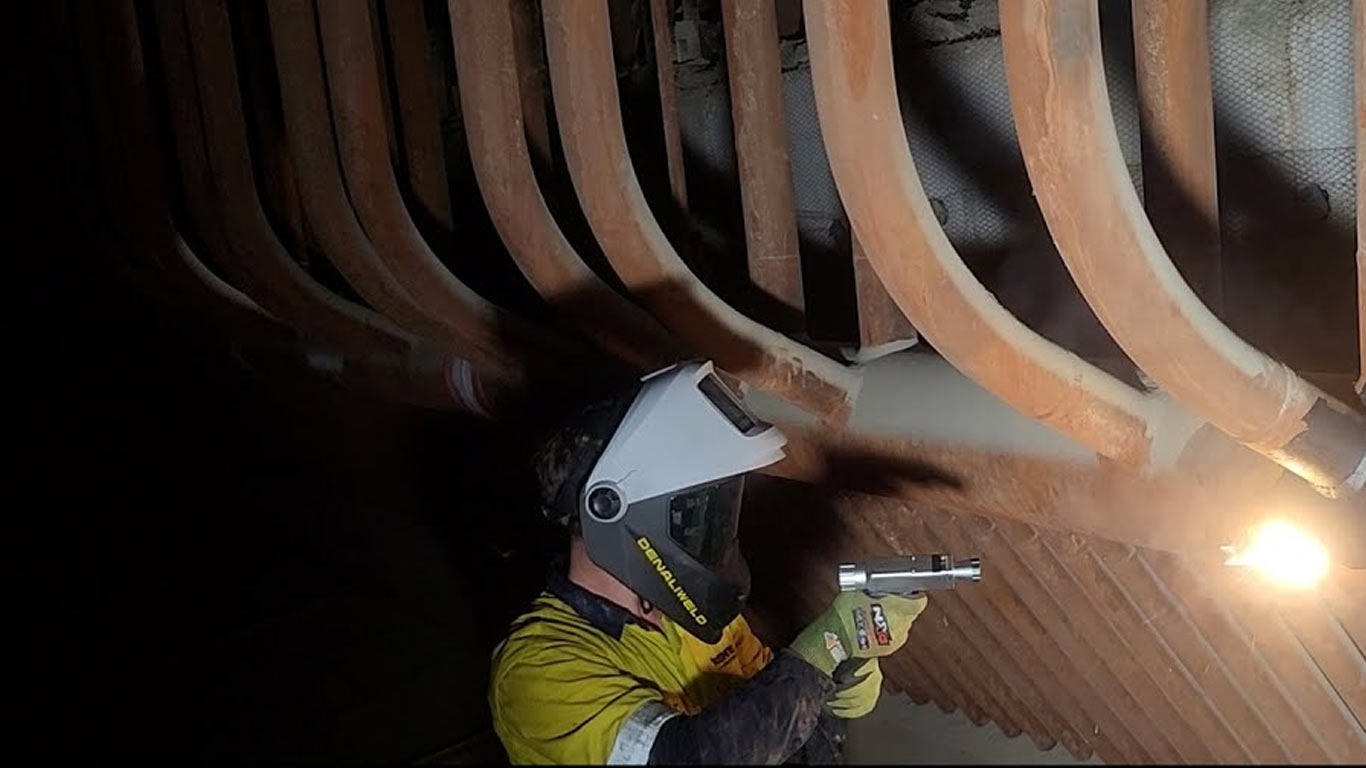

How to Clean Boiler Tubes and Turbine Fouling In-Situ
Boiler tube oxide scale and HRSG fouling must be removed within a CAISO maintenance window of 3–7 days — confined space entry and continuous Fe₂O₃ air monitoring are required before the laser runs.
1Audit fouling cost and conductivity gap impact
- Fouling deposits have thermal conductivity approximately 23× lower than clean metal — forcing plants to burn 5–15% more fuel for the same output, worth tens of millions of dollars annually on a 500 MW plant before any maintenance event occurs. Chemical cleaning of a single heat exchanger circuit generates 10,000–50,000 gallons of hazardous liquid waste at $2–5 per gallon disposal cost, plus passivation adding 2–5 additional outage days beyond the cleaning itself.
2Validate in-situ laser for your turbine surfaces
- Carbon steel boiler tubes clean at 1.5–2.5 J/cm²; Inconel turbine components require 0.8–1.5 J/cm²; titanium condenser tubes cap at 0.8 J/cm² — each material runs at separately tested settings confirmed before work begins. In-situ access through existing ports eliminates component removal — outage duration compresses from 14–21 days (chemical) to 3–7 days, giving dispatch schedulers real room to slot maintenance into CAISO low-demand periods.
3Contact Z-Beam for in-situ power plant assessment
- Z-Beam reviews plant geometry, alloy specifications, and deposit chemistry before any job — confined-space access plans and continuous air monitoring for Fe₂O₃ particulate are confirmed before the laser runs. Assessment produces an in-situ conductivity measurement record and parameter log covering alloy specifications, deposit chemistry, and CAISO window constraints for the maintenance file.
Heat Transfer Degradation and the 23× Conductivity Gap
Fouling deposits on boiler tubes and heat exchanger surfaces function as insulation — thermal conductivity approximately 23× lower than clean metal, meaning a fouled surface transfers energy at a fraction of its design rate. Plants compensate by burning 5–15% more fuel for the same output; on a 500 MW plant, a 5% fuel penalty represents tens of millions of dollars annually before any maintenance event occurs. When the heat exchanger can no longer compensate, forced derating follows.
Outage Cost at $600k Per Day and Grid Reliability Exposure
Chemical cleaning of power plant heat exchangers extends outages by 7–14 days beyond targeted deposit removal — chemical circulation, soak time, neutralization, and passivation all add to the schedule before restart.
Hazardous Waste Volume and Regulatory Burden
Chemical cleaning of a single heat exchanger circuit generates 10,000–50,000 gallons of hazardous liquid waste — chelates, corrosion inhibitors, and heavy metals leached from deposits — at $2–5 per gallon disposal cost plus EPA manifest fees, licensed transport, and treatment facility charges. Post-cleaning passivation adds 2–5 additional days to the outage. The total compliance cost for a single chemical cleaning circuit routinely exceeds the cost of the cleaning chemistry itself.
Online Laser Cleaning for Power Plants Sources(2 references)
Online Laser Cleaning for Power Plants Sources(2 references)
- 1.U.S. Occupational Safety and Health Administration. Control of Hazardous Energy (Lockout/Tagout). 29 CFR 1910.147. — Maintenance on power plant equipment must follow OSHA 29 CFR 1910.147 lockout/tagout procedures to prevent unexpected energization or release of stored energy during servicing.
- 2.U.S. Environmental Protection Agency. Identification and Listing of Hazardous Waste. 40 CFR Part 261. — Liquid waste from chemical cleaning of geothermal heat exchangers — including chelates, heavy metals leached from deposits, and corrosion inhibitors — is subject to hazardous waste determination and disposal requirements under 40 CFR Part 261.
Common Power Plant Materials
Carbon and stainless steel boiler tubes tolerate 1.5-2.5 J/cm² but risk oxidation above 3.0 J/cm². Inconel turbine blades require 0.8-1.5 J/cm² — higher energy level risks grain boundary attack. Titanium condenser tubes are most sensitive: 0.4-0.8 J/cm²; exceed 1.0 J/cm² and surface hydriding begins. Copper-nickel alloys (90/10, 70/30) clean at 0.6-1.2 J/cm²; above 1.5 J/cm² causes pitting. The critical constraint is preserving fatigue life and corrosion resistance, not cleaning speed. This method works well on flat and curved tube surfaces.
Related Videos
Steam turbine blade cleaned in 4 hours with scale removed and surface finish preserved at Ra (surface roughness) 0.8 μm; and a heat exchanger comparison showing chemical cleaning downtime of 7 days versus 18 hours with in-situ laser cleaning.
Frequently Asked Questions
What does the 23× thermal conductivity penalty mean for plant output?
Fouling deposits — silica scale, iron oxide, calcium carbonate — have thermal conductivity roughly 23× lower than clean metal. That gap forces boilers and heat exchangers to run hotter to move the same energy, increasing fuel consumption by 5-15% and, in worst cases, triggering forced derating. For a mid-size California plant, restoring clean surface heat transfer can recover $500k-2M annually in fuel and capacity costs without adding generation capacity.
Can cleaning be scheduled around CAISO grid reliability commitments?
Yes — laser cleaning compresses a typical maintenance window from 14–21 days (chemical) down to 3–7 days, which gives dispatch schedulers real room to slot outages into CAISO low-demand periods rather than taking forced downtime during peak pricing. There is no chemical neutralization, no confined-space waste extraction, and no cooldown wait — the unit is ready to return to service as soon as cleaning is complete. For Bay Area peaker plants, that schedule compression has meant units were back online before the peak pricing window closed.
How does laser cleaning compare to chemical cleaning for geothermal plants?
Laser cleaning removes geothermal heat exchanger scale without the 10,000–50,000 gallons of hazardous chemical waste that a single chemical cleaning circuit generates, and without the ASME PCC-2 chemical compatibility qualification burden.. First, a single chemical cleaning circuit generates 10,000–50,000 gallons of hazardous brine requiring EPA 40 CFR Part 261 disposal — laser captures scale as dry particulate in a HEPA unit, zero liquid waste. Second, chemical soaks need 3–5 days of contact time plus cooldown; laser cleans the same surface in hours. For California geothermal plants under SWRCB discharge restrictions, eliminating the brine disposal step alone can save $50,000–$150,000 per cleaning cycle.
Safe energy ranges for boiler tubes, Inconel, titanium, and copper-nickel?
Z-Beam applies safe 1064 nm pulsed fiber laser energy level ranges by power plant material — carbon steel boiler tubes and drums clean at 1.5–2.5 J/cm² with oxidation above 3.0 J/cm². Stainless steel superheater tubes tolerate 1.2–2.0 J/cm² with heat tint risk above 2.5 J/cm². Inconel turbine blades and fasteners require 0.8–1.5 J/cm² — grain boundary attack initiates above 2.0 J/cm². Titanium condenser tubes are the most sensitive at 0.4–0.8 J/cm² — hydriding begins above 1.0 J/cm². Copper-nickel heat exchanger tubes (90/10, 70/30) clean at 0.6–1.2 J/cm² with pitting above 1.5 J/cm². Hard silica and geothermal mineral scale requires 2.0–2.5 J/cm² with multiple passes typical. Steam path iron oxide clears at 1.0–1.5 J/cm², often in a single pass.
Technical Reference — Online Laser Cleaning for Power Plantsliterature-sourced
| Parameter | Value |
|---|---|
| Equipment operating range | 3.5–6.0 J/cm² (Heavy contamination) |
| Operating point (20% below ceiling) | 4.8 J/cm² |
| Cal/OSHA TWA | 5 mg/m³ |
When Laser Cleaning Does Not Work
Thermal gradient cracking in boiler tube welds during cleaning under residual stress
Verify tube wall condition by UT before treatment; avoid treatment on known fatigue zones
Iron oxide fume accumulation in confined boiler space
Forced-air extraction into confined space; monitor Fe2O3 particulate continuously
Compliance · Bay Area + California
Iron Oxide
Cal/OSHA TWA/PEL: 5 mg/m³
BAAQMD permit: Not required
Note: Generated as Fe2O3/Fe3O4 particles during ablation of oxidized steel.
Process Window — Online Laser Cleaning for Power Plants
| Surface Condition | Floor (J/cm²) | Ceiling (J/cm²) | Window (J/cm²) | Safety % |
|---|---|---|---|---|
| No literature fluence data in research briefs — using equipment operating ranges. Power plant in-situ work: heavy oxide scale on boiler tubes and turbine components. Heavy contamination range. Confined space entry and continuous air monitoring required. | 3.5 | 6 | 2.5 | 20% |
