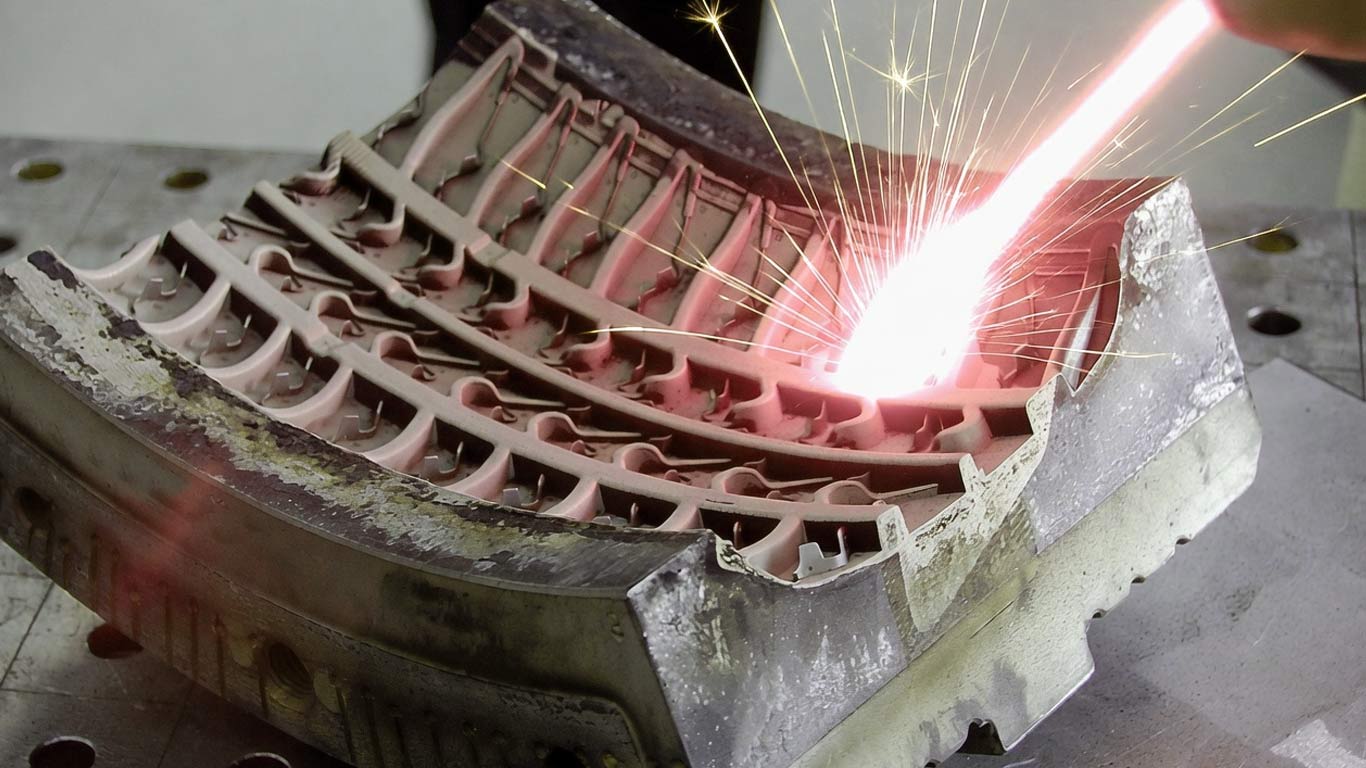

Laser cleaning die casting and injection mold surfaces removing release agents and oxides
Alessandro Moretti
Alessandro MorettiPh.D.Italy
Materials process development for ceramics and alloys
Published
Mar 26, 2026

Mold & Die Laser Cleaning | Bay Area

Chrome-plated die slots are where most mold-cleaning methods fail — loose polymer residue lifts at roughly a tenth of the energy that damages the plating, but clearing baked-on residue in a single pass takes 0.97 J/cm², just 8% below the 1.05 J/cm² chrome damage threshold (Jia et al. 2019, Optics & Laser Technology). Each cycle restores cavity Ra (surface roughness) below 0.8 µm, suppressing aluminum soldering so the next run proceeds without rejects. Zinc die-casting work generates ZnO fume that requires extraction under Cal/OSHA §5155 — not optional. Because chemical cleaning carries VOC permits and hazardous-waste disposal costs, laser is the simpler compliance path; see the California compliance requirements for operator protocol.

Applicable Standards and Regulations

Laser cleaning of zinc and aluminum die casting tooling simplifies Cal/OSHA compliance. An enclosed cell with ventilation extraction addresses Section 5155 zinc oxide and aluminum oxide fume thresholds. It eliminates blast media disposal and gives die casting shops a documented air monitoring record aligned with IATF 16949 requirements. (Cal/OSHA §5155; ANSI Z136.1 — Safe Use of Lasers; SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast; BAAQMD Regulation 6 — Particulate Matter, Common; BAAQMD Regulation 12, Rule 4 — Sandblasting; 8 CCR §1532.1 — Lead in Construction)

  • Cal/OSHA §5155 logo

    Cal/OSHA §5155

    View official documentation (opens in new tab)

    Sets permissible exposure limits for airborne contaminants. Zinc oxide fume PEL: 5 mg/m³ TWA — applies when laser cleaning of zinc die casting residue or zinc-containing release agents generates fume. Aluminum oxide PEL (general dust): 5 mg/m³ TWA — applies to aluminum die casting mold cleaning. The action level under Section 5155(e)(1) triggers mandatory air monitoring when concentrations may exceed limits. Enclosed cell with ventilation extraction is the required compliance pathway.[1]

  • ANSI Z136.1 logo

    ANSI Z136.1

    View official documentation (opens in new tab)

    ANSI Z136.1 governs the safe use of lasers in the United States. It defines maximum permissible exposure levels, optical density requirements for laser eyewear, and engineering controls for laser facilities. Required for all on-site pulsed fiber laser cleaning operations regardless of application or die material type.[2]

Sources(6 references)
  1. California Division of Occupational Safety and Health (Cal/OSHA), Title 8, California Code of Regulations, Section 5155, Airborne Contaminants, Table AC-1. — Sets the PEL for zinc oxide fume at 5 mg/m³ as an 8-hour time-weighted average; triggers mandatory air monitoring and enclosed extraction for laser cleaning of zinc die casting residue.
  2. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  3. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  4. BAAQMD Regulation 6 — Particulate Matter, Common Definitions and Test Methods — Source data for Laser Cleaning — keyDifferences
  5. BAAQMD Regulation 12, Rule 4 — Sandblasting — Source data for Sandblasting — keyDifferences
  6. 8 CCR §1532.1 — Lead in Construction — Source data for Sandblasting — keyDifferences

How to Laser Clean Chrome and Tool Steel Dies

Chrome-plated die cleaning requires operating at 0.97 J/cm² with argon assist — the margin between that setting and permanent chrome layer damage is only 8%, validated at this specific operating point by Jia et al. 2019 (Optics & Laser Technology). (Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice)

1Quantify chrome damage and disassembly downtime
  • Chrome-plated die re-plating costs $3,000–15,000 per event plus 1–3 weeks of production downtime — the consequence of exceeding the 1.05 J/cm² damage threshold on chrome-plated die casting cavity slots during cleaning.
  • Manual vent channel cleaning by disassembly causes 8–24 hours of production stoppage per cycle; defective parts accumulate before blocked vents are identified, because burn marks and short shots appear before the root cause is confirmed.
2Run validated parameters for die coating type
  • Chrome-plated die surfaces clean at 0.97 J/cm² with argon gas assist — only 8% below the 1.05 J/cm² chrome damage threshold — requiring verified power calibration and active monitoring before and during every full job.
  • Uncoated P20 tool steel runs at 0.8–1.2 J/cm² and H13 hot-work steel at 1.0–1.5 J/cm²; zinc die casting residue requires enclosed local exhaust extraction confirmed in place under Cal/OSHA §5155 before any cleaning begins.
3Contact Z-Beam for die assessment and sample run
  • Z-Beam delivers a per-cavity parameter log and die coating type confirmation — covering coating identity, residue chemistry, ZnO fume extraction requirements, and sample cavity validation run before committing parameters to production cleaning.
  • Assessment covers die material and hardness, cavity geometry, coating identity, fume extraction confirmation for ZnO, and a sample cavity validation run — completed before full production cleaning is scheduled.
Sources(6 references)
  1. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  2. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  3. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  4. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  5. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  6. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr

Compliance Snapshot

Regulatory exposure limits and permit triggers for Mold and Die Laser Cleaning. (ANSI Z136.1 — Safe Use of Lasers; SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast; Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice; Dry Ice Blasting vs Sand Blasting vs Soda; Laser Cleaning Service Cost Per Square Foot 2026:; How Much Does Dry Ice Blasting Cost? 5 Key; How to Properly Contain a Site for Abrasive; Sandblasting Containment Methods: A Compliance)

  • Zinc Oxide

    Cal/OSHA TWA/PEL: 5 mg/m³ (ACGIH action level 2 mg/m³)

    Air-district permit: Required

    Enclosed extraction cell with HEPA required.

  • Chromium Hexavalent

    Cal/OSHA TWA/PEL: 5 µg/m³ (0.005 mg/m³)

    Air-district permit: Required

    Chrome-plated Mold & Die work: sample coating type. Full Cr(VI) program if hexavalent.

Sources(13 references)
  1. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  2. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  3. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  4. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  5. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  6. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  7. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  8. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. Laser Cleaning Service Cost Per Square Foot 2026: The Ultimate Guide — Source data for Laser Cleaning — adjustedHourlyRate
  11. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Source data for Dry Ice Blasting — adjustedHourlyRate
  12. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  13. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Frequently Asked Questions

  • What laser settings and gas assist do chrome-plated die slots need?

    Chrome-plated die slots are cleaned at one validated setting with argon gas assist, not across a range — the safe margin is too narrow for on-the-fly power adjustment. Pulsed nanosecond laser cleaning of chrome-plated die casting mold slots operates at 0.97 J/cm², just 8% below the 1.05 J/cm² chrome coating damage threshold measured by Jia et al. 2019. Argon purge matters as much as the setting: without it, ablated chrome particles re-deposit in the vent.

  • When is laser cleaning the wrong choice for molds and dies?

    Laser cleaning cannot remove aluminum that has chemically fused into the die surface — only deposits sitting on top of it. Repeated thermal cycling in die casting builds Fe-Al intermetallic layers that absorb 1064 nm energy at nearly the same rate as the H13 tool steel beneath, so no selective working range exists (Engineering Failure Analysis, 2023). Heavy soldering needs mechanical removal first, with laser used afterward on the residual film. Nitrided and PVD-coated (physical.

  • What does a Z-Beam scope review check before cleaning a mold?

    A Z-Beam assessment identifies die coating type (chrome, nitride, Physical vapor deposition (PVD), or uncoated), residue chemistry, and the Cal/OSHA fume pathway for the specific alloy or polymer. Coating type determines the validated energy level window. Residue chemistry determines whether enclosed ventilation extraction is required before cleaning begins. Z-Beam provides a 2–5 part sample validation run confirming parameters before production commitment. Bay Area die casting and injection mold shops can book an on-site service call.

  • What are the safe laser energy level ranges for mold and die materials?

    Z-Beam applies safe 1064 nm pulsed fiber laser energy level ranges (J/cm²) by surface — cleaning floor, damage ceiling, and usable process window. Tool steels: P20 (injection mold cavities) 0.8–1.2 J/cm² — tempering onset above 1.5; H13 (die casting dies) 1.0–1.5 J/cm² — tempering above 1.8; D2 (stamping dies) 1.2–1.8 J/cm² — tempering above 2.0. Stainless 420/440C: 0.8–1.3 J/cm² — heat tint above 1.6. Chrome-plated dies: 0.4–0.7 J/cm² — plating delamination above 0.9. Beryllium copper.

Sources(14 references)
  1. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  2. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  3. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  4. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  5. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  6. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  7. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  8. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Dry Ice Blasting: 150 USD/hr
  11. The Definitive Guide to Dry Ice Blasting — Cold Jet — Dry Ice Blasting: 150 USD/hr
  12. Dry Ice Blasting Business | Revenue, Margins & Startup Cost — Dry Ice Blasting: 150 USD/hr
  13. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  14. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Quick Facts

Key parameters and properties for Mold and Die Laser Cleaning.

ParameterValue
Cal/OSHA TWA5 mg/m³ (ACGIH action level 2 mg/m³)
Cal/OSHA TWA5 µg/m³ (0.005 mg/m³)
Sources(13 references)
  1. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  2. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  3. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  4. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  5. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  6. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  7. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  8. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. Laser Cleaning Service Cost Per Square Foot 2026: The Ultimate Guide — Source data for Laser Cleaning — adjustedHourlyRate
  11. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Source data for Dry Ice Blasting — adjustedHourlyRate
  12. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  13. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Failure Modes

What can go wrong and how to avoid it when laser cleaning Mold and Die Laser Cleaning.

ConditionConsequence
Chrome layer damage from exceeding 1.05 J/cm² on chrome-plated die surfaces[1],[2],[3],[4],[5],[6],[7],[8],[9],[10],[11],[12],[13]—
ZnO fume accumulation from zinc die casting residue without enclosure[1],[2],[3],[4],[5],[6],[7],[8],[9],[10],[11],[12],[13]—
Sources(13 references)
  1. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  2. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  3. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  4. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  5. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  6. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  7. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  8. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. Laser Cleaning Service Cost Per Square Foot 2026: The Ultimate Guide — Source data for Laser Cleaning — adjustedHourlyRate
  11. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Source data for Dry Ice Blasting — adjustedHourlyRate
  12. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  13. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Process Windows by Mold and Die Material

Safe 1064 nm pulsed fiber laser energy level windows (J/cm²) by surface for mold and die material. Cleaning floor, damage ceiling, and usable process window per material. Validate parameters on representative samples before production cleaning.

Fluence (J/cm²)Chrome-plated die surfaces0.4 J/cm²Beryllium copper0.5 J/cm²P20 tool steel8.0 J/cm²12.0 J/cm²H13 hot-work steel8.0 J/cm²12.0 J/cm²D2 cold-work die steel8.0 J/cm²12.0 J/cm²Stainless steel 420/440C5.0 J/cm²12.0 J/cm²Tungsten carbide inserts15.0 J/cm²30.0 J/cm²0 J/cm²15 J/cm²30 J/cm²45 J/cm²
  • This material (highlighted)
  • Other materials in this group
Safe 1064 nm pulsed fiber laser energy level windows (J/cm²) by surface for mold and die material. Cleaning floor, damage ceiling, and usable process window per material. Validate parameters on representative samples before production cleaning.
