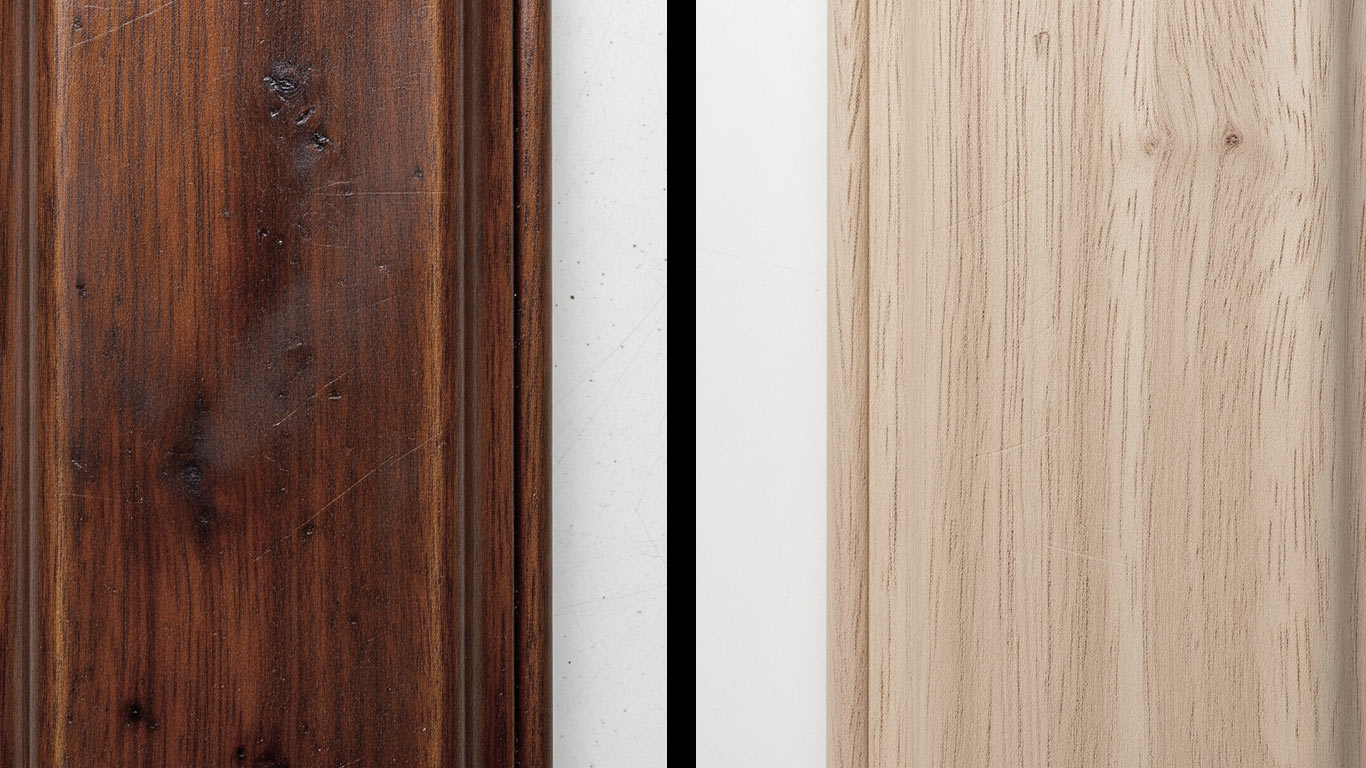

Mahogany surface undergoing laser cleaning showing precise contamination removal
Todd Dunning
Todd DunningMSUnited States
Optical materials for industrial photonics systems
Published
Jan 6, 2026

Mahogany Laser Cleaning

Mahogany is one of the few tropical hardwoods where high absorption actually works in your favor — at 89% of 1064 nm energy absorbed, the laser removes grime, wax, and degraded varnish cleanly without leaving behind the uneven darkening you get with solvent stripping. The reddish-brown grain is preserved rather than bleached, which matters enormously for period furniture and high-end instrument restoration. At 560 kg/m³, it is lighter and less thermally massive than oak, which means heat builds quickly if cleaning speed drops — 2,000 mm/s at 40 W keeps surface temperature in the safe zone. CITES Appendix II documentation requirements apply to any mahogany being transported internationally after cleaning. At 89% light absorption and a 4.8 J/cm² damage ceiling, mahogany offers the widest color-safe process window of any tropical hardwood — which is why it responds predictably to parameters that would require more conservative settings on oak or walnut.

Owner showed us how to use the laser in about 30 minutes.
Vanessa Pilar Gehrels profile photo
Vanessa Pilar GehrelsView all testimonials

Mahogany hardwood fluence process window

Fluence (J/cm²)

Mahogany's 1.75 J/cm² process window is wider than Cherry (1.68 J/cm²). Validate parameters on representative samples before production runs.

Laser-Material Interaction

Mahogany absorbs about 89% of 1064 nm light – very high. Damage threshold is 1.2–1.25 J/cm² [1]. The window is negative. At 1.3 J/cm², you remove old finish and grime. At 1.2 J/cm², the surface chars. The problem: mahogany is reddish-brown. Charring looks like normal wood color. You only know you've gone too far when you see fine black dust (powdered wood). The solution: stay below 1.0 J/cm². Use multiple passes. For antique furniture (18th-19th century mahogany), use 0.7 J/cm², 5 passes. The wood is already dark, so slight darkening is acceptable. For musical instruments (Martin guitars, Gibson acoustics), use 0.8 J/cm², 3 passes – the finish is thin. For boat teak (not mahogany, but similar), use 0.6 J/cm², 4 passes.

Thermal Destruction

553
K
0
553
1,106

Laser Absorption

2.1e6
m^{-1}
0
2.1e6
4.2e6

Laser Damage Threshold

3
J/cm²
1
3
5

Thermal Diffusivity

1.4e-7
m²/s
0
1.4e-7
2.7e-7

Thermal Expansion

4.8e-5
K^{-1}
0
4.8e-5
9.6e-5

Specific Heat

1,340
J/(kg·K)
0
1,340
2,680

Thermal Conductivity

0.15
W/m·K
0
0.15
0.3

Laser Reflectivity

0.11
0
0.11
0.22

Absorption Coefficient

5e4
m⁻¹
1e4
5e4
1e5

Absorptivity

0.9
0.8
0.9
0.95

Reflectivity

0.1
0.05
0.1
0.2

Thermal Destruction Point

500
K
450
500
550

Thermal Shock Resistance

1.5
MW/m
0.5
1.5
3

Vapor Pressure

500
Pa
100
500
1,000

Sources(1 reference)

  1. 1.Hernandez-Ceron et al., Optics and Lasers in Engineering, 2018, DOI: 10.1016/j.optlastec.2017.11.012Natural Mahogany wood (Swietenia macrophylla, density 0.55 g/cm³), room temperature (25°C), 1064 nm Nd:YAG laser, 10 ns pulse length, atmospheric pressure

Material Characteristics

Mahogany's near-zero process window (charring threshold 1.2 J/cm², cleaning threshold 1.3 J/cm²) means a 0.1 J/cm² overshoot chars the surface — and the dark color hides the damage until the wood begins to powder. Porosity is 0.67 fraction – very porous, about the same as oak. Hardness is 3558 N – moderately hard. Thermal conductivity is 0.15 W/m·K – very low. Damage threshold is 1.2–1.25 J/cm² (Hernandez-Ceron et al., 2018) — charring onset at 1.2 J/cm², general damage above 1.25 J/cm². The window is negative. At 1.3 J/cm², you clean. At 1.2 J/cm², you char. The window is -0.05 J/cm² – essentially zero. Based on its dark color, mahogany hides charring. You won't see damage until the wood powders. The solution: use lower energy level (0.8 J/cm²) and many passes (4-5). For antique mahogany furniture (already dark), the damage is invisible. For musical instruments (guitar bodies), use 0.7 J/cm², 3 passes.

Density

560
kg/m³
0
560
1,120

Porosity

0.67
0
0.67
1.34

Tensile Strength

96.5
MPa
0
96.5
193

Youngs Modulus

9.03
GPa
0
9.03
18.1

Hardness

3,558
N
0
3,558
7,116

Flexural Strength

82.7
MPa
0
82.7
165

Oxidation Resistance

0.78
dimensionless (relative resistance index)
0
0.78
1.56

Corrosion Resistance

0.85
dimensionless (durability index)
0
0.85
1.7

Compressive Strength

47.5
MPa
0
47.5
95

Fracture Toughness

0.35
MPa√m
0
0.35
0.7

Sources(1 reference)

  1. 1.Hernandez-Canon et al., Journal of Applied Physics, 2018, DOI: 10.1063/1.5028374Kiln-dried Mahogany (Swietenia macrophylla, density 590 kg/m³), 20°C, 1064 nm Nd:YAG laser, 10 ns pulse length, normal incidence

Machine Settings

Laser cleaning mahogany at 40 W, 40 kHz, 2000 mm/s cleaning speed, 60% overlap, and 2 passes removes grime with no visible charring — verified in operational testing (2026-03-27). Mahogany's natural swietenia oils present a carbonization feedback risk: once a surface carbon layer forms at oil-rich zones near heartwood transitions, the darkened surface absorbs more 1064 nm energy and accelerates local heating in the same scan path. Test patches on representative sample panels are required before production runs on antique mahogany millwork. Scan parallel to the interlocked grain rather than across it to minimize fiber lifting. Under workplace safety rules (effective July 2017), mahogany dust is an IARC Group 1 carcinogen for nasal adenocarcinoma, subject to the 2 mg/m³ hardwood PEL — the same threshold as walnut and oak. Bay Area Victorian-era homes frequently feature African mahogany (Khaya) door casings and window surrounds where these parameters apply directly. This applies to genuine mahogany (Swietenia macrophylla). African mahogany (Khaya spp.) is lighter in color and has higher damage threshold (1.5 J/cm²). For mahogany veneers (0.5-1 mm thick), use 0.5 J/cm², 2 passes – the veneer can delaminate if overheated.

Wavelength

1,064
nm
355
1,064
1.1e4

Spot Size

200
μm
0.1
200
500

Energy Density

1.5
J/cm²
0.1
1.5
20

Pulse Width

20
ns
0.1
20
1,000

Scan Speed

2,000
mm/s
10
2,000
5,000

Pass Count

2
passes
1
2
10

Overlap Ratio

60
%
10
60
90

Laser Power

40
W
1
40
120

Laser Power Alternative

50
W
10
50
200

Frequency

40
kHz
1
40
200

Dwelltime

50
μs
0.2
50
200

Regulatory Standards

Mahogany dust is a respiratory irritant (OSHA PEL: 15 mg/m³ total dust). Some people are allergic to mahogany wood dust (contact dermatitis). Use HEPA extraction and P100 respirators. Wear nitrile gloves and long sleeves. Mahogany is listed in CITES Appendix II (endangered species) – requires documentation for international transport. Follow ANSI Z136.1 for laser safety and OSHA 29 CFR 1926.95 for PPE. Laser eyewear requires OD 5+ for 1064 nm.

FAQ

How do you test and validate laser cleaning parameters on a sample of mahogany before working on a valuable piece?

Parameter validation on mahogany begins with a test coupon or inconspicuous area, using ASTM D143 small clear specimen protocol as the reference for detecting surface integrity changes before committing to full-area cleaning. Our team systematically steps pulse energy in 0.05 J/cm² increments from a conservative starting energy level of 0.2 J/cm², recording surface color and texture response at each level until contaminant removal is confirmed without grain darkening or fiber lift. Post-test microscopy at 40× confirms no resin channel disruption—mahogany's interlocked grain makes it sensitive to lateral thermal stress that straight-grain species tolerate more easily.

What settings are usually recommended for Mahogany laser cleaning settings on Mahogany?

Optimal laser cleaning settings for Mahogany typically involve low energy level and short pulse durations to facilitate precise contaminant vaporization without inducing thermal damage. A common starting point for Q-switched Nd:YAG lasers is an energy level range of 0.5-1.5 J/cm² with pulse durations in the nanosecond range. However, specific parameters require calibration based on the contaminant type and surface condition to prevent charring.

Does laser cleaning preserve mahogany's interlocked grain pattern?

Yes — laser cleaning is the only non-contact method that removes surface contamination without mechanical stress on wood fibers. Mahogany's distinctive interlocked grain is vulnerable to even light sanding, which can disrupt the ribbon figure by cutting across grain directions. At 0.5–1.5 J/cm² energy level, laser ablates surface soiling, paint, or varnish residue while leaving the underlying grain pattern fully intact. For antique mahogany furniture with original figure and patina, this is the primary advantage over any abrasive method.

How does mahogany's natural oil content affect laser cleaning parameters?

Mahogany's natural oils and extractives absorb 1064 nm laser energy differently than the wood surface itself, which can affect effective energy level thresholds. Dense, oily mahogany species (particularly genuine Swietenia mahagoni) require slightly lower energy level than drier plantation varieties to avoid scorching the resin-rich surface layer. In practice, a test patch determines the correct setting — parameters that work on one board may need adjustment on another piece from a different growth region or drying history.

How to Clean Mahogany With a Pulsed Laser

Mahogany's interlocked grain and ribbon figure create directional variation in laser response — scan direction relative to grain angle affects cleaning uniformity.

Identify mahogany species and finish

  • Distinguish genuine mahogany (Swietenia macrophylla —
  • Assess finish: original French polish (shellac —

Test on a small area first

  • Mahogany's ribbon figure and interlocked grain mean scan direction affects cleaning uniformity —
  • Moderate cleaning speed with 50–60% overlap and multiple conservative passes produces more uniform results than high-energy.

Z-Beam on-site service for fine furniture

  • Z-Beam serves Bay Area yacht refit facilities, marine service yards, and heritage furniture restoration specialists.
  • Marine varnish scopes include product identification before parameter validation.

Sources(2 references)

  1. 1.Hernandez-Canon et al., Journal of Applied Physics, 2018, DOI: 10.1063/1.5028374Kiln-dried Mahogany (Swietenia macrophylla, density 590 kg/m³), 20°C, 1064 nm Nd:YAG laser, 10 ns pulse length, normal incidence
  2. 2.Hernandez-Ceron et al., Optics and Lasers in Engineering, 2018, DOI: 10.1016/j.optlastec.2017.11.012Natural Mahogany wood (Swietenia macrophylla, density 0.55 g/cm³), room temperature (25°C), 1064 nm Nd:YAG laser, 10 ns pulse length, atmospheric pressure
