Historic Building Structural Metal Laser Cleaning IY2PyPPr

Laser cleaning removes rust, paint, and mill scale from riveted wrought iron and steel structural members without grinding away sound metal beneath corrosion, matching methods used on structural steel and cast iron framing. Historic rivets, gusset plates, and thin cast or wrought sections respond to lower fluence passes that clear surface oxide while leaving rivet heads and stamped ornamental detail intact, an approach shared with heritage and architectural restoration work. The process does not restore metal already lost to pitting, does not straighten warped plate, and does not replace missing rivets or ornamental castings; deep pack rust that has consumed cross-section still needs mechanical repair or replacement, not more laser passes. Thin plate and delicate scrollwork require slower travel speeds and lower power to avoid heat buildup, since the same settings used on thick structural steel columns can distort or discolor thin gauge stock. Laser cleaning also will not seal or coat the metal afterward; primer and paint application remain separate steps once the substrate is exposed and dry.

What This Video Shows

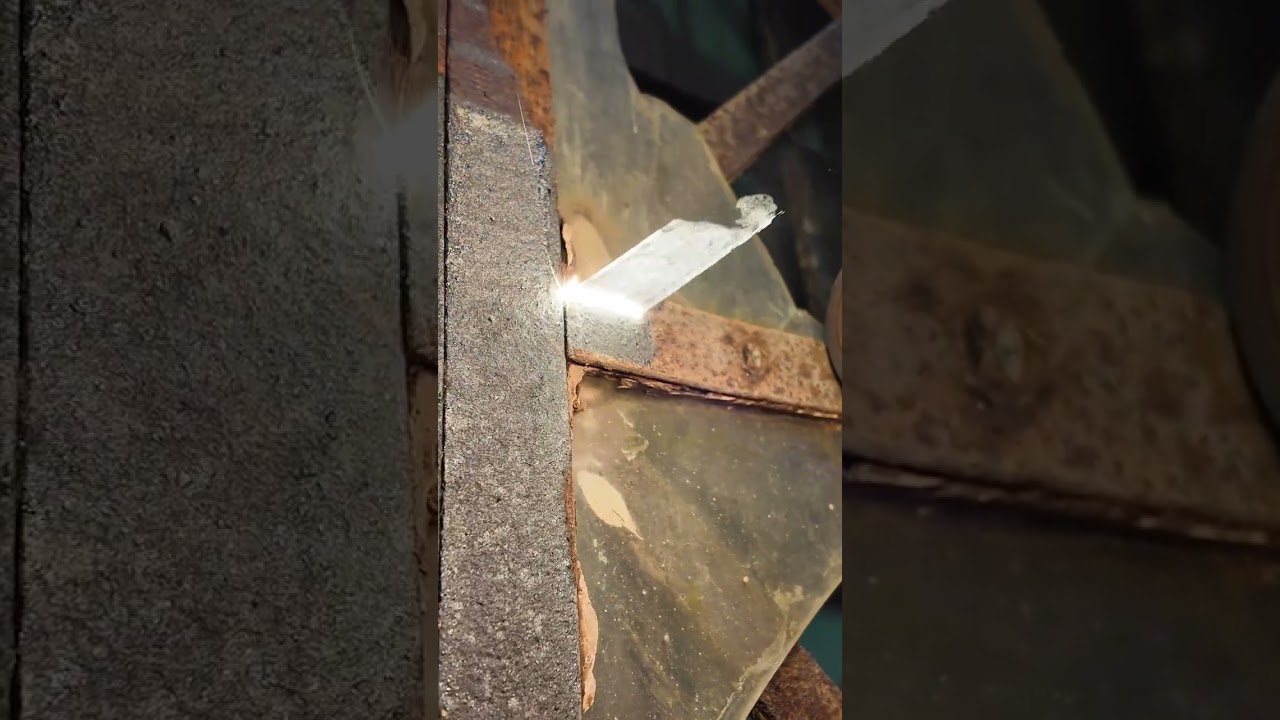

Short IY2PyPPr2Hs shows pulsed laser clearing rust, old paint, and corrosion from historic riveted structural steel in 39 seconds without grit.

Materials found in historic building restoration work

Related contaminants

Iron oxide rust

Laser cleaning removes iron oxide rust from steel down to bare metal without grinding wheels, abrasive blasting, or chemical strippers. The beam ablates the oxide layer while leaving sound steel underneath intact, so a part keeps its original dimension and surface finish through the pass. It will not reverse pitting the rust already caused, repair corrosion damage done to the substrate, or clear a part in one blanket setting; rust depth and iron oxide type both change how many passes a shop needs before the surface is ready for inspection.

Mill scale and magnetite

Laser cleaning fractures the bluish-black magnetite laminate off carbon steel in repeated passes, because mill scale runs roughly four times harder than the plate underneath it. A hot-rolled plate carrying this scale typically needs four or more passes to reach bare metal, while a lighter rust bloom on the same yard stock can clear in one or two. It will not strip in a single rust-grade pass, will not raise the surface to a deep abrasive-blast anchor profile some coating specs still call for, and will not reverse pitting that was already hiding under the scale.

Paint and coatings

Requires matching the paint system and substrate pairing before setting energy, because a thin single topcoat on [steel](/materials/steel-laser-cleaning) clears at a fraction of the fluence a multilayer primer stack on [aluminum](/materials/aluminum-laser-cleaning) needs, and the substrate sets its own ceiling once the coating is gone. Paint sits as an applied, cross-linked polymer film bonded by mechanical keying and resin adhesion, not a corrosion product, so pigment load and binder chemistry decide more of the setting than the substrate alone. A surface-integrity study on laser-cleaned aluminum alloy carrying a paint layer documents that a visually bare finish does not by itself confirm the metal underneath escaped the pass undamaged (Applied Optics, 2024).

Oxide scale

Laser cleaning removes the chromium-oxide and titanium-oxide scale that post-weld and post-anneal heat treatment grows on stainless steel, titanium, and Inconel, clearing the film without a chemical pickling bath. It will not rebuild the chromium that heat already pulled out of the grain boundaries beneath a dark heat-treated color, will not fix titanium alpha case that has already let oxygen diffuse deep into the metal, and will not stop the bare surface from re-oxidizing once it goes back into service heat.

Organic grease and oil

Laser cleaning decomposes mineral oil, synthetic lubricant, and machine grease off steel, aluminum, and stainless steel through fast thermal breakdown of the hydrocarbon film, the same damage-threshold logic that broader laser-cleaning threshold research has documented across very different host materials (Journal of Cultural Heritage, 2000). It is not a substitute for a wet alkaline line degreasing a full rack of parts at once, and it will not clear a bonded hard coating or a thick paint stack sitting on top of the oil.

Restoring historic structural metal without new damage
