Laser cleaning hot runner manifold and gate tips removing carbon buildup and color contamination from injection mold sub-system
Alessandro Moretti
Alessandro MorettiPh.D.Italy
Materials process development for ceramics and alloys
Published
May 3, 2026

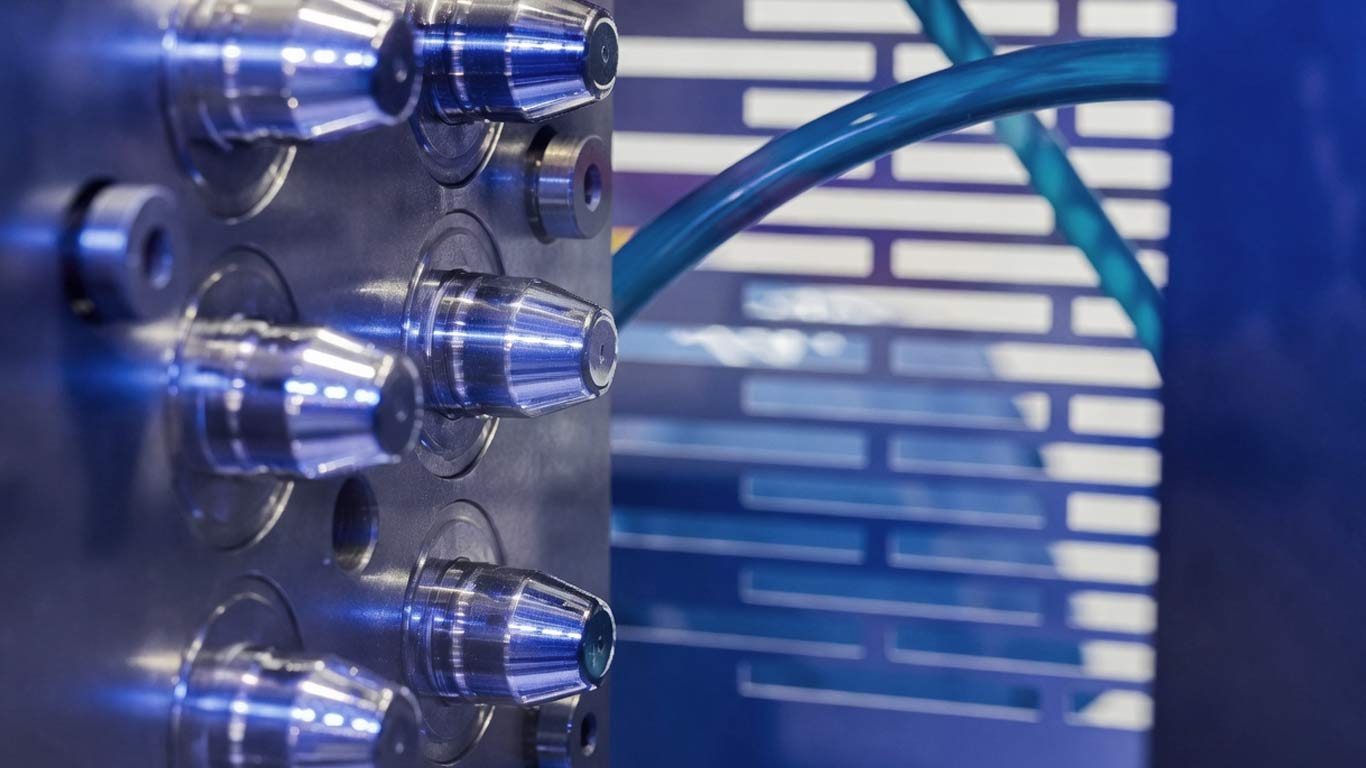

Hot Runner Laser Cleaning

A hot runner is worth cleaning in place because every alternative costs more than the deposit does. Unresolved carbon in gate tip bores and color trapped in manifold dead zones cost Bay Area molders 2–12 hours and 100–500 purge shots per changeover, and the mechanical picking that shortens that cycle is what puts a $15,000–$100,000 manifold at risk. Laser cleaning clears gate tip carbon in about 20 minutes through the existing gate opening — nothing touches the bore wall, the manifold stays bolted up, and the sealing face is never scraped. Reaching a bolted-up mold in place is exactly the job briefcase-scale air-cooled sources like the P-Laser QFC-50 are built for, going where wheeled water-cooled units cannot follow. Changeover drops to 30–60 minutes and shots-to-first-good-part falls 70–90%. Halogenated resins are the one exclusion: those jobs need enclosed extraction before the laser runs.

Applicable Standards and Regulations

  • OSHA logo

    OSHA

    View official documentation (opens in new tab)

    OSHA 29 CFR 1910.1000 Table Z-1 sets the permissible exposure limits (PELs) — the legal caps on what a worker may breathe — for the HBr and HCl released when laser cleaning degraded polymer residue from hot-runner systems. Hydrogen bromide is capped at 3 ppm averaged across a full shift, a time-weighted average (TWA), and hydrogen chloride at a 5 ppm ceiling that may not be exceeded at any moment. Enclosed extraction is required during gate tip cleaning.[1]

  • Cal/OSHA logo

    Cal/OSHA

    View official documentation (opens in new tab)

    Cal/OSHA Title 8 §5155 sets California's own exposure limits for the polymer decomposition fumes released when laser cleaning carbonized gate residue, and California's limits are the binding ones in the Bay Area wherever they are stricter than federal OSHA. Extraction handles the fume side; keeping fluence under the 1.5 J/cm² H13 damage ceiling handles the tooling side, and both have to hold at once for the job to be worth doing.[7]

  • OSHA logo

    OSHA

    View official documentation (opens in new tab)

    OSHA 29 CFR 1910.1200 requires a safety data sheet (SDS) — the hazard document a supplier must provide for every chemical on site — plus employee training for each [solvent-based mold cleaner a shop stocks to strip residue](/applications). Dropping those cleaners in favor of laser cleaning removes the whole HazCom obligation from the hot-runner maintenance program: no SDS binder to maintain, no annual retraining, and no chemical inventory to report.[8]

Sources(8 references)
  1. OSHA. Table Z-1 Limits for Air Contaminants. 29 CFR 1910.1000. U.S. Department of Labor, Occupational Safety and Health Administration. — OSHA permissible exposure limit (PEL) for hydrogen chloride (HCl) is 5 ppm (ceiling) under 29 CFR 1910.1000 Table Z-1.
  2. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  3. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  4. BAAQMD Regulation 6 — Particulate Matter, Common Definitions and Test Methods — Source data for Laser Cleaning — keyDifferences
  5. BAAQMD Regulation 12, Rule 4 — Sandblasting — Source data for Sandblasting — keyDifferences
  6. 8 CCR §1532.1 — Lead in Construction — Source data for Sandblasting — keyDifferences
  7. Cal/OSHA Title 8 §5155 — Airborne Contaminants (Table AC-1)
  8. OSHA 29 CFR 1910.1200: Hazard Communication

How to Clean Your Hot Runner System

Carbonized polymer comes off a gate tip bore well below the fluence that would mark the steel underneath it, which is the whole reason this job can be done in place. Carbonized polymer removal runs at 0.5–1.0 J/cm², against damage ceilings of 1.5 J/cm² on H13 and 1.2 J/cm² on P20 — so the char clears without contacting the bore wall, altering the sealing face, or shifting the part-weight numbers a molder watches in Statistical Process Control (SPC) charts, the running measurement record that proves a job is still in tolerance. (Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice)

1Audit carbon buildup cost and contamination impact
  • Changeovers dragging 2–12 hours are driven by color trapped in manifold dead zones that purge compounds cannot reach without full disassembly, costing $50–$300 in purge material per color changeover event and roughly $300 in lost output for every two hours the press is down.
  • Manual manifold teardown for deep cleaning adds 4–8 hours of labor plus a full leak-check cycle before production can restart on the next run.
2Run a laser trial on the hot runner at each surface's own fluence window
  • Gate tip carbon clears in about 20 minutes through the gate opening geometry, with carbonized polymer removal running at 0.5–1.0 J/cm² — no manifold removal, no risk to the sealing face, no dimensional change to bore diameter.
  • H13 manifold bodies clean safely up to 1.5 J/cm²; P20 nozzle bodies stay under 1.2 J/cm²; chrome/nickel plated surfaces cap at 1.0 J/cm² — each zone is set independently to protect the substrate.
3Contact Z-Beam for a hot runner assessment
  • Z-Beam reviews your resin chemistry before any halogenated polymer job — enclosed extraction with confirmed air monitoring is in place before the laser runs, held against the OSHA limits of 3 ppm HBr as an 8-hour average and 5 ppm HCl as a never-exceed ceiling.
  • Assessment produces a written parameter log and tooling-specific cycle time comparison, including purge shot reduction projection for your specific manifold configuration and resin chemistry.
Sources(6 references)
  1. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  2. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  3. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  4. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  5. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  6. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr

Compliance Snapshot

Regulatory exposure limits and permit triggers for Hot Runner System Laser Cleaning. (ANSI Z136.1 — Safe Use of Lasers; SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast; Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice; Dry Ice Blasting vs Sand Blasting vs Soda; Laser Cleaning Service Cost Per Square Foot 2026:; How Much Does Dry Ice Blasting Cost? 5 Key; How to Properly Contain a Site for Abrasive; Sandblasting Containment Methods: A Compliance)

  • Iron Oxide

    Cal/OSHA TWA/PEL: 5 mg/m³

    Air-district permit: Not required

    Generated as Fe2O3/Fe3O4 particles during ablation of oxidized steel.

  • Zinc Oxide

    Cal/OSHA TWA/PEL: 5 mg/m³ (ACGIH action level 2 mg/m³)

    Air-district permit: Required

    Enclosed extraction cell with HEPA required.

Sources(13 references)
  1. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  2. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  3. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  4. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  5. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  6. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  7. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  8. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. Laser Cleaning Service Cost Per Square Foot 2026: The Ultimate Guide — Source data for Laser Cleaning — adjustedHourlyRate
  11. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Source data for Dry Ice Blasting — adjustedHourlyRate
  12. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  13. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Frequently Asked Questions

  • Does carbon buildup in gate tip bores affect part dimensions?

    Yes — and it usually shows up as a quality problem long before anyone suspects the gate. Precision gate tips are held to a bore tolerance of ±0.005–0.010 mm, so it takes very little carbon film to push the tip outside its own dimensional spec. What the shop sees first is part weight and gate vestige height drifting in the Statistical Process Control (SPC) charts, the running measurement record that proves a job is still.

  • Can laser cleaning clear color contamination from deep manifold channels?

    Laser cleaning clears the manifold channels it can see and does not replace purging entirely, so the honest answer is partly. A fiber-delivered spot of 0.1–0.3 mm reaches color trapped in accessible manifold channels and nozzle bores, the stagnant dead zones where previous-color resin sits between runs because purge flow never gets there. Clearing those zones is what cuts shots-to-first-good-part from the usual 100–500 down to a fraction of that. Dead zones hidden behind internal.

  • What fume risks apply to hot runners that ran flame-retardant plastics?

    Hot runners that processed PVC, PTFE, or brominated flame-retardant resins release hydrogen bromide and hydrogen chloride when laser-cleaned, and neither gas gives a technician useful warning. OSHA caps hydrogen bromide at 3 ppm averaged over a shift and hydrogen chloride at a 5 ppm never-exceed ceiling (29 CFR 1910.1000 Table Z-1). The detection margin is thin to non-existent. NIOSH puts the hydrogen bromide odor threshold at 2 ppm, one part per million under the legal.

  • What fluence ranges are safe for H13, P20, stainless, and plated surfaces?

    Fluence — the laser energy delivered per unit area, in J/cm² — has to be set per zone, not once for the whole tool, because each surface has its own ceiling set by the temperature at which that material starts to change. H13 tool steel manifold bodies clean at 1.0–1.5 J/cm², the widest window on the tool because H13 tempers at 540–600°C. P20 tool steel nozzle bodies temper at only 300–400°C, so they clean at.

  • How are plated surfaces and heater band zones handled differently?

    Plated surfaces and heater zones are the two places where the standard manifold setting will do damage. Nickel and chrome plating is the most sensitive surface on the tool, cleaning at 0.6–1.0 J/cm² and delaminating above 1.0 J/cm² — roughly a third of the headroom stainless has. Gate face cleaning runs at 0.8–1.2 J/cm² to hold surface finish Ra (arithmetic average roughness, the standard measure of how smooth a machined face is) under 0.4 μm..

Sources(14 references)
  1. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  2. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  3. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  4. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  5. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  6. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  7. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  8. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Dry Ice Blasting: 150 USD/hr
  11. The Definitive Guide to Dry Ice Blasting — Cold Jet — Dry Ice Blasting: 150 USD/hr
  12. Dry Ice Blasting Business | Revenue, Margins & Startup Cost — Dry Ice Blasting: 150 USD/hr
  13. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  14. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Common Hot Runner System Materials

Temper temperature, not hardness, sets the cleaning ceiling on every surface in a hot runner. Manifold and nozzle bodies are both tool steel, but they behave differently. H13 tool steel tempers at 540-600°C, so it takes fluence — laser energy per unit area — up to 1.5 J/cm² before softening, while P20 tool steel tempers at only 300-400°C and stays under 1.2 J/cm². Stainless steel gate tips are the most tolerant surface at 1.2-1.8 J/cm²; chrome and nickel plating the most sensitive, delaminating above 1.0 J/cm². The binding constraint is never whether the carbon comes off — it is preserving thermal expansion fits and sealing faces while it does.

Tool Steel surface undergoing laser cleaning showing precise contamination removal

Tool Steel

View details: Tool Steel. Category: metal. Subcategory: Alloy.

Tool steel is where temper temperature, not damage threshold, governs what's safe. D2 cold-work die steel has a temper limit around 150°C — a single aggressive cleaning pass that pushes surface temperature above that threshold causes martensite softening, and a die that was Rc 60 before cleaning can leave the shop measurably softer. H13 hot-work steel is far more forgiving (530°C+ temper), but D2, M2, and W-series water-hardening grades each have their own thermal budget.

Stainless Steel surface undergoing laser cleaning showing precise contamination removal

Stainless Steel

View details: Stainless Steel. Category: metal. Subcategory: Ferrous.

Nanosecond laser cleaning does not leave stainless steel with a clean version of its original surface — it creates a new Cr-based oxide layer and transiently depletes chromium from subsurface zones, confirmed by EPMA analysis of 304L (Micromachines 2025, DOI: 10.3390/mi16121366). At energy levels below 11.19 J/cm², pitting potential improves by ~230 mV versus untreated baseline (Yang et al. 2022, DOI: 10.1002/maco.202213541).

Nickel surface undergoing laser cleaning showing precise contamination removal

Nickel

View details: Nickel. Category: metal. Subcategory: Specialty.

Laser cleaning removes NiO oxide scale from nickel at 0.45–0.88 J/cm² — well inside the 4.15 J/cm² substrate damage threshold (Scientific Reports/Nature, 2024), giving operators a 3.7 J/cm² working window that makes nickel one of the more forgiving specialty metals to clean. The critical constraint is toxicological, not energy level: NiO fumes are classified IARC Group 1 carcinogens, and Cal/OSHA §5155 Table AC-1 sets the insoluble nickel compound Permissible exposure limit (PEL) at 0.1 mg/m³ Time-weighted average (TWA) — 10× more restrictive than the federal OSHA limit of 1 mg/m³. Thermal conductivity of 90.7 W/m·K keeps the heat-affected area small and the process predictable.

Quick Facts

Key parameters and properties for Hot Runner System Laser Cleaning.

ParameterValue
Cal/OSHA TWA5 mg/m³
Cal/OSHA TWA5 mg/m³ (ACGIH action level 2 mg/m³)
Sources(13 references)
  1. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  2. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  3. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  4. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  5. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  6. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  7. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  8. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. Laser Cleaning Service Cost Per Square Foot 2026: The Ultimate Guide — Source data for Laser Cleaning — adjustedHourlyRate
  11. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Source data for Dry Ice Blasting — adjustedHourlyRate
  12. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  13. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Failure Modes

What can go wrong and how to avoid it when laser cleaning Hot Runner System Laser Cleaning.

ConditionConsequence
Thermal shock to hot-runner manifold if residual heat differential during cleaning[1],[2],[3],[4],[5],[6],[7],[8],[9],[10],[11],[12],[13]—
Polymer char redeposition into gate orifices[1],[2],[3],[4],[5],[6],[7],[8],[9],[10],[11],[12],[13]—
Sources(13 references)
  1. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  2. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  3. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  4. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  5. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  6. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  7. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  8. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. Laser Cleaning Service Cost Per Square Foot 2026: The Ultimate Guide — Source data for Laser Cleaning — adjustedHourlyRate
  11. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Source data for Dry Ice Blasting — adjustedHourlyRate
  12. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  13. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Process Windows by Hot Runner Material

Safe 1064 nm pulsed fiber laser fluence windows (J/cm², the laser energy delivered per unit area) by surface for hot runner material. Cleaning floor, damage ceiling, and usable process window per material. Validate parameters on representative samples before production cleaning.

Fluence (J/cm²)Heater band proximity0.6 J/cm²Nickel/chrome plated surfaces0.6 J/cm²Gate face cleaning0.8 J/cm²Carbonized polymer removal0.5 J/cm²H13 tool steel8.0 J/cm²12.0 J/cm²P20 tool steel8.0 J/cm²12.0 J/cm²Stainless steel5.0 J/cm²12.0 J/cm²0 J/cm²5 J/cm²10 J/cm²15 J/cm²
  • This material (highlighted)
  • Other materials in this group
Safe 1064 nm pulsed fiber laser fluence windows (J/cm², the laser energy delivered per unit area) by surface for hot runner material. Cleaning floor, damage ceiling, and usable process window per material. Validate parameters on representative samples before production cleaning.
