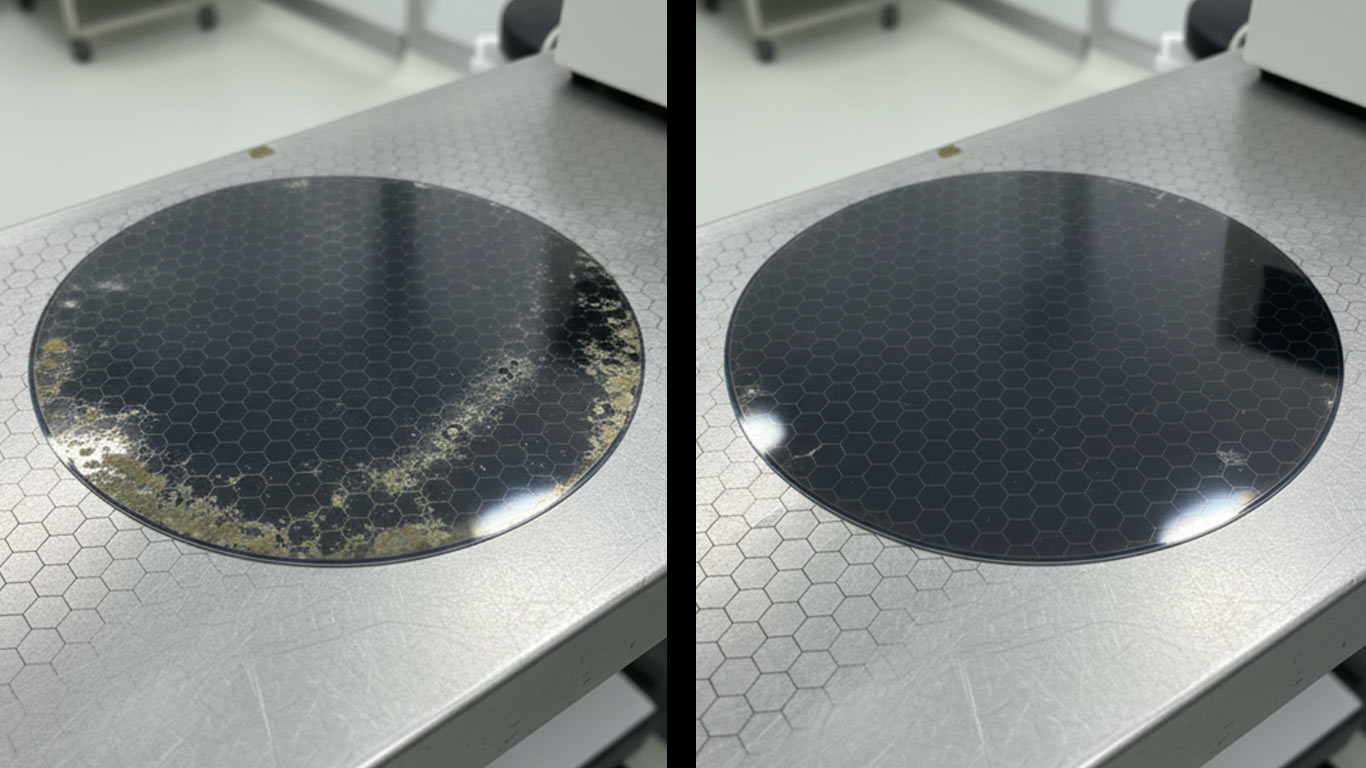

Silicon Carbide surface undergoing laser cleaning showing precise contamination removal
Yi-Chun Lin
Yi-Chun LinPh.D.Taiwan
Materials characterization for industrial surfaces
Published
Jan 6, 2026

Silicon Carbide (SiC) Laser Cleaning

At 1064 nm, SiC absorbs only 15–20% of incident energy — most is reflected, requiring higher power densities than nearly any other industrial material. Vickers hardness of 2500–3000 HV and compressive strength of 3900 MPa make silicon carbide one of the hardest materials in laser cleaning, alongside other carbides like Tungsten Carbide. That hardness pairs with an unusually wide 3–12 J/cm² process window, so Z-Beam cleans wafers and kiln furniture at an operating 5–10 J/cm² with high throughput and no mechanical contact.

How to Clean Silicon Carbide With a Pulsed Laser

1Identify SiC grade and contamination
  • Distinguish CVD SiC (optically polished, uniform matrix) from reaction-bonded SiC (RBSC, rougher, with free silicon inclusions) and sintered SiC — each has a different damage threshold and a different contamination profile from process chamber use.
  • RBSC contains free silicon pockets that melt at 1414°C while the surrounding SiC matrix sublimates above 2700°C, so pockets can locally over-ablate at energy level levels that are safe for the bulk ceramic.
2Validate parameters on a representative coupon
  • The critical failure mode for semiconductor-grade SiC is subsurface microcracking — SiC oxidizes selectively above ~1.5 J/cm² and thermal shock can create microcracks invisible to the eye that degrade mechanical integrity and particle generation performance.
  • Start testing at 2.0–2.5 J/cm² with 50% overlap on a representative sample and verify with a particle counter that post-clean surface counts meet the component cleanliness specification before advancing energy level.
3Document the surface condition
  • Each SiC cleaning project produces a surface condition record with particle count verification, referencing ISO 14644 cleanliness class requirements for semiconductor-grade components.
  • Documentation includes SiC grade identification, pre-clean contamination assessment, tested settings, and post-clean particle count result for quality review.

Regulatory Standards

Laser cleaning silicon carbide produces fine silicon carbide and silica particulates. Use ventilation with HEPA filtration. SiC dust is not highly toxic but can cause respiratory irritation. SiC absorbs about 80% of 1064 nm energy. Standard laser safety eyewear for 1064 nm is required. Extremely high thermal conductivity (370 W/m·K) eliminates hot spot risk. Very wide process window (3-12 J/cm²) makes SiC one of the safest materials for laser cleaning.

FAQ

  • How do I select the right wavelength for silicon carbide laser cleaning?

    1064 nm nanosecond fiber laser is the standard choice for SiC cleaning, operating at 2.0–4.0 J/cm² for contamination removal well below the 7.8 J/cm² single-shot damage threshold measured at 1064 nm (Results in Physics 2022, DOI 10.1016/j.rinp.2022.105492). SiC absorbs only 15–20% of 1064 nm energy, so the beam reflects significantly more than on metals — the wide 10.0 J/cm² usable process window compensates by allowing aggressive energy level settings without approaching the damage ceiling. Semiconductor-grade SiC requires staying below 4.0 J/cm² to avoid micro-cracking on polished wafer surfaces.

  • Does silicon carbide's high hardness limit laser cleaning effectiveness?

    Hardness actually makes laser cleaning the only viable non-destructive option for SiC — Vickers hardness of 2500–3000 HV and compressive strength of 3,900 MPa rule out abrasive mechanical cleaning without surface damage risk. The wide 10.0 J/cm² usable process window (2.0 J/cm² cleaning floor, 12.0 J/cm² damage ceiling) gives operators substantial parameter flexibility. The one limitation is reaction-bonded SiC (RBSC), where free silicon pockets melt at 1414°C while the SiC matrix sublimates above 2700°C, so RBSC can locally over-ablate at energy levels safe for the surrounding ceramic — coupon validation on the actual grade is required before production runs.

  • What fiber laser parameters are recommended for silicon carbide cleaning?

    Standard SiC cleaning runs at 2.0–4.0 J/cm², 100 ns pulse, 10 kHz rep rate, 2000 mm/s cleaning speed, and 60% overlap at 1064 nm. SiC's thermal conductivity of 370 W/m·K pulls heat away so rapidly that no inter-pass cooling delay is needed — an advantage over ceramics with slower diffusion. For semiconductor-grade CVD SiC and polished wafer components, energy level stays at 2.0–3.0 J/cm² to prevent micro-cracking below the 7.8 J/cm² single-shot damage threshold. Maintaining cleaning speed above 1 m/s prevents surface temperature from exceeding 800°C, where SiC oxidizes to SiO₂.

  • What safety precautions are required for silicon carbide laser cleaning?

    SiC laser cleaning generates non-fibrous silicon carbide particulate regulated at 5 mg/m³ Time-weighted average (TWA) (respirable fraction) and 10 mg/m³ TWA (total dust) under Cal/OSHA Title 8 §5155 Table AC-1. Ventilation with HEPA filtration is required; if exposure duration exceeds 4 hours, industrial hygiene air monitoring is required before confirming controls. At cleaning speed above 1 m/s, SiC's 370 W/m·K thermal conductivity prevents hot spots even at 15–20 J/cm² — but semiconductor fab work adds a cleanroom particulate specification, typically measured with a particle counter against the component's cleanliness requirement, not just the OSHA Permissible exposure limit (PEL).

  • What are the Cal/OSHA exposure limits for SiC fine particulate in cleaning?

    SiC non-fibrous particulate generated during laser cleaning is regulated at 5 mg/m³ TWA respirable fraction and 10 mg/m³ TWA total dust under Cal/OSHA Title 8 §5155 Table AC-1. These are the same PEL tiers as other inert particulates (iron oxide, calcium carbonate) — not carcinogen-class — but Ventilation is required because the fine particle fraction generated by nanosecond cleaning is predominantly respirable. Air monitoring is required on initial setup for any operation exceeding 4 hours; records must be retained per Cal/OSHA §3204 employee exposure records requirements.

Fluence (J/cm²)2Titanium Carbide1.2 J/cm²Silicon Carbide (SiC)3.0 J/cm²12.0 J/cm²Tungsten Carbide2.5 J/cm²30.0 J/cm²0 J/cm²15 J/cm²30 J/cm²45 J/cm²
  • This material (highlighted)
  • Other materials in this group
  • Recommended fluence (2 J/cm²)

Literature process windows

Ablation windows at 1064 nm that map to Silicon Carbide (SiC) in the laser-parameters reference. Screening values from published literature — validate on coupons before production.

Machine Settings

Start with energy level at 5-10 J/cm², between the 3 J/cm² damage threshold and 12 J/cm² damage threshold. Use 1064 nm wavelength with 20 ns pulse length. Scan at 2000 mm/s with 60% overlap. Silicon carbide has extremely high thermal conductivity (370 W/m·K). No cooling delay needed between passes. Two passes work well. Extremely wide process window (3-12 J/cm²) allows aggressive cleaning. For precision semiconductor applications, use 3-8 J/cm². For heavy contamination, use 8–10 J/cm² (stay under the 12 J/cm² ceiling). Never exceed 25 J/cm².

WavelengthSilicon Carbide (SiC) · carbideSilicon Carbi…1.1k nmTitanium Carb…1.1k nmTungsten Carb…1.1k nm0.005001.0k1.5kThis materialOther materials in subcategory
Spot SizeSilicon Carbide (SiC) · carbideSilicon Carbi…200 μmTitanium Carb…200 μmTungsten Carb…200 μm0.0050.0100150200250This materialOther materials in subcategory
FluenceSilicon Carbide (SiC) · carbideSilicon Carbi…2.00 J/cm²Tungsten Carb…2.00 J/cm²Titanium Carb…1.50 J/cm²0.000.501.001.502.002.50This materialOther materials in subcategory
Pulse WidthSilicon Carbide (SiC) · carbideSilicon Carbi…20.0 nsTungsten Carb…50.0 nsTitanium Carb…20.0 ns0.0020.040.060.0This materialOther materials in subcategory
FrequencySilicon Carbide (SiC) · carbideSilicon Carbi…50.0 kHzTitanium Carb…50.0 kHzTungsten Carb…30.0 kHz0.0020.040.060.0This materialOther materials in subcategory
Scan SpeedSilicon Carbide (SiC) · carbideSilicon Carbi…2.0k mm/sTitanium Carb…2.0k mm/sTungsten Carb…2.0k mm/s0.005001.0k1.5k2.0k2.5kThis materialOther materials in subcategory
Overlap RatioSilicon Carbide (SiC) · carbideSilicon Carbi…60.0 %Titanium Carb…60.0 %Tungsten Carb…60.0 %0.0020.040.060.080.0This materialOther materials in subcategory
Pass CountSilicon Carbide (SiC) · carbideSilicon Carbi…2.00 passesTungsten Carb…3.00 passesTitanium Carb…2.00 passes0.001.002.003.004.00This materialOther materials in subcategory
Laser PowerSilicon Carbide (SiC) · carbideSilicon Carbi…100 WTitanium Carb…150 WTungsten Carb…100 W0.0050.0100150200This materialOther materials in subcategory
Power (Alt.)Silicon Carbide (SiC) · carbideSilicon Carbi…300 WTungsten Carb…150 WTitanium Carb…100 W0.00100200300400This materialOther materials in subcategory
Fluence ThresholdSilicon Carbide (SiC) · carbideSilicon Carbi…7.80 J/cm²Titanium Carb…2.50 J/cm²Tungsten Carb…0.002.004.006.008.0010.0This materialOther materials in subcategory

Laser-Material Interaction

Silicon carbide has an extremely wide process window. The damage threshold is 3.0–12 J/cm². This 22.3 J/cm² range is among the largest of any material. Heat spread rate is 1.2×10⁻⁴ m²/s, very high. Heat spreads extremely rapidly. Thermal conductivity (370 W/m·K) pulls heat away instantly. No hot spots occur. Damage threshold is low (3 J/cm²) despite extreme hardness. High damage threshold allows very aggressive cleaning.

Ablation ThresholdSilicon Carbide (SiC) · carbideSilicon Carbi…3.00 J/cm²Tungsten Carb…2.50 J/cm²Titanium Carb…1.20 J/cm²0.001.002.003.004.00This materialOther materials in subcategory
Damage ThresholdSilicon Carbide (SiC) · carbideSilicon Carbi…12.0 J/cm²Tungsten Carb…30.0 J/cm²Titanium Carb…3.50 J/cm²0.0010.020.030.040.0This materialOther materials in subcategory
Laser AbsorptionSilicon Carbide (SiC) · carbideSilicon Carbi…0.80 ratio (0–1)Titanium Carb…0.70 ratio (0–1)Tungsten Carb…0.37 ratio (0–1)0.000.200.400.600.801.00This materialOther materials in subcategory
Laser ReflectivitySilicon Carbide (SiC) · carbideSilicon Carbi…0.20 ratio (0–1)Tungsten Carb…0.68 ratio (0–1)Titanium Carb…0.35 ratio (0–1)0.000.200.400.600.80This materialOther materials in subcategory
AbsorptivitySilicon Carbide (SiC) · carbideSilicon Carbi…Titanium Carb…0.70 ratio (0–1)Tungsten Carb…0.35 ratio (0–1)0.000.200.400.600.80This materialOther materials in subcategory
ReflectivitySilicon Carbide (SiC) · carbideSilicon Carbi…Tungsten Carb…0.65 ratio (0–1)Titanium Carb…0.30 ratio (0–1)0.000.200.400.600.80This materialOther materials in subcategory
Absorption CoefficientSilicon Carbide (SiC) · carbideSilicon Carbi…Titanium Carb…5000.0k m⁻¹Tungsten Carb…5000.0k m⁻¹0.002000.0k4000.0k6000.0kThis materialOther materials in subcategory
Thermal ConductivitySilicon Carbide (SiC) · carbideSilicon Carbi…370 W/m·KTungsten Carb…84.0 W/m·KTitanium Carb…21.0 W/m·K0.00100200300400This materialOther materials in subcategory
Thermal DiffusivitySilicon Carbide (SiC) · carbideSilicon Carbi…0.00 m^2/sTungsten Carb…0.00 m^2/sTitanium Carb…0.00 m^2/s0.000.010.010.01This materialOther materials in subcategory
Specific HeatSilicon Carbide (SiC) · carbideSilicon Carbi…671 J/(kg·K)Titanium Carb…569 J/(kg·K)Tungsten Carb…210 J/(kg·K)0.00200400600800This materialOther materials in subcategory
Thermal ExpansionSilicon Carbide (SiC) · carbideSilicon Carbi…0.00 K^{-1}Titanium Carb…0.00 K^{-1}Tungsten Carb…0.00 K^{-1}0.000.010.010.01This materialOther materials in subcategory
Thermal DestructionSilicon Carbide (SiC) · carbideSilicon Carbi…3.1k KTitanium Carb…3.3k KTungsten Carb…3.1k K0.001.0k2.0k3.0k4.0kThis materialOther materials in subcategory
Destruction PointSilicon Carbide (SiC) · carbideSilicon Carbi…Titanium Carb…3.3k KTungsten Carb…3.1k K0.001.0k2.0k3.0k4.0kThis materialOther materials in subcategory
Thermal Shock ResistanceSilicon Carbide (SiC) · carbideSilicon Carbi…Titanium Carb…2.50 MW/mTungsten Carb…2.50 MW/m0.001.002.003.00This materialOther materials in subcategory
Vapor PressureSilicon Carbide (SiC) · carbideSilicon Carbi…Titanium Carb…1.00 PaTungsten Carb…1.00 Pa0.000.501.001.50This materialOther materials in subcategory

Material Characteristics

Silicon carbide gives laser cleaning operators the most forgiving process window of any industrial ceramic — a 9 J/cm² range between the damage threshold (3 J/cm²) and damage threshold (12 J/cm²). That's room for the kind of intentional parameter variation that other ceramics can't tolerate. Mohs hardness of 9.5 and compressive strength of 3,900 MPa rule out any mechanical cleaning alternative without risk of surface damage, making laser the default approach for production SiC components. Unlike oxide ceramics such as alumina, SiC's high thermal conductivity spreads heat away before it can build up.

DensitySilicon Carbide (SiC) · carbideSilicon Carbi…3.2k kg/m³Tungsten Carb…15.6k kg/m³Titanium Carb…4.93 kg/m³0.005.0k10.0k15.0k20.0kThis materialOther materials in subcategory
HardnessSilicon Carbide (SiC) · carbideSilicon Carbi…27.5 GPaTitanium Carb…29.4 GPaTungsten Carb…19.6 GPa0.0010.020.030.040.0This materialOther materials in subcategory
Tensile StrengthSilicon Carbide (SiC) · carbideSilicon Carbi…414 MPaTitanium Carb…345 MPaTungsten Carb…345 MPa0.00100200300400500This materialOther materials in subcategory
Young's ModulusSilicon Carbide (SiC) · carbideSilicon Carbi…450 GPaTungsten Carb…650 GPaTitanium Carb…440 GPa0.00200400600800This materialOther materials in subcategory
Fracture ToughnessSilicon Carbide (SiC) · carbideSilicon Carbi…4.60 MPa√mTungsten Carb…5.30 MPa√mTitanium Carb…3.80 MPa√m0.002.004.006.00This materialOther materials in subcategory
Flexural StrengthSilicon Carbide (SiC) · carbideSilicon Carbi…450 MPaTungsten Carb…414 MPaTitanium Carb…400 MPa0.00100200300400500This materialOther materials in subcategory
Compressive StrengthSilicon Carbide (SiC) · carbideSilicon Carbi…3.9k MPaTungsten Carb…4.2k MPaTitanium Carb…4.0k MPa0.001.0k2.0k3.0k4.0k5.0kThis materialOther materials in subcategory
Oxidation ResistanceSilicon Carbide (SiC) · carbideSilicon Carbi…1.6k index (0–1)Titanium Carb…1.1k index (0–1)Tungsten Carb…1.1k index (0–1)0.005001.0k1.5k2.0kThis materialOther materials in subcategory
Corrosion ResistanceSilicon Carbide (SiC) · carbideSilicon Carbi…1000.0k index (0–1)Tungsten Carb…520.0k index (0–1)Titanium Carb…0.95 index (0–1)0.00500.0k1000.0k1500.0kThis materialOther materials in subcategory
Laser Damage ThresholdSilicon Carbide (SiC) · carbideSilicon Carbi…12.0 J/cm²Tungsten Carb…30.0 J/cm²Titanium Carb…3.80 J/cm²0.0010.020.030.040.0This materialOther materials in subcategory
PorositySilicon Carbide (SiC) · carbideSilicon Carbi…Titanium Carb…0.00 fraction (0–1)Tungsten Carb…0.00 fraction (0–1)0.000.010.010.01This materialOther materials in subcategory
Electrical ResistivitySilicon Carbide (SiC) · carbideSilicon Carbi…0.00 Ω·mTitanium Carb…0.00 Ω·mTungsten Carb…0.00 Ω·m0.000.010.010.01This materialOther materials in subcategory
Technical Reference — Silicon Carbide (SiC)literature-sourced
ParameterValue
Cleaning fluence range2.0–4.0 J/cm² (±±0.5 J/cm² (multi-pulse onset variability; incubation rate depends on contamination type))
Ablation threshold (single-shot, 1064nm ns)7.8 J/cm²
Damage threshold (Z-Beam, multi-pass)12.0 J/cm²
Operating point (Z-Beam)9.6 J/cm² (20% below ceiling)
Cal/OSHA SiC particulate PEL5 mg/m³ TWA; 10 mg/m³ TWA

When Laser Cleaning Does Not Work

ConditionConsequence
Fluence exceeds single-shot ablation threshold (7.8 J/cm²) on polished [semiconductor](/applications/semiconductor-cleanroom-tooling-laser-cleaning)-grade SiCHard stopSurface micro-cracking or phase transformation in polycrystalline SiC; crystallographic damage on single-crystal wafers
Surface temperature exceeds 800°C during cleaningHard stopSiC surface oxidation forms SiO2 layer, reducing surface hardness and wear resistance

Compliance · Bay Area (BAAQMD) + California (Cal/OSHA Title 8)

ContaminantBAAQMD Permit
Silicon Carbide (SiC) Non-fibrous ParticulateNot required

Process Window — Silicon Carbide (SiC)

Netalux Kamino 300, 1064nm fiber, 100ns pulse

Surface ConditionFloor (J/cm²)Ceiling (J/cm²)Window (J/cm²)Safety %
Light oxidation / surface contamination (non-semiconductor grade)2121020%
Moderate oxide buildup / heavy contamination312920%
Semiconductor-grade SiC (precision cleaning, polished surface)24220%
Sources(5 references)

Industry Applications

Semiconductor fabs in San Jose and Santa Clara use SiC susceptors and process chamber components that accumulate Chemical vapor deposition (CVD) byproduct deposits between production runs — laser cleaning restores them to specification without the dimensional risk of wet chemical etching. Power electronics manufacturers in the Bay Area producing SiC MOSFETs and diodes need the kind of semiconductor pre-bond surface preparation a low-thermal-load MOPA source like the Coherent PowerLine E 40-1064 is built for — preserving the crystalline integrity that gives SiC its electrical properties. High-temperature furnace component manufacturers use laser cleaning to remove oxidation from SiC kiln furniture and heating elements between firing cycles. Aerospace suppliers qualifying SiC ceramic matrix composite parts need pre-inspection surface cleaning that doesn't introduce the micro-scratches that affect NDT results.
