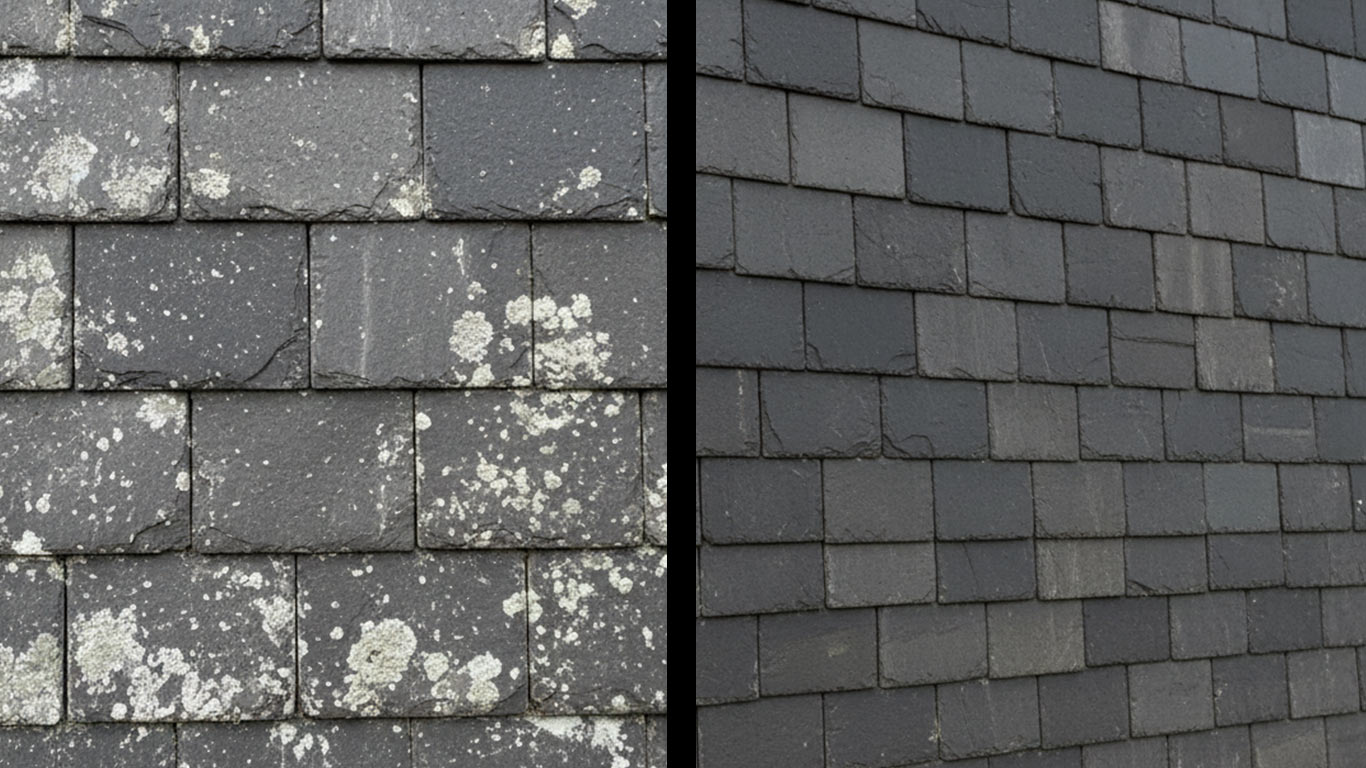

Slate surface undergoing laser cleaning showing precise contamination removal
Ikmanda Roswati
Ikmanda RoswatiPh.D.Indonesia
Ultrafast photonics and laser-matter interaction
Published
Jan 6, 2026

Slate Laser Cleaning

Slate roofing, cladding, and plaques can take a pulsed laser pass that removes soot, lichen stain, and surface soil from the cleaved face. Layers split unevenly under heat, so energy that looks safe on a scrap piece can still flake the next tile. Silica-bearing dust needs capture. A hidden scrap from the same quarry comes first. Settings meant for marble or metal stay off this foliated stone.

Name the slate stock before energy rises

Slate laser cleaning requires a written lithotype call and silica capture before any energy raise on the bench, because foliated faces absorb unevenly along cleavage planes until HEPA exhaust is live and a hidden coupon map is frozen on scrap stock (Research Progress and Challenges in).

1Record lithotype and cleavage orientation
  • Require quarry or petrographic notes before setup. Iron-rich faces behave differently from chlorite-rich roofing stock.
  • Polymer or steel presets rule out this stone path — stop and open a metamorphic coupon plan instead.
2Stage silica and dust capture
  • Treat slate masonry cleaning as respirable-dust work and stage source capture before the coupon pass.
  • Install HEPA exhaust at the head before the coupon pass. A respirator alone does not replace local capture under OSHA 29 CFR 1926.1153.
3Walk coupons without a typed ceiling
Sources(1 reference)
  1. Research Progress and Challenges in Laser-Controlled Coating Removal pmc.ncbi.nlm.nih.gov (opens in new tab)Coupon mapping before production laser cleaning

Common questions when laser cleaning slate

  • Does laser cleaning work on roofing and facade slate?

    Yes, when energy stays inside a coupon-mapped band on the actual cleavage face. Foliated slate absorbs near-infrared energy unevenly along cleavage planes, so hidden scrap trials beat copied steel or polymer presets (MatWeb Material Property Data — Online Materials Information).

  • What lithotype checks come before the first pulse?

    Name quarry source, cleavage orientation, and iron-mineral content before setup because those traits shift how quickly soiling lifts without grain pop-out. Compare marble laser cleaning or bluestone laser cleaning only after the substrate call matches.

  • What silica exposure limits apply to slate masonry work?

    Construction masonry ablation falls under OSHA 29 CFR 1926.1153 with a permissible exposure limit of 50 micrograms per cubic meter and an action level of 25 micrograms per cubic meter as 8-hour averages. Cal/OSHA section 1532.3 mirrors that frame, so HEPA capture belongs on the setup checklist before coupons.

  • Is there a published damage ceiling for named slate products?

    Peer-reviewed nanosecond 1064 nm damage data for named roofing slate has not been published. Hidden-face trials on the actual panel remain the only honest way to set energy before production passes.

Sources(1 reference)
  1. MatWeb Material Property Data — Online Materials Information Resource matweb.com (opens in new tab)Slate substrate context for FAQ

How foliated slate responds under a 1064 nm pulse

Cleavage-oriented slate faces absorb short-pulse near-infrared energy unevenly because charted absorptivity stays near 0.85 (MatWeb material property data). Chart estimates place soiling removal between 0.8 and 2.5 joules per square centimeter on roofing stock, yet quarry-specific injury limits remain unpublished (MatWeb Material Property Data — Online Materials Information).

Bar chart: J/cm²Ablation ThresholdSlate · metamorphicSlate1.20 J/cm²Marble1.20 J/cm²Serpentine0.80 J/cm²0.000.501.001.50This materialOther materials in subcategory
Bar chart: ratio (0–1)Laser AbsorptionSlate · metamorphicSlate0.88 ratio (0–1)Marble0.15 ratio (0–1)Serpentine0.04 ratio (0–1)0.000.200.400.600.80This materialOther materials in subcategory
Bar chart: ratio (0–1)Laser ReflectivitySlate · metamorphicSlate0.12 ratio (0–1)Marble0.38 ratio (0–1)Serpentine0.06 ratio (0–1)0.000.100.200.300.40This materialOther materials in subcategory
Bar chart: ratio (0–1)AbsorptivitySlate · metamorphicSlate0.85 ratio (0–1)Serpentine0.80 ratio (0–1)Marble0.10 ratio (0–1)0.000.200.400.600.80This materialOther materials in subcategory
Bar chart: ratio (0–1)ReflectivitySlate · metamorphicSlate0.15 ratio (0–1)Marble0.90 ratio (0–1)Serpentine0.15 ratio (0–1)0.000.200.400.600.80This materialOther materials in subcategory
Bar chart: m⁻¹Absorption CoefficientSlate · metamorphicSlate100.0k m⁻¹Marble5.0k m⁻¹Serpentine0.0020.0k40.0k60.0k80.0k100.0kThis materialOther materials in subcategory
Bar chart: W/m·KThermal ConductivitySlate · metamorphicSlate2.00 W/m·KSerpentine2.82 W/m·KMarble2.80 W/m·K0.001.002.003.00This materialOther materials in subcategory
Bar chart: m²/sThermal DiffusivitySlate · metamorphicSlate0.00 m²/sMarble0.00 m²/sSerpentine0.00 m²/s0.000.020.040.060.080.10This materialOther materials in subcategory
Bar chart: J/(kg·K)Specific HeatSlate · metamorphicSlate760 J/(kg·K)Serpentine962 J/(kg·K)Marble880 J/(kg·K)0.00200400600800This materialOther materials in subcategory
Bar chart: K^{-1}Thermal ExpansionSlate · metamorphicSlate0.00 K^{-1}Serpentine0.00 K^{-1}Marble0.00 K^{-1}0.000.020.040.060.080.10This materialOther materials in subcategory
Bar chart: °CThermal DestructionSlate · metamorphicSlate1.3k °CSerpentine973 °CMarble825 °C0.005001.0kThis materialOther materials in subcategory
Bar chart: KDestruction PointSlate · metamorphicSlate1.3k KMarble1.1k KSerpentine1.0k K0.005001.0kThis materialOther materials in subcategory
Bar chart: MW/mThermal Shock ResistanceSlate · metamorphicSlate2.50 MW/mSerpentine2.00 MW/mMarble1.20 MW/m0.000.501.001.502.002.50This materialOther materials in subcategory
Bar chart: PaVapor PressureSlate · metamorphicSlate0.01 PaMarble0.10 PaSerpentine0.000.020.040.060.080.10This materialOther materials in subcategory
Sources(1 reference)
  1. MatWeb Material Property Data — Online Materials Information Resource matweb.com (opens in new tab)Absorptivity 0.85 at 1064 nm on slate; secondary estimate 0.8–2.5 J/cm²

Foliated metamorphic facts against stone peers

Charted slate on this page carries near 14 megapascals tensile strength and about 2,750 kilograms per cubic meter density among metamorphic stone peers (MatWeb Material Property Data — Online Materials Information). Low porosity and high 1064 nm absorptivity explain why heat lingers near cleavage faces during short-pulse cleaning compared with more porous sedimentary carbonate peers (MatWeb material property data).

Bar chart: kg/m³DensitySlate · metamorphicSlate2.8k kg/m³Marble2.7k kg/m³Serpentine2.6k kg/m³0.001.0k2.0kThis materialOther materials in subcategory
Bar chart: MohsHardnessSlate · metamorphicSlate3.50 MohsSerpentine3.50 MohsMarble3.00 Mohs0.001.002.003.00This materialOther materials in subcategory
Bar chart: MPaTensile StrengthSlate · metamorphicSlate14.0 MPaMarble10.0 MPaSerpentine5.20 MPa0.005.0010.0This materialOther materials in subcategory
Bar chart: GPaYoung's ModulusSlate · metamorphicSlate45.0 GPaMarble55.0 GPaSerpentine48.3 GPa0.0020.040.060.0This materialOther materials in subcategory
Bar chart: MPa√mFracture ToughnessSlate · metamorphicSlate0.92 MPa√mSerpentine1.20 MPa√mMarble1.16 MPa√m0.000.501.001.50This materialOther materials in subcategory
Bar chart: MPaFlexural StrengthSlate · metamorphicSlate42.5 MPaMarble11.0 MPaSerpentine9.80 MPa0.0010.020.030.040.050.0This materialOther materials in subcategory
Bar chart: MPaCompressive StrengthSlate · metamorphicSlate150 MPaMarble100 MPaSerpentine100 MPa0.0050.0100150This materialOther materials in subcategory
Bar chart: index (0–1)Oxidation ResistanceSlate · metamorphicSlate0.00 index (0–1)Marble0.98 index (0–1)Serpentine0.92 index (0–1)0.000.200.400.600.801.00This materialOther materials in subcategory
Bar chart: index (0–1)Corrosion ResistanceSlate · metamorphicSlate0.95 index (0–1)Serpentine0.87 index (0–1)Marble0.65 index (0–1)0.000.200.400.600.801.00This materialOther materials in subcategory
Bar chart: fraction (0–1)PorositySlate · metamorphicSlate0.01 fraction (0–1)Serpentine0.01 fraction (0–1)Marble0.01 fraction (0–1)0.000.020.040.060.080.10This materialOther materials in subcategory
Sources(1 reference)
  1. MatWeb Material Property Data — Online Materials Information Resource matweb.com (opens in new tab)Slate tensile 14 MPa; density 2750 kg/m³; thermal conductivity 2 W/m·K; absorptivity 0.85

Energy margin among metamorphic stone peers

Energy margin on metamorphic stone charts places slate among foliated peers with a wide spread between cleaning onset and upper chart values, yet named roofing stock still needs hidden scrap mapping (Cooper stone laser cleaning overview).

Fluence (J/cm²)Serpentine0.8 J/cm²2.0 J/cm²Marble1.0 J/cm²2.5 J/cm²Slate0.8 J/cm²2.5 J/cm²0 J/cm²1 J/cm²2 J/cm²3 J/cm²
  • This material (highlighted)
  • Other materials in this group
Sources(1 reference)
  1. Cooper, M. 'Laser cleaning of stone materials: an overview of current research.' Reviews in Conservation, no. 4, 2003, pp. 1-26. lrmh.fr (opens in new tab)Stone laser cleaning overview — coupon the slate

Cleaning parameters unique to foliated slate faces

Foliated slate cleaning parameters differ from metal presets because lichen and weathering crust respond at lower energy than heavier encrustation on the same cleavage face. Chart estimates span 0.8 to 2.5 joules per square centimeter, yet named quarry products still need hidden scrap mapping because injury limits remain unpublished (Cooper stone laser cleaning overview).

Sources(1 reference)
  1. Cooper, M. 'Laser cleaning of stone materials: an overview of current research.' Reviews in Conservation, no. 4, 2003, pp. 1-26. lrmh.fr (opens in new tab)Stone laser cleaning overview — coupon the slate

Key facts when laser cleaning slate

Key slate laser cleaning facts on this chart include near 14 megapascals tensile strength and about 2,750 kilograms per cubic meter density among metamorphic stone peers. Short-pulse 1064 nm sources are the usual class for Bay Area roof panels once lithotype and silica controls are set (The theory and application of nanosecond Laser).

ParameterValue
Canonical substrateSlate (metamorphic phyllosilicate)
Tensile strength14 MPa
Absorptivity at 1064 nm~0.85
Named-slate typed windowNot published — trial only
Sources(1 reference)
  1. The theory and application of nanosecond Laser surface treatment technology: A review journals.sagepub.com (opens in new tab)Nanosecond laser surface treatment parameter ranges for stone work

Failure modes when laser cleaning slate

Slate laser cleaning fails when lithotype notes get skipped, when silica capture stays off during coupons, or when chart estimates get treated as verified quarry limits (Type 1 Pulmonary Hypertension and Silicosis in a Bluestone C) (OSHA, "Respirable Crystalline Silica Standard for).

ConditionConsequence
No local exhaust for slate dust[1],[2]Crews breathe respirable dust including crystalline silica
Lithotype or cleavage orientation ignored before production[1],[2]Wrong energy map or irreversible grain pop-out along foliation
Chart estimate treated as verified quarry limit[1],[2]Substrate injury before soiling clears
Sources(2 references)
  1. Type 1 Pulmonary Hypertension and Silicosis in a Bluestone Cutter: A Case Report on Raising Awareness pmc.ncbi.nlm.nih.gov (opens in new tab)Unprotected stone cutting linked to silicosis when silica controls fail
  2. OSHA, "Respirable Crystalline Silica Standard for Construction — 29 CFR 1926.1153", Occupational Safety and Health Administration elcosh.org (opens in new tab)OSHA 29 CFR 1926.1153 silica framing for slate

Silica and dust rules for metamorphic slate work

Construction silica and dust exposure limits apply when roofing slate ablation throws respirable particulate into the breathing zone. Stage HEPA exhaust under OSHA 29 CFR 1926.1153 and Cal/OSHA section 1532.3 before the coupon pass, and keep Bay Area outdoor plumes inside BAAQMD Regulation 6 visible-emission limits (OSHA 29 CFR 1926.1153) (Cal/OSHA section 1532.3) (BAAQMD Regulation 6 particulate matter).

Sources(3 references)
  1. OSHA, "Respirable Crystalline Silica Standard for Construction — 29 CFR 1926.1153", Occupational Safety and Health Administration osha.gov (opens in new tab)OSHA 29 CFR 1926.1153 silica framing for slate
  2. 8 CCR §1532.3 — Occupational Exposures to Respirable Crystalline Silica (Construction) dir.ca.gov (opens in new tab)Cal/OSHA section 1532.3 construction silica PEL 50 µg/m³
  3. BAAQMD Regulation 6 — Particulate Matter, Common Definitions and Test Methods baaqmd.gov (opens in new tab)BAAQMD Regulation 6 visible emissions Ringelmann No. 1
