Assessment for laser cleaning of an industrial mold — coating identification before fluence is set
Yi-Chun Lin
Yi-Chun LinPh.D.Taiwan
Materials characterization for industrial surfaces
Published
Jun 11, 2026

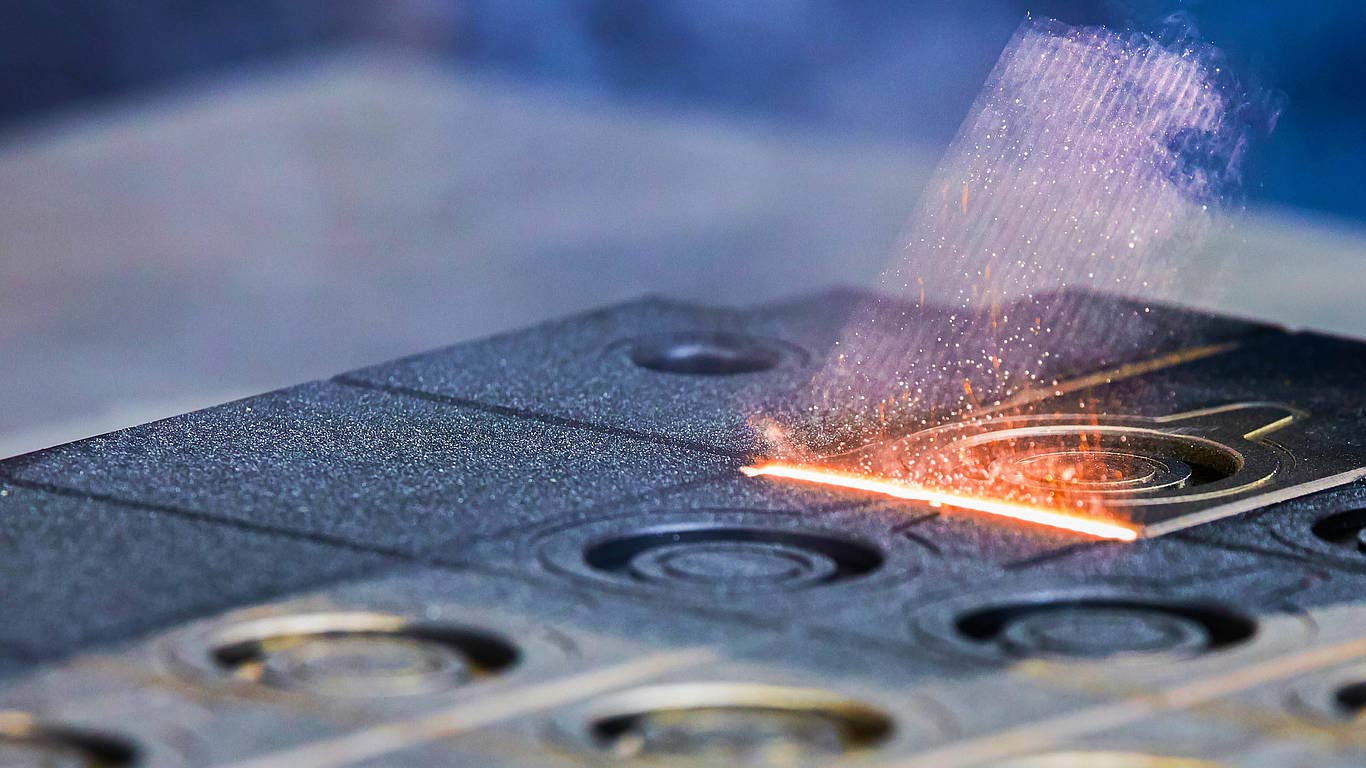

Laser Cleaning Quote for Industrial Mold Maintenance

A mold cleaning quote can't be finalized without four pieces of information: coating type, residue chemistry, mold geometry, and cleaning history. Coating type dictates the process, and chrome is where the margin disappears — Jia et al. (2019) cleaned chrome-plated die slots in a single scan at 0.97 J/cm² using argon gas assist and positive defocusing, with chrome damage setting in at 1.05 J/cm². That is roughly 8% of headroom. Without argon assist Z-Beam works the same surface in a more conservative 0.4–0.9 J/cm² band. Uncoated H13 tool steel and P20 mold steel tolerate 1.0–1.5 J/cm². Nitrided and PVD-coated surfaces — physical vapor deposition, a thin hard coating whose thickness varies between suppliers — require a parameter test before any full job.

How to Quote Laser Cleaning for Industrial Mold Maintenance

Four inputs determine scope and pricing: coating type, residue chemistry, mold geometry (vent count, slot depth), and cleaning history. Coating type controls whether argon assist and defocusing are required. (Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice)

1Identify coating type before setting parameters
  • Chrome-plated die casting tooling requires argon gas assist and positive defocusing — misidentifying a chrome-plated die as uncoated H13 and running standard settings risks irreversible chrome plating damage before the error is detected.
  • Two findings rule laser out at this step — a mold whose coating cannot be identified and whose owner will not authorize a test coupon on a non-critical face, and tooling already stripped past the plating, where the exposed base metal needs re-plating rather than cleaning.
  • Zinc die casting molds release zinc oxide fume, which Cal/OSHA §5155 caps at 5 mg/m³ averaged across an 8-hour shift — the permissible exposure limit (PEL) — so residue chemistry has to be confirmed before cleaning starts to determine whether an enclosed extraction cell is required.
2Run a 2–5 cavity sample validation run
  • Uncoated H13 and P20 clean at 0.8–1.5 J/cm² on standard settings; chrome-plated dies use defocusing and argon assist per Jia et al. (2019) — each coating type receives a separate parameter assignment before production cleaning begins.
  • A 4-cavity mold with 8–24 vents runs 16–96 minutes at 2–4 minutes per vent — the sample run benchmarks throughput and produces documented pulse energy, speed, and pass count for every future cleaning cycle.
3Receive parameter log and cycle time comparison
  • Z-Beam identifies unknown coating type before setting parameters — nitrided surfaces and Physical vapor deposition (PVD) (physical vapor deposition) coatings require a parameter test before any production cleaning run proceeds, because coating thickness varies enough between suppliers that a published window does not transfer.
  • Assessment produces a per-cavity parameter log and mold cycle time comparison satisfying IATF 16949 mold maintenance record requirements, with the validation run priced at $150–250.
Sources(6 references)
  1. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  2. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  3. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  4. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  5. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  6. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr

Compliance Snapshot

Regulatory exposure limits and permit triggers for Industrial Mold Laser Cleaning Assessment and Quote. (ANSI Z136.1 — Safe Use of Lasers; SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast; Top 5 Industrial Laser Cleaning Machines for Rust; Cost of Laser Rust Removal in 2026: $80-$300/hr; How to Bid on an Abrasive Blasting Project and; Abrasive Blast Consumption, Production and; AP42 Section 13.2.6: Abrasive Blasting — EPA; Mold, Smoke & Fire Remediation with Dry Ice; Dry Ice Blasting vs Sand Blasting vs Soda; Laser Cleaning Service Cost Per Square Foot 2026:; How Much Does Dry Ice Blasting Cost? 5 Key; How to Properly Contain a Site for Abrasive; Sandblasting Containment Methods: A Compliance)

  • Zinc Oxide

    Cal/OSHA TWA/PEL: 5 mg/m³ (ACGIH action level 2 mg/m³)

    Air-district permit: Required

    Enclosed extraction cell with HEPA required.

  • Iron Oxide

    Cal/OSHA TWA/PEL: 5 mg/m³

    Air-district permit: Not required

    Generated as Fe2O3/Fe3O4 particles during ablation of oxidized steel.

Sources(13 references)
  1. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  2. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  3. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  4. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  5. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  6. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  7. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  8. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. Laser Cleaning Service Cost Per Square Foot 2026: The Ultimate Guide — Source data for Laser Cleaning — adjustedHourlyRate
  11. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Source data for Dry Ice Blasting — adjustedHourlyRate
  12. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  13. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Frequently Asked Questions

  • What information is needed to get a mold cleaning quote?

    Four inputs settle the quote — coating type, residue type, mold size and vent count, and cleaning history. Coating type is the one that changes the process rather than just the price. If the coating is unknown, Z-Beam identifies it before setting any parameter. Chrome-plated dies use argon assist per the Jia et al. 2019 method and uncoated H13 or P20 run on standard settings, while nitrided surfaces and PVD (physical vapor deposition, a thin.

  • What does the sample validation run determine before production cleaning?

    The sample run on 2–5 cavities settles three things before you commit the whole tool. First, it confirms the fluence works on your specific coating and residue — chrome-plated dies and uncoated H13 behave nothing alike, and a setting proven on one will not transfer. Second, it benchmarks throughput at typically 2–4 minutes per vent, so a 4-cavity mold with 8–24 vents comes in somewhere between 16 and 96 minutes. Third, and the part that.

  • Can Z-Beam come to our facility for large or heavy die casting tooling?

    Yes — Z-Beam mobilizes on-site for H13 or P20 tooling above 500 kg that cannot practically be moved. The portable 300 W pulsed fiber system needs only 240 V single-phase power, so no facility work is required. On-site service covers Fremont, Hayward, and San Jose tooling shops with portable extraction. In-shop cleaning at Z-Beam's Bay Area facility is usually cheaper when the tool can travel, because the extraction is already built. Zinc die casting residue. (ANSI Z136.1 — Safe Use of Lasers)

  • What coatings does mold laser cleaning remove, and at what parameters?

    Four coating and residue combinations cover almost every mold that comes through, and each gets its own documented process window qualified on 2–5 sample cavities before production cleaning starts. Chrome-plated dies carrying rubber or polymer residue need argon gas assist and positive defocusing for slot cleaning. Jia et al. (2019) confirmed single-scan removal that way at 0.97 J/cm², with chrome damage beginning at 1.05 — about 8% of headroom. Without argon, the extra passes push.

  • What are the safe laser fluence ranges for mold maintenance materials?

    Chrome-plated surfaces are the tightest case and they govern any tool you cannot positively identify — 0.4 to 0.9 J/cm², and that is with no assist gas. Assume chrome until coating identification says otherwise. The bare steels have more room. P20 tool steel runs 0.8–1.5 J/cm². H13 hot-work steel runs 1.0–1.8 J/cm². Nitrided surfaces run 0.9–1.8 J/cm². Stainless 420/440C runs 0.8–1.6 J/cm². Carbonized polymer residue lifts at 0.5–1.0 J/cm². Validate all of these on representative.

Sources(14 references)
  1. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  2. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  3. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  4. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  5. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  6. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  7. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  8. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Dry Ice Blasting: 150 USD/hr
  11. The Definitive Guide to Dry Ice Blasting — Cold Jet — Dry Ice Blasting: 150 USD/hr
  12. Dry Ice Blasting Business | Revenue, Margins & Startup Cost — Dry Ice Blasting: 150 USD/hr
  13. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  14. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Mold Substrate Materials

The substrate under the residue sets the parameters, and the spread across mold materials is nearly four to one. H13 hot-work tool steel dominates die casting dies and holds temper up to 1.8 J/cm². P20 mold steel, the standard injection mold material, damages at 1.5 J/cm². Stainless steel 420/440C, common in medical and food-contact molds, damages at 1.6 J/cm². Chrome plating is the outlier at 0.9 J/cm², and nickel-plated surfaces need the same conservative treatment — stay below the fluence at which the plating delaminates.

Tool Steel surface undergoing laser cleaning showing precise contamination removal

Tool Steel

View details: Tool Steel. Category: metal. Subcategory: Alloy.

Tool steel is where temper temperature, not damage threshold, governs what's safe. D2 cold-work die steel has a temper limit around 150°C — a single aggressive cleaning pass that pushes surface temperature above that threshold causes martensite softening, and a die that was Rc 60 before cleaning can leave the shop measurably softer. H13 hot-work steel is far more forgiving (530°C+ temper), but D2, M2, and W-series water-hardening grades each have their own thermal budget.

Stainless Steel surface undergoing laser cleaning showing precise contamination removal

Stainless Steel

View details: Stainless Steel. Category: metal. Subcategory: Ferrous.

Nanosecond laser cleaning does not leave stainless steel with a clean version of its original surface — it creates a new Cr-based oxide layer and transiently depletes chromium from subsurface zones, confirmed by EPMA analysis of 304L (Micromachines 2025, DOI: 10.3390/mi16121366). At energy levels below 11.19 J/cm², pitting potential improves by ~230 mV versus untreated baseline (Yang et al. 2022, DOI: 10.1002/maco.202213541).

Nickel surface undergoing laser cleaning showing precise contamination removal

Nickel

View details: Nickel. Category: metal. Subcategory: Specialty.

Laser cleaning removes NiO oxide scale from nickel at 0.45–0.88 J/cm² — well inside the 4.15 J/cm² substrate damage threshold (Scientific Reports/Nature, 2024), giving operators a 3.7 J/cm² working window that makes nickel one of the more forgiving specialty metals to clean. The critical constraint is toxicological, not energy level: NiO fumes are classified IARC Group 1 carcinogens, and Cal/OSHA §5155 Table AC-1 sets the insoluble nickel compound Permissible exposure limit (PEL) at 0.1 mg/m³ Time-weighted average (TWA) — 10× more restrictive than the federal OSHA limit of 1 mg/m³. Thermal conductivity of 90.7 W/m·K keeps the heat-affected area small and the process predictable.

Quick Facts

Key parameters and properties for Industrial Mold Laser Cleaning Assessment and Quote.

ParameterValue
Cal/OSHA zinc oxide fume PEL5 mg/m³ (ACGIH action level 2 mg/m³)
Cal/OSHA iron oxide fume PEL5 mg/m³
Sources(13 references)
  1. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  2. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  3. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  4. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  5. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  6. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  7. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  8. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. Laser Cleaning Service Cost Per Square Foot 2026: The Ultimate Guide — Source data for Laser Cleaning — adjustedHourlyRate
  11. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Source data for Dry Ice Blasting — adjustedHourlyRate
  12. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  13. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Failure Modes

What can go wrong and how to avoid it when laser cleaning Industrial Mold Laser Cleaning Assessment and Quote.

ConditionConsequence
Scope mismatch from quote based on insufficient substrate/contaminant data[1],[2],[3],[4],[5],[6],[7],[8],[9],[10],[11],[12],[13]—
Sources(13 references)
  1. ANSI Z136.1 — Safe Use of Lasers — Laser Cleaning: Minimal to none: Non-contact ablation vaporizes contaminants without abrading or mechanically stressing the substrate. Parameter-controlled at 300W (Netalux Kamino class).
  2. SSPC-SP10 / ISO 8501-1 Sa 2.5 — Near-White Blast Cleaning surface-preparation standard — Sandblasting: High: Abrasive action creates measurable surface profile (1.5–4 mils anchor pattern on steel). Causes pitting, warping, or erosion on softer or delicate materials.
  3. Top 5 Industrial Laser Cleaning Machines for Rust Removal in 2026 — Laser Cleaning: 80 sq ft/hr
  4. Cost of Laser Rust Removal in 2026: $80-$300/hr Service | $0.50/hr to Operate — Laser Cleaning: 80 sq ft/hr
  5. How to Bid on an Abrasive Blasting Project and Profit — Graco Contractor Guide — Sandblasting: 150 sq ft/hr
  6. Abrasive Blast Consumption, Production and Cleaning Rates — Technical Bulletin — Sandblasting: 150 sq ft/hr
  7. AP42 Section 13.2.6: Abrasive Blasting — EPA Emissions Factor Documentation — Sandblasting: 150 sq ft/hr
  8. Mold, Smoke & Fire Remediation with Dry Ice Blasting — Cold Jet Production Rates — Dry Ice Blasting: 200 sq ft/hr
  9. Dry Ice Blasting vs Sand Blasting vs Soda Blasting — 2026 Comparison — Sandblasting: 75 USD/hr
  10. Laser Cleaning Service Cost Per Square Foot 2026: The Ultimate Guide — Source data for Laser Cleaning — adjustedHourlyRate
  11. How Much Does Dry Ice Blasting Cost? 5 Key Factors to Consider — Source data for Dry Ice Blasting — adjustedHourlyRate
  12. How to Properly Contain a Site for Abrasive Blasting — Graco Contractor Guide — Source data for Sandblasting — initialSetupCost
  13. Sandblasting Containment Methods: A Compliance Guide — Source data for Sandblasting — initialSetupCost

Process Windows by Mold Maintenance Material

Safe 1064 nm pulsed fiber laser fluence windows (J/cm²) by surface for mold maintenance material. Cleaning floor, damage ceiling, and usable process window per material. Validate parameters on representative samples before production cleaning.

Fluence (J/cm²)Chrome-plated mold surfaces0.4 J/cm²Carbonized polymer residue0.5 J/cm²Nitrided surfaces0.9 J/cm²P20 tool steel8.0 J/cm²12.0 J/cm²H13 hot-work steel8.0 J/cm²12.0 J/cm²Stainless steel 420/440C5.0 J/cm²12.0 J/cm²0 J/cm²5 J/cm²10 J/cm²15 J/cm²
  • This material (highlighted)
  • Other materials in this group
Safe 1064 nm pulsed fiber laser fluence windows (J/cm²) by surface for mold maintenance material. Cleaning floor, damage ceiling, and usable process window per material. Validate parameters on representative samples before production cleaning.
