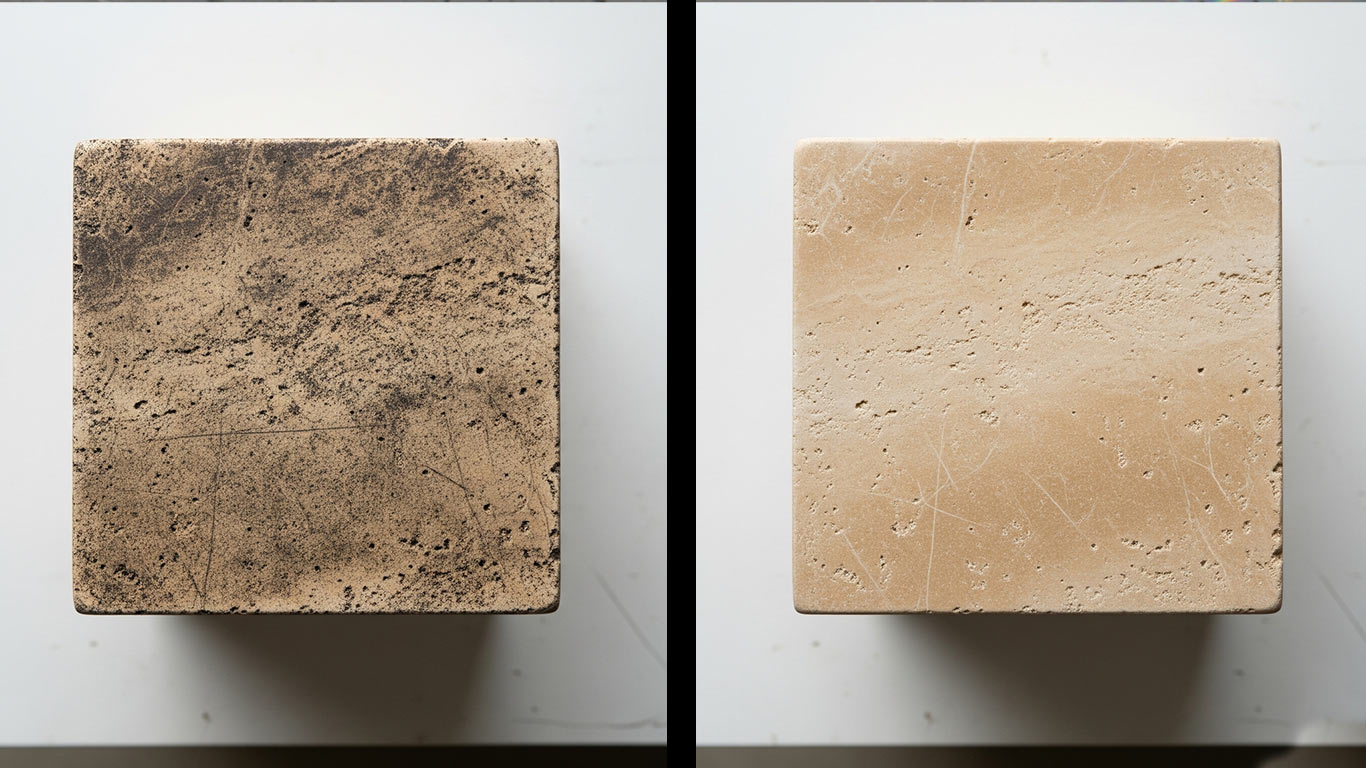

Travertine Laser Cleaning
Taking crust and soiling off travertine with a pulsed laser works when energy stays gentle enough not to etch the calcite or blow out void bands. Lithotype and void content decide the map, so a scrap patch of the same banding comes first. Several light passes usually beat one aggressive scan on banded stock. Stone dust control belongs on for the whole dry job.
Name travertine stock before the first pulse
Travertine laser cleaning requires a written lithotype call before any energy raise on the bench, because void-rich banding traps soil below the face and polymer recipes stay off this carbonate path until HEPA capture is live under OSHA 29 CFR 1926.1153 and a hidden coupon map is frozen on the scrap face inside about 0.3 to 1.0 joules per square centimeter (British Museum Parthenon sculptures conservation) (OSHA, "Respirable Crystalline Silica Standard for).
1Record lithotype and porosity class
- Require quarry or petrographic notes before setup. Filled versus open void faces behave differently under repeated low-energy passes.
- Polymer or steel presets rule out this stone path, stop and open a carbonate coupon plan instead.
2Stage silica and dust capture
- Treat travertine masonry cleaning as respirable-dust work and stage source capture before the coupon pass.
- Install HEPA exhaust at the head before the coupon pass. A respirator alone does not replace local capture.
3Walk coupons inside the entity band
- Raise energy in small steps on a scrap face until soiling lifts without yellowing or void collapse, then freeze that map.
- Compare with marble laser cleaning or limestone laser cleaning only when the substrate call matches.
Sources(2 references)
- British Museum Parthenon sculptures laser cleaning conservation (1999-2005) oceanplayer.com (opens in new tab) — Cleaning band 0.3–1.0 J/cm² on carbonate travertine
- OSHA, "Respirable Crystalline Silica Standard for Construction — 29 CFR 1926.1153", Occupational Safety and Health Administration elcosh.org (opens in new tab) — OSHA 29 CFR 1926.1153 silica framing for travertine
Common questions when laser cleaning travertine
What energy band should coupons use on travertine?
Walk a hidden face inside the primary damage band from 1.0 to 2.5 J/cm² at 1064 nm (Comparative study of pulsed laser cleaning) in small steps rather than copying polymer or steel recipes from another bay.
What dust rules apply to travertine laser work?
Stage source capture under OSHA 29 CFR 1926.1153 and Cal/OSHA section 1532.3 before the first coupon pass because cleaning can raise respirable dust on masonry stock.
When does travertine laser cleaning fail?
Jobs fail when lithotype notes get skipped, when silica capture is missing, or when multiple low-energy passes never reach soil trapped inside voids. Compare carbonate peers on marble laser cleaning only after the stone is named.
Sources(1 reference)
- Comparative study of pulsed laser cleaning applied to weathered marble surfaces, Applied Surface Science, 2013 sciencedirect.com (opens in new tab) — Primary damage band 1.0–2.5 J/cm² on travertine
Production window among porous carbonate peers
Travertine has a wider chart margin than marble because cleaning onset near 0.8 J/cm² sits farther below the 2.5 J/cm² ceiling on the chart. Hidden coupons inside the 1.0–2.5 J/cm² band work better than importing polymer or steel presets from another bay (Marakis et al. 2003 third-harmonic yellowing study).
- This material (highlighted)
- Other materials in this group
Sources(1 reference)
- Marakis, G., Pouli, P., Zafiropulos, V., Maravelaki-Kalaitzaki, P. 'Comparative study on the application of the 1st and the 3rd harmonic of a Q-switched Nd:YAG laser system to clean black encrustation on marble.' Journal of Cultural Heritage, vol. 4, 2003, pp. 83-91. sciencedirect.com (opens in new tab) — Marakis et al., J. Cultural Heritage, 2003 travertine cleaning thresholds
Cleaning parameters unique to travertine carbonate faces
Black crust and soiling on travertine usually leave first near 0.3–1.0 J/cm² on carbonate faces (British Museum Parthenon sculptures conservation). The hard ceiling from inherited entity facts sits at 2.5 J/cm² (Comparative study of pulsed laser cleaning), so void-rich stock needs smaller energy steps and more passes than dense marble until color stays even across the scan.
Sources(1 reference)
- British Museum Parthenon sculptures laser cleaning conservation (1999-2005) oceanplayer.com (opens in new tab) — Cleaning band 0.3–1.0 J/cm² on travertine
Key facts when laser cleaning travertine
Travertine on this chart carries tensile strength near 5.2 megapascals and density near 2650 kilograms per cubic meter once lithotype and silica controls are set (MatWeb material property data). Short-pulse 1064 nm sources are the usual class for porous carbonate heritage panels.
| Parameter | Value |
|---|---|
| Canonical substrate | Travertine (porous CaCO₃) |
| Tensile strength | 5.2 MPa |
| Primary damage band | 1.0–2.5 J/cm² |
| Published cleaning band | 0.3–1.0 J/cm² |
Sources(1 reference)
- MatWeb Material Property Data — Online Materials Information Resource matweb.com (opens in new tab) — 5.2 MPa tensile; 2650 kg/m³ density on travertine chart
Failure modes when laser cleaning travertine
Travertine jobs fail when lithotype checks get skipped or when silica capture stays off the setup list. Void-rich panels that yellow before soiling clears are another common break when dense-marble steps get copied onto banded stock (The theory and application of nanosecond Laser).
| Condition | Consequence |
|---|---|
| No local exhaust for travertine dust[1] | Crews breathe respirable dust including trace silica |
| Lithotype or void-fill class ignored before production[1] | Wrong energy map or irreversible calcite color change |
| Single high-energy pass on void-rich face[1] | Premature yellowing or surface weakening |
Sources(1 reference)
- The theory and application of nanosecond Laser surface treatment technology: A review journals.sagepub.com (opens in new tab) — Nanosecond laser surface treatment parameter ranges
Related videos
Silica and dust rules for porous carbonate travertine work
Travertine laser cleaning falls under the same silica and dust rules as other carbonate masonry work. Federal construction silica limits under OSHA 29 CFR 1926.1153 apply before coupons, Cal/OSHA section 1532.3 mirrors those limits on Bay Area jobs, and Regulation 6 still limits visible plumes on outdoor facade work (BAAQMD Regulation 6 particulate matter).
OSHA
View official documentation (opens in new tab)OSHA 29 CFR 1926.1153 frames respirable crystalline silica exposure when travertine cleaning throws carbonate and trace-quartz dust into the breathing zone during masonry cleaning.[3]
Cal/OSHA
View official documentation (opens in new tab)Title 8 section 1532.3 mirrors construction silica permissible exposure limits when Bay Area crews ablate travertine panels without source capture on the head.[1]
BAAQMD
View official documentation (opens in new tab)Regulation 6 limits visible plumes from industrial dust sources, so capture still matters on outdoor travertine facade work even when the substrate is carbonate rather than quartz-rich sandstone.[2]
Sources(3 references)
- 8 CCR §1532.3 — Occupational Exposures to Respirable Crystalline Silica (Construction) dir.ca.gov (opens in new tab) — Cal/OSHA section 1532.3 construction silica framing
- BAAQMD Regulation 6 — Particulate Matter, Common Definitions and Test Methods baaqmd.gov (opens in new tab) — BAAQMD Regulation 6 visible emissions Ringelmann No. 1
- OSHA, "Respirable Crystalline Silica Standard for Construction — 29 CFR 1926.1153", Occupational Safety and Health Administration elcosh.org (opens in new tab)
