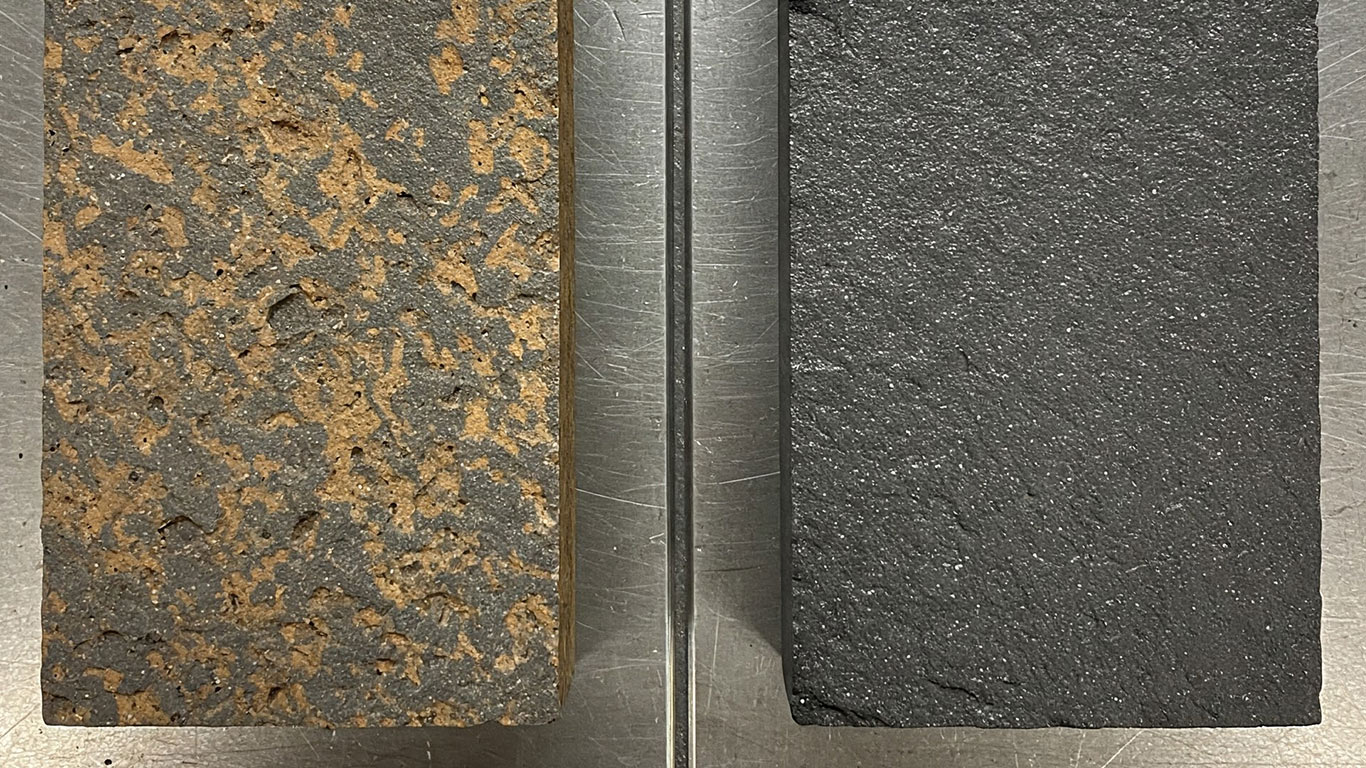

Basalt Laser Cleaning
Paving and monuments in basalt are dark volcanic stone, and that darkness means the face absorbs heat quickly. Crust and later coatings can come off with a dry laser pass when the stone type is identified and silica-bearing dust is captured at the head. A copied limestone or sandstone setting can fracture a vein or glaze a polished face. A trial on the actual quarry product comes before any full-area pass.
Name the basalt stock before energy rises
Basalt laser cleaning requires a written lithotype call and silica capture before any energy raise on the bench, because dark volcanic faces absorb strongly until HEPA exhaust is live and a hidden coupon map is frozen on scrap stock (Rodríguez-Navarro C. et al., "Laser cleaning of).
1Record lithotype and weathering grade
- Require quarry or petrographic notes before setup. Vesicular faces behave differently from dense paving stock.
- Polymer or steel presets rule out this stone path, stop and open an igneous coupon plan instead.
2Stage silica and dust capture
- Treat basalt masonry cleaning as respirable-dust work and stage source capture before the coupon pass.
- Install HEPA exhaust at the head before the coupon pass. A respirator alone does not replace local capture under OSHA 29 CFR 1926.1153.
3Walk coupons without copying metal presets
- Raise energy in small steps on a scrap volcanic face until soiling leaves without grain pop-out, then freeze that map.
- Compare with granite laser cleaning or bluestone laser cleaning only when the substrate call matches.
Sources(1 reference)
Common questions when laser cleaning basalt
Does laser cleaning work on basalt monuments and paving?
Laser cleaning works on basalt monuments and paving when energy stays inside a mapped band on the named volcanic face and silica capture is live before production passes. Charted igneous peers place basalt cleaning onset near 2.8 J/cm² with an upper chart value near 5 J/cm². Quarry-specific injury limits remain unpublished, so hidden scrap mapping still sets the working band (Cooper stone laser cleaning overview).
What lithotype checks come before the first pulse?
Write down quarry or petrographic notes for the basalt stock, including vesicle density and weathering grade, before any energy raise. Polymer or steel presets rule out this stone path, open an igneous coupon plan instead and compare only with peers such as granite laser cleaning after the substrate call matches.
What silica exposure limits apply to basalt masonry work?
Treat basalt laser cleaning as respirable-dust work under federal construction silica rules, with California Title 8 section 1532.3 mirroring the construction permissible exposure limit when crystalline silica is present in the plume. HEPA source capture belongs on the setup checklist before coupons (Cooper stone laser cleaning overview).
Is there a published injury limit for named basalt products?
Named basalt quarry products have no peer-reviewed injury limit on this page. Secondary chart estimates still need a hidden scrap map before production energy rises (Cooper stone laser cleaning overview).
Sources(1 reference)
- Cooper, M. 'Laser cleaning of stone materials: an overview of current research.' Reviews in Conservation, no. 4, 2003, pp. 1-26. lrmh.fr (opens in new tab) — Stone laser cleaning overview — coupon the basalt
How dark basalt responds under a 1064 nm pulse
Near-infrared energy couples strongly into dark mafic faces because charted absorptivity stays near 0.85, so heat lingers near the surface during short-pulse cleaning. Light carbonaceous films on igneous peers often leave before operators approach substrate injury bands. Basalt coupons therefore still rise in small steps (Pozo-Antonio, J.S. et al. 'Laser-Assisted Removal of Graffiti from Granite:).
Sources(1 reference)
- Pozo-Antonio, J.S. et al. 'Laser-Assisted Removal of Graffiti from Granite: Advantages of the Simultaneous Use of Two Wavelengths.' Coatings, vol. 8, no. 4, 2018, 124. mdpi.com (opens in new tab) — Carbonaceous films leave igneous stone at lower fluence than substrate injury
Dark volcanic facts against igneous peers
Dark volcanic basalt holds heat near the cleaned face longer than many lighter igneous peers. Heritage paving and monument work needs careful energy steps rather than borrowed steel presets. Charted tensile strength sits near 14 MPa with density about 2,900 kg/m³, thermal conductivity near 1.74 W/m·K, and absorptivity near 0.85 at 1064 nm among stone peers on this page (MatWeb Material Property Data — Online Materials Information Resource).
Sources(1 reference)
- MatWeb Material Property Data — Online Materials Information Resource matweb.com (opens in new tab) — Basalt tensile 14 MPa; density 2900 kg/m³; thermal conductivity 1.74 W/m·K; absorptivity 0.85
Production window among igneous stone peers
Basalt keeps a wider charted energy margin among igneous stone peers than granite does on the same series. Cleaning onset sits near 2.8 J/cm² with an upper chart value near 5 J/cm², while granite's published band runs about 0.7–1.5 J/cm², and named volcanic stock still needs a hidden coupon map because quarry injury limits remain unpublished (Laser cleaning of granite: wavelength/biofilm study, Coatings 2020, 10(3):1).
- This material (highlighted)
- Other materials in this group
Sources(1 reference)
- Laser cleaning of granite: wavelength/biofilm study, Coatings 2020, 10(3):196 doi:10.3390/coatings10030196 (opens in new tab) — Granite peer published band for igneous chart comparison
Cleaning parameters unique to volcanic basalt faces
Atmospheric soiling and soot on basalt often leave inside the lower chart band. Heavier encrustation on the same volcanic face can need energy closer to the upper chart value. Chart estimates span about 2.8 to 5 joules per square centimeter. Igneous peers such as granite graffiti trials show why named quarry products still need hidden scrap mapping (Two-wavelength laser graffiti removal on granite, Coatings 2018, 8(4):124).
Sources(1 reference)
- Two-wavelength laser graffiti removal on granite, Coatings 2018, 8(4):124 doi:10.3390/coatings8040124 (opens in new tab) — Igneous peer graffiti thresholds for chart comparison
Key facts when laser cleaning basalt
Key basalt laser cleaning facts include a mafic volcanic substrate class and short-pulse 1064 nm tools as the usual starting point once lithotype and silica controls are set. Named quarry products still lack a published injury limit, so crews treat chart estimates as trial guides rather than verified ceilings (OSHA Crystalline Silica — Health Effects and Standards).
| Parameter | Value |
|---|---|
| Canonical substrate | Basalt (mafic volcanic) |
| Tensile strength | 14 MPa |
| Absorptivity at 1064 nm | ~0.85 |
| Named-basalt typed window | Chart estimate only — coupon required |
Sources(1 reference)
- OSHA Crystalline Silica — Health Effects and Standards osha.gov (opens in new tab) — OSHA crystalline silica health effects overview for stone dust
Failure modes when laser cleaning basalt
Basalt laser cleaning fails when lithotype notes get skipped, when silica capture stays off during coupons, or when chart estimates get treated as verified quarry limits (Type 1 Pulmonary Hypertension and Silicosis in a Bluestone C).
| Condition | Consequence |
|---|---|
| No local exhaust for basalt dust[1] | Crews breathe respirable dust including crystalline silica when present |
| Lithotype or weathering grade ignored before production[1] | Wrong energy map or irreversible grain pop-out on vesicular faces |
| Chart estimate treated as verified quarry limit[1] | Substrate injury before soiling leaves the face |
Sources(1 reference)
- Type 1 Pulmonary Hypertension and Silicosis in a Bluestone Cutter: A Case Report on Raising Awareness pmc.ncbi.nlm.nih.gov (opens in new tab) — Silicosis risk framing for stone cutting dust exposure
Related videos
Silica and dust rules for volcanic basalt work
Basalt laser cleaning on heritage paving, monuments, and facade stock must control respirable dust before coupons run. Mafic volcanic faces can still release crystalline silica when mineral dust leaves the head. Federal OSHA 29 CFR 1926.1153, Cal/OSHA section 1532.3, and Bay Area Regulation 6 visible-emission limits all apply when capture is missing (OSHA, "Respirable Crystalline Silica Standard for Construction - 29 CFR 192) (8 CCR §1532.3 - Occupational Exposures to Respirable Crystalline Silica (Co) (BAAQMD Regulation 6 - Particulate Matter, Common Definitions and Test Metho).
OSHA
View official documentation (opens in new tab)OSHA 29 CFR 1926.1153 frames respirable crystalline silica exposure when basalt laser cleaning raises mineral dust into the breathing zone during masonry or monument restoration.[1]
Cal/OSHA
View official documentation (opens in new tab)Title 8 section 1532.3 mirrors construction silica permissible exposure limits when Bay Area crews ablate basalt panels or paving without source capture on the head.[2]
BAAQMD
View official documentation (opens in new tab)Regulation 6 limits visible plumes from industrial dust sources, so capture still matters on outdoor basalt facade and paving work even when the stone is dense volcanic rock rather than soft carbonate.[3]
Sources(3 references)
- OSHA, "Respirable Crystalline Silica Standard for Construction — 29 CFR 1926.1153", Occupational Safety and Health Administration osha.gov (opens in new tab) — OSHA 29 CFR 1926.1153 silica framing for basalt masonry dust
- 8 CCR §1532.3 — Occupational Exposures to Respirable Crystalline Silica (Construction) dir.ca.gov (opens in new tab) — Cal/OSHA section 1532.3 construction silica permissible exposure limit framing
- BAAQMD Regulation 6 — Particulate Matter, Common Definitions and Test Methods baaqmd.gov (opens in new tab) — BAAQMD Regulation 6 visible emissions Ringelmann No. 1
