Sandstone Laser Cleaning
Sandstone requires the lithotype and cement class on record before a laser pass, since quartz grains sit inside a porous binder that traps dust and silica rather than releasing them cleanly. That binder soaks water the way granite does not, and quartzite removes that same softness by fusing the grains into a stone with almost no pore space left to hold moisture. A pass sized for quartzite drives grime from atmospheric soiling deeper into open sandstone instead of clearing it, while settings sized to the binder keep the surface intact and send loose dust to capture instead of back into the stone.

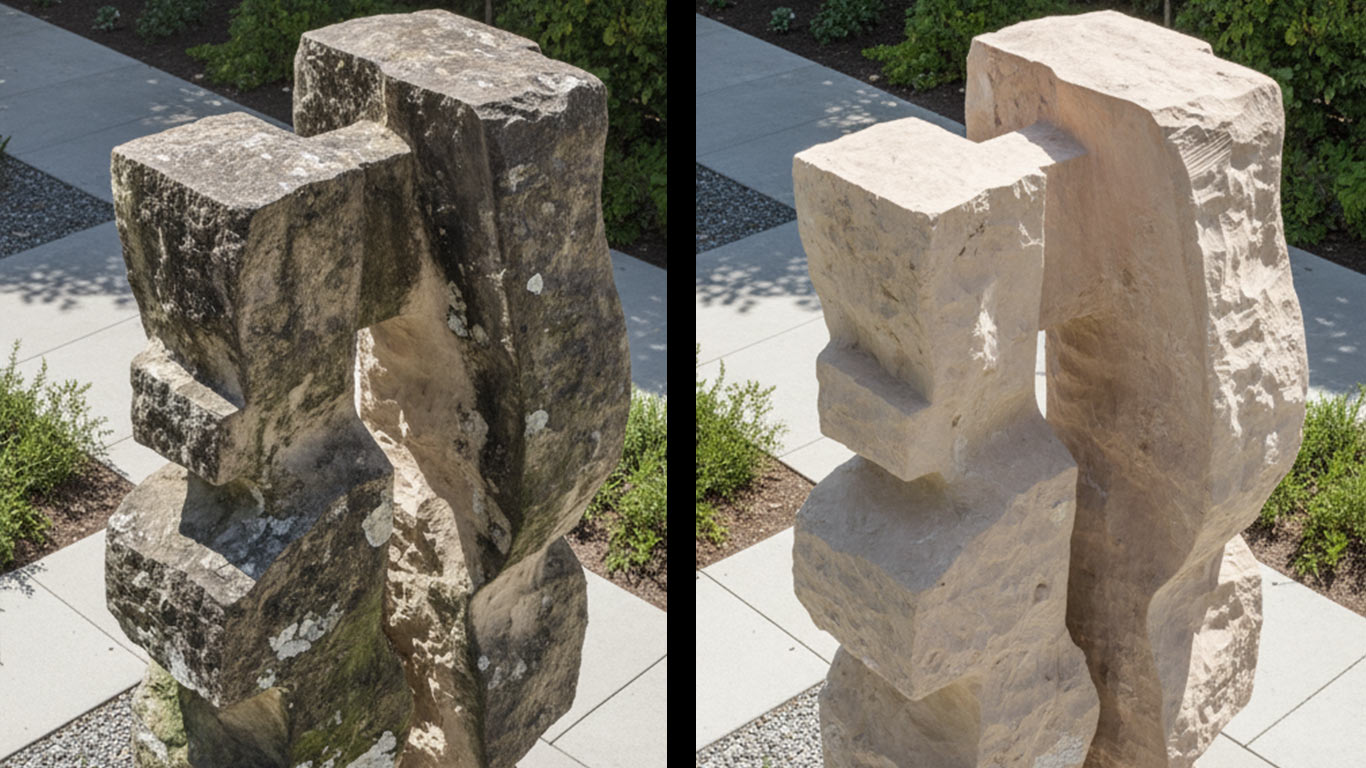

What the pass leaves on Sandstone
| Final results | Atmospheric soiling, fire char, paint, and metallic staining are off the face, and the sand grains are still locked in the binder. |
| Speed and ease | The laser clears the growth without the roughly 15-minute biocide dwell the legacy wash needs. |
What makes Sandstone hard to clean
| Contaminants | Black crust, soot, paint, and metallic deposits. |
| Methods | Even after the roughly 15-minute biocide dwell, the surface still has to be scrubbed to lift the growth — the dwell alone does not release it. |
| Challenges | Sandstone can delaminate under improper treatment. |
Silica and dust rules for quartz-rich sandstone work
Respirable crystalline silica drives the compliance path on Bay Area sandstone facades because quartz grains dominate many heritage panels. Stage HEPA capture before coupons under OSHA 29 CFR 1926.1153, Cal/OSHA section 1532.3, and Bay Area Regulation 6 visible-emission limits on outdoor scaffold work (BAAQMD Regulation 6 particulate matter).
Cal/OSHA
View official documentation (opens in new tab)Title 8 section 1532.3 sets construction silica permissible exposure limits at 50 micrograms per cubic meter with an action level at 25 micrograms per cubic meter when Bay Area crews ablate quartz-rich stone without source capture.[1]
BAAQMD
View official documentation (opens in new tab)Regulation 6 limits visible plumes from industrial dust sources, so capture still matters on outdoor sandstone facade work even when the crew stays inside published energy bands.[2]
Sources(3 references)
- 8 CCR §1532.3 — Occupational Exposures to Respirable Crystalline Silica (Construction) dir.ca.gov (opens in new tab) — Cal/OSHA section 1532.3 construction silica PEL 50 µg/m³; action level 25 µg/m³
- BAAQMD Regulation 6 — Particulate Matter, Common Definitions and Test Methods baaqmd.gov (opens in new tab) — BAAQMD Regulation 6 visible emissions Ringelmann No. 1
- OSHA, "Respirable Crystalline Silica Standard for Construction — 29 CFR 1926.1153", Occupational Safety and Health Administration elcosh.org (opens in new tab)
Name the sandstone stock before the first pulse
Sandstone laser work requires a written lithotype call before the first pulse on Bay Area heritage panels. This silicate path stays off polymer or steel presets until HEPA capture is live and a hidden coupon maps inside the 0.85–1.25 J/cm² band (Cooper et al. 2000) (Determination of damage thresholds to prevent) (OSHA, "Respirable Crystalline Silica Standard for).
1Record lithotype and cement class
- Require quarry or petrographic notes before setup. Colusa panels on San Francisco facades behave differently from generic quartz arenite imports.
- Polymer or metal presets rule out this stone path, stop and open a silicate coupon plan instead.
2Stage silica and dust capture
- Treat sandstone masonry cleaning as respirable-dust work under OSHA 29 CFR 1926.1153 and Cal/OSHA section 1532.3.
- Install HEPA source capture before the coupon pass. A respirator alone does not replace exhaust at the head.
3Walk coupons inside the entity band
- Raise energy in small steps on a scrap face until soiling lifts without grain pop-out, then freeze that map.
- Compare with bluestone laser cleaning or limestone laser cleaning only when the substrate call matches.
Sources(2 references)
- Determination of damage thresholds to prevent side effects in laser cleaning of pliocene sandstone of Siena, Journal of Cultural Heritage, 2000 doi:10.1016/S1296-2074(00)00194-1 (opens in new tab) — Primary damage band 0.85–1.25 J/cm² on sandstone
- OSHA, "Respirable Crystalline Silica Standard for Construction — 29 CFR 1926.1153", Occupational Safety and Health Administration elcosh.org (opens in new tab) — OSHA 29 CFR 1926.1153 silica framing for sandstone
Related applications
Heritage Landmark Facade Cleaning
View details: Heritage Landmark Facade Cleaning. Category: applications. Subcategory: Heritage-Architectural.Landmark facade work requires a hidden test patch before pulsed laser cleaning touches any visible elevation. The pass removes soot, pollution crust, and graffiti from [brick](/materials/brick-laser-cleaning) and [limestone](/materials/limestone-laser-cleaning) without the abrasive contact that rounds tooling marks, and it suits [historic masonry](/applications/historic-masonry-restoration-laser-cleaning) jobs that have to stay the gentlest means that still meets the cleaning goal. It will not replace repointing, structural repair, or treatment for deep-rooted growth, and it will not strip [lead paint](/applications/lead-paint-laser-removal-bay-area) from ornamental iron in one pass without a separate low-energy setting and a capture plan. Wet, crumbling, or gilded surfaces stay off the schedule until a conservator says the fabric can take the work.
Historic Masonry Wall Restoration
View details: Historic Masonry Wall Restoration. Category: applications. Subcategory: Heritage-Architectural.On a brick, limestone, or sandstone wall, this job removes centuries of soot, biological growth, and pollution crusts from [brick](/materials/brick-laser-cleaning), [limestone](/materials/limestone-laser-cleaning), and [sandstone](/materials/sandstone-laser-cleaning) facades without the abrasive media that etches carved detail or grinds away original tooling marks. A calibrated beam lifts surface deposits layer by layer, leaving the substrate's patina and fine ornamental relief intact where sandblasting or dry-ice methods would round edges or drive moisture into porous stone. The process will not repoint failed mortar, consolidate spalling stone, or reverse decades of weathering already beneath the crust; those repairs still need a mason. Conservators pair the cleaning with condition surveys before touching any protected facade, and the same equipment scales from single relief panels to full elevations on [heritage architectural work](/applications/heritage-architectural-laser-cleaning-applications) where soda-blasting alternatives risk salt contamination in soft masonry.
Precision Surfaces Laser Cleaning
View details: Precision Surfaces Laser Cleaning. Category: applications. Subcategory: Precision-Surfaces.Precision surface work requires contact-free cleaning because gauge faces, optical flats, and polished tooling scratch under abrasive pads or chemical baths. Pulsed fiber sources remove fingerprint films, particulates, and thin oxide from these finishes without touching the substrate, but a continuous-wave fiber laser is not treated as a safe default here until a peer-reviewed study backs that claim. Semiconductor wafer chambers keep their own class-rated rules on [semiconductor cleanroom tooling laser cleaning](/applications/semiconductor-cleanroom-tooling-laser-cleaning), and release-layer mold work belongs on [mold and die laser cleaning](/applications/mold-die-laser-cleaning-applications) rather than here. Titanium implants and [stainless steel](/materials/stainless-steel-laser-cleaning) precision parts each need a shop-tested cleaning limit, since no single particulate count works across every polished substrate.
Common questions when laser cleaning sandstone
Does wet sandstone need different settings than dry stock?
Moisture in clay-rich pores can drive steam spalling when pulse energy climbs too fast on saturated panels. Dry or re-map coupons when the face holds water, and treat damp stock as a separate test sequence from dry scrap.
What dust rules apply to Bay Area sandstone laser work?
Quartz-rich sandstone cleaning triggers silica rules under OSHA 29 CFR 1926.1153 and Cal/OSHA section 1532.3 before the first production pass. HEPA source capture belongs on the setup checklist, not only a respirator at the belt.
Why does Colusa sandstone darken after some laser passes?
Post-clean darkening on San Francisco Colusa panels often traces to iron oxide cements, mostly goethite and hematite, shifting toward magnetite when 1064 nanometer pulses exceed the safe band (CAMEO, Colusa sandstone). That mineral change is a lithotype-specific reason to coupon before full bays.
Sources(1 reference)
- CAMEO — Colusa sandstone cameo.mfa.org (opens in new tab) — Colusa sandstone spalling tendency and iron-cement context
How sandstone responds under a 1064 nm pulse
Laser cleaning affects sandstone mainly through iron-oxide cements because charted light absorption sits near 0.65 at 1064 nm while quartz grains transmit much of the beam (MatWeb Material Property Data, Online Materials Information). Published reviews place black-crust removal in a 0.56–0.92 J/cm² band on sandstone coupons (Rodríguez-Navarro C. et al., "Laser cleaning of), while entity facts set the primary damage band from 0.85–1.25 J/cm² (Cooper et al. 2000). That narrow spread is why energy rises slowly on porous panels while dust capture stays live.
Sources(2 references)
- MatWeb Material Property Data — Online Materials Information Resource matweb.com (opens in new tab) — light absorption near 0.65 at 1064 nm on sandstone
Production window among sedimentary silicate peers
Sandstone holds the tightest margin on the sedimentary chart because the published 0.56–0.92 J/cm² crust band sits close to the 1.25 J/cm² ceiling (Cooper et al. 2000). Hidden-face coupons inside the 0.85–1.25 J/cm² band replace presets copied from polymer or steel bays (Rodríguez-Navarro C. et al., "Laser cleaning of).
- This material (highlighted)
- Other materials in this group
Sources(1 reference)
Failure modes when laser cleaning sandstone
Overrun energy damages sandstone by popping quartz grains and throwing respirable silica. That same pass also fails wet stock when steam blows grains from clay-rich pores. Colusa panels with iron cement break under heat more readily than a dry coupon would. Published nanosecond treatment ranges still need a hidden coupon on this stone.[1]
| Condition | Consequence |
|---|---|
| No local exhaust for sandstone dust[1] | Crews breathe respirable crystalline silica |
| Lithotype or cement class ignored before production[1] | Wrong energy map, grain pop-out, or post-clean magnetite darkening on Colusa panels |
| Wet face treated with dry-stock energy steps[1] | Steam spalling or premature grain loss |
Sources(1 reference)
- The theory and application of nanosecond Laser surface treatment technology: A review journals.sagepub.com (opens in new tab) — Nanosecond laser surface treatment parameter ranges
Key facts when laser cleaning sandstone
Heritage sandstone panels need lithotype and silica controls before short-pulse 1064 nm work begins (MatWeb material property data). Charted tensile strength sits at 6.5 MPa[1] with density at 2300 kg/m³ on this page (MatWeb Material Property Data, Online Materials Information).
| Parameter | Value |
|---|---|
| Canonical substrate | Quartz-rich sandstone / Colusa heritage panels |
| Tensile strength | 6.5 MPa |
| Primary damage band | 0.85–1.25 J/cm² |
| Published crust band | 0.56–0.92 J/cm² |
Sources(1 reference)
- MatWeb Material Property Data — Online Materials Information Resource matweb.com (opens in new tab) — 6.5 MPa tensile; 2300 kg/m³ density
