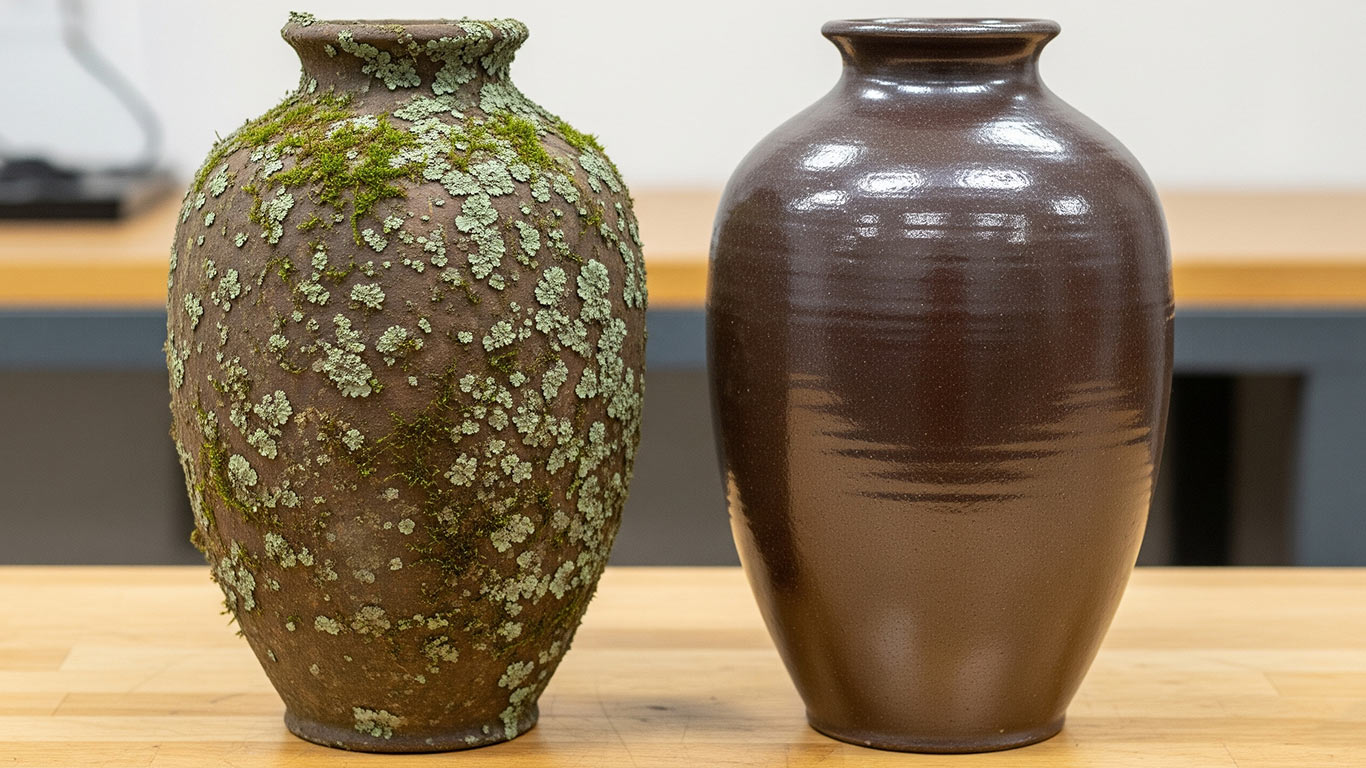

Stoneware surface undergoing laser cleaning showing precise contamination removal

Ikmanda RoswatiPh.D.Indonesia

Ultrafast photonics and laser-matter interaction

Published

Jan 6, 2026

Stoneware Laser Cleaning

Stoneware has a narrow safe window: surface spalling begins at 1.2 J/cm², well below the 2.1 J/cm² damage threshold, so the material can fracture before it cleans if energy isn't controlled. Fired at 1100–1300°C, it forms a partially vitrified body with residual crystalline-silica quartz that survives firing and holds contaminants at the surface. Z-Beam cleans it at an operating 0.6–1.5 J/cm² — a controlled low-energy pass, not maximum power, keeps the vitrified surface intact.

How to Clean Stoneware With a Pulsed Laser

1Assess stoneware grade and glaze type

Distinguish unglazed industrial stoneware (chemical vessels, drainage pipes) from glazed architectural stoneware — unglazed material tolerates the full 1.0–2.5 J/cm² range while glazed surfaces require glaze type identification before setting energy level.
Identify glaze type before setting parameters: standard salt glaze and ash glaze respond predictably, while crackle glaze and antique lead-based glaze are more susceptible to thermal delamination and require pre-clean testing at or below 0.6 J/cm².

2Test on a representative sample area

The primary failure mode is glaze delamination or chip release — the dense vitrified body tolerates 1.0–2.5 J/cm², but lead-based or crackle glazes risk spalling glaze chips above 0.8 J/cm², which is a contained debris hazard and a surface damage risk on heritage pieces.
Test glazed surfaces at 0.5–0.7 J/cm² with 40–50% overlap and moderate cleaning speed — confirm scale or soiling is lifting from the glaze surface without edge lifting or chipping before advancing energy level or pass count.

3Record the surface condition result

Each stoneware cleaning project produces a surface condition record with contamination depth verification documenting glaze type assessment, contamination removal result, and post-clean surface condition.
Written documentation includes stoneware grade, glaze type identification, contamination source, tested settings, and surface condition record for chemical processing facilities, drainage maintenance contractors, and architectural restoration projects.

Regulatory Standards

Laser cleaning stoneware produces fine silicate particulates. No toxic fumes are generated. Use ventilation with HEPA filtration for dust control. Stoneware absorbs 80% of 1064 nm energy, so backscatter is low. Standard laser safety eyewear for 1064 nm is required. The primary hazard is thermal shock cracking above 2.0 J/cm². Stoneware has better thermal shock resistance than porcelain, but still avoid rapid heating. For glazed pieces, monitor for glaze crazing.

FAQ

How do I prevent thermal shock when laser cleaning antique stoneware?
Thermal shock is controlled by staying below the 1.2 J/cm² spalling boundary for unglazed stoneware and the 1.4 J/cm² crazing limit for historically compromised glazes. Stoneware's thermal expansion of 5.8×10⁻⁶ K⁻¹ gives better shock tolerance than porcelain, but that margin disappears above those thresholds. Running two passes at 0.9–1.0 J/cm² distributes heating and keeps peak surface temperature well below the recrystallization point at 1200°C. Salt-glazed and crazed surfaces require coupon testing before any production work.
How effective is laser cleaning on heavily weathered stoneware?
Heavily weathered stoneware cleans reliably because its 2% porosity keeps contaminants at the surface rather than wicking them into the body. Mineral crust and biological soiling lift in 1–2 passes at 1.3–1.6 J/cm², within the confirmed cleaning window from Chlouveraki et al. (2005) on aluminosilicate pottery at 1064 nm. Deep atmospheric staining may need a third pass, but energy level should not exceed 2.0 J/cm² on any unglazed body — staying at that ceiling avoids the 2.1 J/cm² cleaning onset confirmed by Pou et al. (J. Cultural Heritage, 2009).
How should I adjust parameters when laser cleaning glazed stoneware?
Glazed stoneware starts at 0.9–1.1 J/cm² — glaze craze-cracks at 1.2 J/cm², a lower threshold than the 1.4 J/cm² limit for the unglazed bulk ceramic. Start at 0.9–1.1 J/cm² on intact glazes and cap at 1.2 J/cm² on any surface with visible pre-existing crazing, per Iwanicka et al. (LACONA XI, 2017) state-dependent damage findings. Salt-glazed surfaces should not exceed 1.0 J/cm² without coupon validation. Unglazed bodies tolerate up to 2.0 J/cm² before cleaning onset at 2.1 J/cm². Always run a glaze parameter check separately from the body.
What are the recommended parameters for stoneware laser cleaning?
Stoneware cleans at 1064 nm with energy level in the 1.0–2.0 J/cm² working range, 20–100 ns pulse length, and cleaning speed around 1500 mm/s at 50% overlap. The 1.2 J/cm² spalling boundary (Pou et al., J. Cultural Heritage, 2009) is the hard ceiling for heritage unglazed body work. Two passes at 1.0–1.5 J/cm² removes most contamination without approaching the 2.1 J/cm² cleaning onset. Glazed surfaces require a separate parameter check — reduce energy level 20–30% from whatever setting cleans the unglazed body.
What are the Cal/OSHA exposure limits for mineral particulate in cleaning?
Respirable crystalline silica from stoneware cleaning is regulated at 50 µg/m³ Time-weighted average (TWA) under Cal/OSHA Title 8 §5155 — the action level is 25 µg/m³. Amorphous silica (vitrified matrix particulate) carries a separate Permissible exposure limit (PEL) of 5 mg/m³ TWA under the same section. Both require ventilation with HEPA filtration and P100 respiratory protection during active cleaning. Air monitoring on initial setup is required to confirm exposure stays below the action level.

Technical Data

This material (highlighted)
Other materials in this group
Recommended fluence (1.5 J/cm²)

Machine Settings

Start with energy level at 0.6-1.5 J/cm², below the 2.1 J/cm² damage threshold. Use 1064 nm wavelength with 20 ns pulse length. Scan at 1500 mm/s with 50% overlap. Spot size at 500 μm. Stoneware has low porosity (2%) and absorbs 80% of energy. Never exceed 2.0 J/cm². Two passes at low energy level are safer than one pass near threshold. For glazed stoneware, reduce energy level by 20-30%. Glaze may craze at lower energy level than body. Salt-glaze surfaces are more sensitive. Test on a hidden area first. Watch for glaze crazing or body cracking. Unlike a hard technical oxide ceramic such as alumina, stoneware tolerates only a narrow energy level window.

Laser-Material Interaction

Stoneware's real challenge is that surface spalling begins below the damage threshold — the material fractures before it cleans if energy level isn't controlled carefully. The spalling boundary sits at 1.2 J/cm², well below the 2.1 J/cm² damage ceiling, which means the working range is tighter than the numbers suggest. The saving grace is low porosity (2%): because stoneware is dense and vitrified, contaminants stay near the surface rather than wicking into the body. Porous fired clay such as terracotta behaves the opposite way, letting deposits soak in.

Material Characteristics

Stoneware cleans predictably under pulsed laser because its vitrified body keeps contaminants at the surface rather than letting them wick into the material. Porosity is low at 2%, density is 2.4 g/cm³, and compressive strength reaches 345 MPa. The laser damage threshold is 1.2–2.1 J/cm². Thermal conductivity is 1.4 W/m·K and thermal expansion is low at 5.8×10⁻⁶ K⁻¹, making stoneware more thermally stable than porcelain. Hardness is 5.7 GPa. The glaze layer absorbs differently than the body and requires a separate parameter check.

Material Characteristics Sources(1 reference)

Traditional stoneware (feldspathic clay composition, 60% SiO2, 25% Al2O3), room temperature (20°C), 1064 nm Nd:YAG laser, nanosecond pulse length
Pou et al. Pou et al., Journal of Cultural Heritage, 2009, DOI: 10.1016/j.culher.2009.03.002

Technical Reference — Stonewareliterature-sourced

Parameter	Value	Conditions / Source
Cleaning fluence range	1.0–2.5 J/cm² (±±0.3 J/cm²)	Stoneware — soot, biological, mineral crust contamination · Chlouveraki et al., Lasers in the Conservation of Artworks (Springer), 2005, DOI: 10.1007/3-540-27176-7_18
Ablation onset (unglazed stoneware body)	1.2 J/cm²	Traditional stoneware, 60% SiO2 / 25% Al2O3, 1064nm 100ns · Pou et al., J. Cultural Heritage, 2009 (DOI 10.1016/j.culher.2009.03.002)
Damage threshold (vitrified body)	2.5 J/cm² (estimated)	Stoneware vitrified body, family-derived from J. Cultural Heritage, 2009 — upper bound not directly measured · Family-derived; Pou et al., 2009
Operating point (Z-Beam)	1.5–2.0 J/cm² (conservative, within cleaning window)	Z-Beam field conservative setting · Z-Beam operational data
Cal/OSHA amorphous silica (respirable) PEL	5 mg/m³ TWA	California, §5155 · Cal/OSHA Title 8, §5155

When Laser Cleaning Does Not Work

Condition	Consequence	Mitigation / Limit
Salt-glazed or historical glaze showing pre-existing crazing above 1.4 J/cm²Hard stop	Crack propagation in degraded glaze; irreversible for heritage pieces	Conservative limit ≤1.2 J/cm² on any crazed or visibly compromised glaze; conservation documentation required
Surface spalling / substrate ablation onset at 1.2 J/cm² for unglazed stonewareHard stop	Body surface erosion before contamination fully removed; irreversible on heritage pieces	Keep fluence ≤1.0 J/cm² on unglazed stoneware; increase only if contamination requires it; monitor surface in real time

Compliance · Bay Area (BAAQMD) + California (Cal/OSHA Title 8)

Contaminant	Cal/OSHA TWA/PEL	BAAQMD Permit	Note
Respirable Amorphous Silica Particulate (from Vitrified Stoneware Body And Glaze Matrix)	5 mg/m³ TWA	Not required	LEV with HEPA filtration; P100 or N95 respiratory protection during active cleaning

Process Window — Stoneware

Netalux Kamino 300, 1064nm fiber, 100ns pulse

Surface Condition	Floor (J/cm²)	Ceiling (J/cm²)	Window (J/cm²)	Operating Pt (J/cm²)	Safety %
Light surface contamination (soot, biological) — glazed stoneware	0.9	2.5	1.6	—	20%
Mineral crust / hard deposits — glazed or unglazed stoneware	1.3	2.5	1.2	—	20%
Heritage degraded glaze / salt-glaze with crazing — conservative limit	0.5	1.2	0.7	—	15%

Sources(5 references)

"Protective equipment, including personal protective equipment for eyes, face, head, and extremities, protective clothing, respiratory devices, and protective shields and barriers, shall be provided, used, and maintained in a sanitary and reliable condition."
U. U.S. Occupational Safety and Health Administration. 29 CFR 1926.95 — Criteria for Personal Protective Equipment. U.S. Department of Labor.
Laser Processing of Ceramics, chapter in Laser Processing of Materials, Springer. (opens in new tab)
Research on the Influence of Laser Cleaning Parameters on the Removal Effectiveness of Al Metal Layers from Ceramic Substrate Surfaces, Coatings 2025, MDPI. (opens in new tab)
MatWeb Material Property Data — Online Materials Information Resource (opens in new tab)
Traditional stoneware (feldspathic clay composition, 60% SiO2, 25% Al2O3), room temperature (20°C), 1064 nm Nd:YAG laser, nanosecond pulse length
Pou et al. Pou et al., Journal of Cultural Heritage, 2009, DOI: 10.1016/j.culher.2009.03.002

Industry Applications

Stoneware's density and hardness make it attractive for industrial ceramics — chemical process equipment liners, food-service production ware, and architectural tile — where chemical cleaning methods either leave residue or attack glaze. Heritage restorers working on Victorian-era stoneware crocks, salt-glazed utility pieces, and institutional kitchenware stored in Bay Area museums need non-contact cleaning that respects historic glazes without abrasive surface loss — the conservator-grade control a machine like the Narran ROD 100 Air, built for museum artifact conservation with pulses tunable mid-shot, is designed to deliver. Laser beats sandblasting because it selectively removes surface deposits without eroding the fired glaze layer, and beats chemical soaking because stoneware's 2% porosity makes thorough rinsing difficult.
