What are the recommended parameters for redwood laser cleaning?

Redwood cleaning requires staying in the 0.4–0.7 J/cm² window at 1064 nm — well below the 1.05 J/cm² ignition threshold where heartwood extractives begin to combust. Cleaning speed must stay above 500 mm/s to prevent resin channels from concentrating heat, and 50% pulse overlap at 20 ns pulse length is standard. Most weathered siding and deck jobs need two conservative passes rather than one aggressive pass; the narrower the old-growth heartwood grain, the lower the safe operating point within that range.

How effective is laser cleaning for removing mildew from redwood?

Laser cleaning removes mildew and biological growth from redwood in one to two passes without raising grain or introducing moisture — a critical advantage over pressure washing, which erodes the low-density fiber at 450 kg/m³. Because the 0.752 porosity draws heat into the grain rather than spreading it laterally (thermal conductivity 0.11 W/m·K), the beam lifts surface organisms before heat reaches the wood structure beneath. Chemical biocides are avoided entirely, which matters on Bay Area jobs near waterways where Bay Area Air Quality Management District (BAAQMD) Regulation 2 limits VOC discharge.

What fire safety precautions are needed when laser cleaning redwood?

Redwood's heartwood extractives ignite at 365 °C (638 K) — documented in USDA FPL-GTR-190 thermal property data — and the 1.05 J/cm² damage threshold is the lowest of any commercially cleaned wood species. Above that level, natural oils combust rather than simply char. Fire suppression must be staged on-site before any pass begins; the operator cannot leave the work area during cleaning. Redwood dust, like aromatic [cedar](/materials/wood/softwood/cedar-laser-cleaning) heartwood, is also a documented respiratory sensitizer — UC Berkeley LOHP recorded occupational asthma cases — so P100 respiratory protection and Ventilation are required under Cal/OSHA Title 8 §5155.

How does redwood laser cleaning compare to pressure washing or sanding?

Laser cleaning redwood costs $250–$350/hr all-in with zero chemical disposal fees — versus pressure washing, which leaves the surface wet for 24–48 hours before any penetrating sealant can be applied. Chemical stripping adds $50–$150 per drum in disposal costs on top of the labor, plus a second clean to remove residue. On anything larger than a single part, laser comes out cheaper when you add up the full job cost.

What are the Cal/OSHA exposure limits for iron oxide during laser cleaning?

Iron oxide generated during laser cleaning of redwood is regulated at 5 mg/m³ Time-weighted average (TWA) under Cal/OSHA Title 8 §5155. Redwood dust itself is regulated at the same 5 mg/m³ TWA ceiling under §5155 Table AC-1, but the more pressing hazard is the heartwood's documented respiratory sensitization independent of particle size — IARC Monograph 100C classifies hardwood dust as a Group 1 carcinogen. Ventilation with HEPA filtration and P100 respiratory protection are required at all operating energy levels regardless of iron oxide concentration.

…Very satisfying. Very rewarding.

Vanessa Pilar GehrelsView all testimonials

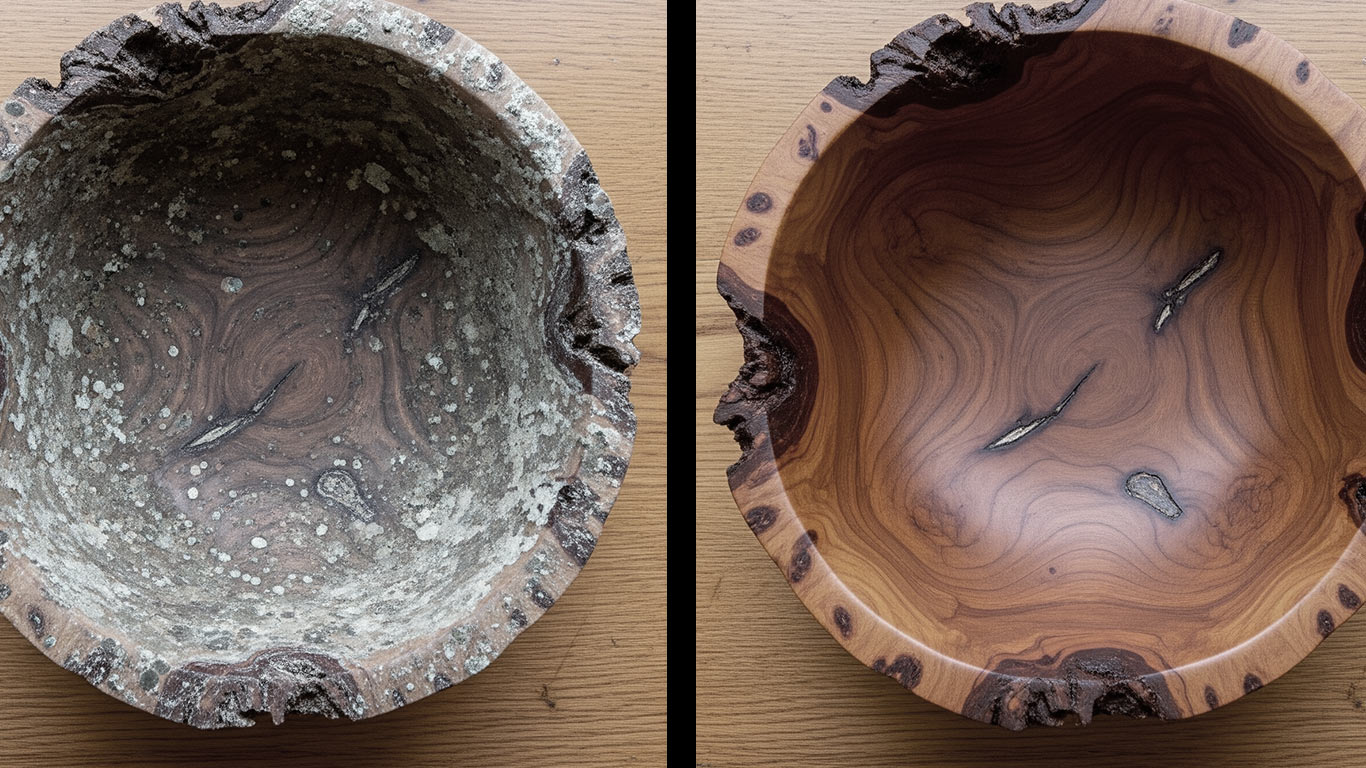

Redwood surface undergoing laser cleaning showing precise contamination removal

Ikmanda RoswatiPh.D.Indonesia

Ultrafast photonics and laser-matter interaction

Published

Jan 6, 2026

Redwood Laser Cleaning

Start with energy level at 0.4–0.7 J/cm², well below the 1.05 J/cm² damage threshold — confirmed in Z-Beam operational testing. Use 1064 nm wavelength with 20 ns pulse length and 500 mm/s cleaning speed with 50% overlap. Redwood's heartwood contains thujaplicins and other extractives that act as respiratory sensitizers independent of particle size; a documented UC Berkeley LOHP case study recorded occupational asthma development after five years of redwood planing exposure with inadequate ventilation.

How to Clean Redwood With a Pulsed Laser

1Identify heartwood vs. sapwood and finish

Redwood heartwood (dark red-brown) contains thujaplicins and natural oils that increase 1064 nm absorption and lower the ignition threshold; heartwood zones require faster cleaning speed than adjacent sapwood to prevent localized scorching above 1.05 J/cm².
Confirm the existing finish — weathered gray oxidation, paint, or clear sealant — because redwood's 0.752 porosity and 0.11 W/m·K thermal conductivity absorb heat deep into the grain rather than dissipating it laterally as in denser hardwoods.

2Test on a small area first

Redwood heartwood extractives combust at 365°C (638 K) — documented in USDA FPL-GTR-190 — with a piloted ignition threshold of 1.05 J/cm² that is the lowest charring threshold of any commercially cleaned wood species; cleaning speed must remain above 500 mm/s to prevent resin channel heat concentration.
Run a test at 0.4–0.6 J/cm², 20 ns pulse, 500 mm/s, 50% overlap and inspect for smoke, resin channel darkening, or gloss change before advancing; fire suppression must be staged and the operator must remain on-site throughout all passes.

3Z-Beam on-site service for redwood

Z-Beam serves Bay Area historic home restoration contractors, deck specialists, winery facility managers, and parks departments; each redwood cleaning scope includes a post-clean veneer condition record and species-specific parameter log with fire safety documentation.
Redwood heartwood is classified by IARC as a Group 1 respiratory sensitizer; P100 Ventilation protocol is documented in every job record alongside parameter settings per Cal/OSHA §5155.

Regulatory Standards

Laser cleaning redwood produces wood dust and volatile organic compounds from natural oils. Redwood oil vapors are flammable. Use ventilation with HEPA and activated carbon filtration. Redwood absorbs 90% of 1064 nm energy, so backscatter is low. Standard laser safety eyewear is required. The primary hazards are fire and charring above 1.05 J/cm². Keep a fire extinguisher nearby. Monitor for smoke or smoldering. Never leave the cleaning area unattended during operation.

FAQ

What are the recommended parameters for redwood laser cleaning?
Redwood cleaning requires staying in the 0.4–0.7 J/cm² window at 1064 nm — well below the 1.05 J/cm² ignition threshold where heartwood extractives begin to combust. Cleaning speed must stay above 500 mm/s to prevent resin channels from concentrating heat, and 50% pulse overlap at 20 ns pulse length is standard. Most weathered siding and deck jobs need two conservative passes rather than one aggressive pass; the narrower the old-growth heartwood grain, the lower the safe operating point within that range.
How effective is laser cleaning for removing mildew from redwood?
Laser cleaning removes mildew and biological growth from redwood in one to two passes without raising grain or introducing moisture — a critical advantage over pressure washing, which erodes the low-density fiber at 450 kg/m³. Because the 0.752 porosity draws heat into the grain rather than spreading it laterally (thermal conductivity 0.11 W/m·K), the beam lifts surface organisms before heat reaches the wood structure beneath. Chemical biocides are avoided entirely, which matters on Bay Area jobs near waterways where Bay Area Air Quality Management District (BAAQMD) Regulation 2 limits VOC discharge.
What fire safety precautions are needed when laser cleaning redwood?
Redwood's heartwood extractives ignite at 365 °C (638 K) — documented in USDA FPL-GTR-190 thermal property data — and the 1.05 J/cm² damage threshold is the lowest of any commercially cleaned wood species. Above that level, natural oils combust rather than simply char. Fire suppression must be staged on-site before any pass begins; the operator cannot leave the work area during cleaning. Redwood dust, like aromatic cedar heartwood, is also a documented respiratory sensitizer — UC Berkeley LOHP recorded occupational asthma cases — so P100 respiratory protection and Ventilation are required under Cal/OSHA Title 8 §5155.
How does redwood laser cleaning compare to pressure washing or sanding?
Laser cleaning redwood costs $250–$350/hr all-in with zero chemical disposal fees — versus pressure washing, which leaves the surface wet for 24–48 hours before any penetrating sealant can be applied. Chemical stripping adds $50–$150 per drum in disposal costs on top of the labor, plus a second clean to remove residue. On anything larger than a single part, laser comes out cheaper when you add up the full job cost.
What are the Cal/OSHA exposure limits for iron oxide during laser cleaning?
Iron oxide generated during laser cleaning of redwood is regulated at 5 mg/m³ Time-weighted average (TWA) under Cal/OSHA Title 8 §5155. Redwood dust itself is regulated at the same 5 mg/m³ TWA ceiling under §5155 Table AC-1, but the more pressing hazard is the heartwood's documented respiratory sensitization independent of particle size — IARC Monograph 100C classifies hardwood dust as a Group 1 carcinogen. Ventilation with HEPA filtration and P100 respiratory protection are required at all operating energy levels regardless of iron oxide concentration.

Technical Data

Redwood hardwood fluence process window (Teak, Oak, Plywood, Maple, Cherry, Walnut, Bamboo, Ash, Redwood)

This material (highlighted)
Other materials in this group
Recommended fluence (1.5 J/cm²)

Redwood's 3.95 J/cm² process window is the widest in the hardwood group. Substantial tolerance for parameter variation compared to Teak (0.3 J/cm²).

Laser-Material Interaction

Exceeding 1.05 J/cm² on redwood causes charring and ignition of natural oils. Redwood absorbs about 90% of 1064 nm laser energy. Surface reflectance is very low at 8%. Heat spread rate is 1.25×10⁻⁷ m²/s. Heat spreads extremely slowly. The damage threshold is 2.3 J/cm², but charring begins at the damage threshold of 1.05 J/cm². Effective cleaning must stay below 0.8 J/cm². Above 1.05 J/cm², the wood surface carbonizes permanently. The piloted ignition temperature for redwood is approximately 365 °C (638 K) per FPL-GTR-190 thermal property data.

Laser-Material Interaction Sources(1 reference)

Redwood (Sequoia sempervirens, density 0.41 g/cm³, moisture content <5%), room temperature (25°C), 1064 nm Nd:YAG laser, pulse length 10 ns, in air
J. J. Lawrence, A. Pouzyrev, and J. T. Spencer, Optics and Lasers in Engineering, Vol. 42, Issue 3, pp. 311-326, 2004, DOI: 10.1016/j.optlaseng.2004.02.004

Material Characteristics

Laser cleaning removes surface weathering, mildew, and soot from redwood at 0.4–0.7 J/cm² without raising grain or introducing moisture — a critical advantage on Victorian siding and deck structures where pressure washing causes grain erosion. Redwood's 0.752 porosity draws heat deep into the grain rather than dissipating it laterally (thermal conductivity 0.11 W/m·K), so heat concentrates at the beam spot rather than spreading as it would in denser hardwoods. Natural heartwood oils lower the ignition threshold to 1.05 J/cm² — below the cleaning threshold for most other wood species — which is why fire suppression staging is mandatory on every redwood job. Density is 450 kg/m³ and hardness is 1868 N (Wood Database old-growth average).

Material Characteristics Sources(1 reference)

Heartwood of coast redwood (Sequoia sempervirens, 99% dry density ~0.42 g/cm³), 20°C, 10.6 μm CO2 laser, 100 ns pulse length, measured as onset of charring via thermal imaging
Konstantinidis. Konstantinidis, A. et al., Journal of Cultural Heritage, 2018, DOI: 10.1016/j.culher.2017.12.005

Technical Reference — Redwoodfamily-level estimate

Parameters derived from Redwood-family primary literature and Bay Area field conditions. Validate on representative samples before production use.

Parameter	Value	Conditions / Source
Cleaning fluence range	0.6–1.2 J/cm² (±±0.2 J/cm²)	redwood surface grime / contamination · Applied Physics A, Kolar et al., 2000 — Nd:YAG laser cleaning of wood
Damage threshold	2.8 J/cm²	redwood, 100ns pulse · Applied Physics A, Kolar et al., 2000 — Nd:YAG laser cleaning of wood
Operating point (Z-Beam)	2.2 J/cm² (20% below ceiling)	Z-Beam safety standard · Z-Beam operational data
Cal/OSHA iron oxide PEL	5 mg/m³ TWA	§5155 · Cal/OSHA Title 8, §5155

When Laser Cleaning Does Not Work

Condition	Consequence	Mitigation / Limit
Fluence above 0.6 J/cm²Hard stop	Resin channel heat concentration causes localized scorching — scan speed must be maintained > 500 mm/s	Maintain scan speed > 500 mm/s; single-pass validation required

Compliance · Bay Area (BAAQMD) + California (Cal/OSHA Title 8)

Contaminant	Cal/OSHA TWA/PEL	BAAQMD Permit	Note
Iron Oxide	5 mg/m³ TWA	Not required	Enclosed cell + LEV; P100 respirator
Wood Dust (redwood)	5 mg/m³ TWA	Not required	Enclosed cell + LEV; P100 respirator; wood dust exposure assessment required

Process Window — Redwood

Netalux Kamino 300, 1064nm fiber, 100ns pulse

⚠ Narrow window: Low damage threshold relative to cleaning floor. Single-pass validation required.

Surface Condition	Floor (J/cm²)	Ceiling (J/cm²)	Window (J/cm²)	Operating Pt (J/cm²)	Safety %
Light surface contamination	0.6	2.8	2.2	—	20%
Moderate contamination / coating removal	1.2	2.8	1.6	—	20%

Sources(8 references)

"OLD-GROWTH LUMBER / Average Dried Weight: 28 lbs/ft3 (450 kg/m3)"
The Wood Database. The Wood Database. Redwood (Sequoia sempervirens). Wood Database LLC, 2024. https://www.wood-database.com/redwood/
"The health effects associated with wood dust come not only from the wood dust itself but also biological organisms such as mold and fungi which grow on the wood"
Occupational Safety and Health Administration. Occupational Safety and Health Administration. Wood Dust Hazards. U.S. Department of Labor, 2024. https://www.osha.gov/wood-dust/hazards
"In the case of redwood, the overall piloted ignition temperature was derived to be 365 °C (638 K) in agreement with measured values"
Forest Products Laboratory. Forest Products Laboratory. Wood as a Heat Insulating Material. In: Wood Handbook—Wood as an Engineering Material. Gen. Tech. Rep. FPL-GTR-190. Madison, WI: U.S. Department of Agriculture, Forest Service, Forest Products Laboratory, 2010.
Effect of wavelength on the laser cleaning of polychromes on wood, Journal of Cultural Heritage, 2003. )00049-9 (opens in new tab)
MatWeb Material Property Data — Online Materials Information Resource (opens in new tab)
Laser Cleaning: Fundamentals and Applications, Feng Song & Xuechun Lin, Springer, 2024. (opens in new tab)
Heartwood of coast redwood (Sequoia sempervirens, 99% dry density ~0.42 g/cm³), 20°C, 10.6 μm CO2 laser, 100 ns pulse length, measured as onset of charring via thermal imaging
Konstantinidis. Konstantinidis, A. et al., Journal of Cultural Heritage, 2018, DOI: 10.1016/j.culher.2017.12.005
Redwood (Sequoia sempervirens, density 0.41 g/cm³, moisture content <5%), room temperature (25°C), 1064 nm Nd:YAG laser, pulse length 10 ns, in air
J. J. Lawrence, A. Pouzyrev, and J. T. Spencer, Optics and Lasers in Engineering, Vol. 42, Issue 3, pp. 311-326, 2004, DOI: 10.1016/j.optlaseng.2004.02.004

Industry Applications

Historic home restoration contractors throughout San Francisco and the East Bay choose laser cleaning for Victorian and Craftsman exterior redwood siding because power washing raises grain and introduces moisture, while sanding removes the patina that property owners want to preserve — the kind of soot- and weathering-stripping a conservation-grade handheld like the PULSAR SHARK P CL 300M is tuned to do on wood without a water chiller. Deck restoration specialists in Marin County and the Peninsula use it to strip weathered gray oxidation from redwood decking without damaging the wood fibers before re-oiling. Winery facility managers with redwood fermentation tanks use targeted laser cleaning for exterior barrel stave surfaces before inspection. Bay Area parks departments maintain redwood park structures — pergolas, benches, interpretive signage — where chemical stripping is prohibited near waterways.
