Aluminosilicate Glass surface prepared by laser cleaning
Alessandro Moretti
Alessandro MorettiPh.D.Italy
Materials process development for ceramics and alloys
Published
Jan 6, 2026

Aluminosilicate Glass Laser Cleaning

Cover glass in the aluminosilicate family needs its chemistry named before the first pulse. Chemically strengthened panes do not follow the path used for annealed sheet, and a copied setting can mark the face or start a crack. A dry laser pass can take off organic film and light soiling when a trial piece of the same temper class shows the soil leaving first. Dust capture stays on because glass fines belong out of the breathing zone.

Aluminosilicate Glass: Common Laser Cleaning Questions

  • How strong is aluminosilicate glass compared with soda-lime glass?

    Aluminosilicate glass is measurably stronger than ordinary soda-lime glass, with published tensile strength figures near 750 MPa[1] against roughly half that for float glass. The added aluminum oxide raises resistance to microcracking when repeated laser pulses cycle the surface through rapid heating and cooling.

  • Why doesn't a 1064 nm laser directly clean aluminosilicate glass?

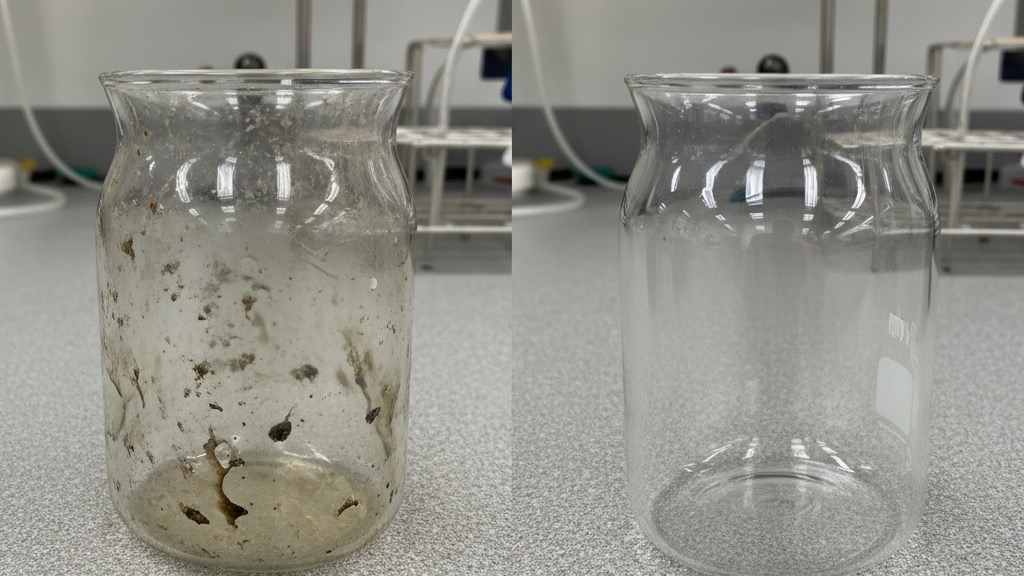

    Aluminosilicate glass is essentially transparent at the common 1064 nm fiber-laser wavelength, so a front-facing beam passes through the sheet instead of dumping energy into surface grime. Researchers have gotten around this by firing the pulse from the back side of the glass, which lets the beam heat the contamination layer directly while the clear bulk stays cool. That backside-irradiation approach removed soot and ink residue from glassware without marking the surface in published trials.

  • Does low thermal conductivity change how heat moves in aluminosilicate glass?

    Aluminosilicate glass keeps heat near the surface far longer than metal substrates do, since its thermal conductivity runs near only 1.05 W[1]/m·K compared with roughly 200 W/m·K for aluminum. That low number means heat absorbed at the surface has nowhere fast to go, so it lingers near the contamination layer instead of spreading through the 2,530 kg/m³ bulk of the sheet. The practical effect is that operators favor short, well-spaced pulses over continuous beams, giving.

  • What dust hazard applies to laser cleaning of aluminosilicate glass?

    Aluminosilicate glass requires silica-specific dust controls when it gets laser cleaned, because OSHA classifies its ground particulate as crystalline silica rather than ordinary nuisance dust, and crystalline silica carries a lower permissible exposure limit. That distinction changes how the work area gets ventilated and monitored during the job.

Sources(1 reference)
  1. 1064 nm — Figure named in the answer.

Steps and considerations when laser cleaning aluminosilicate glass

Aluminosilicate cover glass needs a chemistry and temper call before the first pulse because chemically strengthened panes can shatter under energy maps that annealed stock tolerates. Stage silica dust capture under Table Z-1 framing, coupon organic film on a scrap pane in small energy steps, and keep production under the charted specialty-glass mark limit until inspection proves the face is clear (OSHA Table Z-1).

1Confirm glass class and rule out strengthened stock
  • Record whether the pane is annealed aluminosilicate cover glass, a display laminate, or a chemically strengthened sheet before setup, those paths do not share one coupon map.
  • Chemically strengthened aluminosilicate rules out this cleaning path; stop and open a fresh plan rather than copying annealed cover-glass settings.
  • Compare with tempered glass laser cleaning when the substrate call is thermally tempered soda-lime instead.
2Stage capture and coupon on scrap
  • Turn on local exhaust before the first pulse so silica-bearing dust never shares the breathing zone with an open cell.
  • Coupon a scrap aluminosilicate pane at low energy, then step upward only while inspection still shows a clear face.
  • Keep production maps under the charted 8.5 J/cm² specialty-glass mark limit until the scrap pass proves the land is clean.
3Run production and re-inspect
  • Clear organic film and light soiling near the charted 2.8 J/cm² floor on short-pulse 1064 nm fiber sources, then stop when inspection shows the cover face is clear.
  • If haze, micro-cracking, or edge flare appears, drop energy and reopen the coupon rather than chasing the mark with more passes.
Sources(1 reference)
  1. 29 CFR 1910.1000 Table Z-1 — Limits for Air Contaminants osha.gov (opens in new tab) — Table Z-1 air contaminant framing for glass particulate
