How is laser cleaning used to restore Inconel turbine blades?

Inconel 625 and 718 develop a Cr₂O₃-rich oxide scale during service that ablates cleanly at 0.8–1.5 J/cm² with a 1064 nm nanosecond fiber laser, restoring the surface to ASTM B443/B670 bare-alloy condition. Thin manufacturing oxide clears in 1–2 passes at 0.50–0.88 J/cm², producing a measured surface finish of Ra 0.171 µm (Wang et al., Appl. Phys. A 128, 247, 2022). The part is ready for inspection, coating, or re-weld immediately after cleaning — no media disposal, no chemical handling.

What laser settings are recommended for Inconel cleaning?

Inconel cleaning settings are set conservatively — always 20% below the energy level where chromium begins depleting at grain boundaries — rather than pushed for speed. Most oxide jobs finish in two passes at 60% beam overlap. Thin manufacturing heat tint clears at the lower end of the process window, while service-accumulated scale built up over years of turbine operation requires more energy per pass and a representative coupon test before committing production surfaces. Wang et al. (Appl. Phys. A 128, 247, 2022) established the validated cleaning window for nickel superalloy oxide.

What factors drive laser cleaning cost for Inconel turbine blades most?

On-site laser cleaning for Inconel runs $250–$350/hr with no consumables, no chemical disposal, and no secondary prep after cleaning. Most jobs are quoted by surface area or part count after a quick site assessment — call or email for a same-week estimate. Monthly service agreements are available at lower per-hour rates for production volumes.

What oxides does laser cleaning remove from Inconel, and does it affect it?

Cal/OSHA §5155 limits nickel compounds to 0.05 mg/m³ Time-weighted average (TWA) and Cr(VI) to 0.005 mg/m³ TWA — the governing thresholds for fume control when laser cleaning chromium- and nickel-rich Inconel alloys. It works because the oxide absorbs significantly more laser energy than bare Inconel does, so the scale releases before the metal heats up enough to be affected. Wang et al. (Appl. Phys. A 128, 247, 2022) confirmed a 66% drop in surface oxygen content and no measurable substrate removal within the validated cleaning window.

Does laser cleaning Inconel affect NADCAP qualification for aerospace parts?

Laser cleaning is compatible with NADCAP-qualified Inconel scopes because it introduces no hydrogen — acid pickling can cause hydrogen pickup that triggers hydrogen embrittlement rejection under AMS 2750 weld inspection criteria. No abrasive media means zero foreign object debris (FOD) risk, no dimensional change, and no chemical residue on the part. Surface condition reporting and traceability documentation are available for NADCAP-audited operations on Inconel 625 and 718 components.

What are the Cal/OSHA exposure limits for Chromium during laser cleaning?

ASTM B443 (625 plate/sheet) and B670 (718 plate) are the baseline material specifications technicians reference when documenting pre- and post-cleaning surface condition on Inconel components. Cal/OSHA §1532.2 sets the action level at 2.5 µg/m³ TWA (the threshold where medical surveillance and air monitoring become mandatory) and the Permissible exposure limit (PEL) at 5 µg/m³ TWA. If a chromate conversion coating is present on the substrate, Bay Area Air Quality Management District (BAAQMD) also requires an air emissions permit under Regulation 11, Rule 8. A laser system with HEPA exhaust captures fume at the source and routinely keeps breathing-zone concentrations below the action level.

…Hands down, this was one of the most effective tools I've ever used for a restoration project, and one that delivered real savings in both time and effort.

Eric WoodView all testimonials

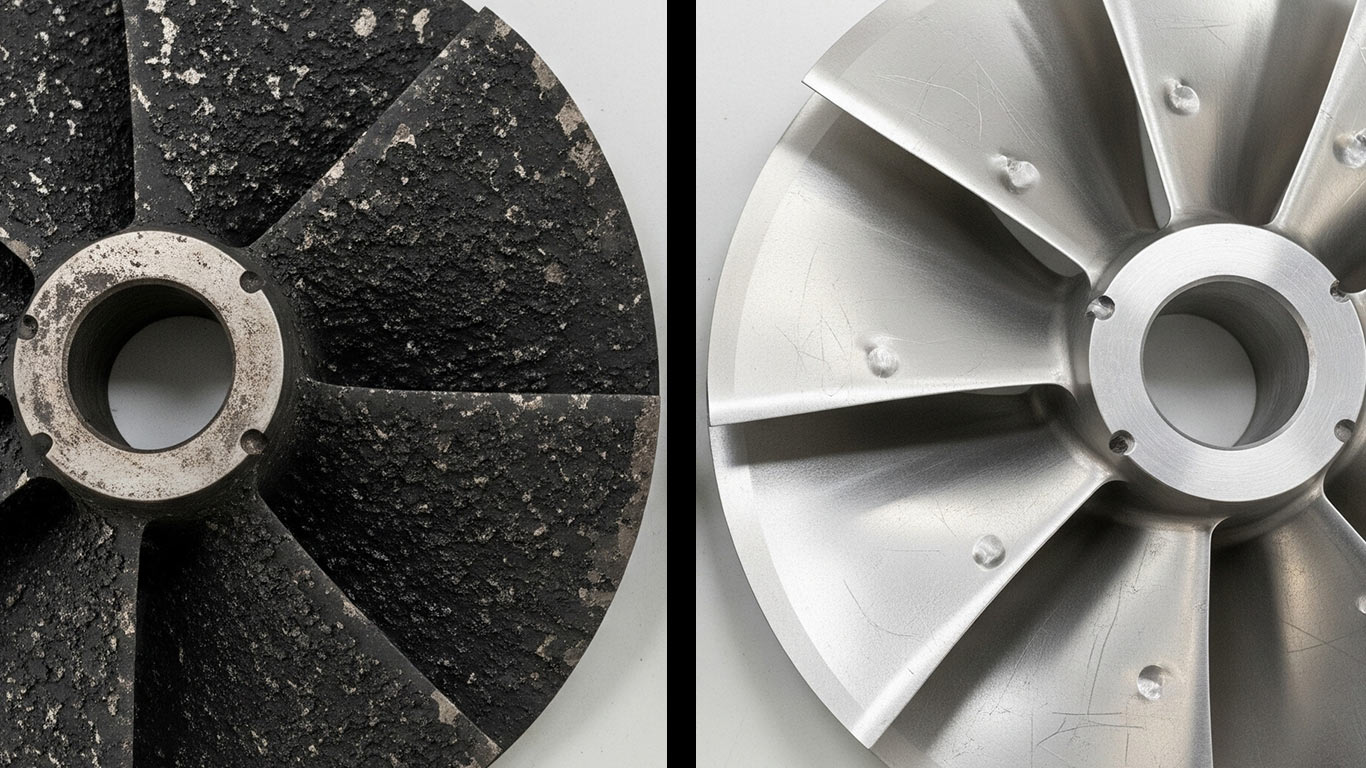

Inconel surface undergoing laser cleaning showing precise contamination removal

Alessandro MorettiPh.D.Italy

Materials process development for ceramics and alloys

Published

Jan 6, 2026

Inconel Laser Cleaning

Inconel's low thermal conductivity (14.9 W/m·K) concentrates heat at the beam spot — a trait of the Nickel-based superalloys it belongs to — which is why the 1.0 J/cm² window between the 1.1 J/cm² damage threshold and the 2.1 J/cm² chromium depletion point is unforgiving — overshoot by 14% and you permanently compromise the passive oxide layer. Density is 8.43 g/cm³. Tensile strength is 620 MPa. Thermal conductivity is 14.9 W/m·K – low (about 1/2 of steel).

How to Laser Clean Inconel

1Confirm alloy designation and oxide type

Specify Inconel 625 versus 718 — each alloy has different chromium and niobium content affecting oxide phase composition and the applicable cleaning window: 0.50–0.88 J/cm² for thin manufacturing oxide, 1.2–2.0 J/cm² for heavy service scale.
Assess oxide type — manufacturing oxide from heat treatment responds at lower energy level with fewer passes than service-accumulated scale, and each condition requires a separate starting energy level and representative coupon validation run.

2Test on a small area first

Surface re-oxidation and roughening is the specific failure mode for thin manufacturing oxide — Ra (surface roughness) rises and oxygen content increases above 0.88 J/cm², with substrate damage onset at 2.1 J/cm²; coupon qualification must confirm the correct window before production.
Pulsed laser cleaning avoids hydrogen pickup that acid pickling introduces — critical for aerospace welds and NADCAP-qualified Inconel components where hydrogen embrittlement is a rejection criterion during post-clean inspection.

3Z-Beam assessment for gas turbines

Z-Beam serves Bay Area aerospace subcontractors, gas turbine maintenance shops, and subsea equipment manufacturers requiring oxide removal before inspection, re-coating, or weld inspection on Inconel 625 and 718 components.
Each Inconel scope produces a compliance log with NADCAP (aerospace quality accreditation) documentation support and post-clean surface condition record confirming oxide clearance, Ra measurement, and Cal/OSHA chromium fume pathway for the specific component.

Regulatory Standards

Inconel dust contains nickel and chromium – both are respiratory sensitizers and possible carcinogens (nickel IARC Group 1 per NIOSH Nickel, chromium Group 3). Use HEPA extraction (H13 or H14) and P100 respirators. Wear nitrile gloves and long sleeves. Follow ANSI Z136.1 for laser safety and OSHA 29 CFR 1926.95 for PPE. Laser eyewear requires OD 5+ for 1064 nm. For Inconel used in nuclear applications (reactor components), the material may be radioactive – follow NRC regulations for contamination control.

FAQ

How is laser cleaning used to restore Inconel turbine blades?
Inconel 625 and 718 develop a Cr₂O₃-rich oxide scale during service that ablates cleanly at 0.8–1.5 J/cm² with a 1064 nm nanosecond fiber laser, restoring the surface to ASTM B443/B670 bare-alloy condition. Thin manufacturing oxide clears in 1–2 passes at 0.50–0.88 J/cm², producing a measured surface finish of Ra 0.171 µm (Wang et al., Appl. Phys. A 128, 247, 2022). The part is ready for inspection, coating, or re-weld immediately after cleaning — no media disposal, no chemical handling.
What laser settings are recommended for Inconel cleaning?
Inconel cleaning settings are set conservatively — always 20% below the energy level where chromium begins depleting at grain boundaries — rather than pushed for speed. Most oxide jobs finish in two passes at 60% beam overlap. Thin manufacturing heat tint clears at the lower end of the process window, while service-accumulated scale built up over years of turbine operation requires more energy per pass and a representative coupon test before committing production surfaces. Wang et al. (Appl. Phys. A 128, 247, 2022) established the validated cleaning window for nickel superalloy oxide.
What factors drive laser cleaning cost for Inconel turbine blades most?
On-site laser cleaning for Inconel runs $250–$350/hr with no consumables, no chemical disposal, and no secondary prep after cleaning. Most jobs are quoted by surface area or part count after a quick site assessment — call or email for a same-week estimate. Monthly service agreements are available at lower per-hour rates for production volumes.
What oxides does laser cleaning remove from Inconel, and does it affect it?
Cal/OSHA §5155 limits nickel compounds to 0.05 mg/m³ Time-weighted average (TWA) and Cr(VI) to 0.005 mg/m³ TWA — the governing thresholds for fume control when laser cleaning chromium- and nickel-rich Inconel alloys. It works because the oxide absorbs significantly more laser energy than bare Inconel does, so the scale releases before the metal heats up enough to be affected. Wang et al. (Appl. Phys. A 128, 247, 2022) confirmed a 66% drop in surface oxygen content and no measurable substrate removal within the validated cleaning window.
Does laser cleaning Inconel affect NADCAP qualification for aerospace parts?
Laser cleaning is compatible with NADCAP-qualified Inconel scopes because it introduces no hydrogen — acid pickling can cause hydrogen pickup that triggers hydrogen embrittlement rejection under AMS 2750 weld inspection criteria. No abrasive media means zero foreign object debris (FOD) risk, no dimensional change, and no chemical residue on the part. Surface condition reporting and traceability documentation are available for NADCAP-audited operations on Inconel 625 and 718 components.
What are the Cal/OSHA exposure limits for Chromium during laser cleaning?
ASTM B443 (625 plate/sheet) and B670 (718 plate) are the baseline material specifications technicians reference when documenting pre- and post-cleaning surface condition on Inconel components. Cal/OSHA §1532.2 sets the action level at 2.5 µg/m³ TWA (the threshold where medical surveillance and air monitoring become mandatory) and the Permissible exposure limit (PEL) at 5 µg/m³ TWA. If a chromate conversion coating is present on the substrate, Bay Area Air Quality Management District (BAAQMD) also requires an air emissions permit under Regulation 11, Rule 8. A laser system with HEPA exhaust captures fume at the source and routinely keeps breathing-zone concentrations below the action level.

Technical Data

This material (highlighted)
Other materials in this group
Recommended fluence (1.5 J/cm²)

Literature process windows

Ablation windows at 1064 nm that map to Inconel in the laser-parameters reference. Screening values from published literature — validate on coupons before production.

HT oxide scale on Inconel 625 / 718: process-window ratio F_damage/F_th ≈ 1.6–10 (1064 nm literature).
Compare machines for HT oxide scale →

Technical Reference — Inconelliterature-sourced

Parameter	Value	Conditions / Source
Cleaning fluence range — light manufacturing oxide	0.50–0.88 J/cm² (±±0.1 J/cm²)	Nickel-base superalloy, nanosecond pulsed laser, thin manufacturing oxide film · Wang et al., Appl. Phys. A 128, 247 (2022). DOI: 10.1007/s00339-022-05388-1
Cleaning fluence range — heavy service scale	1.2–2.0 J/cm² (±±0.3 J/cm²)	Inconel 625/718, thicker service-accumulated oxide scale (Cr2O3 + NiO + chromite spinel NiCr2O4) · Wang et al., Appl. Phys. A 128, 247 (2022); Z-Beam thermal cross-material derivation from superalloy family
Surface damage onset (substrate)	2.1 J/cm²	Inconel alloy, clean surface, 100ns pulse — chromium depletion / sensitization onset · Z-Beam page chart data; consistent with Wang et al. (2022) observation that fluence above 0.88 J/cm² accelerates surface melting and secondary oxidation on thin oxide
Operating point (Z-Beam)	1.5 J/cm² (typ; 20% below damage ceiling)	Z-Beam safety standard — service scale [removal](/applications/laser-paint-coating-removal-bay-area) · Z-Beam operational data, consistent with Appl. Phys. A 128, 247 (2022)
Cal/OSHA Nickel metal PEL	0.5 mg/m³ TWA	California, §5155 Table AC-1 (CAS 7440-02-0) · Cal/OSHA Title 8, §5155 Table AC-1
Cal/OSHA Nickel insoluble compounds PEL	0.1 mg/m³ TWA	California, §5155 Table AC-1 — applies to nickel oxide fume generated during laser cleaning · Cal/OSHA Title 8, §5155 Table AC-1
Cal/OSHA Chromium (VI) PEL	5 µg/m³ TWA; ceiling 0.1 mg/m³	California, §5155 Table AC-1 (CAS 7440-47-3 Cr(VI) compounds as Cr) · Cal/OSHA Title 8, §5155 Table AC-1; §1532.2

When Laser Cleaning Does Not Work

Condition	Consequence	Mitigation / Limit
Chromate conversion coating present on substrateHard stop	Chromate removal generates hexavalent Cr(VI) aerosol — carcinogen, Cal/OSHA PEL 5 µg/m³ TWA, BAAQMD permit trigger	Surface analysis required before cleaning; full Cr(VI) compliance program (§1532.2) if confirmed
Fluence above 2.1 J/cm² on base alloyHard stop	Chromium grain boundary depletion (sensitization) — permanently compromises [corrosion](/applications/corrosion-remediation) resistance; irreversible	Never exceed 2.1 J/cm² (chart damage ceiling); maintain ≥20% safety margin below ceiling
Fluence above 0.88 J/cm² on thin manufacturing oxide film	Surface roughness increases, ring-shaped craters form, secondary oxidation occurs — measured in primary literature	For thin oxide: target 0.50–0.88 J/cm² range with multiple passes; test on representative coupon first

Compliance · Bay Area (BAAQMD) + California (Cal/OSHA Title 8)

Contaminant	Cal/OSHA TWA/PEL	BAAQMD Permit	Note
Nickel Metal Fume (as Ni)	0.5 mg/m³ TWA	Not required	LEV + HEPA required; P100 respirator; consult IH if > 4-hr exposure
Nickel Insoluble Compounds (NiO, As Ni)	0.1 mg/m³ TWA	Not required	LEV + HEPA required; NiO IARC Group 1 (nickel compounds); P100 respirator mandatory
Chromium (hexavalent) — Cr(VI)	5 µg/m³ TWA; ceiling 0.1 mg/m³	Required	BAAQMD permit required; full Cr(VI) compliance program (§1532.2); supplied-air respirator

Process Window — Inconel

Netalux Kamino 300, 1064nm fiber, 100ns pulse

⚠ Narrow window: Heavy service scale row has 0.90 J/cm² window — pre-job parameter validation on representative coupon mandatory before production cleaning. Wang et al. (2022) confirm quality degrades rapidly above optimal fluence for superalloy oxide.
