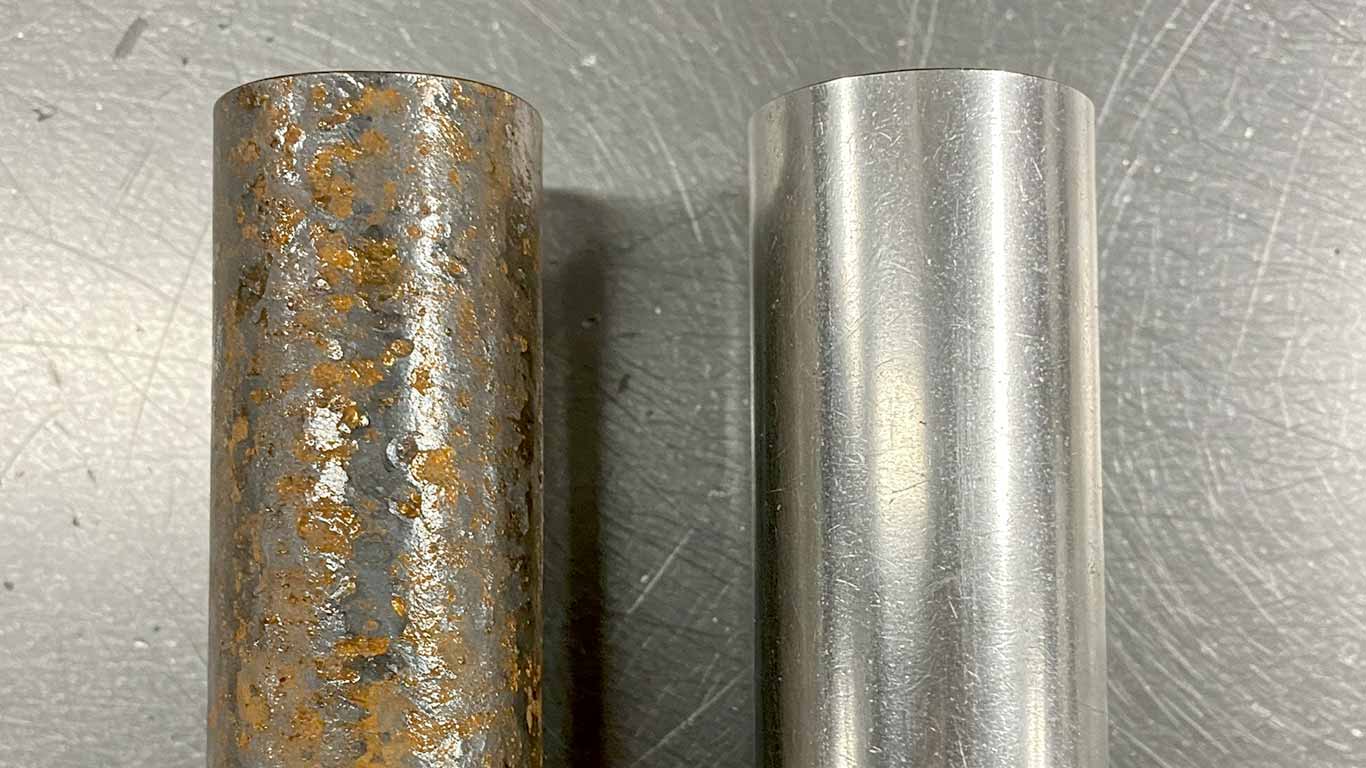

Nickel Laser Cleaning
Laser cleaning removes NiO oxide scale from nickel at 0.45–0.88 J/cm² — well inside the 4.15 J/cm² substrate damage threshold (Scientific Reports/Nature, 2024), giving operators a 3.7 J/cm² working window that makes nickel one of the more forgiving specialty metals to clean. The critical constraint is toxicological, not energy level: NiO fumes are classified IARC Group 1 carcinogens, and Cal/OSHA §5155 Table AC-1 sets the insoluble nickel compound Permissible exposure limit (PEL) at 0.1 mg/m³ Time-weighted average (TWA) — 10× more restrictive than the federal OSHA limit of 1 mg/m³. Thermal conductivity of 90.7 W/m·K keeps the heat-affected area small and the process predictable.
How to Laser Clean Nickel
1Confirm nickel grade and surface form
- Distinguish Ni 200 (99.6% unalloyed nickel) from Ni 201 (low-carbon, elevated-temperature use), and confirm whether the part is bulk nickel, electroformed, or plated — thin plating (2–25 µm) requires single-pass validation starting at 0.45 J/cm² to confirm plating thickness is intact before additional passes are added.
- Identify whether the goal is restoring a plating bath surface or removing thermal oxide scale from structural nickel — each requires different pass counts within the 0.45–0.88 J/cm² optimal cleaning window.
2Test on a small area first
- NiO fume is the controlling hazard — Cal/OSHA §5155 Table AC-1 sets the insoluble nickel compound PEL at 0.1 mg/m³ TWA, ten times more protective than the federal OSHA limit of 1 mg/m³, and fume generation begins at the 0.45 J/cm² cleaning onset before any substrate risk appears.
- Pitting and remelting onset above 0.88 J/cm² defines the upper bound of the optimal cleaning window — the Z-Beam operating point of 0.70 J/cm² maintains 20% below that ceiling, and rainbow discoloration signals residual thermal oxide from insufficient cleaning speed rather than substrate damage.
3Contact Z-Beam for assessment
- Z-Beam serves Bay Area chemical processing plants, aerospace component manufacturers, and electroplating shops needing NiO scale removal within the 0.45–0.88 J/cm² cleaning window.
- Each nickel job produces a compliance log with Cal/OSHA NiO fume pathway confirmation — documenting Ventilation setup, air monitoring results against the 0.1 mg/m³ TWA limit, and written parameter documentation per job.
Regulatory Standards
Our video library shows nickel laser cleaning across several industrial settings. One demonstration follows aerospace component cleaning before inspection. You will see how 1.0 J/cm² removes thermal oxide without damaging the base metal. The video includes real-time fume extraction monitoring. Another video compares cleaning parameters on electroformed nickel parts. Thin sections require lower energy level and higher overlap to prevent heat buildup.
ANSI
ANSI Z136.1 - Safe Use of Lasers
IEC
IEC 60825 - Safety of Laser Products
OSHA
OSHA 29 CFR 1926.95 - Personal Protective Equipment
FAQ
What safety hazards come with laser cleaning nickel and its alloys?
Nickel oxide fume is the primary hazard — NiO is classified IARC Group 1 carcinogenic to humans (NTP 2021), and Cal/OSHA Title 8 §5155 Table AC-1 sets the insoluble nickel compound PEL at 0.1 mg/m³ TWA, ten times more protective than the federal OSHA limit of 1 mg/m³. A secondary risk is nickel carbonyl (Ni(CO)₄) formation if any CO source is present in the work area during heating — NIOSH lists its IDLH at 0.67 ppm. Ventilation with HEPA filtration is mandatory; prohibit welding or combustion processes in the same space during laser operation.
Why does laser cleaning sometimes leave rainbow discoloration on nickel?
Rainbow discoloration on nickel after laser cleaning is residual thermal oxide — a thin NiO film that forms when cleaning speed is too slow or ventilation is insufficient, allowing localized heat buildup above approximately 300°C. The fix is increasing cleaning speed to 600–700 mm/s within the 0.50–0.88 J/cm² cleaning window and improving extraction airflow. The discoloration is a process signal, not substrate damage — a single corrective pass at the adjusted speed removes it without affecting the underlying nickel surface (Applied Surface Science, 2021–2023).
How does nickel's high reflectivity affect laser cleaning efficiency and safety?
ASTM B162 nickel sheet and B160 rod tolerate laser energy levels of 0.8–1.2 J/cm² for oxide removal — a range that ablates the NiO surface layer without recrystallizing the underlying grain structure. Parts are checked visually and tactilely after cleaning to confirm the surface is undamaged. No abrasive contact and no chemical exposure means dimensional tolerances and surface finish are preserved.
What does laser cleaning typically cost for nickel and nickel alloy components?
On-site laser cleaning for nickel runs $250–$350/hr with no consumables, no chemical disposal, and no secondary prep after cleaning. Most jobs are quoted by surface area or part count after a quick site assessment — call or email for a same-week estimate. Monthly service agreements are available at lower per-hour rates for production volumes.
What are the Cal/OSHA exposure limits for nickel oxide during laser cleaning?
Nickel oxide (NiO) fume generated during nickel laser cleaning is regulated as an insoluble nickel compound at 0.1 mg/m³ TWA under Cal/OSHA Title 8 §5155 Table AC-1 — this is ten times stricter than the federal OSHA PEL of 1 mg/m³ for nickel metal and insoluble compounds under 29 CFR 1910.1000 Table Z-1 (OSHA 1910.1000 2023). Metallic nickel particulate has a separate Cal/OSHA limit of 0.5 mg/m³ TWA; where fume streams mix NiO and Ni, apply the 0.1 mg/m³ insoluble compound limit as the controlling standard.
Technical Data
- This material (highlighted)
- Other materials in this group
Machine Settings
Nickel's thermal conductivity of 90.7 W/m·K makes it far more forgiving than copper or aluminum for laser cleaning — heat distributes quickly, the heat-affected area stays small, and the 2.1 J/cm² damage threshold gives you a generous operating window for oxide removal at 0.8–1.5 J/cm² without touching the passive NiO film underneath. The 37% light absorption at 1064 nm is moderate but workable. What overrides all of that is the toxicology.
Laser-Material Interaction
Start at 0.8–1.2 J/cm² for oxide and contamination removal. This stays well below the 2.1 J/cm² damage threshold. It preserves the NiO passive film on the cleaned surface. Scan at 500–700 mm/s with 40% overlap on solid nickel. Increase overlap to 60% on electroformed or plated parts. Surface uniformity is critical for these components. Rainbow discoloration indicates residual thermal oxide. This usually comes from insufficient speed or poor ventilation. It is a process signal, not surface damage.
Material Characteristics
At 1064 nm, nickel absorbs approximately 36–37% of incident energy — significantly higher than the mere 5% coupled by highly reflective aluminum or the 3% coupled by barely-absorbing copper, making nickel well-suited to 1064 nm Nd:YAG or fiber laser cleaning systems.
Technical Reference — Nickelliterature-sourced
| Parameter | Value |
|---|---|
| NiO oxide cleaning onset (ns, 1064 nm) | 0.45–0.50 J/cm² (±±0.05 J/cm²) |
| Optimal cleaning window (ns, 1064 nm) | 0.50–0.88 J/cm² |
| Substrate damage threshold (ns, 1064 nm) | 4.15 J/cm² |
| Operating point (Z-Beam) | 0.70 J/cm² (within 0.50–0.88 J/cm² cleaning window; 20% below 0.88 J/cm² pitting onset) |
| Cal/OSHA PEL — nickel insoluble compounds (as Ni) | 0.1 mg/m³ TWA |
| Cal/OSHA PEL — nickel metal (as Ni) | 0.5 mg/m³ TWA |
| Federal OSHA PEL — nickel metal and insoluble compounds (as Ni) | 1 mg/m³ TWA |
When Laser Cleaning Does Not Work
| Condition | Consequence |
|---|---|
| Fluence above 0.88 J/cm² on nickel surface (superalloy reference); above 4.15 J/cm² bulk substrate damageHard stop | Above 0.88 J/cm²: pitting and remelting onset on nickel surface (oxide layer and near-surface). Above 4.15 J/cm²: bulk substrate ablation and dimensional loss. |
| CO-containing atmosphere during laser heating above 60°CHard stop | Nickel carbonyl (Ni(CO)4) formation — highly toxic gas (IDLH 0.67 ppm); acute inhalation hazard |
Compliance · Bay Area (BAAQMD) + California (Cal/OSHA Title 8)
| Contaminant | BAAQMD Permit |
|---|---|
| Nickel Insoluble Compounds As Ni (NiO Fume — Primary Laser Cleaning Byproduct) | Not required |
| Nickel Metal As Ni (metallic Nickel Particulate) | Not required |
Process Window — Nickel
Netalux Kamino 300, 1064nm fiber, 100ns pulse
| Surface Condition | Floor (J/cm²) | Ceiling (J/cm²) | Window (J/cm²) | Safety % |
|---|---|---|---|---|
| Light NiO oxide scale (thin passive film, < 1 µm) | 0.45 | 4.15 | 3.7 | 20% |
| Moderate NiO scale / thermal oxide (1–10 µm, post-service component) | 0.5 | 4.15 | 3.65 | 20% |
Sources(6 references)
Sources(6 references)
"Nickel, metal and insoluble compounds (as Ni)" permissible exposure limit: 1 mg/m³
OSHA. OSHA. Table Z-1 Limits for Air Contaminants, 29 CFR 1910.1000. U.S. Department of Labor (2023). "nickel sulfate and the combinations of nickel sulfides and oxides encountered in the nickel-refining industry cause cancer in humans"
National Toxicology Program. National Toxicology Program. Nickel Compounds and Metallic Nickel. 15th Report on Carcinogens. NIH/NCBI (2021). - Nanosecond pulsed laser ablation of Inconel 718, Sci. Rep. 2024, s41598-024-81233-0. (opens in new tab)
- Monitoring laser cleaning of titanium alloys by probe beam reflection and emission spectroscopy, Applied Physics A, 2008. (opens in new tab)
- MatWeb Material Property Data — Online Materials Information Resource (opens in new tab)
- Laser cleaning process of high-pressure turbine blade: Characterization and removal of surface contaminants, Surface and Coatings Technology, 2023 (opens in new tab)
